NordicTrack NETL14712.0 User Manual

T17.2 nordictrack
Hide thumbs Also See for NETL14712.0:
Table of Contents

Advertisement

Quick Links

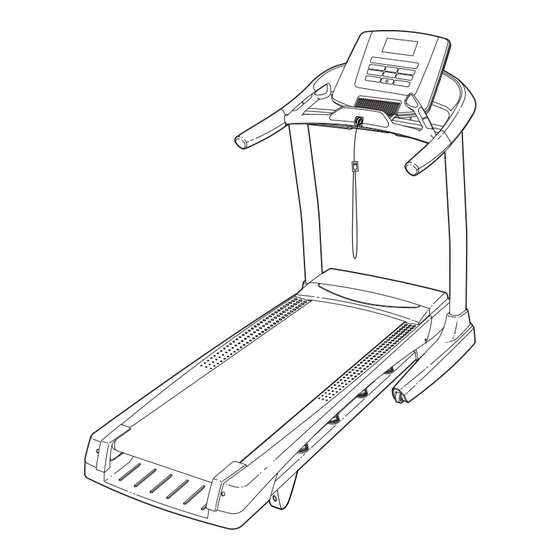

Model No. NETL14712.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
CUSTOMER SERVICE
UNITED KINGDOM
Call: 08457 089 009
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
CASTLEFORD
WF10 5QJ
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
www.iconeurope.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NETL14712.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NordicTrack NETL14712.0

Summary of Contents for NordicTrack NETL14712.0

  • Page 1 Decal CUSTOMER SERVICE UNITED KINGDOM Call: 08457 089 009 From Ireland: 053 92 36102 Website: www.iconsupport.eu E-mail: csuk@iconeurope.com Write: ICON Health & Fitness, Ltd. c/o HI Group PLC Express Way CASTLEFORD WF10 5QJ UNITED KINGDOM AUSTRALIA Call: 1800 993 770 E-mail: australiacc@iconfitness.com...

  • Page 2: Table Of Contents

    Apply the decal in the location shown. Note: The decals may not be shown at actual size. NORDICTRACK is a registered trademark of ICON IP, Inc.

  • Page 3: Important Precautions

    To reduce the risk of burns, fire, electric shock, or injury to persons, read all important precautions and instructions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sus- tained by or through the use of this product.
  • Page 4 DANGER: 21. Do not attempt to move the treadmill until Always unplug the power it is properly assembled. (See ASSEMBLY cord immediately after use, before clean- on page 7 and HOW TO FOLD AND MOVE ing the treadmill, and before performing the THE TREADMILL on page 25.) You must be maintenance and adjustment procedures able to safely lift 45 lbs.

  • Page 5: Before You Begin

    BEFORE YOU BEGIN Thank you for selecting the revolutionary reading this manual, please see the front cover of this NORDICTRACK T 17.2 treadmill. The T 17.2 treadmill manual. To help us assist you, please note the product ® offers an impressive selection of features designed model number and serial number before contacting us.

  • Page 6: Part Identification Chart

    PART IDENTIFICATION CHART Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw- ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly.

  • Page 7: Assembly

    ASSEMBLY • Assembly requires two persons. • To identify small parts, see page 6. • P lace all parts in a cleared area and remove the • A ssembly requires the following tools: packing materials. Do not dispose of the packing materials until you finish all assembly steps. the included hex key • A fter shipping, there may be an oily substance one adjustable wrench on the exterior of the treadmill.

  • Page 8: Wire (A) Through The Indicated Hole In The Base

    3. Pull the Upright Wire (81) and the base ground wire (A) through the indicated hole in the Base (94) using the plastic tie. Square Hole Attach the base ground wire (A) to the Base (94) with a #8 x 1/2" Ground Screw (10). Hole Press the Grommet (77) into the square hole in the Base (94).
  • Page 9 5. Hold the Left Upright (89) against the Base (94). Be careful not to pinch any wires. Insert two 3/8" x 2 3/4" Screws (7) and two 3/8" x 1 1/4" Screws (8) with two 3/8" Star Washers (13) into the Left Upright.
  • Page 10 7. Attach the left handrail assembly (B) to the Left Upright (89) with two 5/16" x 2 1/2" Screws (37) and two 5/16" Star Washers (11). Be careful not to pinch the Upright Wire (81). Start both Screws, but do not tighten them yet. Attach the right handrail assembly (C) in the same way.
  • Page 11 9. Set the console assembly face down on a soft surface to avoid scratching the console assembly. Remove the four indicated 1/4" x 1/2" Screws (4) from the Console Frame (104). These are used in a later step. Attach the Left and Right Cup Holders (36, 27) with eight #8 x 1/2"...
  • Page 12 11. Remove the two #8 x 1 1/4" Screws (107) and slide the Right Handrail Cover (80) back about Console Assembly 1 in. The Screws will be reattached in a later step. Note: It is not necessary to move the Right Handrail Insert (85).
  • Page 13 13. Set the Console (103) onto the Console Base (64). Make sure that none of the wires from the Console are pinched. Attach the Console (103) to the Console Base (64) with six #8 x 1/2" Screws (1). Wires 14. Connect the ground wires (G), the 8-pin wires (F), the 10-pin wires (E), and the four speaker wires (H) from the Console (103).
  • Page 14 15. Insert the Console Base Back (93) into the hole in the console assembly and onto the top of the indicated bracket. Be careful not to pinch any wires. Tighten two #8 x 1/2" Flat Head Screws (31) into the tray on the Console Base Back (93). Bracket Console Assembly...
  • Page 15 17. Slide the Handrail Covers (79, 80) forward until they match up with the Console Base (64). Console Attach the Handrail Covers with the four #8 x Assembly 1 1/4" Screws (107) that you removed in steps 10 and 11. Do not overtighten the Screws. Tighten four #8 x 3/4"...

  • Page 16: The Chest Heart Rate Monitor

    THE CHEST HEART RATE MONITOR HOW TO PUT ON THE HEART RATE MONITOR • Do not expose the heart rate monitor to direct sun- light for extended periods of time; do not expose it The heart rate to temperatures above 122° F (50° C) or below 14° monitor consists of F (-10°...

  • Page 17: Operation And Adjustment

    OPERATION AND ADJUSTMENT HOW TO PLUG IN THE POWER CORD Follow the steps below to plug in the power cord. This product must be earthed. If it should malfunc- 1. Plug the indicated end of the power cord into the tion or break down, earthing provides a path of least socket on the treadmill.
  • Page 18 CONSOLE DIAGRAM FEATURES OF THE CONSOLE You can even listen to your favorite workout music or audio books with the console’s stereo sound system The treadmill console offers an impressive array of while you exercise. features designed to make your workouts more effec- To turn on the power, see page 19.

  • Page 19: To Use The Manual Mode

    HOW TO TURN ON THE POWER If you press the Start button or the Speed increase button, the walking belt will begin to move at 2 IMPORTANT: If the treadmill has been exposed to Km/H. As you exercise, change the speed of the cold temperatures, allow it to warm to room tem- walking belt as desired by pressing the Speed perature before you turn on the power.
  • Page 20 The matrix offers several display tabs. Press the Before using increase and decrease button next to the Enter the handgrip button until the desired tab is shown. heart rate moni- tor, remove the The Incline tab will show a profile of the incline set- sheets of plastic tings of the workout.

  • Page 21: To Use An Onboard Workout

    HOW TO USE AN ONBOARD WORKOUT The workout will continue in this way until the last segment of the profile flashes in the display and the 1. Insert the key into the console. last segment ends. The walking belt will then slow to a stop.
  • Page 22 HOW TO USE AN IFIT WORKOUT When you select an iFit workout, the display will show the duration of the workout, the distance you Note: To use an iFit workout, you must have access to will walk or run, the approximate number of calories a computer with a USB port and an internet connec- you will burn, the name of the workout, and the tion.
  • Page 23 HOW TO USE A SET-A-GOAL WORKOUT 5. Measure your heart rate if desired. 1. Insert the key into the console. See step 6 on page 20. 6. Turn on the fan if desired. See HOW TO TURN ON THE POWER on page 19. 2.
  • Page 24 THE INFORMATION MODE into the reset position, and insert the key into the console. However, when you remove the key, the The console features an information mode that keeps displays will remain lit, although the buttons will not track of treadmill information and allows you to person- function.

  • Page 25: How To Fold And Move The Treadmill

    HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL HOW TO MOVE THE TREADMILL To avoid damaging the treadmill, adjust the incline Before moving the treadmill, fold it as described at the to the lowest position before you fold the treadmill. left.

  • Page 26: Troubleshooting

    TROUBLESHOOTING Most treadmill problems can be solved by following c. Remove the key from the console, and then the simple steps below. Find the symptom that reinsert it. applies, and follow the steps listed. If further assis- tance is needed, see the front cover of this manual. d.
  • Page 27 Locate the Reed Switch (52) and the Magnet (50) b. If the walking belt is overtightened, treadmill per- on the left side of the Pulley (49). Turn the Pulley formance may decrease and the walking belt may until the Magnet is aligned with the Reed Switch. become damaged.
  • Page 28 SYMPTOM: The walking belt is not centered SYMPTOM: The walking belt slips when walked on between the foot rails. IMPORTANT: If the walking belt rubs against the foot rails, the walking belt a. First, remove the key and UNPLUG THE POWER may be damaged.

  • Page 29: Exercise Guidelines

    EXERCISE GUIDELINES Burning Fat—To burn fat effectively, you must exer- WARNING: cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy.

  • Page 30: Part List

    PART LIST Model No. NETL14712.0 R1212A Key No. Qty. Description Key No. Qty. Description #8 x 1/2" Screw Reed Switch Clip #8 x 3/4" Screw Reed Switch 3/8" x 2" Bolt Storage Latch 1/4" x 1/2" Screw Drive Motor 1/4" Star Washer...
  • Page 31 Key No. Qty. Description Key No. Qty. Description Left Speaker Cover Incline Motor Spacer Right Speaker Cover Console Chest Strap Console Frame Chest Sensor Console Ground Wire #8 x 3/4" Truss Head Screw Console Clamp #8 x 5/8" Screw #8 x 1 1/4" Screw Motor Bushing #3 Screw Electronics Bracket...

  • Page 32: Exploded Drawing

    EXPLODED DRAWING A Model No. NETL14712.0 R1212A...
  • Page 33 EXPLODED DRAWING B Model No. NETL14712.0 R1212A...
  • Page 34 EXPLODED DRAWING C Model No. NETL14712.0 R1212A...
  • Page 35 EXPLODED DRAWING D Model No. NETL14712.0 R1212A...

  • Page 36: Ordering Replacement Parts

    European standards of environmental protection. If you require more information about safe and correct disposal methods, please contact your local city office or the establishment where you purchased this product. Part No. 338069 R1212A Printed in USA © 2012 ICON IP, Inc.
