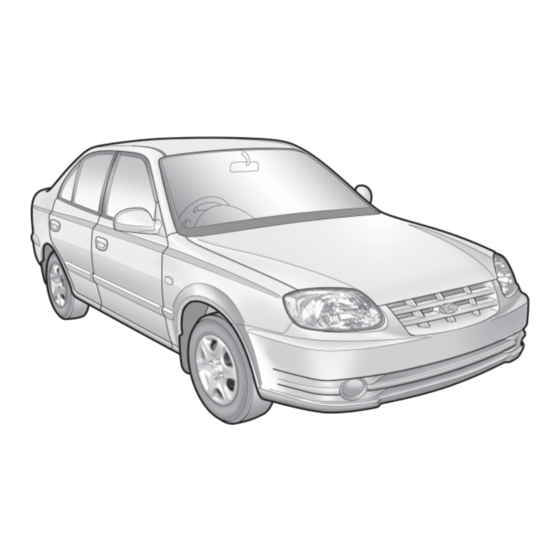

Hyundai Accent Owner's Manual
  1. Manuals
  2. Brands
  3. Hyundai Manuals
  4. Automobile
  5. ACCENT
  6. Owner's manual

Hyundai Accent Owner's Manual

Hide thumbs Also See for Accent:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Quick Reference Manual
A010A03A-AAT
WARRANTIES FOR YOUR HYUNDAI VEHICLE
o New Vehicle 60 Months/60,000 Miles Limited Warranty
o New Vehicle 120 Months/100,000 Miles Limited Powertrain Warranty (original owner only)
o Anti-Perforation Limited Warranty
o Emission Defect Warranty - Federal Vehicle
o California Emission Control System Warranty (if applicable)
o Emission Performance Warranty - Federal Vehicle
o Replacement Parts and Accessories Limited Warranty
NOTE:
Detailed warranty information is provided in your Hyundai Owner's Handbook.
A020A01A-AAT
RESPONSIBILITY FOR MAINTENANCE
The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility
to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals.
When the vehicle is used in severe driving conditions, more frequent maintenance is required for some operations.
Maintenance requirements for severe operating conditions are also included in Section 5.
lcflhma-0.p65
2
9/24/04, 11:36 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accent and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai Accent

Summary of Contents for Hyundai Accent

  • Page 1 A020A01A-AAT RESPONSIBILITY FOR MAINTENANCE The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals.

  • Page 2: Specifications

    Specifications A030A01A All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any time so that our policy of continual product improvement may be carried out. This manual applies to all Hyundai models and includes descriptions and explanations of optional as well as standard equipment.
  • Page 3 Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations established by the U.S. Department of Transportation and other federal or state agencies.
  • Page 4 Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.
  • Page 5 A090A01A-AAT SAFETY AND VEHICLE DAMAGE WARNING This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following: WARNING: This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded.
  • Page 6 TABLE OF CONTENTS FEATURES OF YOUR HYUNDAI DRIVING YOUR HYUNDAI WHAT TO DO IN AN EMERGENCY CORROSION PREVENTION & APPEARANCE CARE VEHICLE MAINTENANCE REQUIREMENTS SECTION DO-IT-YOURSELF MAINTENANCE EMISSION CONTROL SYSTEMS CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS...

  • Page 7: Instruments And Controls

    INSTRUMENTS AND CONTROLS B250A01A-AAT B250A01A-1 lcflhma-0.p65 9/24/04, 11:36 AM...
  • Page 8 1. Panel Brightness Control Knob (Rheostat Switch) 12.Heating/Air Conditioning Control Panel 2. Rear Wiper/Washer Switch (If Installed) 13.Passenger's Airbag 3. Multi-Function Light Switch 14.Glove Box 4. Instrument Cluster 15.Hood Release Lever 5. Horn and Driver's Airbag 16.Cigarette Lighter 6. Windshield Wiper/Washer Switch 17.Ashtray 7.
