OPERATION MANUAL
OPERATION MANUAL
REC-B6510K

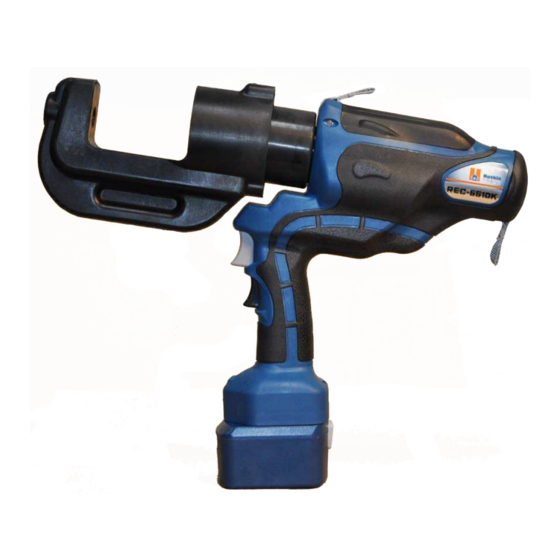

REC-B6510K: 12 Ton Compression Tool
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
www.spartacogroup.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Huskie Tools REC-B6510K
Summary of Contents for Huskie Tools REC-B6510K
- Page 1 OPERATION MANUAL OPERATION MANUAL REC-B6510K REC-B6510K: 12 Ton Compression Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767...
-
Page 2: Table Of Contents
REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing an Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets. -
Page 3: Warranty
WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty. -
Page 4: Safety
SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protec- tion could result in serious eye injury from flying debris This safety alert symbol indicates a potential per- or hydraulic oil. sonal injury hazard; it is not used for messages related to property damage only. -
Page 5: Kit Includes
It also eliminates the cumbersome hoses and larger, heavier tools traditionally used in overhead work. The REC-B6510K has a full 12-ton capacity and its 1.5 inch jaw opening accepts lugs up to 1033 MCM. Compression head rotates 180° for use in any position. -
Page 6: Specifications
SPECIFICATIONS REC-B6510K Specifications Output 12 Ton Features Weight 13.5 lbs. with Battery • Utilizes Kearney Type Dies Size 17.1”L x 11.2”H x 3.1”W • One Hand Operation • Tested Up to 75kV • Rotational Head • Bright White, LED Lights for Working in... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS CHARGING THE BATTERY 1. Insert the plug end into a 120V power source. The LED (Power) indicator will be steady green indicating the charger is now in “stand-by” mode and ready to charge the battery. Do not plug the charger into a generator as this will likely cause the fuse in the charger to short, and will not operate. -
Page 8: Operating Instructions (Part 2)
OPERATING INSTRUCTIONS COMPRESSION 1. Retract the ram by pressing the release button. 2. Select the appropriate size die set for the connector. Insert die half in ram by pressing into place and secure by tightening the 3mm set screw with the provided allen key. 3. -
Page 9: Operating Precautions
OPERATING PRECAUTIONS PRECAUTION FOR THE TOOL 1. Select appropriate dies for the connector to be compressed. Incorrect combinations result in inferior connections of the conductors. Consult your connector manufacturer for the recommended die/connector combinations. 2. Always point the tool AWAY from other people. 3. -
Page 10: Breakdown
BREAKDOWN www.spartacogroup.com 800-860-6170... -
Page 11: Parts List
PARTS LIST DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. Head Insulation 451K-03 Retainer SLND-14 Head 651K-01 Spring (686) EZ-26 M6x10 Screw(C.P.) 46-06 Spring (420) 9H2-02 M5 X 8 Nylock Screw (D.P.) 85F-03 Bush R14A-19 LPH-30 Dust Seal 451-05 P-3 O-Ring 16-36 Guide Ring 651K-02 P-5 O-Ring (B) -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION Consult Factory for Repair Insufficient Hydraulic Oil Service MOTOR RUNS, BUT THE Invert tool to allow air to rise TOOL JAWS WILL NOT Air Block in Hydraulic System towards the top of the oil ADVANCE bladder Consult Factory for Repair Defective Hydraulic Circuit... - Page 13 NOTES...
- Page 14 NOTES...
- Page 15 NOTES...
- Page 16 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
