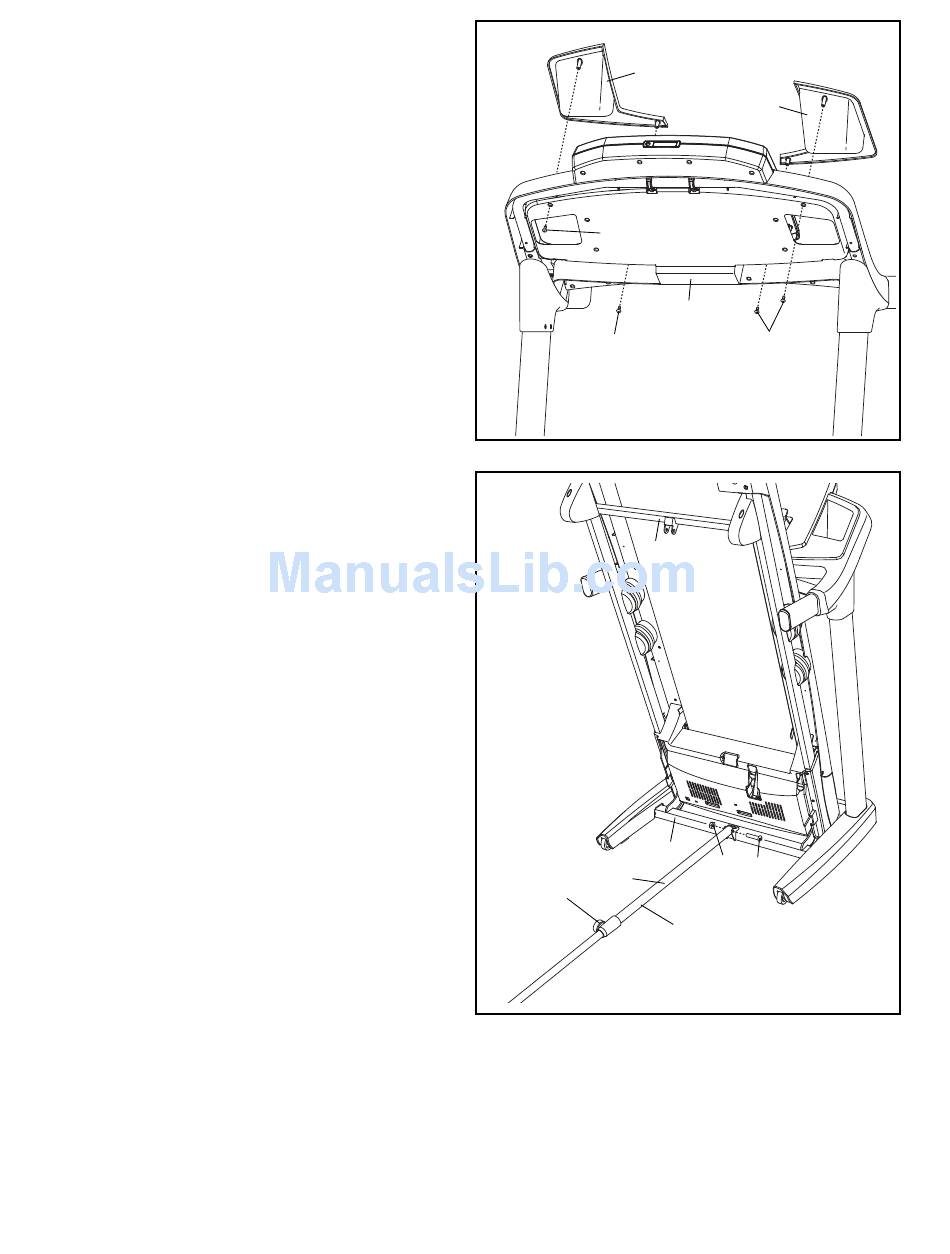

15. Attach the Left and Right Trays (107, 108) to the
console assembly with four #8 x 1/2" Screws (1).
16. Next, raise the Frame (56) to the position
shown. Have a second person hold the
Frame until step 17 is completed.
Orient the Storage Latch (53) so that the large
barrel and the latch knob are oriented as shown.
Attach the lower end of the Storage Latch (53) to
the Base (94) with a 3/8" x 2" Bolt (3) and a 3/8"
Nut (12).
