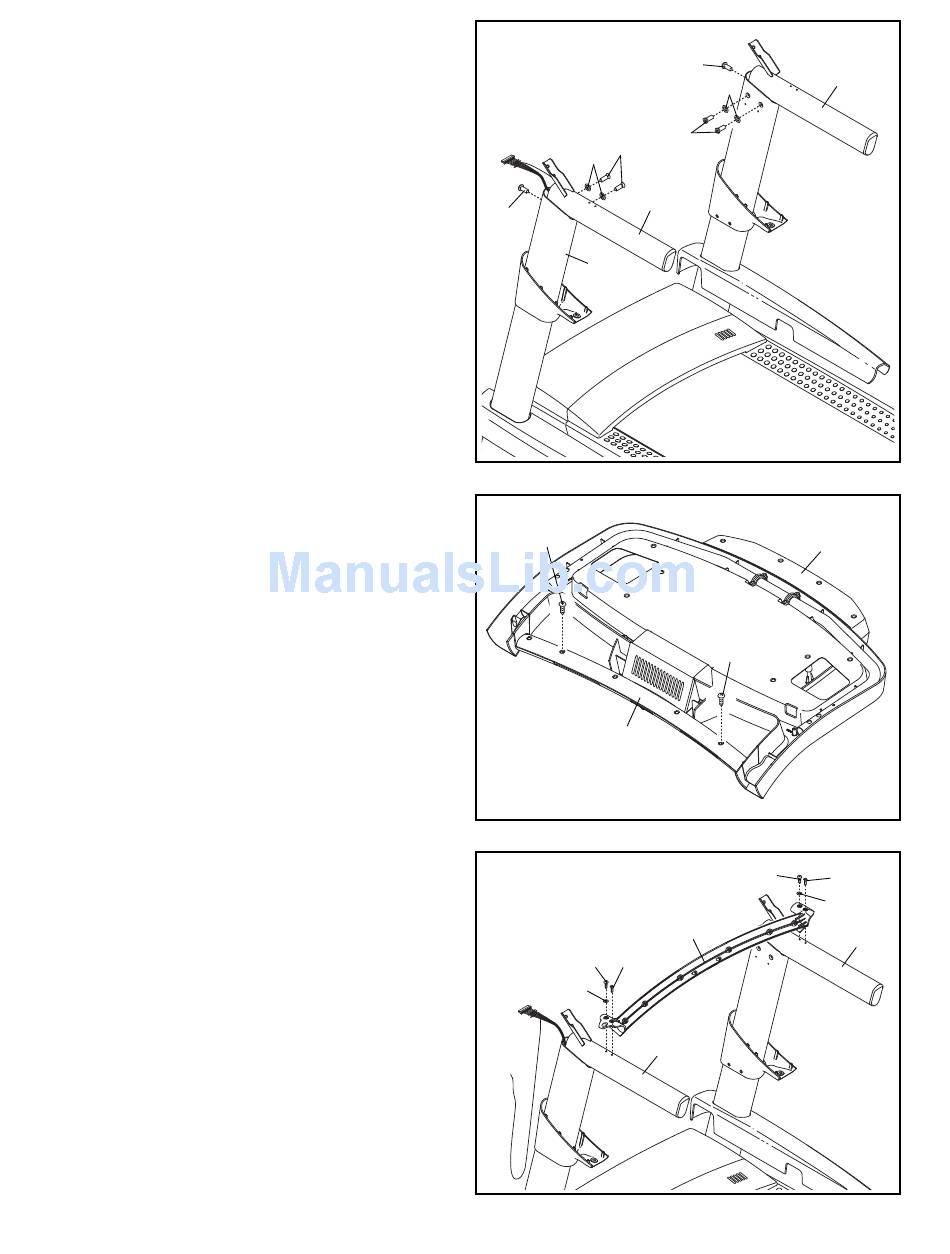

7. Attach the Left Handrail (88) to the Left Upright
(89) with two 5/16" x 1" Screws (5), two 5/16"
Star Washers (11), and a 5/16" x 1 1/4" Screw
(4). Do not fully tighten the Screws yet.
Attach the Right Handrail (87) in the same
way.
8. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Remove the two Screws (A). Next, lift off the
Crossbar (93). Discard the two Screws.
9. IMPORTANT: To avoid damaging the
Crossbar (93), do not use power tools and
do not overtighten the #10 x 3/4" Screws (9)
or the #10 x 3/4" Flat Head Screws (112).
Orient the Crossbar (93) as shown. Attach the
Crossbar to the Handrails (87, 88) with two #10
x 3/4" Flat Head Screws (112), two #10 x 3/4"
Screws (9), and two 1/4" Star Washers (35) as
shown. Start all four Screws, and then tighten
each of them.
7
5
11
4
89
8
A
93
9
112
9
35
10
4
11
5
88
Console
Assembly
A
9
93
88
87
112
35
87
