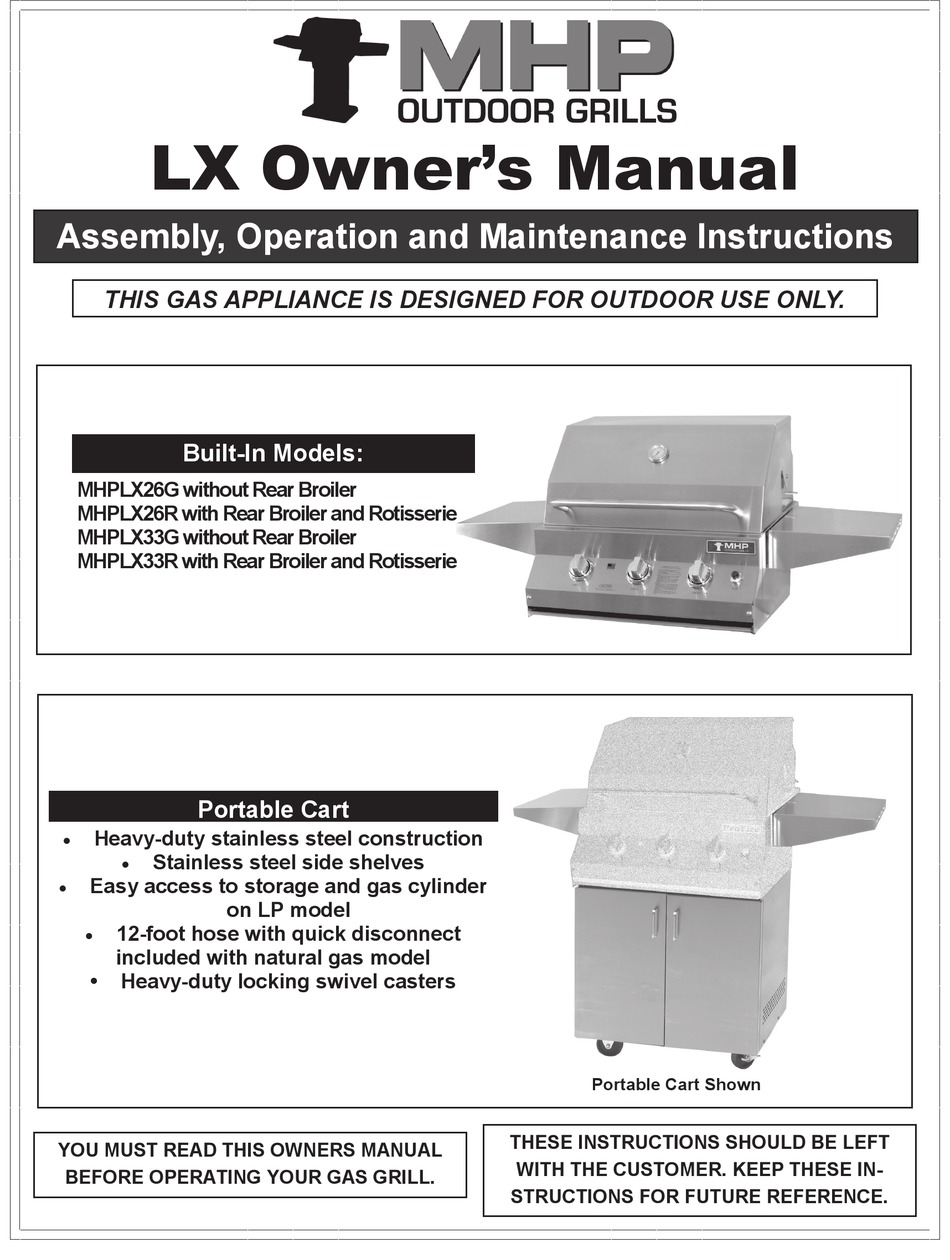

LX Owner's Manual
Assembly, Operation and Maintenance Instructions
THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.
Built-In Models:
MHPLX26G without Rear Broiler
MHPLX26R with Rear Broiler and Rotisserie
MHPLX33G without Rear Broiler
MHPLX33R with Rear Broiler and Rotisserie
Portable Cart
Heavy-duty stainless steel construction
Stainless steel side shelves
Easy access to storage and gas cylinder
on LP model
12-foot hose with quick disconnect
included with natural gas model
•
Heavy-duty locking swivel casters
YOU MUST READ THIS OWNERS MANUAL
BEFORE OPERATING YOUR GAS GRILL.
Portable Cart Shown
THESE INSTRUCTIONS SHOULD BE LEFT
WITH THE CUSTOMER. KEEP THESE IN-
STRUCTIONS FOR FUTURE REFERENCE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MHP MHPLX26G
Summary of Contents for MHP MHPLX26G
- Page 1 LX Owner’s Manual Assembly, Operation and Maintenance Instructions THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY. Built-In Models: MHPLX26G without Rear Broiler MHPLX26R with Rear Broiler and Rotisserie MHPLX33G without Rear Broiler MHPLX33R with Rear Broiler and Rotisserie Portable Cart Heavy-duty stainless steel construction ...
-
Page 2: Important Safeguards
Code, CSA C22.1. Keep any electrical supply cord, or the rotisserie motor cord and the fuel supply hose away from any heated surfaces. -Children should never use your MHP Grill. Accessible parts of the grill may be very hot. Keep young children away while it is in use. -
Page 3: Safety Instructions
-Never place paper inside the grill. -The MHP gas grill is designed for use without lava rock. The use of lava rock or other forms of briquettes may cause a fire hazard. -Never obstruct the flow of combustion and ventilation air to the grill. -
Page 4: Gas Safety Requirements
• Check with your local gas utility company or with local codes for instructions on installing supply lines. Be sure to check on type and size of run, and how deep to bury the line. If the line is too small the MHP gas grill will not function properly. Any joint sealant used must be an approved type and be resistant to actions of LP and Natural gases. - Page 5 NOTE: Hose and Regulator is preassembled to the grill valve at the factory. • Only 20 lb. cylinders equipped with an OPD (Overfill Protection Device) should be used with your MHP Grill. Only one propane cylinder may be located in an enclosure or cart. Extra spare cylinders must be stored outdoors out of the reach of children and outside of any building, garage or other enclosed area.
- Page 6 Your MHP grill is protected by a warranty that is one of the finest in the industry. Take a moment to read the warranty statement on the back page and refer to it should service become necessary.
- Page 7 BUILT-IN SPECIFICATIONS Built-In Grill Unit NOTE: Enclosure Must Be Constructed Of Non-Combustible Materials. Consult the table below for enclosure cut-out dimensions. NOTE: Area directly beneath the grill must be open. No solid surface. CAUTION: An enclosure for LP Gas Cylinder must be vented on the level of the cylinder valve and at floor level. The effectiveness of the opening(s) for purposes of ventilation must be determined with the LP Gas Cylinder in place.
-
Page 8: Assembly Instructions
ASSEMBLY INSTRUCTIONS The MHP Grill is produced fully assembled and tested in the factory and requires no major assembly in the field. For the purpose of safe shipping and transit, some parts such as the Flavor Plates, Cooking Grids and Rotisserie components are wrapped inside the grill and require minor assembly. -
Page 9: Operating Instructions
LP unit must be the type specified by CONTROL PANEL MHP. Do not use the grill if the odor of gas is present. The pressure regulator and hose assembly supplied with the unit must be used. - Page 10 Do not cut or remove the grounding prong from this plug. For grilling/searing steaks, chops, burgers, sausages, fish filets, chicken parts or shish kabobs. Your MHP Gas Grill is designed to The spit rod for the rotisserie fits into the motor assembly by placing cook with the lid closed.
-
Page 11: Cooking Times
COOKING TIMES A Quick Reference BEEF Hamburgers Thick 3-5 Minutes Per Side MEDIUM Steaks Thick 4-10 Minutes Per Side* MEDIUM Tenderloin 3” Diameter 30-40 Minutes Med-Low Turning Occasionally PORK Chops 3/4-1” Thick 8-10 Minutes Per Side* MEDIUM Tenderloin (whole) 2” Diameter 20-25 Minutes* Medium-Low Turning Occasionally Ribs... -
Page 12: Care And Maintenance
Commercial stainless steel cleaner and polishers also work well, To remove spider webs and/or other obstructions, you must clean out such as MHP’s Stainless Steel Cleaner (Part #SSC). Do not use the venturis. This should be done routinely if the grill has sat idle for steel wool to clean stainless steel. - Page 13 Can I Get That Charcoal Flavor? The fact is that charcoal does not flavor your outdoor meal, but is only a heat source. The MHP Gas Grill utilizes a special metal flavor plate above the burners that heats up fast and spreads the heat evenly. The delightful backyard taste that comes with barbecue cooking is caused by meat drippings falling on the heat source where they are vaporized to rise and add outdoor flavor to the food.
-
Page 14: Troubleshooting
See low flame above. On natural gas, inadequate pressure at Check pressure. Should be at or near 7" grill. water column. Incorrect orifice. Check orifice size. CAUTION: If problems can not be corrected using these methods, contact your local MHP dealer for assistance. -
Page 15: Parts Information
PARTS INFORMATION MODELS Part No. MHPLX26G MHPLX26R MHPLX33G MHPLX33R Description GGTG4 Round temperature gauge KKK10 Knobs LX-106 Gas collector box LX-125 Cooking Grids LK-29 Flavor Plates LX-39 Drip Pan LX-68 Manifold PERF-137 Burner Orifice PF80-10LX Burners PF80-3828S Electrode W/28” Ignitor Wire... -
Page 16: Warranty
There is no warranty for labor. Before returning any parts, contact the MHP Customer Service Department. If MHP confirms the defect and approves the claim, MHP will elect to replace such parts without charge. If you are required to return defective parts, transportation charges must be prepaid. MHP will return parts to the purchaser, freight or postage prepaid.
