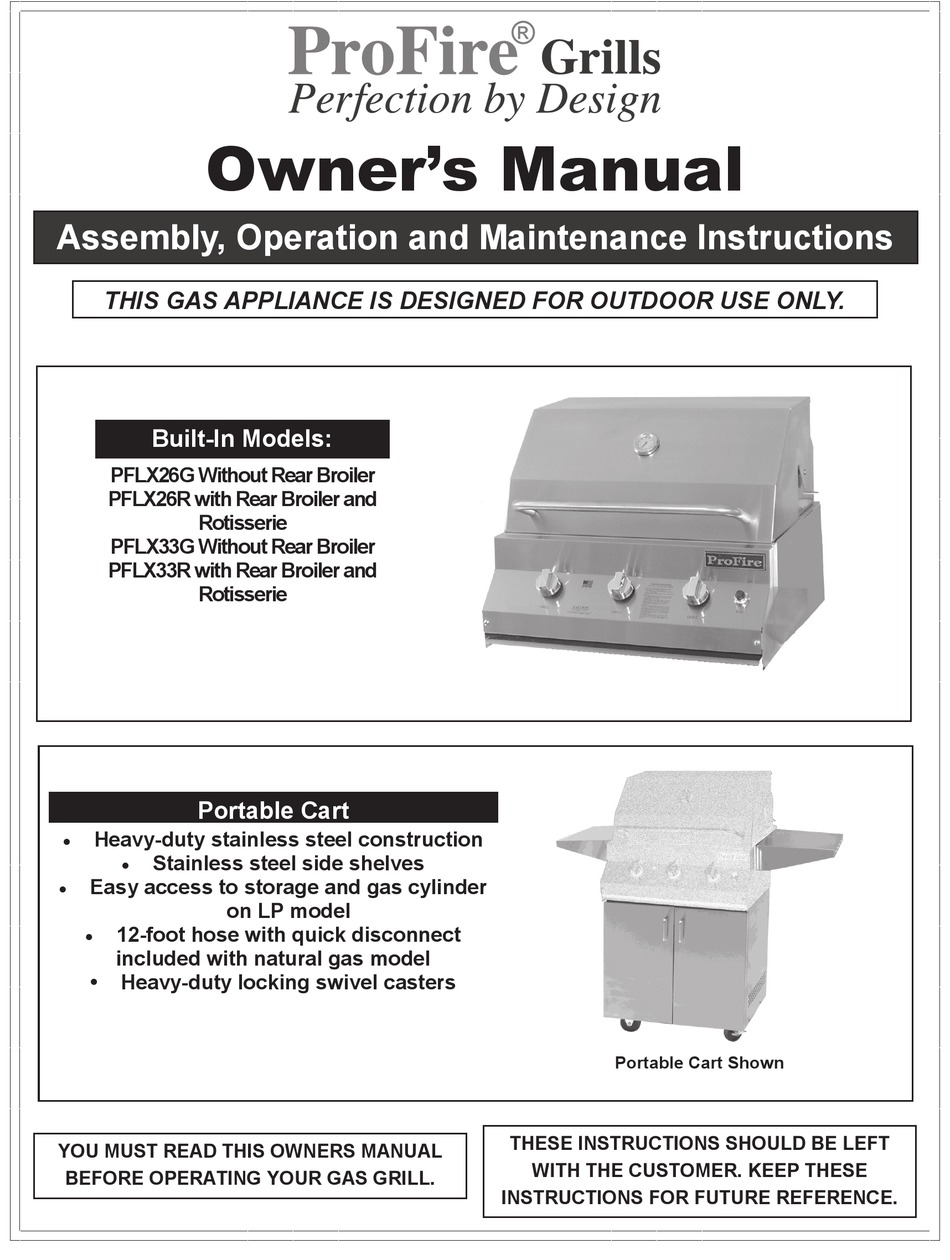

Owner's Manual
Assembly, Operation and Maintenance Instructions
THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.

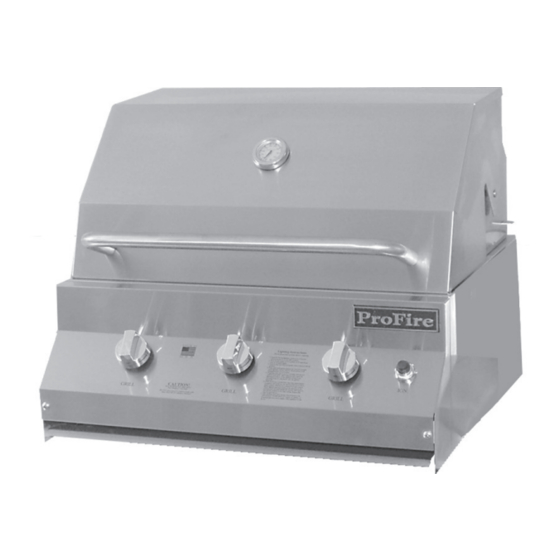

Built-In Models:
PFLX26G Without Rear Broiler
PFLX26R with Rear Broiler and
Rotisserie
PFLX33G Without Rear Broiler
PFLX33R with Rear Broiler and
Rotisserie
Portable Cart
Heavy-duty stainless steel construction
Stainless steel side shelves
Easy access to storage and gas cylinder
on LP model
12-foot hose with quick disconnect
included with natural gas model
•
Heavy-duty locking swivel casters
YOU MUST READ THIS OWNERS MANUAL
BEFORE OPERATING YOUR GAS GRILL.
Portable Cart Shown
THESE INSTRUCTIONS SHOULD BE LEFT
WITH THE CUSTOMER. KEEP THESE
INSTRUCTIONS FOR FUTURE REFERENCE.
Advertisement
Table of Contents
Related Manuals for MHP ProFire PFLX26G
Summary of Contents for MHP ProFire PFLX26G
- Page 1 Owner’s Manual Assembly, Operation and Maintenance Instructions THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY. Built-In Models: PFLX26G Without Rear Broiler PFLX26R with Rear Broiler and Rotisserie PFLX33G Without Rear Broiler PFLX33R with Rear Broiler and Rotisserie Portable Cart ...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS DANGER Failure to follow the Dangers, Warnings and Cautions contained in this Owner’s Manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property FOR YOUR SAFETY If you smell gas: Shut off gas to appliance. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS -Never grill without the drip pan in place and pushed all the way to the back of the grill. Without it, hot grease could leak downward and produce a fire or explosion hazard. -Do not locate the grill under overhead unprotected surfaces. Use only in well ventilated areas. Do not use in buildings, garages, sheds, breeze- ways, or other such enclosed areas. -
Page 4: Gas Safety Requirements
GAS SAFETY REQUIREMENTS Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the type of gas, either natural gas or LP gas and make sure that the marking on the data plate (rating plate) matches the gas being supplied to the grill. The data plate is located on the rear of the grill behind the side burner or on the right side behind the faceplate. - Page 5 GAS SAFETY REQUIREMANTS LP GAS HOOK-UP • A dented or rusty LP tank may be hazardous and should be checked by your LP Supplier. Never use a cylinder with a damaged valve. Cylinder dimensions should be approximately 12 inches in diameter and 18 inches high. The LP cylinder must be constructed and marked in accordance with the specifications for LP Gas Cylinders of the US Department of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods.
- Page 6 Thank You Your purchase of a ProFire Gas Grill attests to the importance you place upon the quality and performance of your cook- ing equipment. You have purchased the finest Gas Grill ever built. We understand this importance and have made every effort to use only the finest materials available and to design the grill to give you years of dependable service.
-
Page 7: General Specifications
BUILT-IN SPECIFICATIONS Built-In Grill Unit NOTE: Enclosure Must Be Constructed Of Non-Combustible Materials. Consult the table below for enclosure cut-out dimensions. NOTE: Area directly beneath the grill must be open. No solid surface. CAUTION: An enclosure for LP Gas Cylinder must be vented on the level of the cylinder valve and at floor level. The effectiveness of the openings) for purposes of ventilation must be determined with the LP Gas Cylinder in place. - Page 8 ASSEMBLY INSTRUCTIONS The ProFire Grill is produced fully assembled and tested in the factory and requires no major assembly in the field. For the purpose of safe shipping and transit, some parts such as the Flavor Plates, Cooking Grids and Rotisserie components are wrapped inside the grill and require minor assembly.
- Page 9 OPERATING INSTRUCTIONS CAUTION: CAREFUL AS THE BURNER MAY BE VERY HOT! BEFORE LIGHTING THE GRILL If the burners do not operate correctly, check if the air shutter or burner ports are blocked by dirt, debris, spider webs, etc. and pro- ...
- Page 10 Place wood in a convenient Once the food is secure insert the spit rod into the motor. It is normal MHP reusable stainless steel smoke box directly on flavor plates for the spit rod to flex when large cuts of meats are being cooked.
-
Page 11: Cooking Times
COOKING TIMES A Quick Reference BEEF Hamburgers Thick 3-5 Minutes Per Side MEDIUM Steaks Thick 4-10 Minutes Per Side* MEDIUM 3” Diameter Tenderloin 30-40 Minutes Med-Low Turning Occasionally PORK 3/4-1” Thick Chops 8-10 Minutes Per Side* MEDIUM 2” Diameter Tenderloin (whole) 20-25 Minutes* Medium-Low Turning Occasionally Ribs... -
Page 12: Care And Maintenance
Commercial stainless steel cleaner and polishers also work well, such as MHP’s Stainless Steel Cleaner (Part #SSC). Do not use To remove spider webs and/or other obstructions, you must clean out the venturis. This should be done routinely if the grill has sat idle for steel wool to clean stainless steel. - Page 13 GETTING TO KNOW YOUR PROFIRE GAS GRILL Some Questions and Answers. There is really no mystery to gas grill cooking. The best of two worlds are combined in the use of a gas grill, the flavor of charcoal cooking and the convenience and heat control of your kitchen oven.
-
Page 14: Troubleshooting
TROUBLESHOOTING Problem Cause Check The smell of gas with burner flames ap- Check for spiders or insects. pearing yellow. Spiders and insects can nest in the burner The gas grill does not reach temperature. of this or any grill, and cause a disruption in the flow of gas from the burner. -
Page 15: Parts Information
PARTS INFORMATION MODELS Part No. PHLX26G PFLX26R PFLX33G PFLX33R Description GGTG4 Round temperature gauge KKK10 Knobs LX-106 Gas collector box LX-125 Cooking Grids LK-29 Flavor Plates LX-39 Drip Pan LX-68 Manifold PERF-137 Burner Orifice PF80-10LX Burners Electrode W/28” Ignitor Wire PF80-3828S PERF137-101 Bushing for Rotisserie... -
Page 16: Warranty
One Quality Modern Home Products Leads To Another Everglow First in Outdoor Gas Grills First in Grill Replacement Parts Charcoal or Gas Outdoor Lighting MHP configuration, ProFire and Phoenix are registered trademarks of Modern Home Products Corporation ©2013 ProFire, LLC #PFLX 3/13 Printed in U.S.A.
