Taking a Closer Look

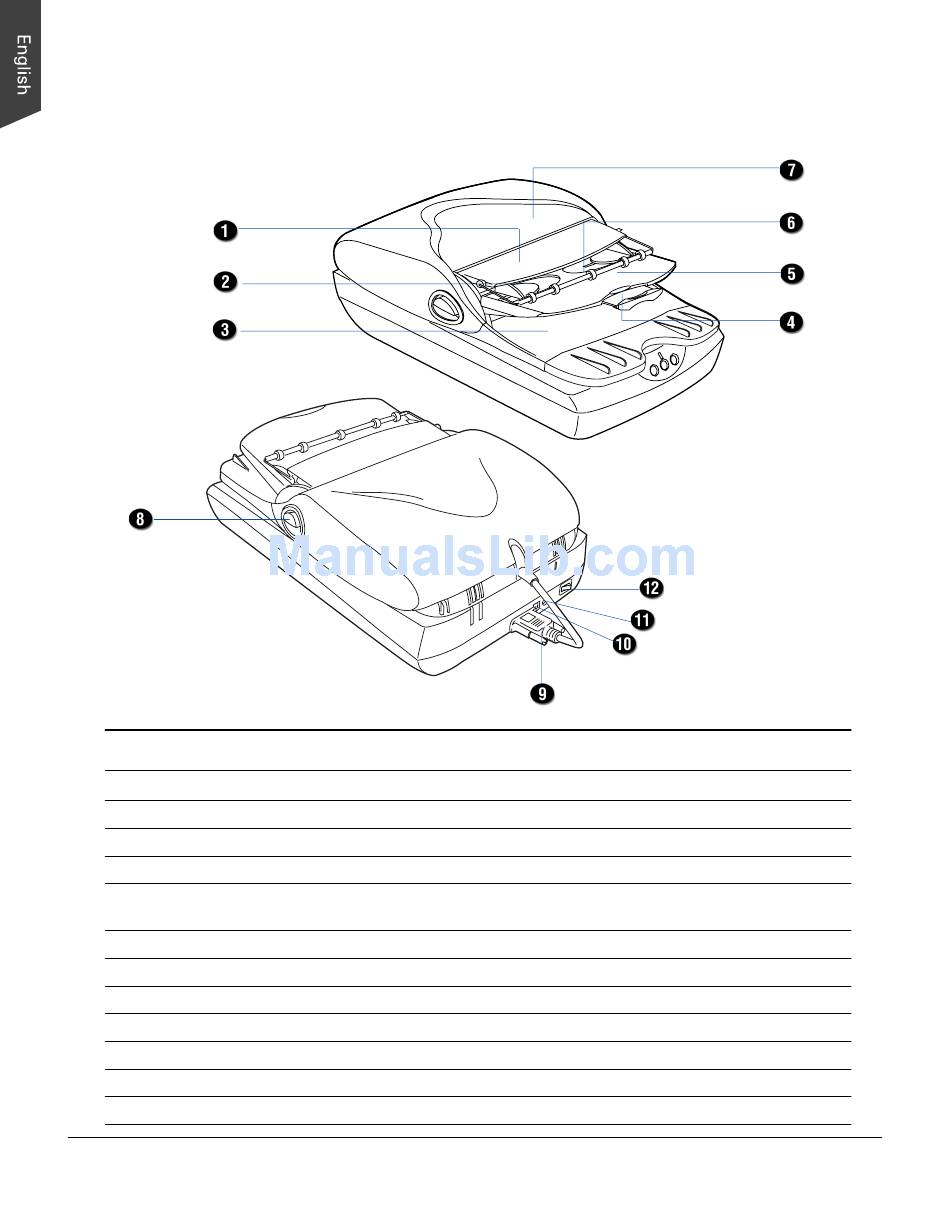

Top/Rear/Side View

No. Names of Parts
1 Tray Flap
2 Guide Arm
3 Document Output Tray
4 Tray Extender
5 Document Feed Tray
6 Paper Stabilizer
7 ADF Cover
8 Earlobe Lever
9 ADF Connector
10 Hi-Speed USB Port
11 Power Connector
12 Power Switch
10 ArtixScan 1200DF User's Manual
Functions of Parts
Used to open the feed tray to load documents.
Slides to hold a stack of documents.
Stores a stack of documents which have been scanned.
Used to extend the length of the Document Feed Tray.
Holds the documents to be fed into the ADF
(for the high-volume document scanning).
Keeps a stack of documents neatly on the Document Feed Tray.
The cover of the Automatic Document Feeder.
Lifts up to open the ADF cover.
Connects the ADF to the scanner.
Connects the Hi-Seed USB (USB 2.0) cable to the computer.
Connects the scanner to the power adapter.
Turns the scanner on or off.
