2.2.7 DDR-SDRAM
Disassembly
1. Carefully put the notebook upside down. Remove the battery pack. (See section 2.2.1 Disassembly)
2. Remove the seven screws fastening the CPU cover. (Refer to step 2 of section 2.2.3 Disassembly)
3. Pull the retaining clips outwards ( ) and remove the SO-DIMM ( ). (Figure 2-15)
Reassembly
1. To install the DDR, match the DDR's notched part with the socket's projected part and firmly insert the
SO-DIMM into the socket at 20-degree angle. Then push down until the retaining clips lock the DDR into
position.
2. Replace the CPU cover and secure with seven screws. (Refer to step 3 of section 2.2.3 Reassembly)
3. Replace the battery pack. (See section 2.2.1 Reassembly)

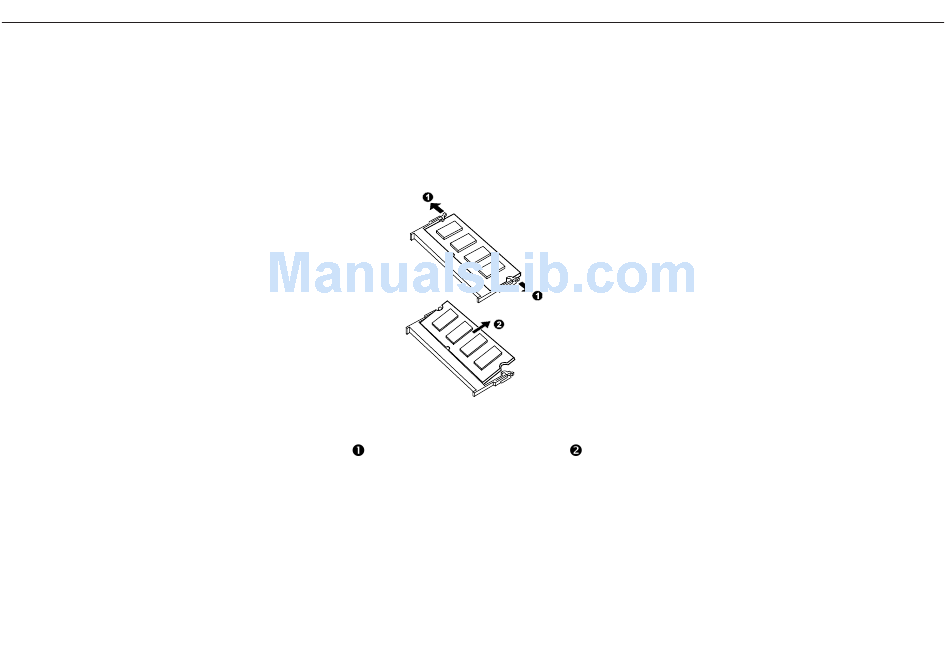

Figure 2-15 Remove the SO-DIMM
63
