Pro-Form 990 CSE User Manual page 9

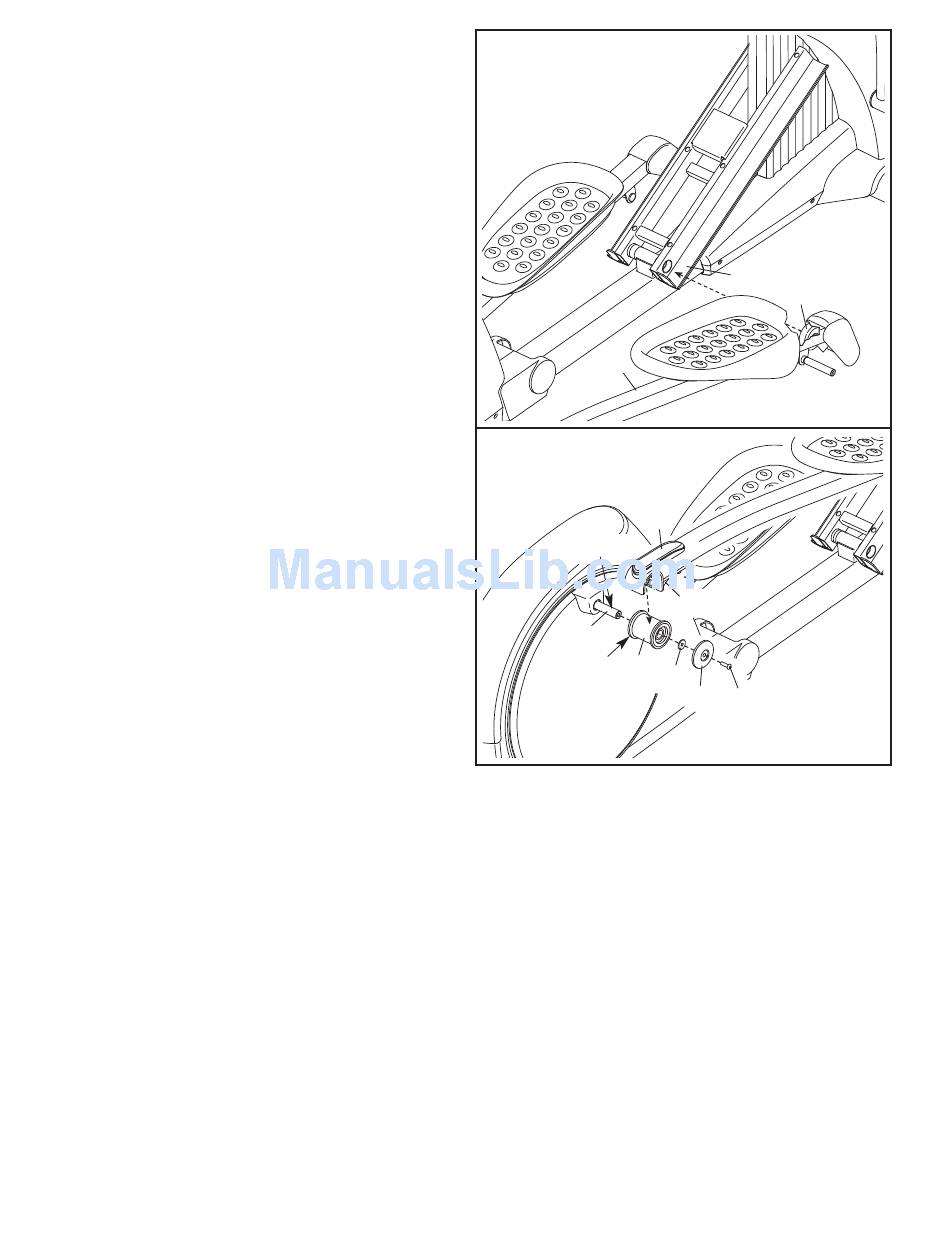

6. See drawing 6a. Locate the Pedal Arm Roller
6a
(32) on the Right Pedal Arm (12). Set the Pedal
Arm Roller on the Ramp (130).
See drawing 6b. Apply grease to the axle on
the right Crank Arm (39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm
(39). Attach the Pedal Arm Sleeve with an M8 x
25mm Screw (121), a Large Axle Cover (113),
and an M8 Washer (95).
130
32
Next, pull upward on the Latch (50) on the Right
Pedal Arm (12). Press the Right Pedal Arm onto
the Pedal Arm Sleeve (46). Make sure that the
12
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
6b
12
Grease
50
39
Flat 46
95
Side
113
121
9
