Pro-Form 990 CSE User Manual page 10

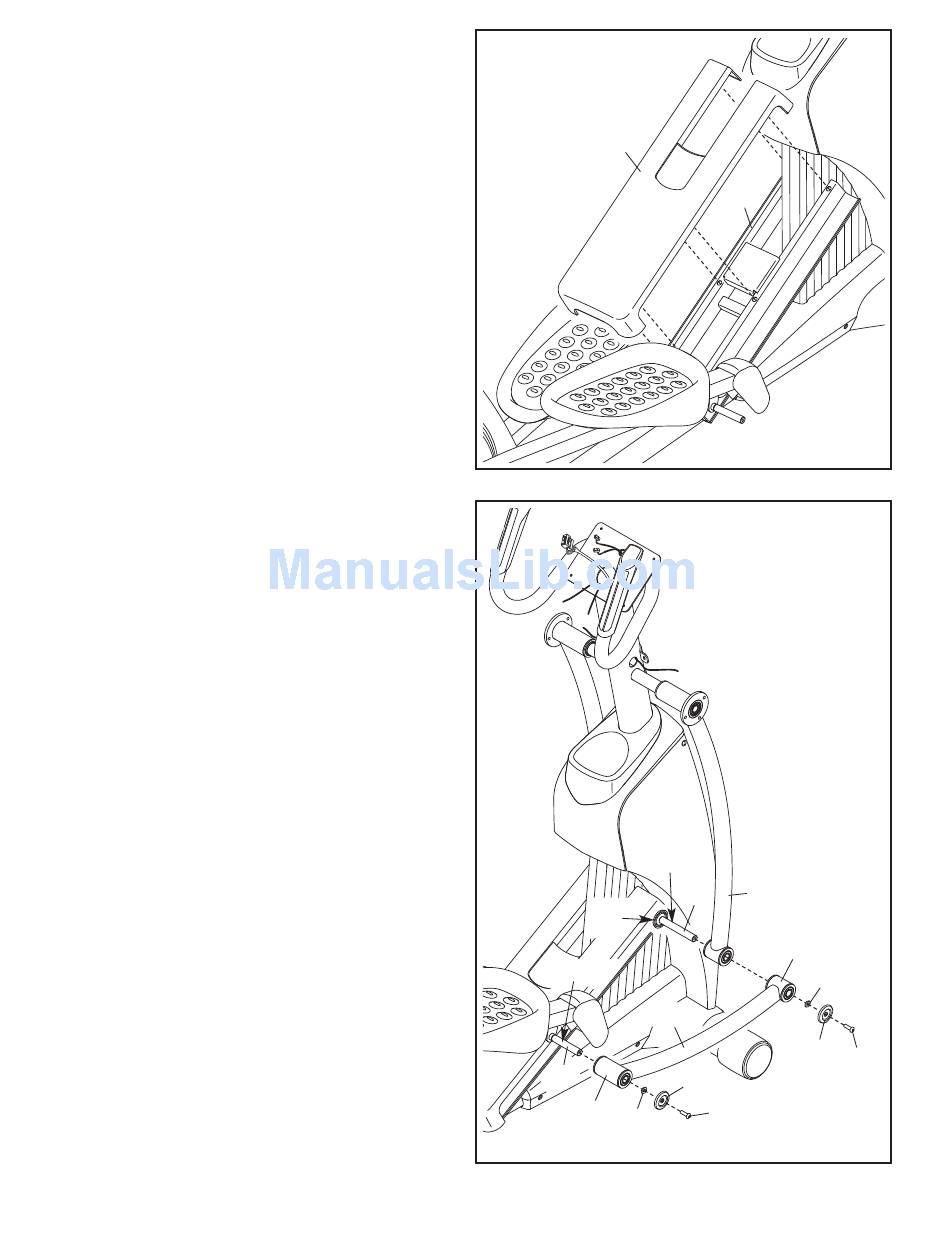

7. Press the Ramp Cover (131) downward onto
the Ramp (130).
8. Identify the Right Link Arm (43), which is
marked with an "R" sticker. Orient the Right Link
Arm as shown.
Apply grease to the axle on the Right Pedal
Arm (12). Slide the Right Link Arm (43) onto the
axle.
Attach the Right Link Arm (43) with an M8 x
16mm Screw (102), a Small Axle Cover (56),
and an M8 Washer (95).
Next, apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle into the Right Upper
Body Leg (6) and the Right Link Arm (43) from
the side shown.
Insert a hex key into the M8 x 16mm Screw
(102) in the Link Arm Axle (114). Using a sec-
ond hex key, tighten another M8 x 16mm Screw
(102), a Small Axle Cover (56), and an M8
Washer (95) into the other end of the Link Arm
Axle.
Repeat this step on the other side of the
elliptical.
7
131
8
Grease
102
Grease
12
Wide
95
Tube
10
130
6
114
Narrow
Tube
95
43
56
56
102
102
