Model No. PFEX39911 Serial No. Serial Number Decal QUESTIONS? If you have questions, or if there are missing parts, we will guar- antee complete satisfaction through direct assistance from our factory. TO AVOID UNNECESSARY DELAYS, PLEASE CALL DIRECT TO OUR TOLL-FREE CUSTOMER HOT LINE.

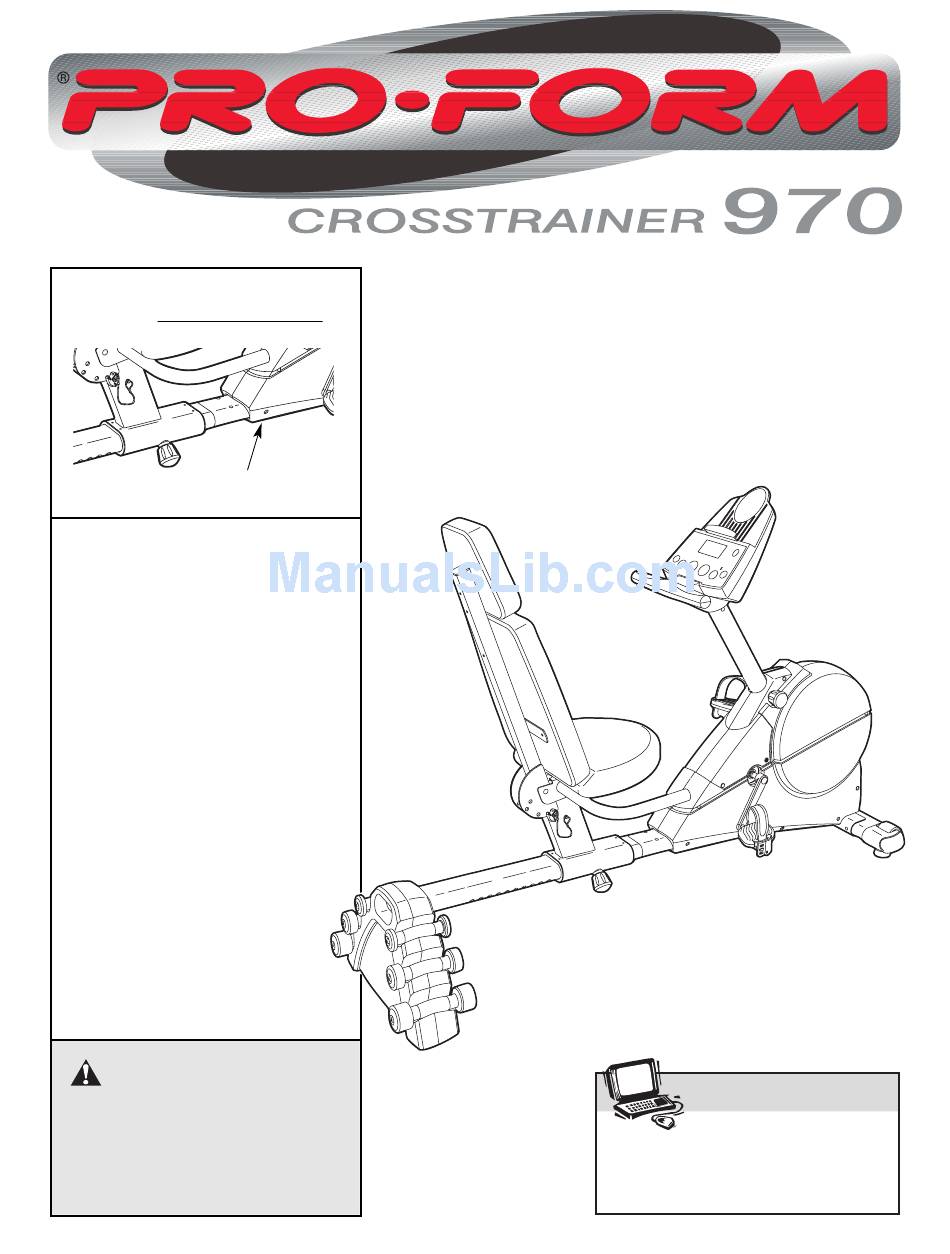

(excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is PFEX39911. The serial number can be found on a decal attached to the crosstrainer (see the front cover of this manual for the location of the decal).
ASSEMBLY Assembly requires two persons. Place all parts of the crosstrainer in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included allen wrenches, assembly requires a phillips screwdriver and a rubber mallet As you assemble the crosstrainer, use the drawings below to identify the small parts used in assembly.
Page 5
1. While another person lifts the front of the Frame (1) slightly, attach the Front Stabilizer (2) to the Frame with two M10 x 112mm Carriage Bolts (65) and two M10 Nylon Black Locknuts (63). Make sure that the Front Stabilizer is turned so the Wheels (30) are not touching the floor.
Page 6
5. Attach the Seat (12) to the Seat Frame (6) with three M6 x 16mm Screws (87). 6. Attach the Backrest (10) to the Backrest Frame (5) with two M6 x 16mm Screws (87), an M6 x 50mm Screw (69), and an M6 Flat Washer (71). Attach the Headrest (11) to the Backrest Frame (5) with two M6 x 50mm Screws (69) and two M6 Flat Washers (71).
Page 7
9. The Console (16) requires four “D” batteries (not included); alkaline batteries are recommended. Press the tab on the battery cover, and lift off the battery cover. Insert four batteries into the battery compart- ment. Make sure that the batteries are oriented as shown by the diagram inside the battery compart- ment.
Page 8
INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR If you purchase the optional chest pulse sensor (refer to page 20), follow the steps below to install the receiver and the jumper wire included with the chest pulse sensor. 1. Remove the four indicated screws from the back of the Console (16).

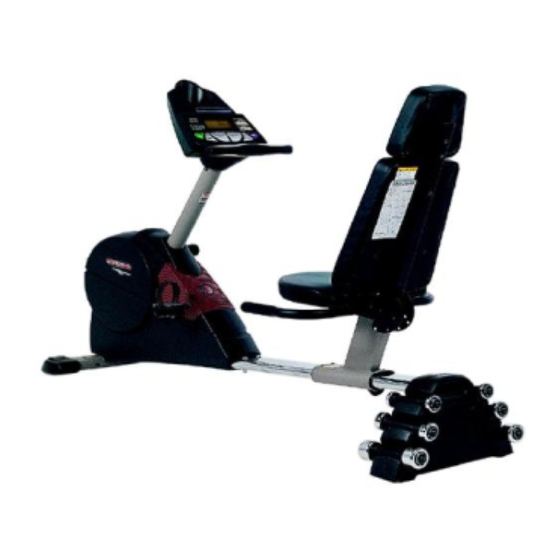

HOW TO USE THE RECUMBENT CYCLE The crosstrainer features a recumbent cycle for aerobic exercise, and a convenient weight bench for strength training exercise. To use the recumbent cycle, refer to pages 9 to 19. To use the weight bench, refer to page 20. HOW TO ADJUST THE BACKREST When the recum- bent cycle is used,...
Page 10
FEATURES OF THE CONSOLE The advanced console offers a selection of features designed to make your workouts more enjoyable and effective. When the manual mode of the console is selected, the resistance of the crosstrainer can be adjusted with a touch of a button. As you exercise, the console will provide continuous exercise feedback.
Page 11
CONSOLE DESCRIPTION Refer to the drawing on page 10. Note: If there is a thin sheet of clear plastic on the face of the con- sole, remove it. A. Exercise feedback display—This display features seven modes that give you instant exercise feed- back: your current speed, the elapsed time (or the time remaining in a Smart program), the distance that you have pedaled, the resistance level, the...
Page 12
HOW TO USE THE MANUAL MODE Turn on the console. Note: The console requires four “D” batteries (not included). If you have not installed batteries, refer to step 9 on page 7 and install batteries. To turn on the console, press the On/Reset button or begin pedaling.
Page 13
HOW TO USE A SMART PROGRAM Turn on the console. Refer to step 1 on page 12. Select one of the eight Smart programs. Each time the console is turned on, the manual mode will be selected. To select a Smart program, press the Program but- ton repeatedly until the number 1, 2, 3, 4, 5, 6, 7,...
Page 14
HOW TO CONNECT YOUR CD PLAYER, VCR, OR COMPUTER To use iFIT.com CD’s, the crosstrainer must be con- nected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 14 to 16 for connecting instructions. To use iFIT.com videocassettes, the crosstrainer must be connected to your VCR.
Page 15
HOW TO CONNECT YOUR HOME STEREO Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B. A. Plug one end of a 1/8” to RCA stereo audio cable (available at electronics stores) into the jack beneath the console.
Page 16
HOW TO CONNECT YOUR VCR Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 15.
Page 17
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS To use iFIT.com CDs or videocassettes, the crosstrain- er must be connected to your portable CD player, portable stereo, home stereo, computer with CD play- er, or VCR. See HOW TO CONNECT YOUR CD PLAYER, VCR, OR COMPUTER on page 14.
Page 18
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE Our Web site at www.iFIT.com allows you to play iFIT.com audio and video programs directly from the internet. To use programs from our Web site, the crosstrainer must be connected to your home comput- er.
Page 19
RECUMBENT CYCLE EXERCISE GUIDELINES WARNING: Before beginning this or any exercise pro- gram, consult your physician. This is espe- cially important for persons over the age of 35 or persons with pre-existing health problems. The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings.
WEIGHT BENCH EXERCISE GUIDELINES WARNING: Before beginning any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems. HOW TO ADJUST THE BACKREST The backrest can be adjusted to any of four positions: the inclined (upright) position, the semi-inclined posi- tion, the flat position, and the declined position.
MAINTENANCE AND TROUBLESHOOTING Inspect and tighten all parts of the crosstrainer regu- larly. Replace any worn parts immediately. To clean the crosstrainer, use a damp cloth and a small amount of mild soap. Important: To avoid damage to the console, keep liquids away from the console and keep the console out of direct sunlight.
• The KEY NUMBER and DESCRIPTION of the part(s) (see page 22 of this manual). PROFORM is a registered trademark of ICON Health & Fitness, Inc. ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur- chase.
