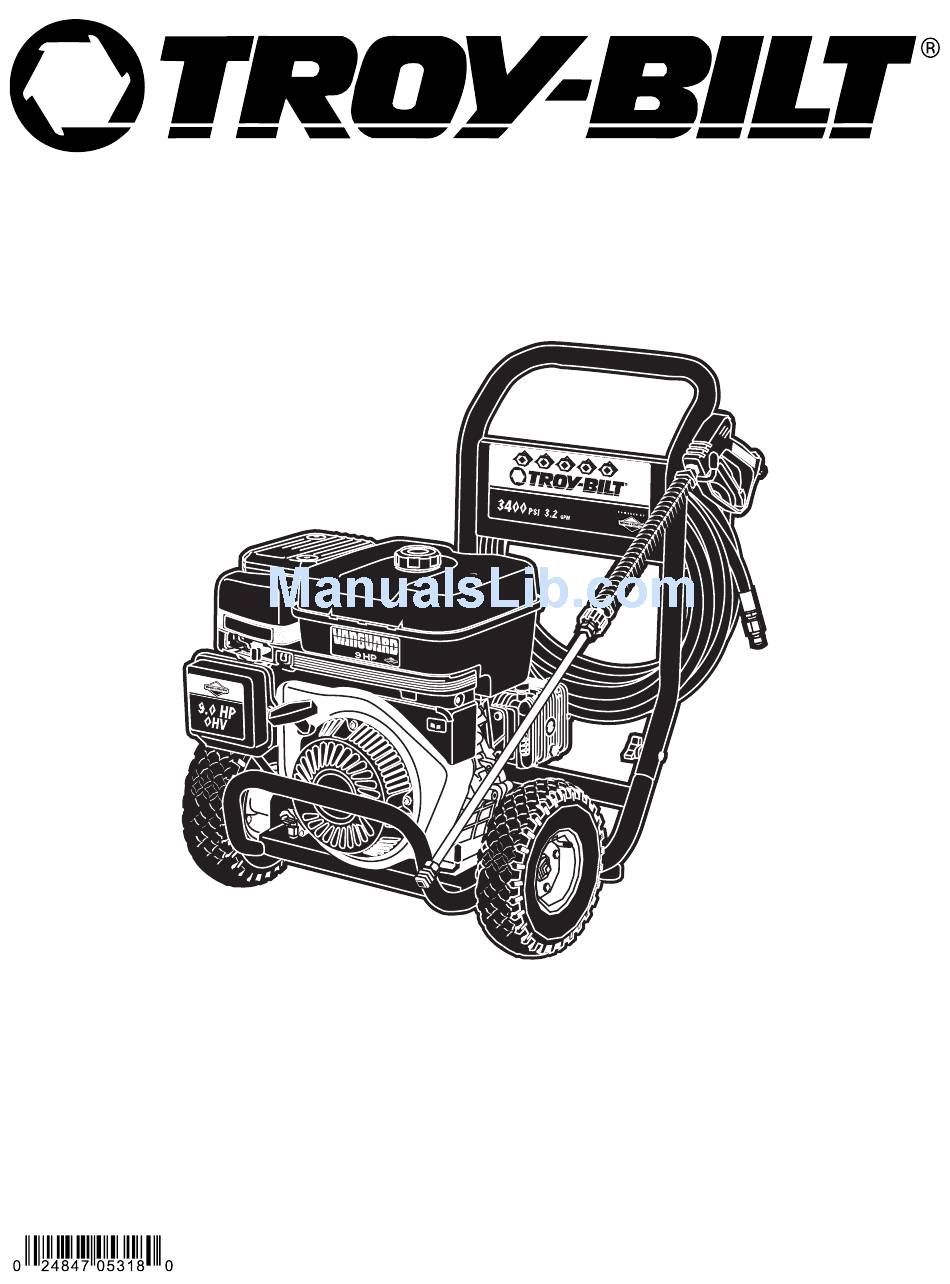

Page 1
Troy-Bilt® is a registered trademark of MTD and is used under license to Briggs & Stratton Power Products. Troy-Bilt® es una marca registrada registrada de MTD y se usa abajo licencia a Briggs & Stratton Power Products. BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC JEFFERSON,WISCONSIN, U.S.A.
Page 2
Exploded Views and Parts Lists Section EXPLODED VIEW AND PARTS LIST — UNIT Item Part # Description Item Part # Description B191938GS BASE 12 191265GS E-RING B191942GS HANDLE 13 186301GS KIT, Nozzle B4805GS HOSE 14 B1436BGS 30809GS GROMMET 15 190779GS EXTENSION 192134GS KIT, Engine Mounting Hardware...
Page 3
Section 8: Exploded Views and Parts Lists EXPLODED VIEW — PUMP...
Page 4
Section 8: Exploded Views and Parts Lists PARTS LIST — PUMP Item Part # Qty Description Item Part # Qty Description 110B2126GS 1 Cap 24 150B2126GS 1 Gas Engine Flange 10887628PGS 1 Circlip 25 22237GS 4 Washer, Lock 112B2126GS 1 Snap Ring 26 23645GS 4 Screw 113B2126GS...
Page 5
Section 8: Exploded Views and Parts Lists EXPLODED VIEW — UNLOADER...
Page 6
Section 8: Exploded Views and Parts Lists PARTS LIST — UNLOADER Item Part # Qty Description Item Part # Qty Description 153B2126GS 0 Complete Unloader 24 226B2327GS 1 Inlet Bolt 210B2327GS 1 Hose Tail 25 248B2327GS 1 Plug 95458GS 1 Quic Disconnect 26 155B2327GS 1 Screw 231B2327GS...
