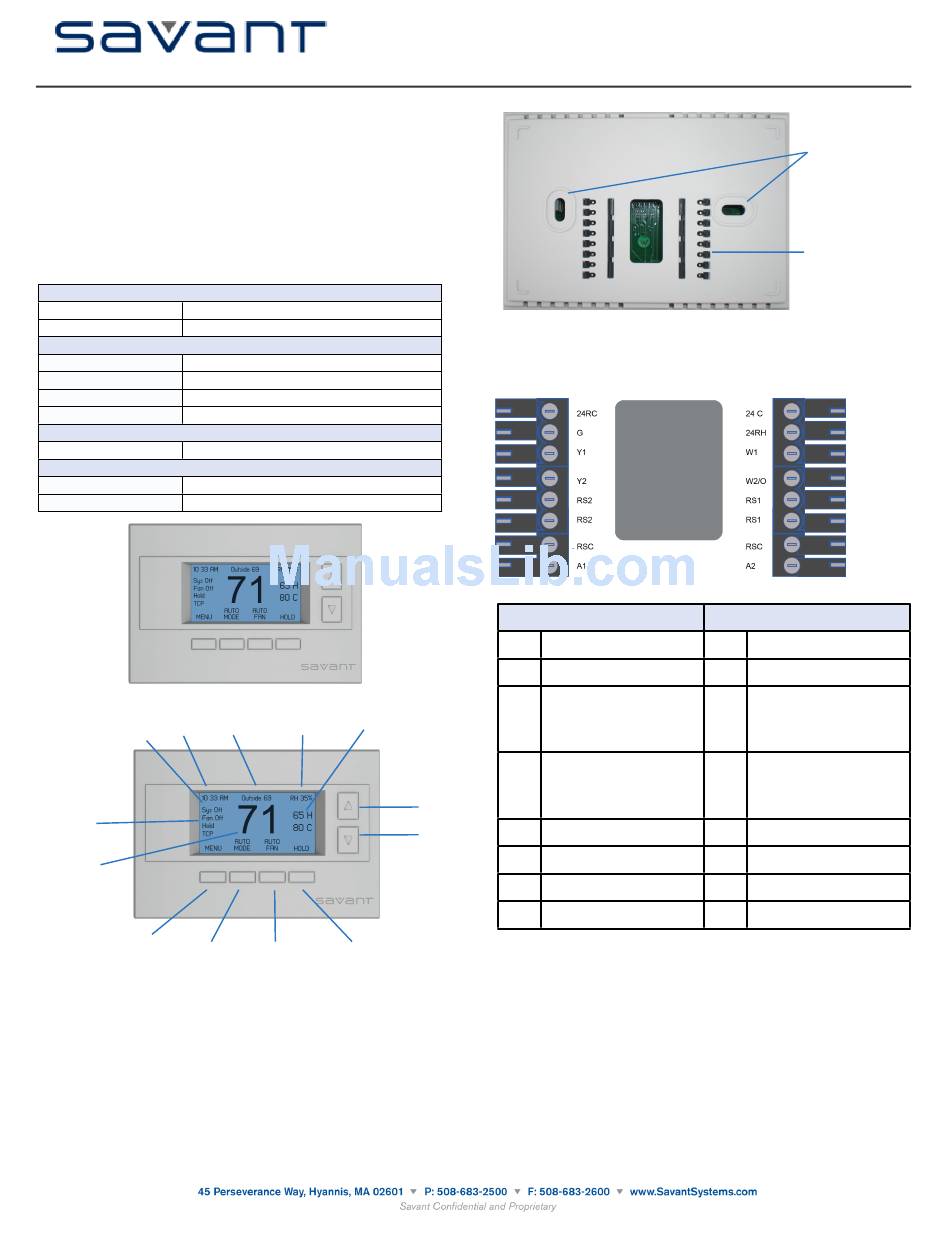

Savant SST-W100 Quick Reference Manual

The Savant Wireless Thermostat (SST-W100) is a Wi-Fi enabled wireless digital thermostat
designed to control Heating, Ventilation and Air Conditioning (HVAC) systems which
communicate wirelessly over Wi-Fi to a Savant System. The SST-W100 is designed to integrate
seamlessly into a Savant controlled environment.
Box Contents
(1) SST-W100
(1) Installation Kit (xxx)
(1) Quick Reference Guide (this document)
Optional Components
SST-TEMP1 - Remote Temperature Sensor
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weight Dimensions and Weight
Height 3.96 in/10.06 cm
Width 5.775 in/14.67 cm
Depth .58 in/1.47 cm
Weight 0.5 lb/.23 kg
Power Power
Power Supply 24V AC (requires both R and C from the HVAC system)
Compliance Compliance
Safety and Emissions FCC Part 15 | UL Class 2
RoHS Compliant
Front View of SST-W100
Outside
Backlite
Time Temperature
Display
System Status
Room
Temperature
Menu
Heating/Cooling
Mode Selection
Front View with Callouts
Savant Wireless Thermostat

Quick Reference Guide

Relative
Setpoints
Humidity
Warmer
Colder
Run/Hold
Fan Mode Selection
Mode Selection
(SST-W100)
Rear View of SST-W100
Wiring
Screw-down connectors on the inside of the back cover of the SST-W100 are used for wiring
connections to various climate control devices. Use the next figure to identify these connectors
described in the next table.
Screw-down Connectors on SST-W100
Left Side Left Side
24RC Cooling 24V
G Fan Output
Y1 Cooling Stage 1 output
(Compressor)
Y2 Cooling Stage 2 output
(Compressor)
RS2 Remote Sensor 2
RS2 Remote Sensor 2
RSC Sensor Shield
A1 Auxiliary 1 Relay
NOTE: The Savant Wireless Remote Temperature Sensor (SST-TEMP1) Quick Reference
Guide is available at: dealers.SavantSystems.com
Savant Hardware > Energy Management
009-0793-01
SST-W100-00
Holes for mounting
on wall screws
One of the 16 screw-down
connectors used for wiring
to climate control devices
Right Side Right Side
24C 24V AC Common (Required)
24RH 24V Heating
W1 Heat Stage 1 output
(standard gas/electric HVAC)
Auxiliary Heating
(heat pump HVAC)
W2/O Heat Stage 2 output
(standard gas/electric HVAC)
Change Over Valve
(heat pump HVAC)
RS1 Remote Sensor 1
RS1 Remote Sensor 1
RSC Sensor shield
A2 Auxiliary 2 Relay
121912
