Savant GE SST-W300 Quick Reference Manual

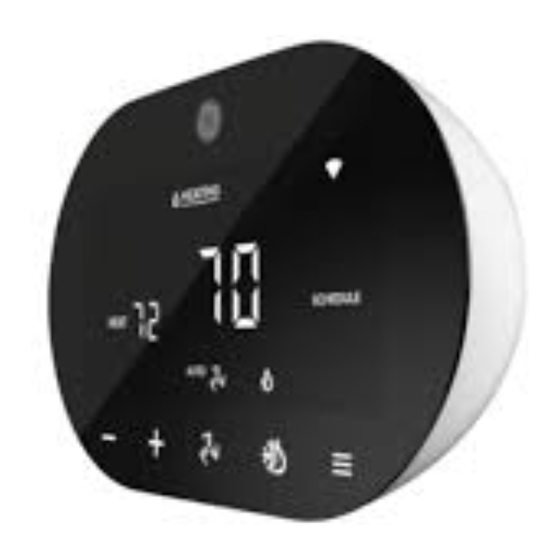

GE Smart Thermostat - Works with Savant (SST-W300)
Quick Reference Guide

Box Contents

(1) GE Smart Thermostat (SST-W300-xx)
(2) Drywall Anchor (039-0700-00)
(2) #6 x 1 inch pan head screws (039-0701-00)
(1) Thermostat Wall Plate (074-2759-00)
(1) Wire Labels Sheet (080-1301-00)
(1) Backplate (074-2758-00)
(1) Power Extender Kit (PEK) (169-0608-00)
(1) Product and Regulatory Insert (009-2086-xx)
(1) Quick Reference Guide (009-2334-xx)

Specifications

Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% RH (non-condensing)
Dimensions and Weights
Height
3.25 in
SST-W300
(8.25 cm)
7.75 in
Shipping
(19.7 cm)
Power
24 V AC (C wire required. If there is no C wire, use
Input
included Power Extension Kit.)
PEK Input 20-30 V AC
Amp Rating Max. 1A per terminal
Regulatory
Safety and
Emissions
Contains FCC ID: PUU-CTHMCAPEKB1
Contains IC: 10798A-CTHMCAPEKB1
RoHS Compliant
Standards
802.11 b/g/n (2.4 GHz)
Wireless
IMPORTANT! 802. 1 1r fast roaming is not
supported.
Security WPA1™, WPA2™, WPA1™ +WPA2™
Minimum Supported Release
Savant OS da Vinci 10.3.1
Additional Information
To view available documentation, detailed product specs, and more,
Visit the Savant Knowledge tab via the
to search all Savant documentation.
GE Smart Thermostat - Works with Savant QRG | 009-2334-01
Copyright ©2023 Savant Systems, Inc | 071023
Width Depth Weight
5.25 in 1.0 in . 1 4 lbs
(13.3 cm) (2.54 cm) (.07 kg)
7.63 in 4.25 in . 1 4 lbs
(19.4 cm) (10.8 cm) (.07 kg)
FCC Part 15 Class B
Savant Customer Community

Front Panel Controls

A
Increase or decrease temperature setpoint.
B
Fan Mode - Cycles through ON and AUTO fan modes.
HVAC Mode - Cycles through COOL, HEAT, AUTO, and OFF HVAC
C
modes.
Hold Status - Cycles through Hold Modes. See
information on mode descriptions. Set HVAC mode to OFF, then
D
press and hold for 10 seconds to reset to factory defaults.
NOTE: If the screen is in sleep mode, press any key to wake up
the device before operation.
Front Panel LED Modes and Indicators
E
F
G
H
I
Heating/Cooling Status - Current status of heating/cooling
E
system.
Cooling Setpoint - Targeted temperature when COOL or
F
AUTO Mode is active.
Heating Setpoint - Targeted temperature when HEAT or
G
AUTO Mode is active.
H
Auxiliary Heat - Heat pump's auxiliary heat is active.
I
Emergency Heat - Emergency heat mode is active.
J
Fan Mode - Whether the fan is in AUTO or ON mode.
K
System Mode - Current system status: COOL/HEAT/AUTO/OFF
Hold Status
–
SCHEDULE: Runs the set schedule created in the
Savant App
L
–
HOLD: Manually overrides all scheduled changes and
holds temperature constant
– TEMPORARY: Manually overrides all scheduled
temperature changes until next scheduled event
M
Setup Mode - Whether Setup Mode is active or not
N
Wi-Fi Status - Current Wi-Fi connection status
1 of 4
A B C
J K L
45 Perseverance Way, Hyannis MA 02601
Savant.com
D
L
for more
N
M
| 508.683.2500
