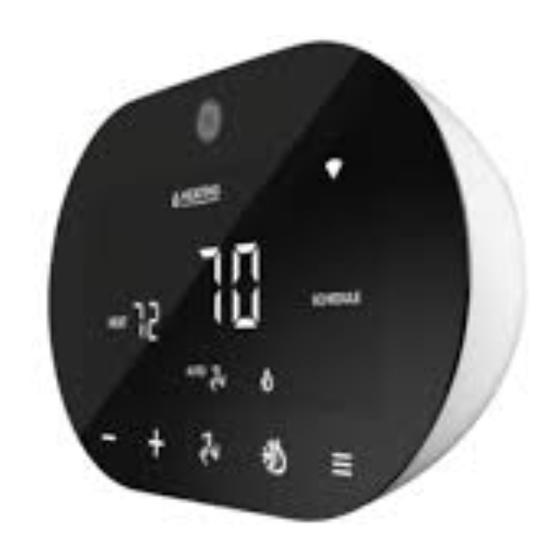

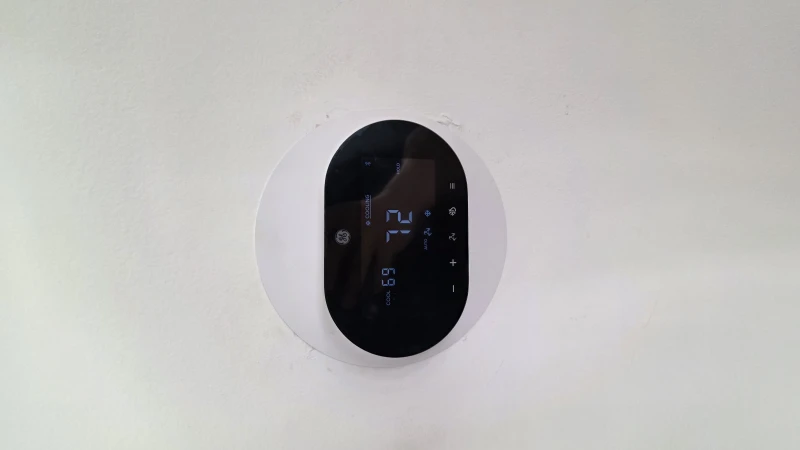

GE Smart Thermostat, Works with Savant (SST-W300)
Deployment Guide
Document Number:
009-2377-00
Document Date:
August 2023
Document Supports:
SST-W300
This guide assists an installer/integrator through the process needed to deploy the SST-W300 GE Smart Thermostat into a Savant Pro System. Before starting, refer to the thermostat's Quick
Reference Guide for technical specifications, mounting instructions, and basic wiring.
Each of the items listed below is covered in this document.
–
Advanced HVAC wiring diagrams.
–
Power Injector wiring (if needed).
–
How to add/provision the thermostat to the local Wi-Fi network.
–
How to configure the thermostat using the Savant Power & Light App.
–
How to add the thermostat to a Blueprint configuration and upload file to the Savant Host.
–
How to configure the thermostat when there is no Wi-Fi access
–
How to reset the thermostat and clear the network configuration.
–
Basic thermostat front panel user Interface procedures.
