SST-W100 Wi-Fi Thermostat
Quick Reference Guide
The Savant Wireless Thermostat (SST-W100) is a Wi-Fi® enabled
digital thermostat designed to control a Heating, Ventilation and Air
Conditioning (HVAC) system. Use this document as a reference when
opening, installing, powering, and connecting to a local wireless
network. Once connected, the SST-W100 can join the Savant Control
system. For more information on configuring the thermostat, refer to
the SST-W100 Deployment Guide (009-0802-xx) and SST-W100
User Guide (009-0957-xx). All documents can be found on the
Savant Customer Community.

Box Contents

(1) SST-W100 Thermostat
(1) Installation Kit
(2) Drywall Anchors
(2) #6 x ¾ in self tapping screws
(1) Wire Labels (Sheet of wire label stickers)
(1) Quick Reference Guide (this document)

Optional Components

SST-TEMP1-xx - Remote Indoor Temperature Sensor
SST-OTEMP1-xx - Remote Outdoor Temperature Sensor
Specifications
Environmental
Environmental
Temperature
32° to 104° F (0° to 40° C)
Humidity
10% to 90% Relative Humidity (non-condensing)
Dimensions with Faceplate
Dimensions with Faceplate
Height
3.96 in (10.06 cm)
Width
5.775 in (14.67 cm)
Depth
0.58 in (1.47 cm)
Net - 0.5 lb (0.23 kg)
Weight
Weight
Shipping - 2.0 lb (0.91 kg)

Power

Power
24V AC (19V AC - 28V AC)
Connect to terminals 24C and 24RH on terminal
Input Power
Input Power
block on back panel.
Requires both R and C from the HVAC system.
Max. current draw 200 mA

Cable Requirements

Cable Requirements
Power
#18 AWG
HVAC
#18 AWG Thermostat Wire (solid)
Remote Sensors
#24 AWG (Cat 5) 500 feet (152 m) maximum

Regulatory

Regulatory
Safety and
FCC Part 15 | UL Class 2
Emissions
For more details, refer to the
RoHS
Compliant

Standards

Standards
Wireless
Wi-Fi (802.11 b/g)
Security
WPA1™, WPA2™, WPA1™ + WPA2™

Connections

Connections
Two 8-position screw down connectors mounted to inside of back
Two 8-position screw down connectors mounted to inside of back
panel. Each terminal is marked. Refer to table for a description of
panel. Each terminal is marked. Refer to table for a description of
each terminal.
each terminal.

Minimum Supported Release

Minimum Supported Release
Savant OS
da Vinci 5.2
SST-W100 | 009-1309-01 | 160229
SST-W100 | 009-1309-01 | 160229
Copyright © 2016 Savant Systems, LLC

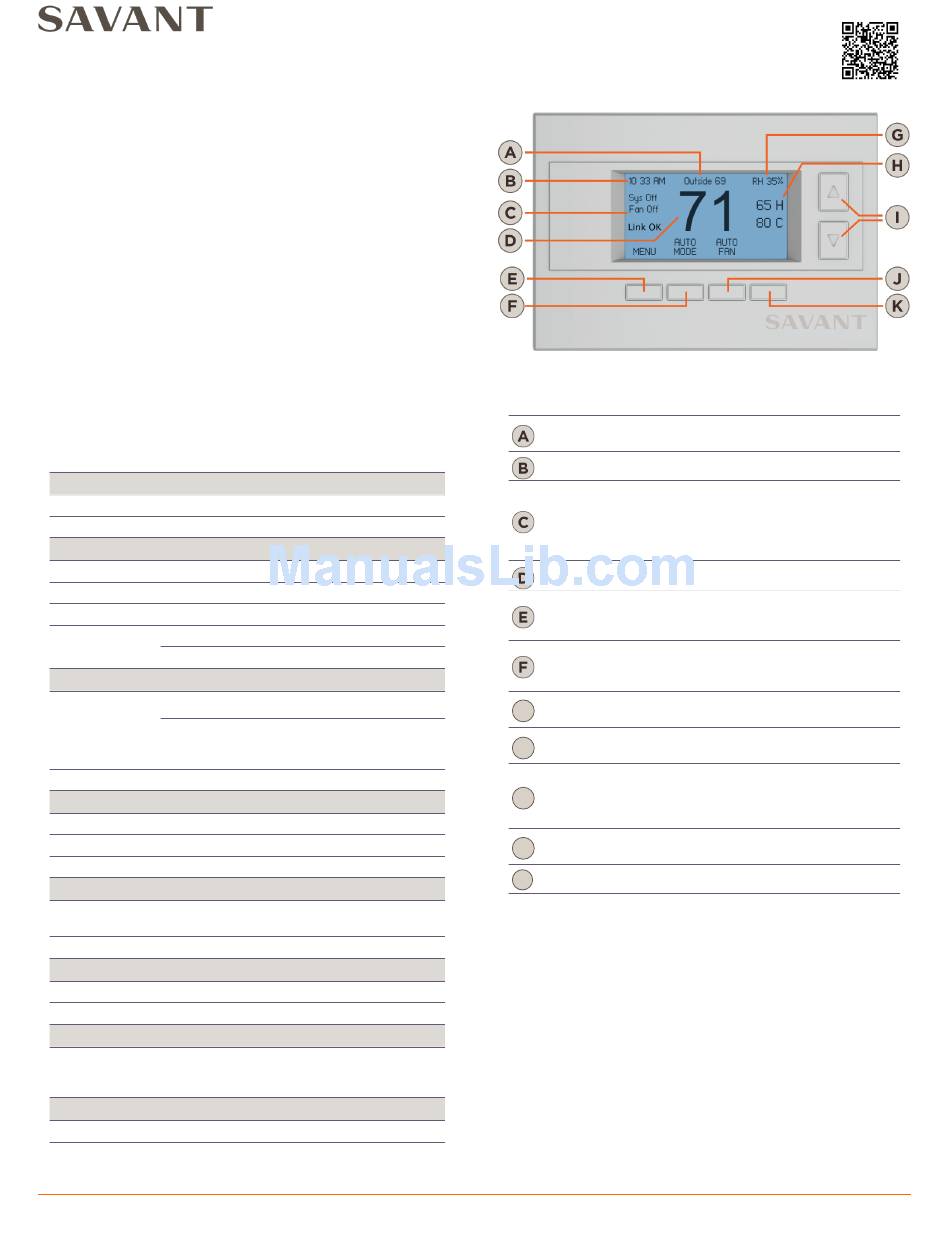

Front View

Regulatory
section
1
of
4
Each of the buttons are multipurpose buttons. The function of each
button changes depending on the screen currently displayed. The
information below describes the main screen shown above.
The Outside temperature displayed is retrieved from the
remote sensor RS2 when configured as an outdoor sensor.
Displays local time. The time is set through the MENU button.
The status of the HVAC system is displayed here. From the
image above:
• Sys Off - HVAC system is Off.
• Fan Off - Fan is Off.
• Link OK - Connected to a local Wi-Fi® network.
The temperature displayed is the local indoor temperature.
Pressing the MENU button for the first time opens the SET
CLOCK menu. Once the clock is set, pressing the MENU button
will open the main menu.
MODE button selects Off, Heating, Cooling, or Auto.
Heat Mode controls a heating system, Cool Mode controls a
cooling system, and AUTO Mode controls both.
The relative humidity displayed is retrieved from a humidity
G
sensor that is internal to the SST-W100.
The high and low setpoints are displayed. To modify each,
H
press the up/down arrow button to the right of each setpoint.
The up/down arrow buttons are multipurpose buttons. In the
screen shown, pressing the up or down arrow button will open
I
the high and low setpoint windows. In other windows, the
buttons are used to move up and down a list of items.
Fan Mode can be changed between On, Auto, and Cycle.
J
Select the correct mode for your HVAC system.
K
Used in various screens for different functions.
45 Perseverance Way, Hyannis, MA 02601
For Product Info
Savant.com
| 508.683.2500
