Savant CLI-W210 Series Quick Start Manual

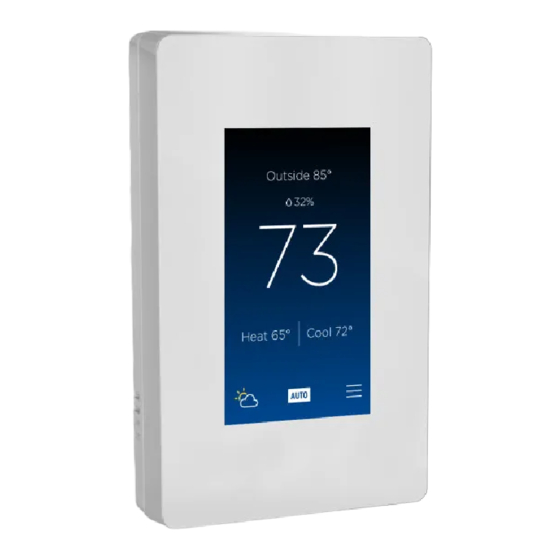

Multistat Smart Thermostat (CLI-W210x-xx)
Quick Start Guide
Box Contents
(1) Multistat Smart Thermostat (CLI-W210x-xx)
(1) Installation Kit (075-0242-xx)
(2) Drywall Anchors (039-0328-xx)
¾
(2) #6 x inch pan head screws (039-0329-xx)
(1) Flush Mount Temperature Sensor (014-0122-xx)
(3) Dolphin splice connectors (028-0581-xx)
(1) Sheet of Wire Labels (080-0096-xx)
(1) Product Regulatory Statement (009-1950-xx)
(1) Quick Start Guide (009-1908-xx, this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weights
Height
4.95 in.
CLI-W210
(12.57 cm)
7.0 in.
Shipping
(17.78 cm)
Power
Input 24V AC (18V AC - 32V AC)
Current Draw 150 mA RMS typical, 300 mA maximum
Max Power 7.2 watts
Cable Requirements
Power #18 AWG
HVAC #18 AWG - thermostat wire (solid)
Remote 10k
#24 AWG - 500 feet (152 meters) maximum
Sensors
Regulatory
Safety and
Emissions
Contains FCC ID: Z64-WL18DBMOD
Contains IC: 451I-WL18DBMOD
RoHS Compliant
Standards
802.11 b/g/n (2.4 or 5.0 GHz)
Wireless
IMPORTANT! 802.11r fast roaming is not
supported.
Security WPA1™, WPA2™, WPA1™ +WPA2™
Minimum Supported Release
da Vinci 8.10.1 and higher (dual/single setpoint)
Savant Software
Studio 2.1 and higher (dual/single setpoint)
Multistat Smart Thermostat Quick Start Guide | 009-1908-02
Copyright © 2020 Savant Systems, LLC | 200604
Width Depth Weight
3.0 in. .91 in. .30 lb.
(7.62 cm) (2.31 cm) (0.14 kg)
5.0 in. 2.0 in. 1.0 lb.
(12.70 cm) (5.08 cm) (0.45 kg)
FCC Part 15B

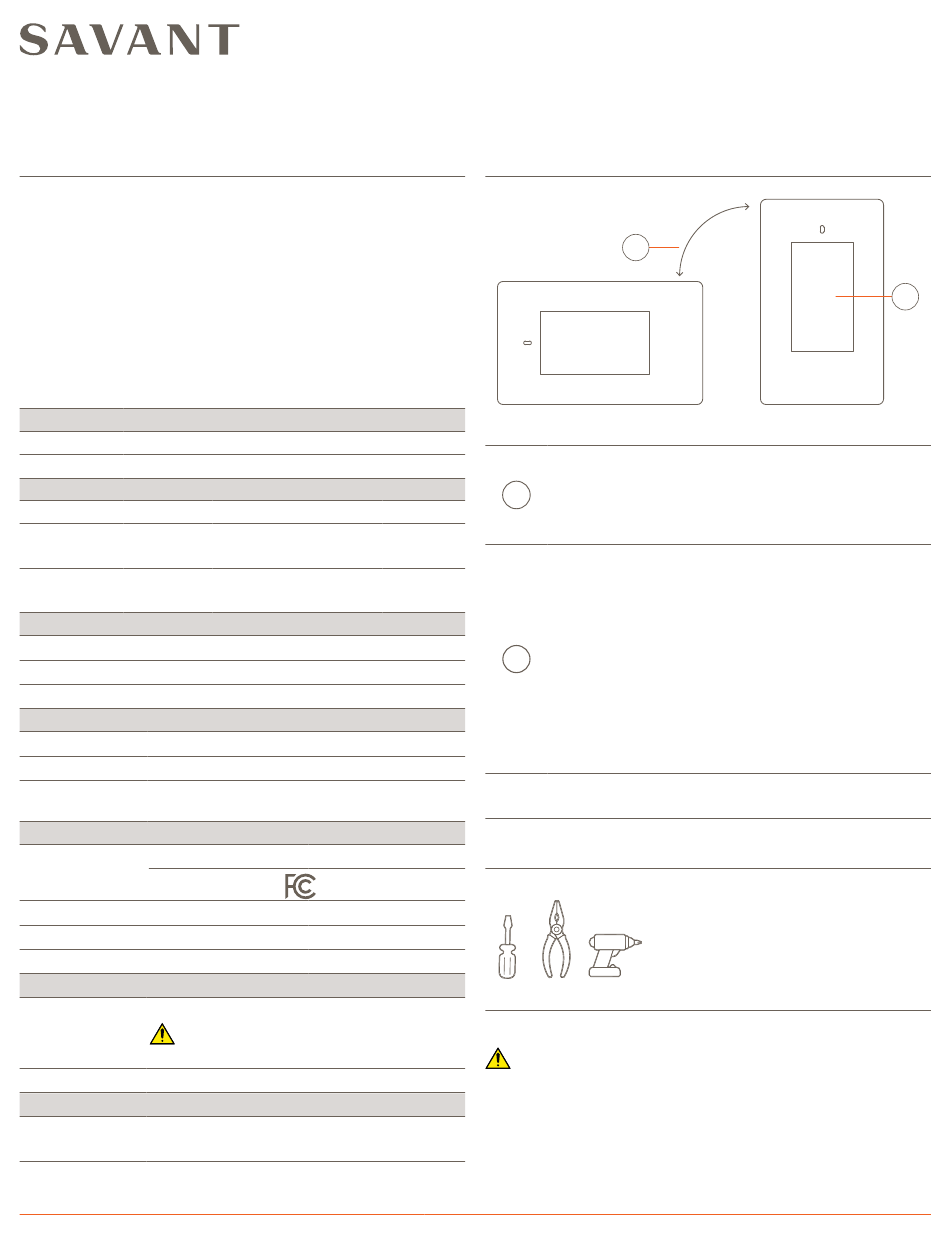

Front Panel
Landscape
LCD Touchscreen - The display is a multi-colored
touchscreen LCD that includes various screens for
A viewing and configuring the HVAC system.
– One touch and swipe operation.
– Swipe right for local forecast (when enabled).
Both landscape and portrait type installations
are supported. During the power-up process, the
thermostat will auto-detect its positioning and make the
proper adjustments. Mount the backplate, as described
below.
Portrait - Mount the backplate, so the terminal strip
B
with the O, G, Y2, Y1, etc. are located towards the top.
More information is available in the
Mounting Plate
Landscape - Mount the backplate, so the reference
designators on the terminal strips can be read. If
reference designators are upside down, rotate the
thermostat 180°.
Getting Started
Savant recommends having the following tools available for
installation:
CAUTION! When replacing an older thermostat that contains
mercury in a sealed tube, do not discard it into the trash.
Refer to thermostat-recycle.org or similar website for
information on how to dispose of properly.
1 of 1
B
Portrait
Install Thermostat
section.
– Pencil
– #2 Phillips screwdriver
– Small slotted screwdriver
– Drill with 5/32 inch drill bit
– Wire stripper
– Needle nose pliers
– Measuring Tape
45 Perseverance Way, Hyannis MA 02601
Savant.com
A
| 508.683.2500
