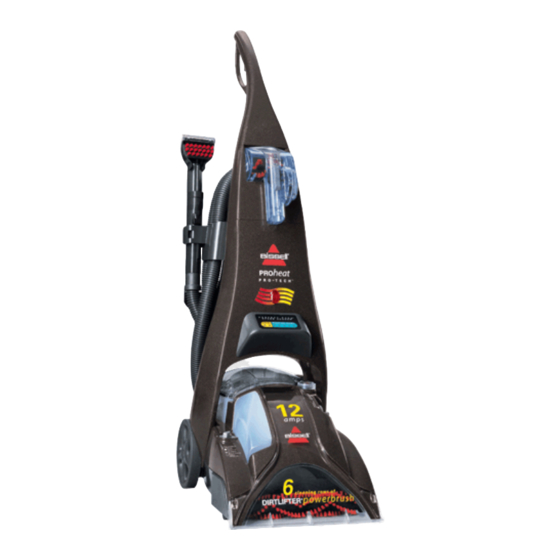

Bissell 7920 SERIES User Manual

Proheat pro-tech
Hide thumbs Also See for 7920 SERIES:
Table of Contents

Advertisement

Quick Links

24
ug310-5815_7920E_604.indd 1
ug310-5815_7920E_604.indd 1
ProHeat Pro-Tech
3
6-17
17-19
20-21
22
Consumer Services
23
Replacement Parts
Warranty
U S E R ' S G U I D E
7920 SERIES—220 / 240V
Safety Instructions
4
Product View/Accessories
5
Assembly
Features / Operations
Routine Maintenance
Troubleshooting
™
3/29/06 3:39:37 PM
3/29/06 3:39:37 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7920 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bissell 7920 SERIES

Summary of Contents for Bissell 7920 SERIES

  • Page 1 ProHeat Pro-Tech ™ U S E R ’ S G U I D E 7920 SERIES—220 / 240V Safety Instructions Product View/Accessories Assembly 6-17 Features / Operations Routine Maintenance 17-19 Troubleshooting 20-21 Consumer Services Replacement Parts Warranty ug310-5815_7920E_604.indd 1 ug310-5815_7920E_604.indd 1...
  • Page 2 My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your ProHeat Pro-Tech. Thanks again, from all of us at BISSELL.

  • Page 3: Important Safety Instructions

    Spares may ■ Do not carry the appliance while in use be obtained from your BISSELL supplier. If for any ■ Do not unplug by pulling on cord. Unplug by reason the plug is cut off, it must be disposed...
  • Page 4 Keep plenty of genuine BISSELL Advanced ™ Deep Cleaning Formulas and Scotchgard protector Cartridges on hand so you can clean Trigger and protect whenever it fits your schedule. Always use genuine BISSELL Advanced Deep Cleaning Formulas. Non-BISSELL cleaning solutions may harm the machine and void the warranty.

  • Page 5: How To Use This Guide

    Locate and organize all parts before assembly. Familiarize yourself with the parts and where they go. Following this User’s Guide will greatly enhance your ability to get the most performance from your BISSELL ProHeat Pro-Tech for many years. Your ProHeat Pro-Tech comes in 3, easy to assemble components.

  • Page 6: Smartmix

    System The ProHeat Pro-Tech is a home cleaning system that automatically mixes hand hot tap water with BISSELL Advanced Deep Cleaning Formula and heats the solution as it is applied to the carpet. The combination of heated cleaning solution, powered brush and suction provide a safe and effective method of cleaning.
  • Page 7 WARNING: To reduce the risk of fire, use only BISSELL ™ DirtLifter PowerBrush Advanced Deep Cleaning Formula for full size machines in your ProHeat Pro-Tech.

  • Page 8: To Empty Tank-In-Tank

    Tank-in-Tank Our Tank-in-Tank system is designed with a Bladder inside for clean water. As you clean, the Bladder will empty. Dirty water collects in the tank outside the Bladder. Step on Handle Release to lay the machine handle down out of the way. Lift the Tank-in-Tank handle.

  • Page 9: The Flow Indicator

    F. Reinsert Tank Assembly into unit. Refill with clean hand hot tap water, following steps 5 through 9 on page 8, and refill the SmartMix Bottle with BISSELL Advanced Deep Cleaning Formula as necessary. Fill bladder only with clean When the cleaning job is complete, rinse out the...

  • Page 10: Machine Preparation

    Set up the machine following instructions in the Features section on pages 6-9. Use only BISSELL Advanced Deep Cleaning Formula in the SmartMix Bottle when cleaning carpets, stairs or upholstery. Use clean water in the SmartMix Bottle for gentle cleaning, rinsing, or when applying carpet protector.

  • Page 11: Carpet Cleaning

    After cleaning, you may want to turn the SmartMix Dial to the Water Rinse/Carpet Protector setting to give your carpeting a final rinse. This will ensure thorough removal of embedded dirt loosened by the BISSELL Advanced Deep Cleaning Formula. BISSELL Advanced Deep Cleaning Formulas contain an anti-resoiling agent that helps your carpets repel dirt and keeps them looking good longer.

  • Page 12: Stain Removal

    If no fuzzing occurs, continue cleaning in soiled area. Use your BISSELL Deep Cleaner as a precleaner. With one of the tools attached to the Flex Hose, set the ReadyTools Dial to Tools/PreTreat and the Smart Mix Dial to the High Traffic setting.

  • Page 13: When You're Done

    ™ Perfect Pass The Perfect Pass feature is designed to help you achieve the best cleaning results when deep cleaning. Apply smooth even strokes when deep cleaning your carpets. An upright deep cleaner should not be used at the same speed as an ordinary vacuum. That is too fast for optimum cleaning results.
  • Page 14 ™ Scotchgard Protector Applicator (Optional) The Scotchgard protector applicator (with formula included) can be used to help retain the carpet cleanliness you achieve with your ProHeat Pro-Tech machine. For best results the post cleaning treatment should be applied while the carpet is still wet or damp. It is recommended that the Scotchgard protector is applied every 12 months in all carpeted areas, and after every deep cleaning for high traffic areas such as hallways and stairs.
  • Page 15 Machine Preparation Tip: Set up the machine following instructions in the Features section on pages 6-9. Use the BISSELL Pet Odor and Use only BISSELL Advanced Deep Cleaning Formula in ™ Soil Removal SmartMix Bottle. Formula to deep clean pet odor Set the ReadyTools Dial to Tools/PreTreat.

  • Page 16: Cleaning Bare Floors

    Back vinyl, and tile floors. Caution: Do not use on hardwood floors. Use BISSELL Floor Cleansing Formula in SmartMix Bottle. Handle Release Vacuum or sweep thoroughly to pick up loose debris and pet hair. Remove easily moved furniture from the room (chairs, tables, etc).

  • Page 17: Routine Maintenance

    Bare Floor Cleaning Technique Slowly move the machine Nozzle with Bare Floor Tool forward and back over soiled surface one time while pressing the trigger. WARNING: Caution: Do not over wet. To reduce the risk of fire, electric shock or injury Repeat the motion without pressing the trigger using the Bare unplug from outlet before Floor Tool to squeegee and suction up the dirty water.
  • Page 18 Pump Belt Replacement Turn the Power Switch OFF and unplug from the wall outlet. Step on the Handle Release and recline the handle down onto floor (see illustration). Remove Tank-In-Tank and SmartMix Bottle. Set them aside (see illustration). Remove Belt Access Door located near the Floor Cleaning/ Tools switch by inserting a flat head screwdriver into the slot nearest to the handle and gently prying the access door off (see illustration).
  • Page 19 Assembly is now complete. If you have any questions, or are having trouble installing your Replacement Pump Belt, please call BISSELL Consumer Services in the UK at 0870-225-0109. For all other countries call our USA Headquarters at 01-616-453-4451. Or visit the BISSELL website: www.bissell.com.

  • Page 20: Troubleshooting

    Remedies Bladder may be empty. Refill bladder with hand hot tap water. SmartMix Bottle may be empty. Fill with BISSELL Advanced Deep Cleaning Formula for cleaning or water if rinsing. The Filter may be clogged. Clean out Flow Indicator Filter, page 17.
  • Page 21 Troubleshooting Continued DirtLifter PowerBrush does not turn. Possible Causes Remedies The Brush Belt or Pump Belt Turn Power Switch OFF and unplug is off or broken. from the outlet. To check if a Pump Belt has broken, you will need a flat head screwdriver.
  • Page 22 BISSELL Consumer Services If your BISSELL product should require service: In the UK call BISSELL Consumer Services at the number below and we will give you the location of a BISSELL Authorized Service Center in your area. For all other countries contact your local in country distributor for questions, service, or repair.

  • Page 23: Replacement Parts

    Replacement parts - BISSELL ProHeat Pro-Tech ™ Item Part No. Part Name 210-9213 4” Small Area Tool 603-0910 6” Stair Tool 210-9148 Spraying Crevice Tool ™ 210-1197 TurboBrush 214-9131 Bare Floor Tool 214-9142 PreTreat Wand 215-9155 Tough Stain Brush 015-9043...

  • Page 24: About Your Warranty

    Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product, BISSELL Homecare, Inc., will replace (with new or remanufactured compo- nents), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for two years any defective or malfunctioning part do to manufacturers defect.
