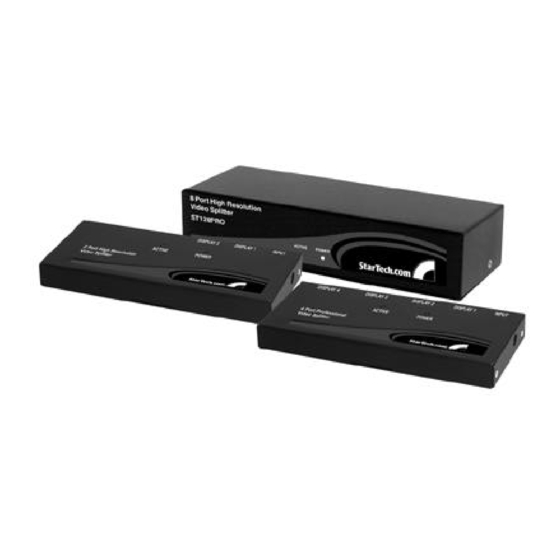

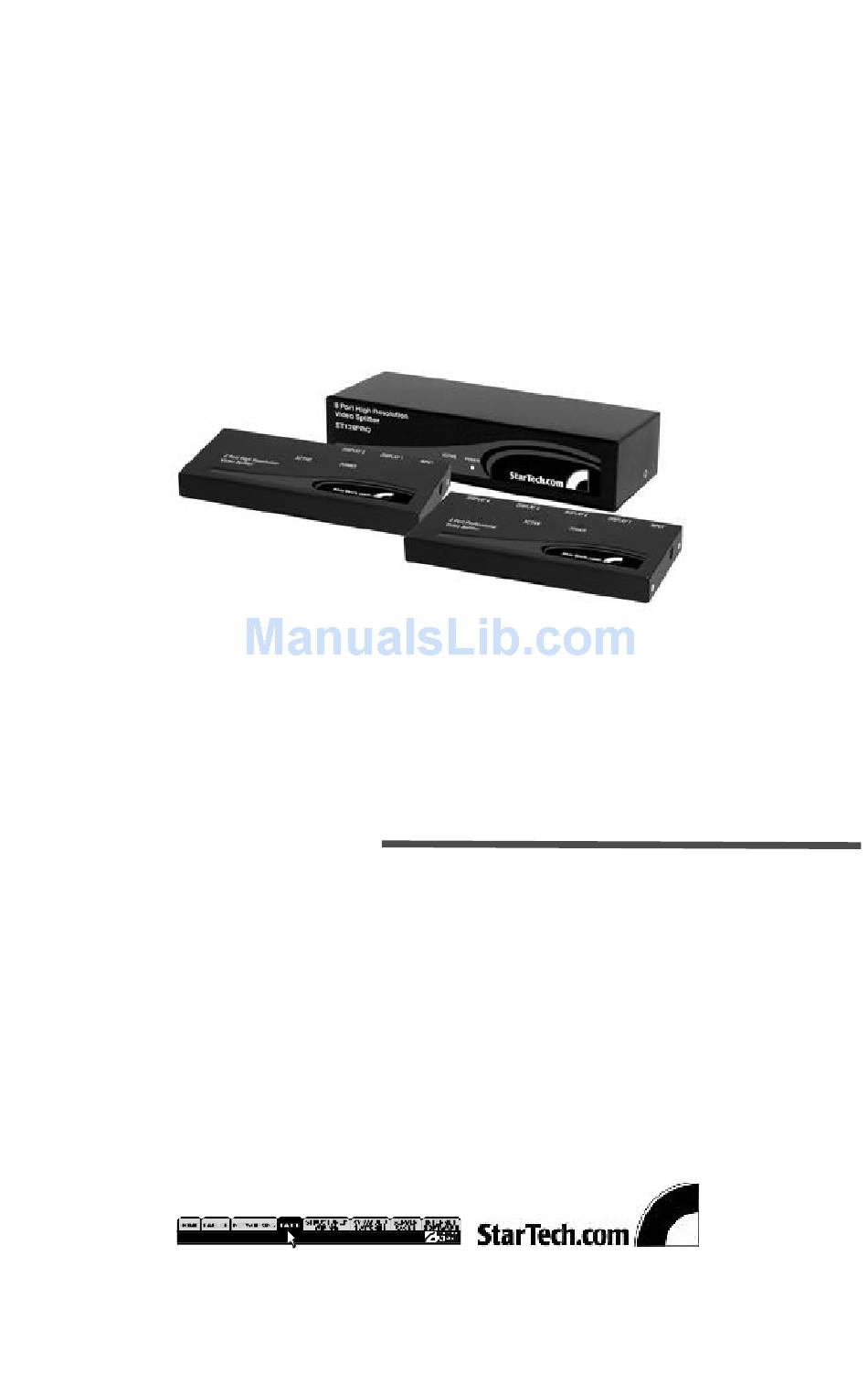

- Page 1 High Resolution Video Splitter User's Manual ST122PRO ST124PRO ST128PRO...
- Page 2 VGA images for multiple monitors with excellent quality. Superb high- bandwidth circuit enables a high resolution VGA signal of up to 300Mhz (with the ST122PRO and ST124PRO) to be displayed on multiple monitors. Application...
- Page 3 One length of HDB15 male-to-female cable is required to connect from the Video Splitter Input to a computer’s VGA output. Multiple monitors should be connected to the Video Splitter’s output port as shown below. Figure 1: ST122PRO Connection Figure 2: ST124PRO Connection...
- Page 4 Figure 3: ST128PRO Connection Operation ACTIVE LED turns on when there is a VGA signal at the Input port. POWER LED turns on when the Video Splitter is powered up by the AC 9V power adapter.
-
Page 5: Specifications
Specifications ST122PRO ST124PRO ST128PRO No. of VGA output 2 Signal bandwidth 350 MHz 350 MHz 300 MHz Signal Type VGA, SVGA, Multisync POWER (green) x 1 ACTIVE (amber) x 1 Cable Length 65M (210ft.) - Maximum Connector Input HDB15 M x 1...
