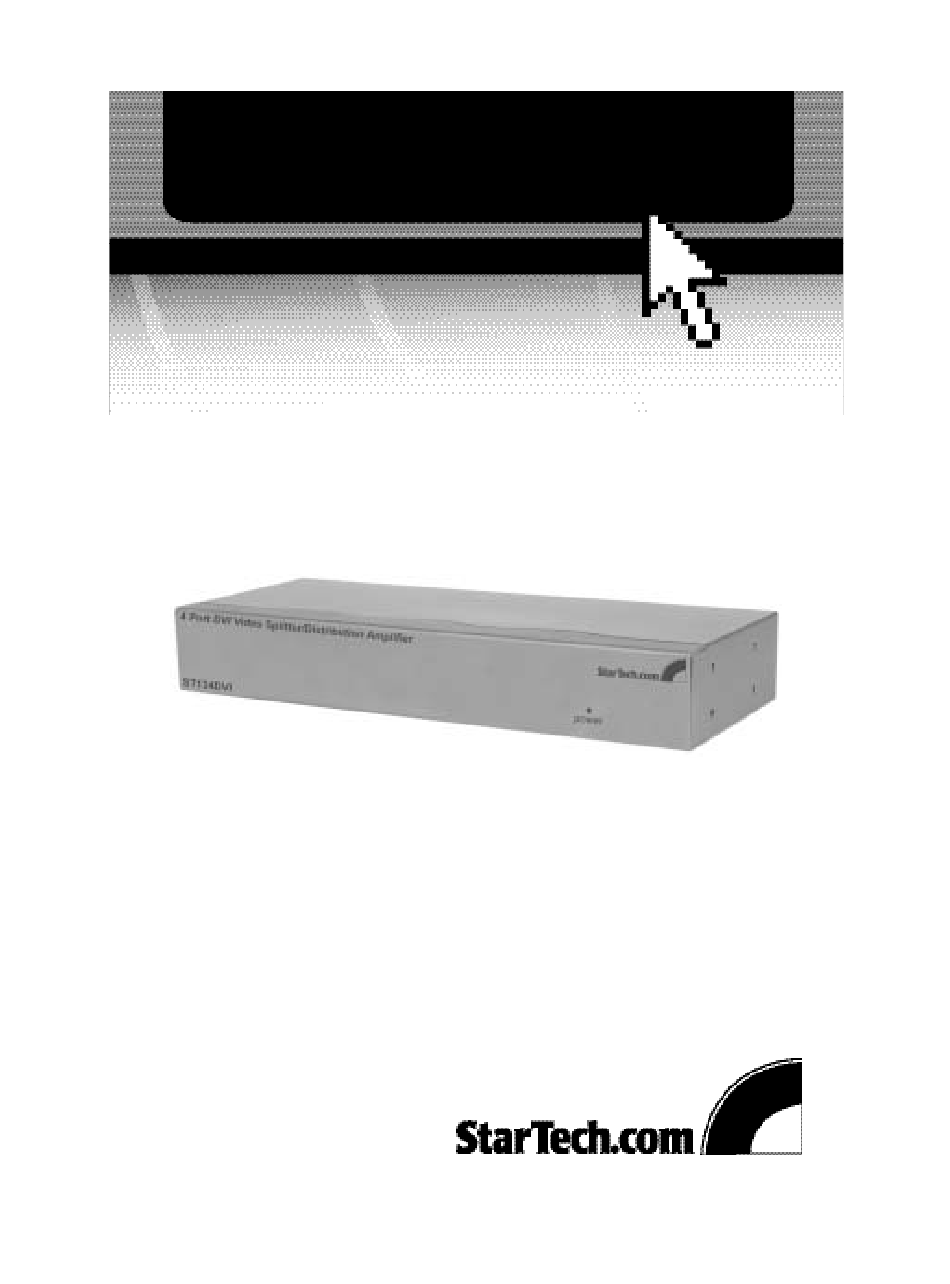

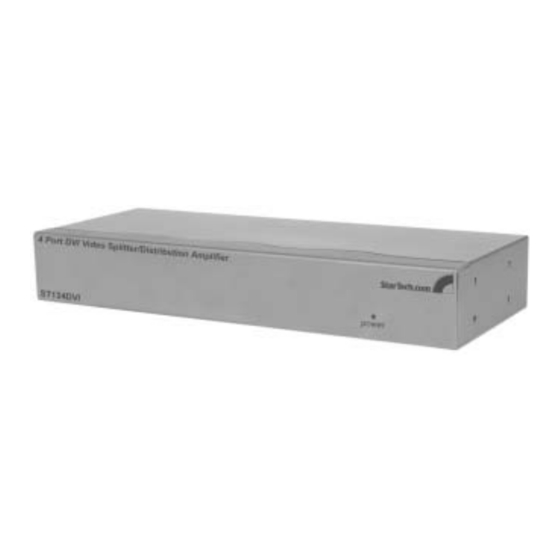

- Page 1 DVI S S PLITTER 4 Port DVI Video Splitter ST124DVI Instruction Guide The ProfessionalsêSource For Hard-to-Find Computer Parts...
- Page 2 FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Table of Contents Introduction ............2 Installation . -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com four Port DVI Video Splitter/Distribution Amplifier for your desktop computer or workstation. The ST124DVI offers the highest resolution on your flat screen display or projector and allows you to connect a digital computer to two DVI compatible monitors or projectors. The DVI Video Splitter is ideal for Conference rooms, A/V Professionals, Graphic Designers, Airport, Kiosk, Military, Government and Educational training centers. -
Page 5: Installation
Installation 1. Turn off the power to the primary computer and all monitors. 2. Connect a DVI male extension cable from the primary computer’s “Video out” port to the “Video in” port on the back of the DVI splitter. 3. Take the DVI male/female extension cables from the monitors and plug into the “DVI out 1”... -
Page 6: Technical Specifications
Technical Specifications Video In Ports Video Out Ports Video Bandwidth 25-265 MHz (VGA - UXGA) Maximum Resolution 1600 x 1200 @60Hz Cable Distance Device to Monitor - 33 ft ( 10m) Connectors Input - 1 x 24-pin DVI-I Output - 4 x 24 pin DVI-I LED Indicators 1 x Power Power Adaptor... -
Page 7: Input/Output Signal Specifications
Input/Output Signal Specifications PIN 1 PIN 8 PIN 24 PIN 17 Pin# Signal Pin# Signal T.M.D.S Data 2- Hot Plug Detect T.M.D.S Data 2+ T.M.D.S Data 0- T.M.D.S Data 2/4 Shield T.M.D.S Data 0+ T.M.D.S Data 4- T.M.D.S Data 0/5 Shield T.M.D.S Data 4+ T.M.D.S Data 5-... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 Revised: November 27, 2003...
