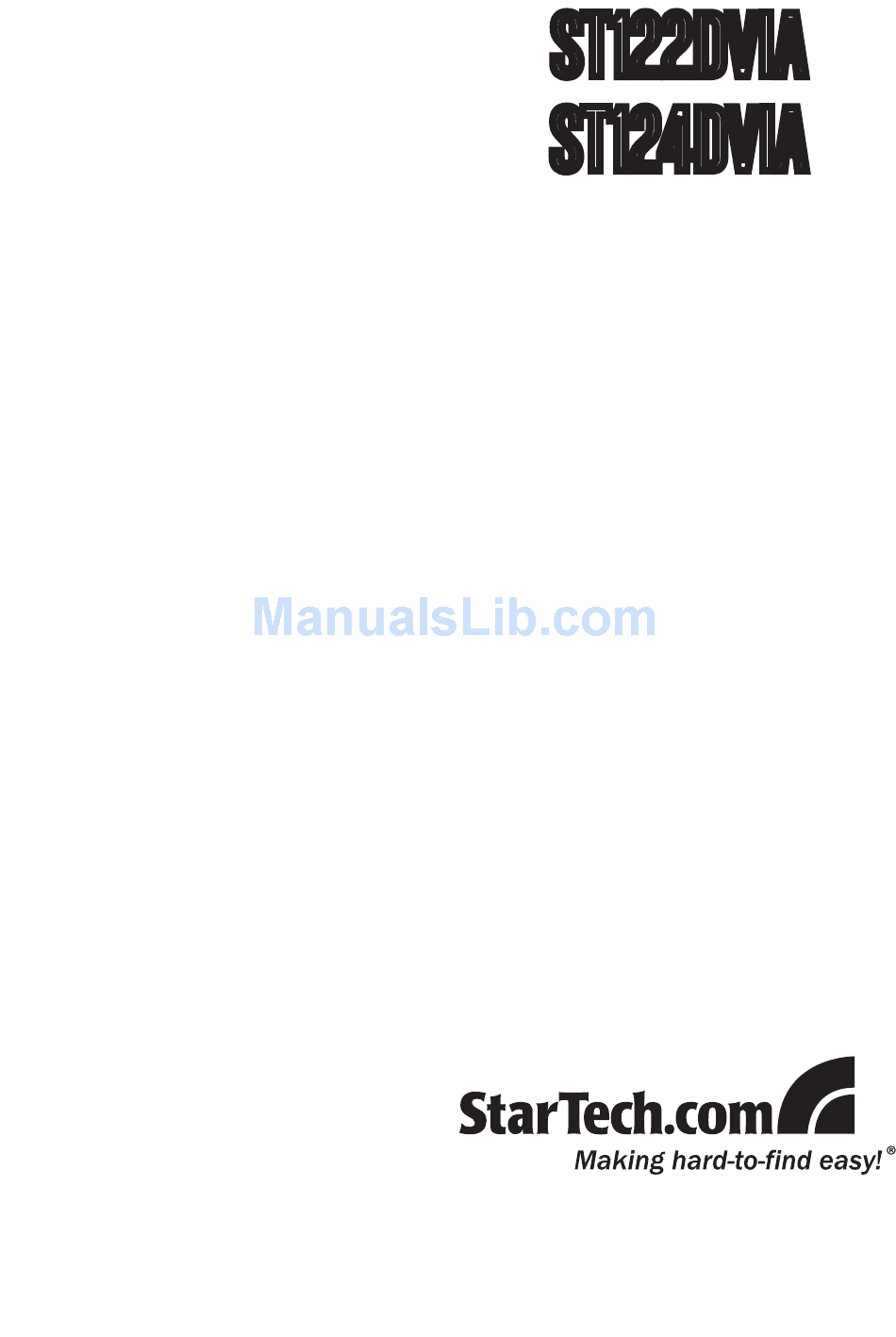

- Page 1 ST122DVIA ST124DVIA Instruction Manual DVI Video Splitter 2/4-Port DVI Video Splitter with Audio...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 System Requirements ..............1 Top View - ST122DVIA ..............2 Rear View - ST122DVIA ..............2 Front View - ST124DVIA ..............3 Rear View - ST124DVIA ..............3 Installation ............... 4 Hardware Installation ..............4 Driver Installation .................5 Specifications .............. -
Page 4: Introduction
Introduction The StarTech.com DVI Splitter with Audio lets you share one DVI video and audio source on two (ST122DVIA) or four (ST124DVIA) displays and also act as a signal amplifier that allows you to locate your DVI monitors up to 33ft (10m) away. A simple and convenient DVI video... -
Page 5: Top View - St122Dvia

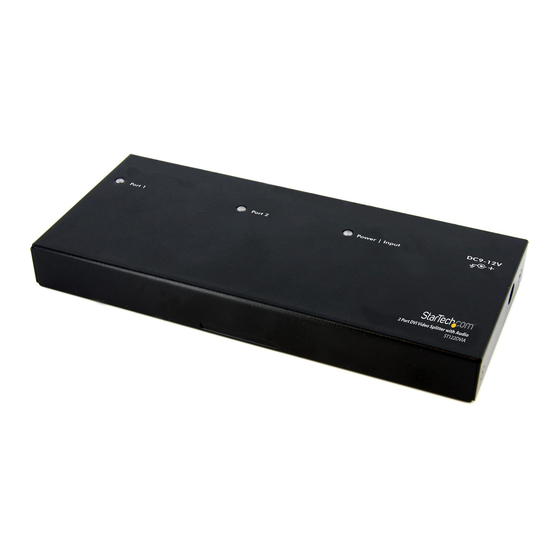

Top View - ST122DVIA Power/Input Output 1 Output 2 signal LED Power connector Rear View - ST122DVIA 3.5mm Audio 3.5mm Audio 3.5mm Audio (input) (output 2) (output 1) DVI connector DVI connector DVI connector (input) (output 1) (output 2) -
Page 6: Front View - St124Dvia
Front View - ST124DVIA Output Status LEDs Power/Input Signal LED Rear View - ST124DVIA 3.5mm Audio 3.5mm Audio input output DVI connector DVI connector (input) (output) Power Connector... -
Page 7: Installation
Output connector to the display device/ speakers. Repeat for each display device or port on the splitter. ST124DVIA ST122DVIA Power on the display devices first. At least one display device must be connected to the splitter, before powering it on, to ensure proper operation. -
Page 8: Driver Installation
Power on the video source device. The Power LED should change to blue to indicate it is receiving a good input signal. Driver Installation No driver installation is required to use the DVI video splitter, as it is an external, hardware-only device, that will not be seen by the host system. -
Page 9: Specifications
Specifications ST122DVIA ST124DVIA Video Signal DVI-D (digital) Number of Ports 3 x 24-pin DVI-I 5 x 24-pin DVI-I Connectors 3 x 3.5mm mini-jack 5 x 3.5mm mini-jack 1 x DC Power 1 x DC Power 1 x Power/Input 1 x Power/Input... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 11 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
