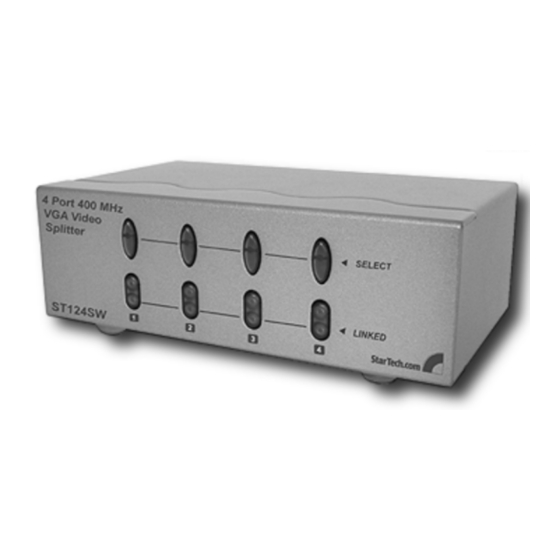

- Page 1 VIDEO S S PLITTER 400 MHz VGA Video Splitter/Selector ST122SW ST124SW Instruction Guide * Actual product may vary from photo * ST124SW shown The Professionals’ Source For Hard-to-Find Computer Parts...
- Page 2 FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 3: Table Of Contents
Table of Contents Introduction ............2 Installation . -
Page 4: Introduction
Thank you for purchasing a StarTech.com controllable video splitter. Now you can share the image from one computer over two (ST122SW) or four (ST124SW) monitors, and be able to turn the signal to those monitors on or off. The built-in video amplifiers let you place your monitors up to 210 ft (65m) away and still experience crystal-clear video signals with resolution up to 2048 x 1536 pixels. -
Page 5: Installation
Installation This section will guide you through the installation of your video splitter. Please read through the instructions carefully and complete each step in the order listed. Note: If you are connecting the switch to a DDC monitor, the other monitors you connect to the switch must be of the same resolution as the DDC monitor. -
Page 6: Technical Specifications
XGA, VGA, SVGA, Multisync Cable Length 210ft (65m) maximum Input Connectors 1 x HDDB15 (female) Output Connectors ST122SW: 2 x HDDB15 (female) ST124SW: 4 x HDDB15 (female) VGA Bandwidth 400 MHz VGA Resolution 2046 x 1536 @ 60 Hz Dimensions 5.1 x 2.9 x 1.6”... -
Page 7: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 8 Revised: November 27, 2003...
