StarTech.com ST128HD20 Quick Start Manual

8-Port HDMI Video Splitter - 4K 60Hz

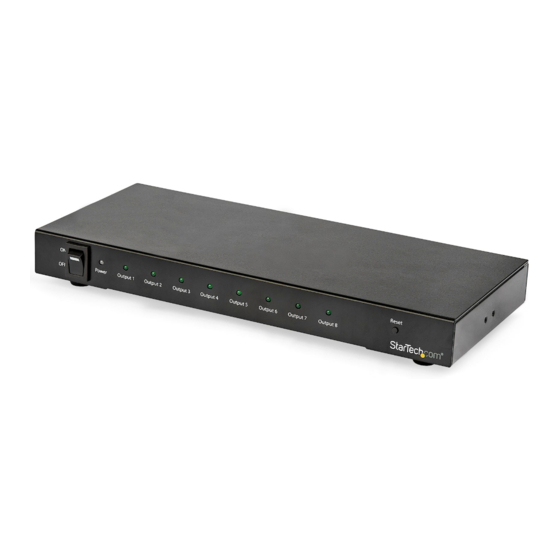

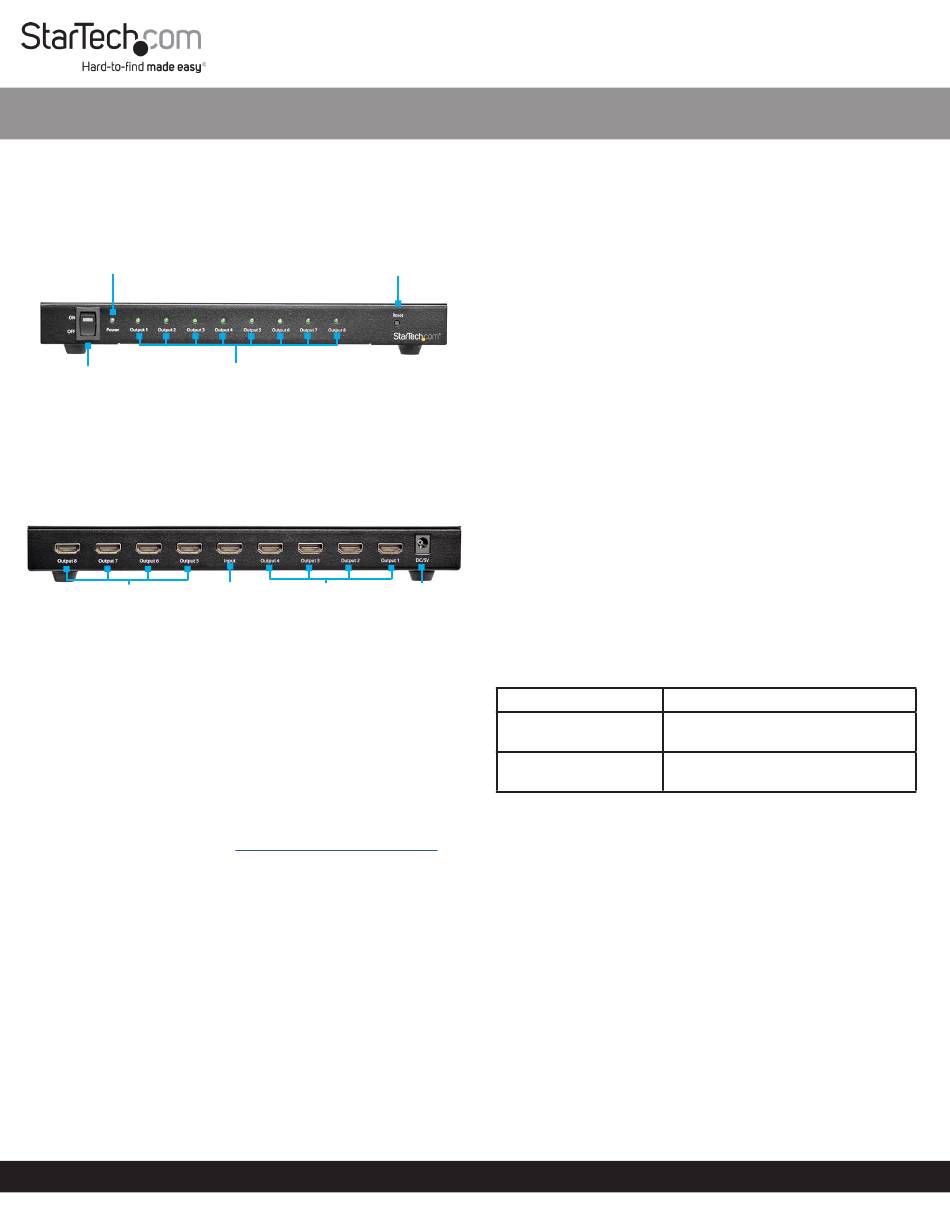

Product Design
Actual product may vary from photos
Front View
Power
LED
On/Off
Button
Rear View
Output 5 - 8
Ports
Package Contents
• HDMI Splitter x 1
• Universal Power Adapter (NA/JP, UK, EU, ANZ) x 1
• Set of Mounting Brackets x 1
Requirements
Operating system requirements are subject to change. For the
latest requirements, please visit www.startech.com/ST128HD20.
Video Source
• HDMI Video Source x 1
Display
The number of displays required will depend on your display
configuration.
• HDMI Display Device x 8
Cables
The number of cables required will depend on your device
configuration.
• HDMI Cables x 9
For the latest information, specifications, and support visit www.startech.com/ST128HD20.
Button
Output 1 - 8
LED
Input
Output 1 - 4
Port
Ports
Installation
1. Connect an HDMI Cable, to the HDMI Input Port on the HDMI
Splitter.
2. Connect the other end of the HDMI Cable to the HDMI Output
Port on the Video Source Device.
Reset
3. Connect an HDMI Cable, to the Output 1 Port on the HDMI
Splitter.
4. Connect the other end of the HDMI Cable to the HDMI Input
Port on the HDMI Display Device.
5. To connect extra Display Devices to the HDMI Splitter, repeat
Steps 1 - 2 (a max. of 8 Display Devices can be connected to the
HDMI Splitter).
6. Connect the Universal Power Adapter to the DC/5V Port on the
HDMI Splitter. Connect the other end of the Universal Power
Adapter to an AC Electrical Outlet.
7. Turn on the HDMI Video Source.
8. Turn on the HDMI Display Device(s).
EDID
EDID settings are copied from the HDMI Display Device that is
connected to the Output 1 Port and applied to the other HDMI
Display Devices connected to the HDMI Splitter.
DC/5V
Note: Make sure to connect the display with the lowest resolution
Port
to the Output 1 Port , to ensure that all connected HDMI
Display Devices using the lowest EDID settings for compatibility.
LED Indicators
Power LED
Output LEDs
Quick-Start Guide
SKU #: ST128HD20
LED
Lights when the HDMI Splitter is
connected to a power source.
Lights when an active video display
is connected to the Output Port.
Status
Manual Revision: 07/12/2018
