Master section (A and B)

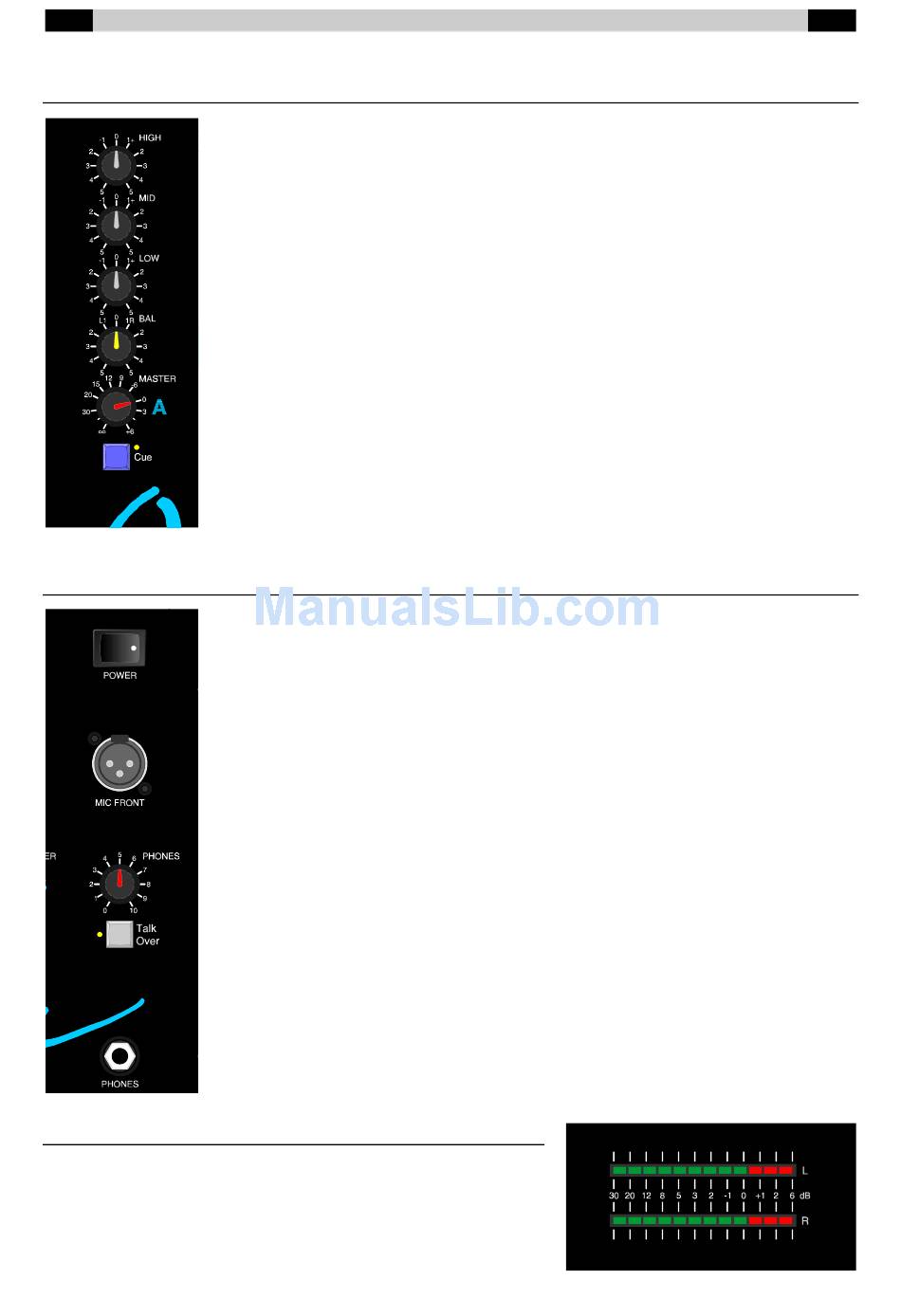

The Onyx has two identical master sections (A and B). Each section consists of
a triple tone control, balance control, volume control and a monitoring function
(after-fader listening).
HIGH
MID
LOW
BAL
MASTER
Cue
Miscellaneous
Meter
This is an easy-to-read 2- x 12-segment LED display of the
Cue signal. An operating level of approximately 0dB is
nominal.
High tone adjust.
Middle tone adjust.
Low tone adjust.
Determines the balance between the left and the right
channel. When in mid-position, the left and right channel can
be heard evenly loud.
Volume control for both the unbalanced stereo output (A and
B) and the balanced stereo output (Master A only).
Switches the monitoring function on and off. When this button
is pressed the signal of this master is audible on the
headphones and visible on the LED VU meter.
POWER Mains voltage switch of the Onyx.
MIC FRONT An extra microphone can be connected quickly to this
connector. The signal can be adjusted using channel 1.
PHONES Volume control for the headphones.
TALKOVER When this button is pressed the talkover function is
activated. As soon as a signal comes in on channel 1 (and
channel 1 is routed to output A and/or B using the A and B
switches), the volume of channels 2-6 will be attenuated.
When this happens the LED next to the talkover switch will
light up red. When the talk-over function is activated the LED
will light up green.
PHONES Stereo headphones output. The selected Cue signal is
always present at this output.
