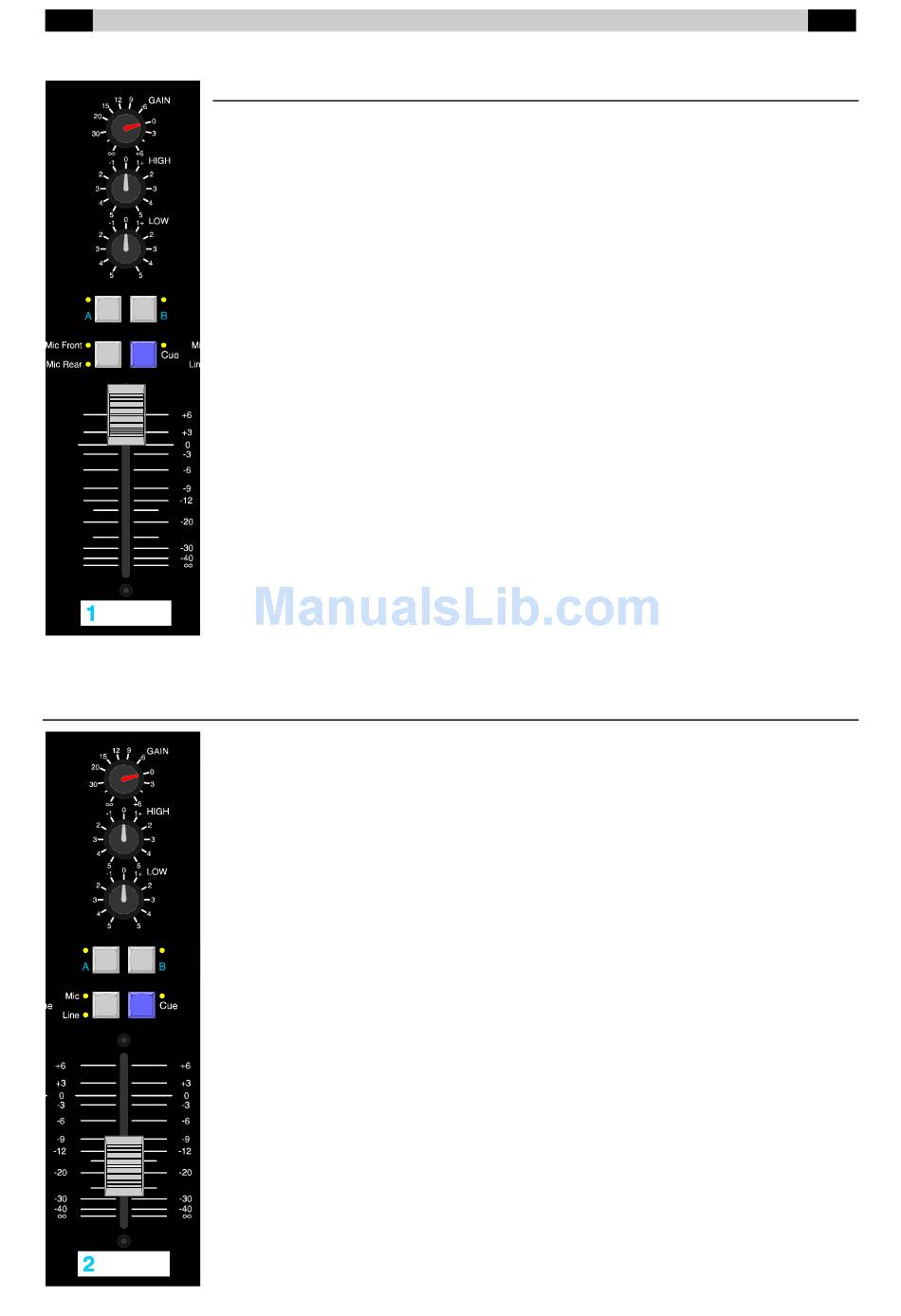

Microphone channel with Talkover (1)
A microphone can be connected to this channel. The channel is equipped with
volume control, dual tone control, A/B output selection, input selection and a
pre-listening function.
GAIN
HIGH
LOW
A/ B
Mic Front/Rear Input selection. Normally Mic Front (the XLR connector on the
Cue
Fader
Combined microphone/ line channel (2)
Determines the volume preset for both the Mic Front and the
Mic Rear input.
High tone adjust.
Low tone adjust.
Output selection. When button A is pressed the microphone
signal of this channel runs to output A. Also, the signal of any
of the channels 2-6 on which button A has also been pressed
is attenuated when talkover is active. When button B is
pressed the signal of this channel is directed to output B.
Also, the signal of any of the channels 2-6 on which button B
has also been pressed is attenuated when talkover is active.
front panel of the Onyx) is selected. Mic Rear (XLR connector
on the rear) is pressed.
Switches the pre-listening function on and off. When this
button is pressed the signal of this channel is audible on the
headphones and visible on the LED VU meter.
60 mm fader which can be used to control the volume of this
channel.
This channel can be used to connect a microphone and/or a line source. The
channel is equipped with volume control, dual tone control, A/B output
selection, input selection and a pre-listening function.
GAIN Determines the volume preset for both the mono Mic and the
Stereo Line input.
HIGH High tone adjust.
LOW Low tone adjust.
A/ B Output selection. When button A is pressed the microphone
or line signal of this channel is directed to output A. When
talkover is active on output A the signal of this channel is
attenuated. When button B is pressed the signal of this
channel is directed to output B. When talkover is active on
output B the signal of this channel is attenuated.
Mic/ Line Input selection. Normally Mic is selected. Press the button to
select the Stereo Line input.
Cue Switches the pre-listening function on and off. When this
button is pressed the signal of this channel is audible on the
headphones and visible on the LED VU meter.
Fader 60 mm fader which can be used to control the volume of this
channel.
