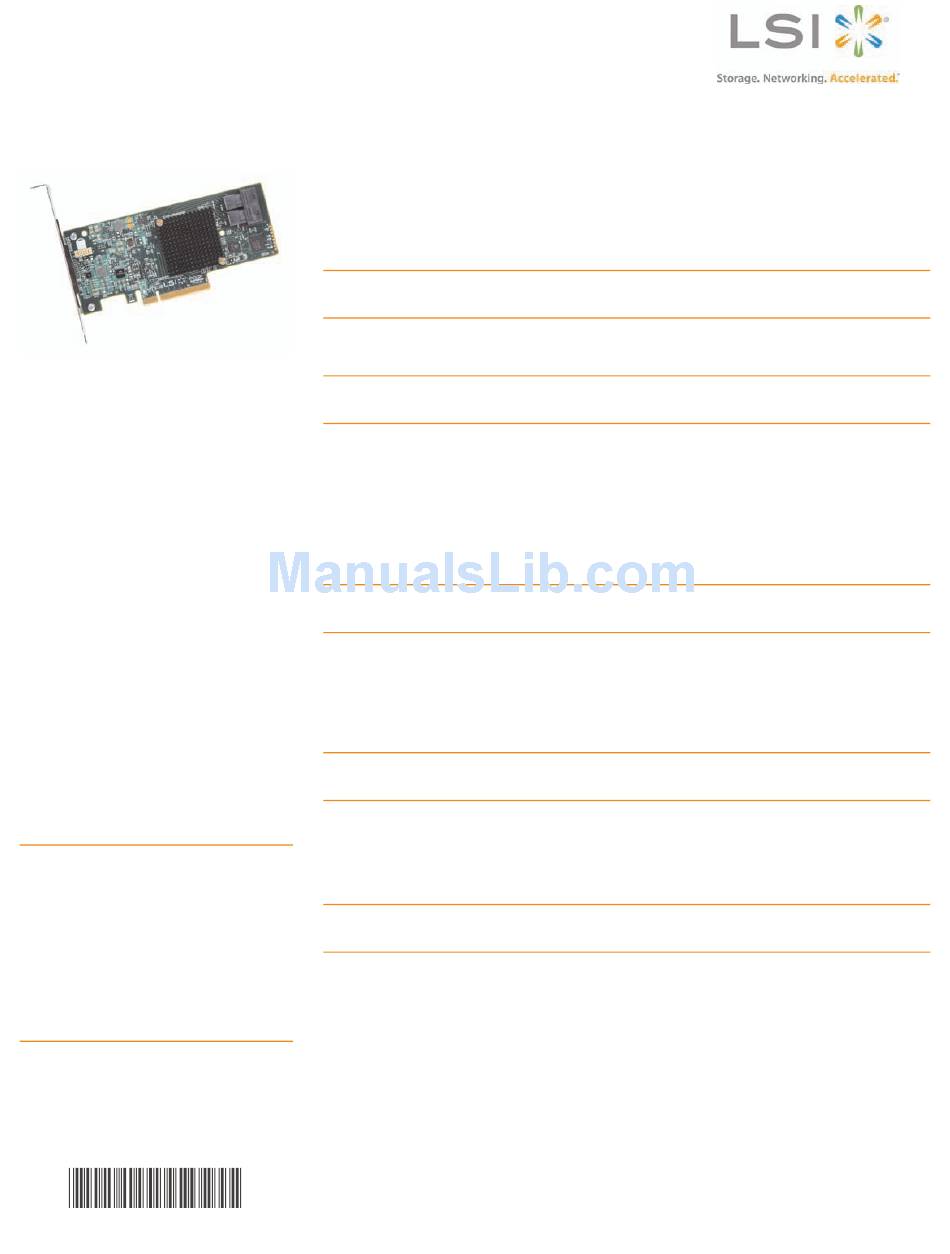

LSI SAS 9311-8i Quick Installation Manual

Quick Installation Guide
®
LSI SAS 9311-8i PCI Express
Thank you for purchasing the

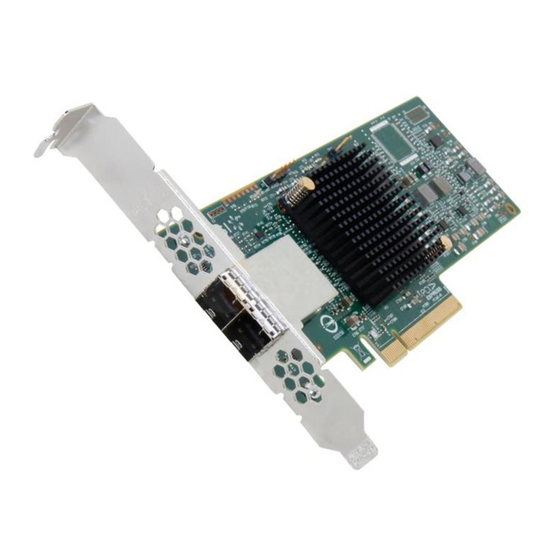

LSI SAS 9311-8i Host Bus Adapter
(HBA). Please take a few minutes to
read this quick installation guide
before you install the HBA.
For more information about any
topic covered in this guide, refer to
the documents on the
accompanying LSI 12Gb/s SAS+SATA
Drivers and Documentation CD.
The LSI 12Gb/s SAS+SATA Drivers and
Documentation CD contains device drivers for
the Windows® operating system and the
Linux® operating system. The CD also contains
the following LSI documentation:
• "LSI SAS 9311-8i PCI Express to 12Gb/s
Serial Attached SCSI (SAS) Host Bus
Adapter User Guide"
• LSI HBA technical product briefs
ATTENTION: Perform all installation work at
an electrostatic discharge (ESD)-
safe workstation that meets the
requirements of EIA-625,
Requirements for Handling
Electrostatic Discharge Sensitive
. You must perform all
Devices
actions in accordance to the
latest revision of the IPC-A-610
ESD-recommended practices.
53681-01A
®
to 12Gb/s SAS Host Bus Adapter
®
To install the LSI 12Gb/s SAS HBA, follow these steps:
1. Unpack the HBA, and inspect it for damage. Unpack the HBA in a static-free environment.
Remove the HBA from the antistatic bag, and carefully inspect the device for damage. If you notice any
damage, contact LSI or your reseller support representative.
ATTENTION: To avoid the risk of data loss, make a backup of your data before changing your
system configuration.
2. Prepare the computer.Turn off the computer, and disconnect the power cord from the rear of the
power supply.
CAUTION: Disconnect the computer from the power supply and from any networks to which you
will install the HBA, or you risk damaging the system or experiencing electrical shock.
3.

Remove the cover from the chassis.

4. Check the mounting bracket on the HBA (system-dependent). If required for your system,
replace the full-height mounting bracket that ships on the HBA with the low-profile bracket supplied.
Complete step a through step d to attach the short bracket.
®
a. Use a #1 Phillips screwdriver that is ESD safe to remove the two Phillips screws that connect
the full-profile bracket to the board. Unscrew the two screws located at the top and bottom edges
of the board. Avoid touching any other board components with the screwdriver or the bracket.
CAUTION: Damaging the screw can void the warranty. To prevent damage to the screw, center
the screwdriver in the top of the screw.
b. Remove the full-profile bracket from the HBA. Do not damage the board.
c. Place the HBA on top of the low-profile bracket. Position the bracket so that the screw holes in
the tabs align with the openings in the board.
d. Use a #1 Phillips torque screwdriver, that is ESD safe, set to a maximum torque of 4.8 ± 0.5
inch-pounds. Replace the two Phillips head screws removed in step a.
CAUTION: Exceeding these torque specifications can damage the board, connectors, or screws,
and can void the warranty on the HBA.
5. Insert the HBA into an available PCIe
bracket panel on the rear of the computer that aligns with the empty PCIe slot. Save this bracket screw, if
applicable. Align the HBA to a PCIe slot. Press down gently, but firmly, to seat the HBA correctly in the
slot. The following figure shows how to insert the HBA into a PCIe slot.
NOTE: The shape, size, and locations of the components on your HBA and its bracket might vary from
this illustration. The HBA requires a x8 PCIe slot.
®
slot. Locate an empty x8 PCIe slot. Remove the blank
