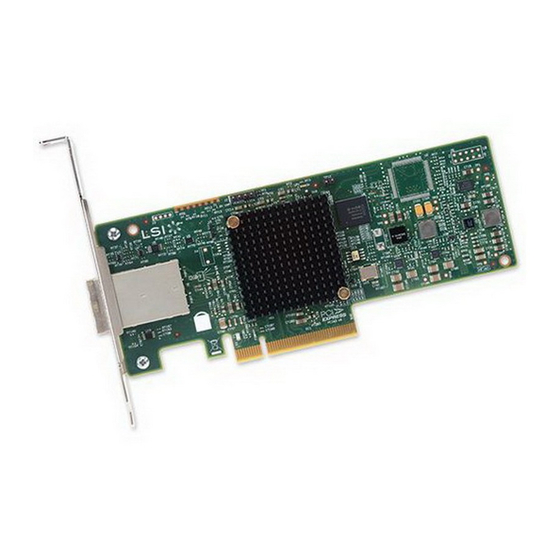

LSI SAS 9300-8e User Manual

LSI SAS 9300-8e User Manual

Pci express® to 12gb/s serial attached scsi (sas) host bus adapter
Hide thumbs Also See for SAS 9300-8e:

Advertisement

LSI® SAS 9300-8e PCI Express® to 12Gb/s Serial
Attached SCSI (SAS) Host Bus Adapter
User Guide
Version 1.1
December 2013
DB15-000902-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAS 9300-8e and is the answer not in the manual?

Questions and answers

Summary of Contents for LSI SAS 9300-8e

  • Page 1 LSI® SAS 9300-8e PCI Express® to 12Gb/s Serial Attached SCSI (SAS) Host Bus Adapter User Guide Version 1.1 December 2013 DB15-000902-01...
  • Page 2: Revision History

    LSI Corporation reserves the right to make changes to the product(s) or information disclosed herein at any time without notice. LSI Corporation does not assume any responsibility or liability arising out of the application or use of any product or service described herein, except as expressly agreed to in writing by LSI Corporation; nor does the purchase, lease, or use of a product or service from LSI Corporation convey a license under any patent rights, copyrights, trademark rights, or any other of the intellectual property rights of LSI Corporation or of third parties.
  • Page 3: Table Of Contents

    LSI SAS 9300-8e PCI Express to 12Gb/s SAS Host Bus Adapter User Guide Table of Contents December 2013 Table of Contents 1 Overview ..........................4 2 Features .
  • Page 4: Overview

    The LSI SAS 3008 controller chip contains the PCIe functionality for the LSI 12Gb/s SAS HBA. The LSI SAS 3008 controller chip connects to the PCIe bus and generates timing and protocol in compliance with the PCIe specifications.
  • Page 5: Sas-3 Interface

    Operating System Support December 2013 SAS-3 Interface SAS-3 Interface The LSI SAS 3008 controller chip contains the SATA+SAS functionality for the LSI 12Gb/s SAS HBA. The following table shows the LSI SAS 12Gb/s SAS performance. Half Duplex Full Duplex Narrow port (one lane), 1200 MB/s Narrow port (one lane), 2400 MB/s...
  • Page 6: Physical Characteristics

    Physical Characteristics The LSI 12Gb/s SAS HBA is a 6.6-in. × 2.7-in., low-profile board. The component height on the top and bottom of the LSI 12Gb/s SAS HBA is in accordance with the PCIe specification. The following figure shows the HBA board layout.
  • Page 7: Lsi 12Gb/S Sas Hba Certifications And Safety Characteristics

    LSI 12Gb/s SAS HBA Certifications and Safety Characteristics All LSI 12Gb/s SAS HBAs meet or exceed the requirements of UL flammability rating 94V-0. Each bare board is marked with the supplier’s name or trademark, type, and UL flammability rating. Because these boards are installed in a PCIe bus slot, all voltages are less than the SELV 42.4-V limit.
  • Page 8: Technical Support

    Replace the cover of the chassis. Connect SAS cables between the HBA and the SAS enclosure that contains SATA or SAS devices. The LSI 12Gb/s SAS HBA has two, SFF-8644, external x4 mini-SAS HD connectors. Use a cable with an external mini-SAS HD connector (SFF-8644) on one end (to connect to the HBA) and the appropriate connector to attach to the enclosure that contains SAS or SATA devices on the other end.
