Planning the Network

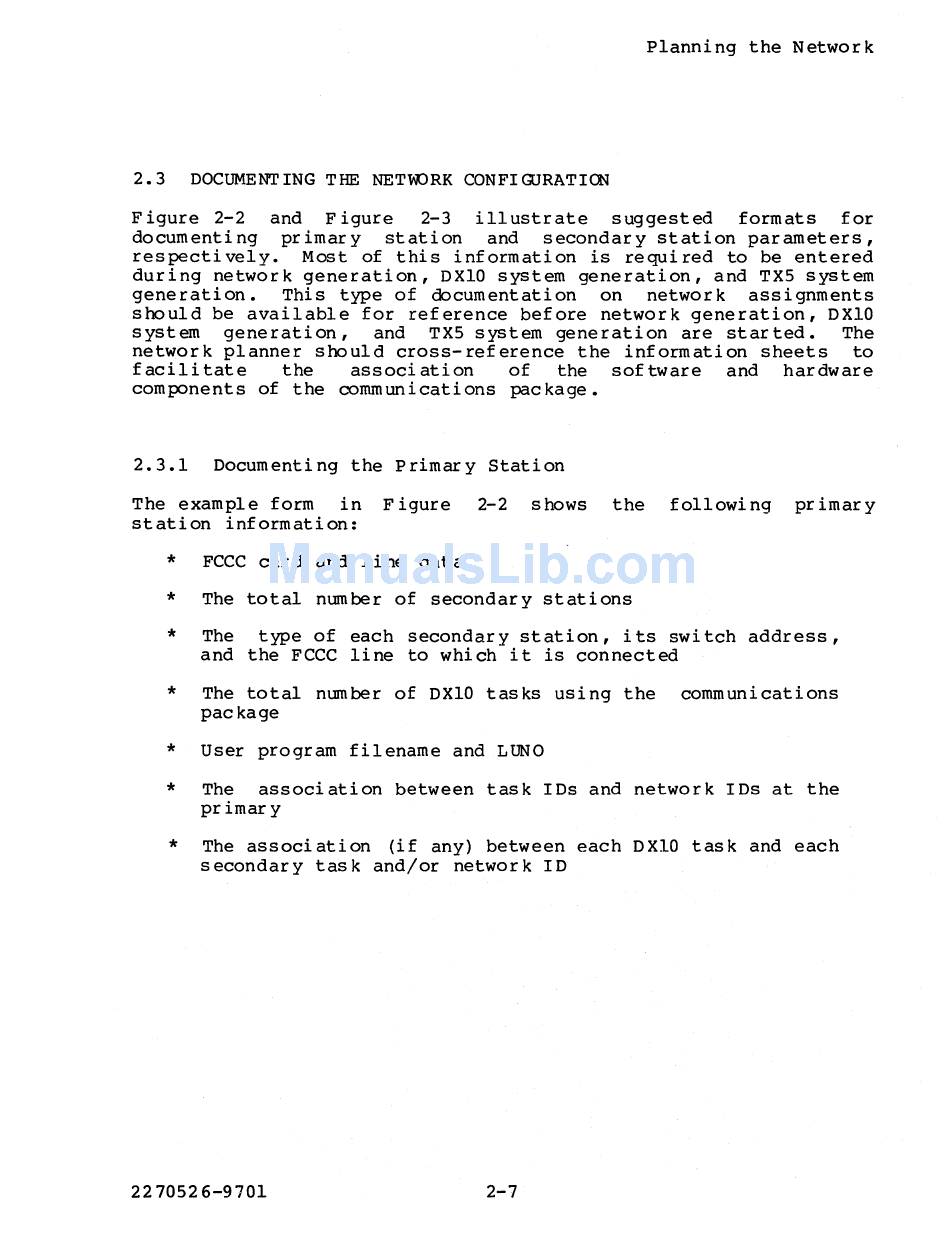

2.3 DOCUMENTING THE NETIDRK CONFlGURATlOO
Figure 2-2 and Figure 2-3 ill ustrate suggested formats for
documenting primary station and secondary station parameters,
respectively. Most of this information is required to be entered
during network generation, DXlO system generation, and TX5 system
generation. This type of documentation on network assignments
should be available for reference before network generation, DXlO
system generation, and TX5 system generation are star ted. The
network planner should cross-reference the information sheets to
facilitate the association of the software and hardware
components of the communications package.
2.3.1 Documenti ng the P rimar y Station
The example form in Figure 2-2 shows the following primary
station information:
*
*
*
*
*
*
*
FCCC card and line data
The total number of secondary stations
The type of each secondary station, its switch address,
and the FCCC line to which it is connected
The total number of DXlO tasks using the
package
User program filename and LUNO
comm uni cat ions
The association between task IDs and network IDs at the
pr imar y
The association (if any) between each DXIO task and each
s econdar y t as k andlor netwo r kID
2270526-9701 2-7
