Page 1: User Manual

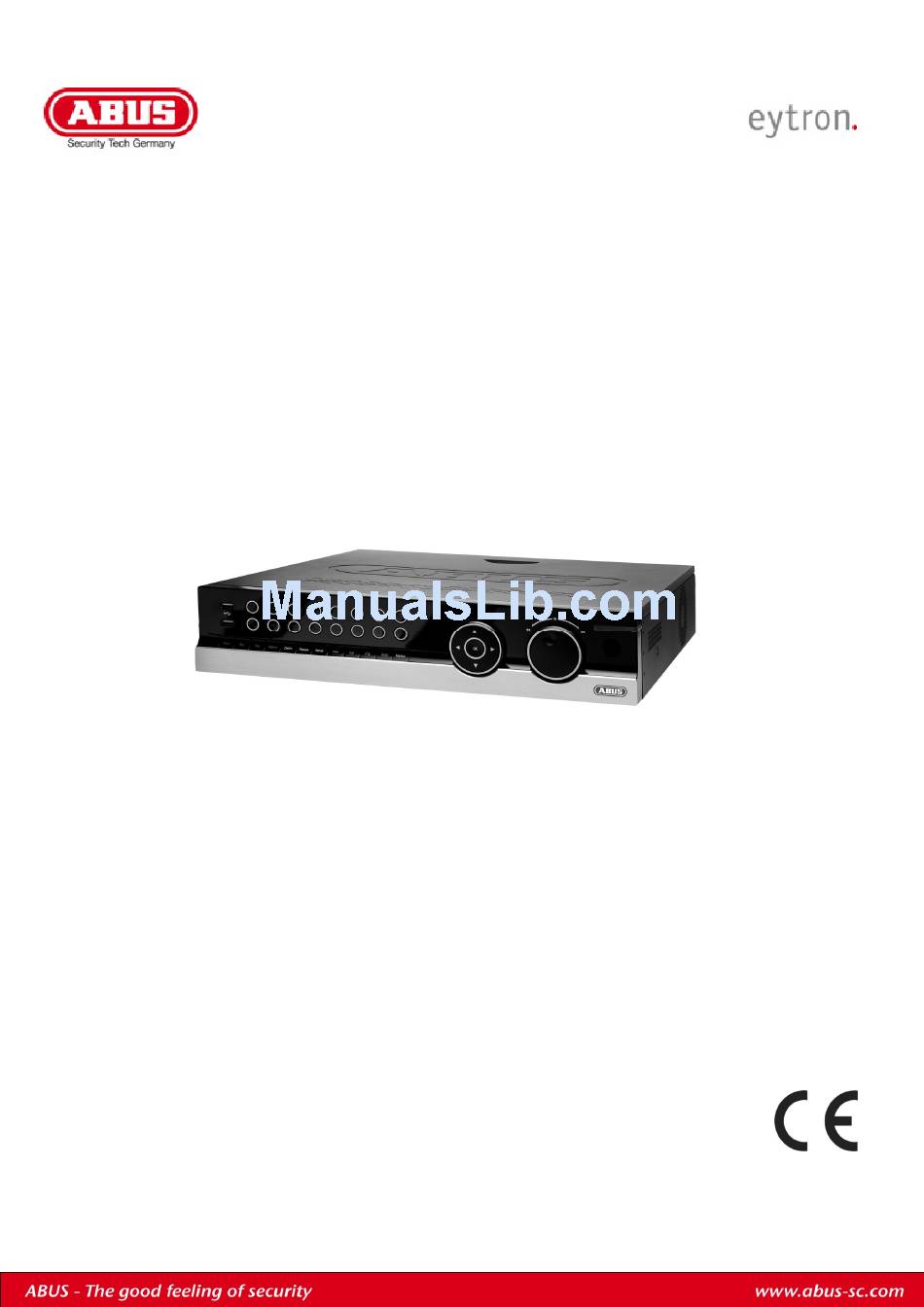

ABUS Digital Recorder TVVR40000 / TVVR40010 TVVR40020 / TVVR40021 User manual Version 1.4... - Page 2 Pay attention to the information in the separate quick guide, plus the notes on the CD and in the accompanying documentation on “Web server control” and “Clients Software”. These can be found on the Internet under www.abus-sc.com.
-
Page 3: Device Overview
Device overview Device overview See System operation on page 13. Front Rear TVVR40000 and TVVR40010 are similar to above diagram. - Page 4 Device overview Remote control (TVAC40930 optional available)
-
Page 5: Table Of Contents
Contents Device overview ................................3 Quick guide..................................8 Before you start ................................8 Installing the HDD ................................8 Establishing the connections ............................8 Configuring the device ..............................8 Important safety information ............................9 Explanation of symbols ..............................9 Proper use ..................................9 General information ................................. - Page 6 Contents Setting the camera output............................22 Record Settings ................................23 Set-up..................................... 23 General settings ................................ 23 Advanced settings ..............................23 Schedule ................................... 23 Manual Record ................................24 Playback ..................................25 General information ............................... 25 Playback screen ............................... 25 Using the control panel ............................. 25 Playback through video search ............................
- Page 7 Contents Upgrading the device ..............................44 Log Search ................................45 Default Settings ................................ 46 Import / Export Configuration ............................ 46 Information ................................46 ShutDown ..................................46 Network ................................... 47 General information ............................... 47 Terms and definitions ............................... 47 Network layout ................................48 Network configuration ...............................
-
Page 8: Quick Guide
Install one or more HDDs (see the separate quick Install one or more HDDs (see the separate quick Note guide). Check the ABUS homepage ( Check the ABUS homepage (www.abus- sc.com) if for this device any firmware updates ) if for this device any firmware updates... -
Page 9: Important Safety Information
Important safety information Important safety information Important safety information Important safety information Explanation of symbols General information The following symbols are used in this manual and on the The following symbols are used in this manual and on the Before using the device for the first time, read the follo Before using the device for the first time, read the follow- device: ing instructions carefully and pay attention to all war... -
Page 10: Overloading / Overvoltage
Important safety information To avoid the possibility of fires, the plug should a To avoid the possibility of fires, the plug should al- Installation location / operating enviro / operating environ- • ways be disconnected from the network socket if the ways be disconnected from the network socket if the ment device is not used for long periods. -
Page 11: Care And Maintenance
Important safety information Important safety information Care and maintenance Putting into operation Maintenance is necessary if the device has been da Maintenance is necessary if the device has been dam- Observe all safety and operating instructions before operating instructions before •... -
Page 12: Introduction
ABUS S at any time and without prior warning. ABUS Se- curity-Center GmbH is not liable or responsible for... -
Page 13: System Operation
System operation System operation Name General information Function The device can be controlled as follows: Camera selection keys (1, 2, 3...) Using the operating elements on the front of the de- • Displays the camera status: vice • White: Camera is connected Using the remote control •... -
Page 14: Connections On The Rear Of The Device
System operation Connections on the rear of the device Operating elements on the remote control Note Note Pay attention to the overview on page 3. Pay attention to the remote control diagram on page 4. Name Function Name Function MAIN: BNC video output POWER: When using a VGA monitor: •... -
Page 15: Mouse Operation
System operation Name Name Function Function Not used INFO: Not used • Switches to another monitor in the live view EDIT: Zoom +: General use: Zooms in on the image section in PTZ mode • Activates the text entry; backspace in text fields In lists: •... -
Page 16: On-Screen Keyboard
System operation On-screen keyboard Switching off, locking and rebooting the , locking and rebooting the The on-screen keyboard appears after clicking on a text screen keyboard appears after clicking on a text device entry field with the mouse: Click on “ShutDown” in the main menu Click on “ShutDown”... -
Page 17: Status Displays
Status displays Status displays General information The following status displays indicate the current operat- ing state: LEDs on the front of the device • Acoustic signal tones • Icons (display elements) on the monitor • Note Pay attention to the information in the separate quick guide. -
Page 18: Setup Wizard
Setup wizard Setup wizard Setting up the system Setting up the administrator Setting up the administrator The setup wizard guides you through the necessary b The setup wizard guides you through the necessary ba- Warning sic system settings. The DVR is then set up for recording The DVR is then set up for recording Note down the admin password Note down the admin password. -
Page 19: Hdd Management
Setup wizard To transfer this schedule to other cameras, first s To transfer this schedule to other cameras, first se- HDD Management lect the camera (or “All” if all cameras should have (or “All” if all cameras should have Click on “Enter”. the same settings) and confirm by pressing the same settings) and confirm by pressing Copy. -
Page 20: Live View
Live view Live view Status symbols Overview The following symbols are displayed depending on The live view starts automatically after the device is • the operating status of the device: switched on. Symbol Meaning You can also go back to the live view by pressing the Event detected Menu key repeatedly. -
Page 21: Digital Zoom
Live view Single Camera Full-screen view for selected camera Multi Camera Various camera layouts Next Screen Displays the next camera(s) Stop Auto- Starts the camera sequence switch Digital Zoom Zooms in on the image section Activates PTZ mode Playback Switches to playback mode Menu Opens the main menu Note... -
Page 22: System Settings
Live view Setting the camera output System Settings Up to 16 cameras can be set simultaneously in the live Note view. The live view can be set as follows. Click on “Set”. Open the main menu, then click on “System Settings” and then “Display Settings”: Select the display mode. -
Page 23: Record Settings
Record Settings Record Settings More Settings Set-up Detailed settings Pre-alarm Recording period before an alarm Open the main menu, then click on “System Settings” (in seconds) and then “Record Settings”: Post-alarm Recording period after an alarm (in seconds) Expiration Period (in days) after which the re- cording is deleted automatically at 00:00. -
Page 24: Manual Record
Record Settings In the OSD, the hours of the respective days are listed The camera settings can be copied and applied to all • from left to right (the days are listed from top to bottom). cameras in the “Schedule” tab. A colour key is shown underneath the days (i.e. -
Page 25: Playback
Playback Playback Advances 30 seconds General information Fast-forward Playback can be made in three different ways: Slow-motion advance Through the video search in the main menu • Next recording / day From the live view • Time bar: Through the log file in the maintenance menu •... -
Page 26: Playback: Advanced Video Search
Playback The following settings are available: Playback from the live view screen Camera Camera to be set Click on playback whilst the live view screen is shown: Video Type Schedule, motion detection, alarm or mo- Playback is controlled on the control panel: tion detection and/or alarm, manual re- cording, all File Type... -
Page 27: Ptz Control
In order to open the menu of ABUS PTZ- • Cameras enter Preset 95. By using the naviga- tion buttons you can move within the menu. -
Page 28: Ptz Settings
Exit the settings by pressing “Apply” and “OK”. Exit the settings by pressing “Apply” and “OK”. Note Note When using ABUS PTZ-Cameras with the Pelco- Compare the settings with the technical data of D protocol some presets are predefined and can- the connected camera. -
Page 29: Tour Settings
PTZ control Call a tour set in the PTZ-Camera Tour Settings You can also configure tours directly in the camera. The Patrols are defined tours from position to position that are advantage is that other control devices, e.g. keyboard, accessed in sequence on the PTZ camera. The individual can call the tours as well. -
Page 30: Pattern Settings
PTZ control Pattern Settings Patterns are defined tours from position to position that are accessed in sequence on the PTZ camera. Patterns are recorded live. The system saves the parameters used whilst you move and adjust the cameras in se- quence to the corresponding positions at a defined speed. -
Page 31: Device Menu
Device menu Device menu Menu overview When the mouse cursor is pointed at a menu, it is • marked and a short description of the menu is shown The following overview shows all menus used to set and at the bottom. control the device. -
Page 32: Manual Record
Device menu Manual Record Video Search Note Parameters for Video Search Only active cameras can be selected for manual “General” tab recording. Analog Overview of analogue cameras The recording starts immediately. Used for searching the selected cameras Select the camera by ticking the corresponding box. Video Type Continuous After a camera has been selected, the box changes... -
Page 33: Results
Device menu Results Set the parameters that should be used for search- ing for a recording. After making a search, the results screen is displayed: When searching in the “General” tab, you can open the overview by pressing “Details”: Highlight the searched recording. •... -
Page 34: Video Export
Device menu Video Export 4. Click on Export to access the export screen. Note Select the connected medium used for data storage from the drop-down menu. The export function is used to store important re- cordings on connected external media, such as: If the medium is not displayed, click on Refresh. -
Page 35: Manual Alarm
Device menu Manual Alarm HDDs Note The device manages up to up to four 3.5" SATA hard disk drives. Each of the installed HDDs must be initialised b Each of the installed HDDs must be initialised be- fore the device can be used for fore the device can be used for recording. -
Page 36: Initialising The Hdd
Device menu Initialising the HDD Note If the initialised HDD is not displayed, check the connections. Select the HDD by ticking the corresponding box. Start the process by clicking on “Init”. Confirm the prompt by pressing OK. The status bar shows the progress of the initialisa- tion. -
Page 37: Checking The Hdd Status
Device menu Warning: If only one HDD is installed and this is set to If only one HDD is installed and this is set to “Read-only”, then the device cannot make r only”, then the device cannot make re- cordings. Redundancy: At least two HDDs are installed. -
Page 38: System Settings
Device menu System Settings Menu Setting Page RS232 Parameters on the serial conne Parameters on the serial connec- tion Display Display settings and assignment Display settings and assignment of the event output of the event output Exception Behaviour of the device in exce Behaviour of the device in excep- tional cases (HDD full, network tional cases (HDD full, network... -
Page 39: System Settings: Camera
Device menu Date Format Format of the displayed date “DST Settings” Setting Time Format 12-hour / 24-hour display Activated when box is ticked OSD Display OSD transparent, flashing, non- transparent etc. From / To Date of DST start / end OSD Display Screen position of the OSD DST Bias... -
Page 40: Setting Up Of Zones
Device menu Setting up of zones Note When carrying out camera surveillance, you can define zones that should not be monitored (private zones). You can also set up zones with special character- istics (e.g. tamper monitoring or motion detection). Activate the zone by ticking the corresponding box and clicking on “Area Settings”. -
Page 41: System Settings: Record
Device menu System Settings: Record Note See description on page 23. System Settings: Network Note See separate section on page 47. System Settings: Alarm Note See separate section on page 52. System Settings: PTZ Note See description on page 27. System Settings: RS232 No function. -
Page 42: System Settings: Exception
Device menu System Settings: Exception To add a new user, select To add a new user, select Add. Note Parameter Setting Enter the trigger under “Exception Type”, for e Enter the trigger under “Exception Type”, for ex- User Name Unique identification Unique identification ample: Password... - Page 43 Device menu Setting the access rights Control the access rights of the user by clicking on “Permission”: Note The user can make the settings locally (i.e. on the device) or change the parameters. The user can access the device via the network connection.
-
Page 44: Maintenance
Device menu Upgrading the device Maintenance Note A device upgrade can be made from a USB de- Note vice or over the network via FTP. This menu is used for device maintenance, and Copy the upgrade file (*.mav format) to the should only be operated by experienced users. -
Page 45: Log Search
Device menu Log Search Type Minor type / sub-parameter Operation • Switch On • ShutDown • Irregular ShutDown • Local Reboot • Local Login / Local Logout • Local Settings • • Local Recording Begin / • Local PTZ Control •... -
Page 46: Default Settings
Device menu Information Default Settings Note Note In this process, the device is reset to the factory d In this process, the device is reset to the factory de- The technical data of the device is displayed in the The technical data of the device is displayed in the fault settings. -
Page 47: Network
Network Network General information Parameter Setting Correct network settings are essential in the following Name The name server is responsible for as- cases: server signing a unique IP address to a web ad- When using network cameras (IP cameras) dress or URL (e.g. www.google.de). Also •... -
Page 48: Network Layout
Network Network layout Parameter Setting The device must be physically connected to the network The device must be physically connected to the network NIC Type Set the transmission speed of the i Set the transmission speed of the in- over a CAT5 cable (see connections on page over a CAT5 cable (see connections on page 3). - Page 49 Email Used to specify the e-mail settings which are sent as an e-mail to a spe- To use the ABUS DDNS function, you must first set cific address in the event of an alarm. up an account under www.eytronserver.com. Please note the FAQs on the website when doing this.
- Page 50 Network Setting the HOST / OTHERS Setting up an e-mail address Leg en Si e i In the event of an alarm, the device can send a message by e-mail. Enter the e-mail configuration here: Leg en Si e i Parameter Setting Alarm Host IP...
- Page 51 Network Enter the parameters of the e-mail notification. Click on Test to send a test e-mail. Note The device sends an e-mail to the specified re- cipients. If the e-mail is not received, check the settings and correct them. If necessary, check the spam filter of your e-mail client.
-
Page 52: Alarm
Alarm Alarm Alarm overview Parameter Setting The alarm settings regulate the type of camera surveil- Setting Tick the box to make exception lance in a detailed fashion and control the device behav- settings and notification settings iour (for example, in the event of motion detection or (see page Fehler! Textmarke video signal loss). - Page 53 The software must be should be activated. For example, if enabled and the recorder you have installed the ABUS IP alarm set to surveillance mode on module, then you can use the the PC.
-
Page 54: Alarm Output
Alarm Output IP alarm module Click on “Alarm Output” in the “Alarm Settings” You can add up to three ABUS IP alarm modules menu. (CASA10010) here. After successfully connecting via the network, two alarm inputs and two alarm outputs are added to each of the “Alarm Input”... -
Page 55: Troubleshooting
Troubleshooting Troubleshooting Before calling the Service department, read the following information to determine the possible cause of a malfunction. Malfunction Cause Solution No power Mains cable not connected Connect the mains cable securely to the socket Power switch set to OFF Turn the power switch to ON No current in the power socket Use another device on the socket, where... -
Page 56: Index
Index Index Access rights 43 Encoding 23 Network 47 Remote control 4, 14 Address range 47 Exception 42 Advanced Reset 46 Admin 42 Frame rate 23 configuration 48 Resolution 23 Admin Password 18, FTP 44 Configuration 48 RS232 41 FTP server 44 Email 50 Schedule 40 Alarm 24, 45, 52... -
Page 57: Technical Data
Technical data Technical data Subject is to alterations and errors. The dimensions are approximate values. TVVR40020 ABUS digital recorder TVVR40000 TVVR40010 TVVR40021 Video compression H.264 Hybrid-compatible Camera inputs 4 x BNC (1.0 V p-p, 75 ) 8 x BNC (1.0 V p-p, 75 ) 16 x BNC (1.0 V p-p, 75... -
Page 58: Hdd Storage Capacity
4CIF 2 x 1 TB On the included CD you can find a program in order to calculate the required amount of memory. In addition you find this software for download on our homepage together with the ABUS CMS software. -
Page 59: Disposal
Disposal Disposal Information on the EU directive on waste Information on the EU directive on waste Change low batteries in good time. Change low batteries in good time. • electrical and electronic equipment electrical and electronic equipment Always change all the batteries at the same time and Always change all the batteries at the same time and •... -
Page 60: Glossary
An address in the computer network based on the Inter- Name used for the identification of websites on the Inter- net protocol. Allows different devices to identify them- net (e.g. www.abus-sc.de). selves in a network so that they are accessed specifi- cally. - Page 61 MPEG PPPoE Moving Picture Experts Group – International standard PPP over Ethernet (point-to-point protocol) for the compression of moving images. On some DVDs, Network transmission method used for establishing a the digital audio signals are compressed and recorded in connection over dial-up lines. Used in ADSL connections, this format.
-
Page 62: Internal Hdd
Internal HDD Internal HDD The internal hard disk drive (HDD) is very sensitive. O (HDD) is very sensitive. Op- erate the device according to the following instructions in erate the device according to the following instructions in order to avoid drive errors. Important recordings should order to avoid drive errors. - Page 63 ABUS Digital Recorder TVVR40000 / TVVR40010 TVVR40020 / TVVR40021 Manufacturer: ABUS Security-Center GmbH & Co. KG Linker Kreuthweg 5 86444 Affing (Germany)
