Page 1: User Manual

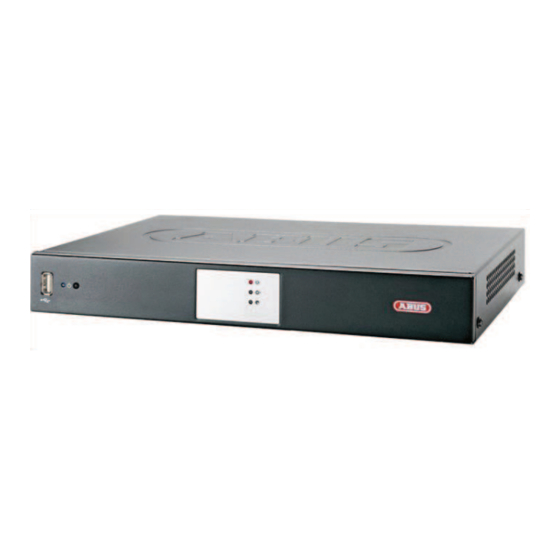

ABUS Digital Recorder TVVR30003 User manual Version 1.0... - Page 2 A list of contents with the corresponding page number can be found in the index. Pay attention to the information on the CD and in the accompanying documentation on “Web server control” and “Clients Software”. These can be found on the Internet at www.abus-sc.com.
-
Page 3: Device Overview
Device overview Device overview See System operation on page 13. Front Rear... - Page 4 Device overview Remote control...
-
Page 5: Table Of Contents
Contents Device overview ................................3 Quick guide..................................8 Before you start ................................8 Installing the HDD ................................8 Establishing the connections ............................8 Configuring the device ..............................8 Important safety information ............................9 Explanation of symbols ..............................9 Proper use ..................................9 General information ................................. - Page 6 Contents Manual Record ................................22 Playback ..................................23 General information ............................... 23 Playback screen ............................... 23 Using the control panel ............................. 23 Playback through video search ............................23 Playback: Advanced video search ..........................24 Playback from the live view screen ..........................24 PTZ control ..................................
- Page 7 Contents Terms and definitions ............................... 44 Network layout ................................45 Network configuration ............................... 45 Troubleshooting ................................49 Device cleaning and care .............................. 49 Note ....................................49 Index ....................................50 Technical data ................................51 HDD storage capacity ............................... 52 Disposal ..................................53 Information on the EU directive on waste electrical and electronic equipment .............
-
Page 8: Quick Guide
Recording settings Installing the HDD Network settings Note Warning Check the ABUS homepage (www.abus- Switch off the device and disconnect it from the sc.com) if for this device any firmware updates mains power supply. are available and install these. Pay attention to the required earthing of the de- vice to avoid static discharge. -
Page 9: Important Safety Information
Important safety information Important safety information Explanation of symbols General information The following symbols are used in this manual and on the Before using the device for the first time, read the follow- device: ing instructions carefully and pay attention to all warn- ings, even if you are already familiar with electronic de- Symbol Signal word Meaning vices. -
Page 10: Overloading / Overvoltage
Important safety information To avoid the possibility of fires, the plug should al- Installation location / operating environ- ways be disconnected from the network socket if the ment device is not used for long periods. Disconnect the Position the device on a firm, level surface and do not device from the mains power supply before impend- place any heavy objects on the device. -
Page 11: Care And Maintenance
Important safety information Care and maintenance Putting into operation Maintenance is necessary if the device has been dam- Observe all safety and operating instructions before aged. This includes damage to the plug, mains cable and putting the device into operation for the first time. housing, penetration of the interior by liquids or foreign Only open the housing to install the HDD. -
Page 12: Introduction
ABUS Se- curity-Center GmbH is not liable or responsible for direct or indirect damages resulting from the equipment, performance and use of this product. -
Page 13: System Operation
System operation System operation General information Operating elements on the remote control The device can be controlled as follows: Note Using the remote control Pay attention to the remote control diagram on Using the USB mouse page 4. Operating elements on the device Name Note Function... -
Page 14: Mouse Operation
System operation „: Stops playback PTZ: Switches on PTZ control Enter fII: x Confirms the selection x Ticks / unticks the boxes During playback: x PLAY/PAUSE Single play mode: x Advances by a single frame MENU: x Calls up the main menu x Switches the key tones on and off (press and hold down for 5 seconds) REC:... -
Page 15: On-Screen Keyboard
System operation On-screen keyboard Switching off, locking and rebooting the The on-screen keyboard appears after clicking on a text device entry field with the mouse: Click on “ShutDown” in the main menu. The overview appears. The keys have the same function as on a computer key- board. -
Page 16: Setup Wizard
Setup wizard Setup wizard Setting up the system Setting up the administrator The setup wizard guides you through the necessary ba- Warning sic system settings. The DVR is then set up for recording Note down the admin password. and surveillance. The following password is preset Note “1 2 3 4 5”... -
Page 17: Hdd Management
Setup wizard To transfer this schedule to other cameras, first se- HDD Management lect the camera (or “All” if all cameras should have Click on “Enter”. the same settings) and confirm by pressing Copy. Exit the setting by pressing OK, then click on Next. Network Settings Click on “Enter”. -
Page 18: Live View
Live view Live view Status symbols Overview The following symbols are displayed depending on The live view starts automatically after the device is the operating status of the device: switched on. Symbol Meaning You can also go back to the live view by pressing the Event detected Menu key repeatedly. -
Page 19: Digital Zoom
Live view Single Camera Full-screen view for selected camera Multi Camera Various camera layouts Next Screen Displays the next camera(s) Stop Auto- Starts the camera sequence switch Digital Zoom Zooms in on the image section Activates PTZ mode Playback Switches to playback mode Menu Opens the main menu Note... -
Page 20: System Settings
Live view Setting the camera output System Settings Up to 16 cameras can be set simultaneously in the live Note view. The live view can be set as follows. Click on “Set”. Open the main menu, then click on “System Settings” Select the display mode. -
Page 21: Record Settings
Record Settings Record Settings More Settings Set-up Detailed settings Pre-alarm Recording period before an alarm Open the main menu, then click on “System Settings” (in seconds) and then “Record Settings”: Post-alarm Recording period after an alarm (in seconds) Expiration Period (in days) after which the re- cording is deleted automatically at 00:00. -
Page 22: Manual Record
Record Settings In the OSD, the hours of the respective days are listed Manual Record from left to right (the days are listed from top to bottom). Press REC to start manual recording: A colour key is shown underneath the days (i.e. the re- cording periods in the schedule are shown in colour ac- cording to the trigger (recording types)). -
Page 23: Playback
Playback Playback Advances 30 seconds General information Fast-forward Playback can be made in three different ways: Slow-motion advance Through the video search in the main menu Next recording / day From the live view Time bar: Through the log file in the maintenance menu Click on the time bar with the mouse to con- tinue playback from another point Playback screen... -
Page 24: Playback: Advanced Video Search
Playback The following settings are available: Playback from the live view screen Camera Camera to be set Click on playback whilst the live view screen is shown: Video Type Schedule, motion detection, manual re- Playback is controlled on the control panel: cording, all File Type Locked, unlocked, all... -
Page 25: Ptz Control
In order to open the menu of ABUS PTZ- Cameras enter Preset 95. By using the naviga- tion buttons you can move within the menu. -
Page 26: Ptz Settings
Exit the settings by pressing “Apply” and “OK”. Exit the settings by pressing “Apply” and “OK”. Note Note When using ABUS PTZ-Cameras with the Pelco- Compare the settings with the technical data of D protocol some presets are predefined and can- the connected camera. -
Page 27: Tour Settings
PTZ control Call a tour set in the PTZ-Camera Tour Settings You can also configure tours directly in the camera. The Patrols are defined tours from position to position that are advantage is that other control devices, e.g. keyboard, accessed in sequence on the PTZ camera. The individual can call the tours as well. -
Page 28: Pattern Settings
PTZ control Pattern Settings Patterns are defined tours from position to position that are accessed in sequence on the PTZ camera. Patterns are recorded live. The system saves the parameters used whilst you move and adjust the cameras in se- quence to the corresponding positions at a defined speed. -
Page 29: Device Menu
Device menu Device menu Menu overview When the mouse cursor is pointed at a menu, it is marked and a short description of the menu is shown The following overview shows all menus used to set and at the bottom. control the device. -
Page 30: Manual Record
Device menu Manual Record Video Search Note Parameters for Video Search Only active cameras can be selected for manual “General” tab recording. Analog Overview of analogue cameras The recording starts immediately. Used for searching the selected cameras Select the camera by ticking the corresponding box. Video Type Continuous After a camera has been selected, the box changes... -
Page 31: Results
Device menu Results Set the parameters that should be used for search- ing for a recording. After making a search, the results screen is displayed: When searching in the “General” tab, you can open the overview by pressing “Details”: Highlight the searched recording. The recordings on the selected cameras are dis- Click on “Lock”... -
Page 32: Video Export
Device menu Video Export 4. Click on Export to access the export screen. Select the connected medium used for data storage Note from the drop-down menu. The export function is used to store important re- If the medium is not displayed, click on Refresh. cordings on connected external media, such as: If the medium is still not displayed, disconnect it from USB media... -
Page 33: Hdds
Device menu HDD Management parameters HDDs “General” tab Note Label Shows the internal connection num- The device manages one 3.5" SATA hard disk drive. Capacity HDD capacity (in GB) Status Shows the current status of the HDD: The installed HDD must be initialised before the Not initialised device can be used for recording. -
Page 34: Setting The Hdd
Device menu Note At least one HDD must have the R/W status If the initialised HDD is not displayed, check the (Read/Write). Otherwise, no recordings are possible. connections. Checking the HDD status Select the HDD by ticking the corresponding box. The status of each HDD can be checked in the “Mainte- Start the process by clicking on “Init”. -
Page 35: System Settings
Device menu System Settings Menu Setting Page RS232 No function Display Display settings and assignment of the event output Exception Behaviour of the device in excep- tional cases (HDD full, network disconnected etc.) User Adding and changing users, as- signing authorisation rights Note Pay attention to the instructions in the correspond- Note... -
Page 36: System Settings: Camera
Device menu OSD Display OSD transparent, flashing, non- “DST Settings” Setting transparent etc. OSD Display Screen position of the OSD Activated when box is ticked Position From / To Date of DST start / end Copy To Selection of whether the settings DST Bias Daylight Saving Time Bias: Correc- should be copied to another camera... -
Page 37: Setting Up Of Zones
Device menu Setting up of zones Note When carrying out camera surveillance, you can define zones that should not be monitored (private zones). You can also set up zones with special character- istics (e.g. tamper monitoring or motion detection). Activate the zone by ticking the corresponding box and clicking on “Area Settings”. -
Page 38: System Settings: Record
Device menu System Settings: Record Note See description on page 21. System Settings: Network Note See separate section on page 44. System Settings: PTZ Note See description on page 25. System Settings: RS232 No function. System Settings: Display Note See description on page 20. -
Page 39: System Settings: Exception
Device menu System Settings: Exception To add a new user, select Add. Note Parameter Setting Enter the trigger under “Exception Type”, for ex- User Name Unique identification ample: Password Access code for the device (device man- HDD Full agement) Disconnected Note: Change all passwords on a regular basis, using a combination of letters and After doing this, specify the device behaviour as... - Page 40 Device menu Setting the access rights Control the access rights of the user by clicking on “Permission”: Note The user can make the settings locally (i.e. on the device) or change the parameters. The user can access the device via the network connection.
-
Page 41: Maintenance
Device menu Upgrading the device Maintenance Note A device upgrade can be made from a USB de- Note vice or over the network via FTP. This menu is used for device maintenance, and should only be operated by experienced users. Copy the upgrade file (*.mav format) to the main directory of a USB stick. -
Page 42: Log Search
Device menu Log Search Type Minor type / sub-parameter Operation Switch On ShutDown Irregular ShutDown Local Reboot Local Login / Local Logout Local Settings Local Recording Begin / Local PTZ Control Local File Locked Others Note Information An event search can be made according to the fol- HDD Information lowing main types, events and parameters: HDD S.M.A.R.T. -
Page 43: Default Settings
Device menu Default Settings Information Note The technical data of the device is displayed in the information menu. This can be useful for support queries, for exam- ple. ShutDown Note In this process, the device is reset to the factory de- fault settings. -
Page 44: Network
Network Network General information Parameter Setting Correct network settings are essential in the following Name The name server is responsible for as- cases: server signing a unique IP address to a web ad- When using remote control of the device and surveil- dress or URL (e.g. -
Page 45: Network Layout
Network Network layout Parameter Setting The device must be physically connected to the network NIC Type Set the transmission speed of the in- over a CAT5 cable (see connections on page 3). stalled network card here. Tip: 10M/100M Note DHCP Tick the box if the IP addresses are Pay attention to the specific information and in- assigned dynamically via DHCP in the... - Page 46 Email Used to specify the e-mail settings which are sent as an e-mail to a spe- To use the ABUS DDNS function, you must first set cific address in the event of an alarm. up an account under www.eytronserver.com. Please note the FAQs on the website when doing this.
- Page 47 Network Setting the HOST / OTHERS Setting up an e-mail address Leg en Si e i In the event of an alarm, the device can send a message by e-mail. Enter the e-mail configuration here: Leg en Si e i Parameter Setting Alarm Host IP...
- Page 48 Network Enter the parameters of the e-mail notification. Parameter Setting Click on Test to send a test e-mail. DHCP Status: When DHCP is active, the correspond- Note ing parameters are shown. “N/A” is The device sends an e-mail to the specified re- displayed when DHCP is inactive.
-
Page 49: Troubleshooting
Troubleshooting Troubleshooting Before calling the Service department, read the following information to determine the possible cause of a malfunction. Malfunction Cause Solution No power Mains cable not connected Connect the mains cable securely to the socket Power switch set to OFF Turn the power switch to ON No current in the power socket Use another device on the socket, where... -
Page 50: Index
Index Index Access rights 41 Exception 40 Advanced Remote control 4, 14 Address range 45 Frame rate 21 configuration 46 Reset 44 Admin 40 FTP 42 Configuration 46 Resolution 21 Admin Password 8, FTP server 42 Email 48 RS232 39 16, 40 Gateway 45 Status 49... -
Page 51: Technical Data
Technical data Technical data Subject is to alterations and errors. The dimensions are approximate values. TVVR30003 4-channel compact digital recorder Video compression H.264 Hybrid-compatible 4 x BNC (1.0 V p-p, 75 Ω) Camera inputs Camera outputs IP cameras IP camera protocols Monitor: 1 x BNC (1.0 V p-p, 75 Ω) -
Page 52: Hdd Storage Capacity
4CIF 1 x 1 TB On the included CD you can find a program in order to calculate the required amount of memory. In addition you find this software for download on our homepage together with the ABUS CMS software. -
Page 53: Disposal
Disposal Disposal Information on the EU directive on waste Change low batteries in good time. electrical and electronic equipment Always change all the batteries at the same time and use batteries of the same type. To protect the environment, do not dispose of the device with domestic waste at the end of its service life. -
Page 54: Glossary
An address in the computer network based on the Inter- Name used for the identification of websites on the Inter- net protocol. Allows different devices to identify them- net (e.g. www.abus-sc.de). selves in a network so that they are accessed specifi- cally. - Page 55 MPEG PPPoE Moving Picture Experts Group – International standard PPP over Ethernet (point-to-point protocol) for the compression of moving images. On some DVDs, Network transmission method used for establishing a the digital audio signals are compressed and recorded in connection over dial-up lines. Used in ADSL connections, this format.
-
Page 56: Internal Hdd
Internal HDD Internal HDD The internal hard disk drive (HDD) is very sensitive. Op- erate the device according to the following instructions in order to avoid drive errors. Important recordings should be backed up on external media to avoid unexpected data loss. - Page 57 ABUS Digital Recorder TVVR30003 Manufacturer: ABUS Security-Center GmbH & Co. KG Linker Kreuthweg 5 86444 Affing (Germany)
