Summary of Contents for Hunter 42015-01

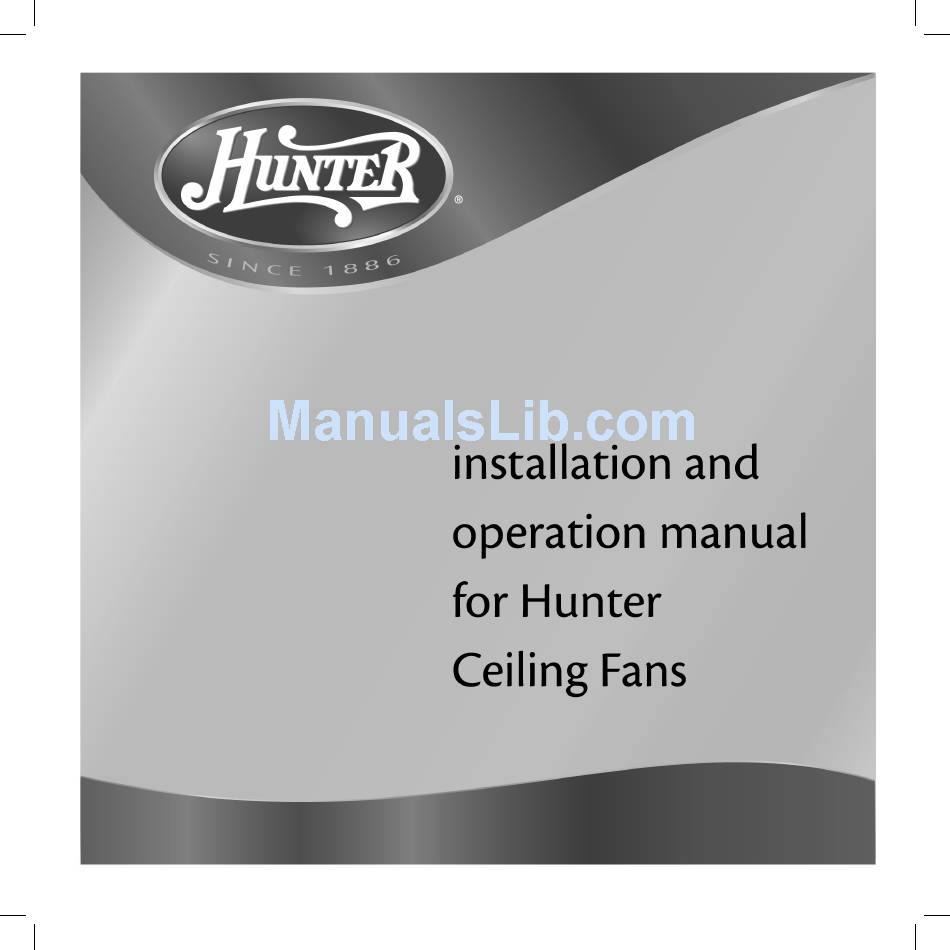

- Page 1 42015-01 • 02/15/05...
-
Page 2: Table Of Contents
• Read this entire manual carefully before beginning installation. Save these instructions. • Use only Hunter replacement parts. • To reduce the risk of personal injury, attach the fan directly to the support structure of the building according to these instructions, and use only the hardware supplied. - Page 3 Understanding Mounting Hunter’s patented mounting system provides you maximum installation fl exibility and ease. You can install your Hunter fan in one of two ways, depending on ceiling height and your preference: Standard or Angle mounting. e steps in this manual include instructions for both mounting methods.
-
Page 4: Getting Ready
• Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •... -
Page 5: Installing The Hanger Bracket
For proper alignment use slotted holes directly across from each other. If you are installing the fan on an angled ceiling, be sure to orient the hanger bracket with the large opening towards the ceiling peak. -
Page 6: Assembling And Hanging The Fan
3-1. Remove the label from the standard mounting washer inside the canopy. Leave the washer in place. 3-2. To assemble fan to hang down from a flat or angled ceiling, place the canopy with washer, and canopy trim ring around the adapter so that they rest on the fan assembly. -
Page 7: Setting The Remote Transmitter And Receiver
CAUTION: e remote control device complies with part 15 of the FCC rules. Changes or modifi cations not expressly approved by Hunter Fan Company could void your authority to operate this equipment. -
Page 8: Wiring The Fan
• e black/white wire from the fan to the red wire from the receiver (marked on white tag “LIGHT OUT”) • e black wire from the fan to the black wire from the receiver (marked on white tag “FAN OUT”) •... -
Page 9: Installing The Canopy And Canopy Trim Ring
2. Press fi rmly on opposite sides of the ring towards the canopy. e tabs will fl ex out releasing the trim ring from the canopy 42015-01 • 02/15/05 6 • Installing the Canopy and Canopy Trim Ring Steps 6-1 – 6-2 Canopy Steps 6-4 –... -
Page 10: Assembling The Blades
7-1. Insert blade into slot. Align the holes on the blade with the holes on the blade iron. 7-2. Attach the blade to the motor using the blade assembly screws. Note: Do not use the middle hole on the blade. 7-3. Repeat for each blade. Blade Assembly Screw 42015-01 • 02/15/05... -
Page 11: Installing The Glass
8-2. While holding up the glass, align the thumbscrew, the hole in the glass, and the post on the motor housing. 8-3. Install three (3) thumbscrews. 8-4. Install 1 standard A-19 bulb (100W max). umbscrew Hole Post Glass Steps 8-1 – 8-4 42015-01 • 02/15/05 Hunter Fan Company... -
Page 12: Operating The Remote Control And Mounting The Holder
Hunter Fan Company 9-1. e remote transmitter has individual buttons for turning the fan off and on and controlling the light and fan speed. 9-2. For best operation, start the fan by pressing high, then select your desired speed. Medium 9-3. -
Page 13: Operating And Cleaning Your Ceiling Fan
5 seconds, then back on. e light kit will turn on at maximum brightness. 10-2. Press the remote control’s HIGH speed button. e fan should start and reach its maximum speed. Note: For everyday operation, leave the wall switch ON. If the remote control will not be used for 5 days or more, turn the wall switch OFF. -
Page 14: Troubleshooting
2. Tighten all blade and/or blade iron screws. 3. Turn power off , support fan very carefully, and check that the hanger ball is properly seated. If you need parts or service assistance, please call 888-830-1326 or visit us at our WEB site at http://www.hunterfan.com.
