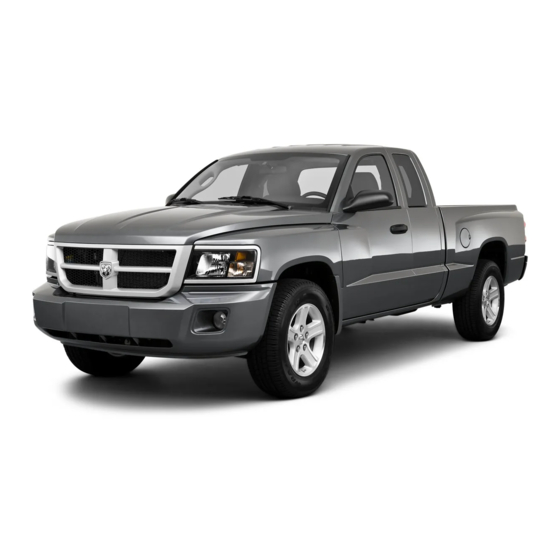

Page 1 Dakota 2 0 1 1 O W N E R ’ S M A N U A L...
Page 2 With respect to any Vehicles Sold in Canada, the name This manual illustrates and describes the operation of Chrysler Group LLC shall be deemed to be deleted and features and equipment that are either standard or op- the name Chrysler Canada Inc. used in substitution tional on this vehicle.
Page 3: Introduction
TABLE OF CONTENTS SECTION PAGE ............3 INTRODUCTION .
Page 5: Table Of Contents
INTRODUCTION CONTENTS Introduction ......4 Vehicle Identification Number ....6 How To Use This Manual .
Page 6: Introduction
4 INTRODUCTION INTRODUCTION When it comes to service, remember that your authorized Congratulations on selecting your new Chrysler Group dealer knows your vehicle best, has factory-trained tech- LLC vehicle. Be assured that it represents precision nicians and genuine MOPAR parts, and cares about workmanship, distinctive styling, and high quality - all your satisfaction.
Page 7 INTRODUCTION 5...
Page 8: Vehicle Identification Number
6 INTRODUCTION WARNINGS AND CAUTIONS This Owner’s Manual contains WARNINGS against op- erating procedures that could result in a collision or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire manual, you may miss important information.
Page 9: Vehicle Modifications/Alterations
INTRODUCTION 7 VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to a accident resulting in serious injury or death.
Page 11 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS ▫ Replacement Keys ..... 17 A Word About Your Keys ....12 ▫...
Page 12 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ▫ To Lock The Doors ....22 ▫ Auto-Down — Driver’s Side Only ..35 ▫...
Page 13 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11 ▫ Enhanced Seat Belt Use Reminder System ▫ Child Restraints ..... . 63 (BeltAlert ) .
Page 14: Things To Know Before Starting Your Vehicle
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS Ignition Key Removal The authorized dealer that sold you your vehicle has the Automatic Transmission key code numbers for your vehicle locks. These numbers can be used to order duplicate keys from your authorized 1.
Page 15 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 key to the right slightly, then remove the key as de- scribed. If a malfunction occurs, the system will trap the key in the ignition cylinder to warn you that this safety feature is inoperable.
Page 16 14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CAUTION! An unlocked car is an invitation to thieves. Always remove the key from the ignition and lock all the doors when leaving the vehicle unattended. Manual Transmission — If Equipped When the steering wheel is in the LOCK position, the steering and ignition systems are locked to provide antitheft protection for your vehicle.
Page 17: Locking Doors With A Key
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15 Locking Doors With A Key To Release the Steering Wheel Lock You can insert the key into the door lock cylinder with Insert the key in the ignition switch and start the engine. either side up.
Page 18: Sentry Key - If Equipped
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE SENTRY KEY — IF EQUIPPED electronics. In addition, if the light begins to flash after The Sentry Key prevents unauthorized vehicle opera- the bulb check, it indicates that someone used an invalid tion by disabling the engine.
Page 19: Replacement Keys
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17 Replacement Keys procedure. This procedure consists of programming a blank key to the vehicle electronics. A blank key is one NOTE: Only keys that are programmed to the vehicle that has never been programmed. electronics can be used to start and operate the vehicle.
Page 20 18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Insert the second valid key into the ignition switch. Repeat this procedure to program up to eight keys. If you Turn the ignition switch to the ON/RUN position within do not have a programmed Sentry Key , contact your 15 seconds.
Page 21: Vehicle Security Alarm - If Equipped
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19 VEHICLE SECURITY ALARM — IF EQUIPPED NOTE: If the Vehicle Security Light stays on continu- The Vehicle Security Alarm monitors the vehicle doors ously during vehicle operation, have the Vehicle Security and ignition for unauthorized operation. When the Ve- Alarm checked by an authorized dealer.
Page 22: Illuminated Entry
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The Vehicle Security Alarm is designed to protect your ILLUMINATED ENTRY vehicle; however, you can create conditions where the Vehicles Equipped With Power Door Locks Vehicle Security Alarm will arm unexpectedly. If you All interior lights will illuminate in the vehicle when the remain in the vehicle and lock the doors with the RKE doors are unlocked using the Remote Keyless Entry...
Page 23: Remote Keyless Entry (Rke)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21 REMOTE KEYLESS ENTRY (RKE) NOTE: The line of transmission must not be blocked This system allows you to lock or unlock the doors or with metal objects. activate the Panic Alarm from distances up to approxi- To Unlock The Doors mately 66 ft (20 m) using a Remote Keyless Entry (RKE) Press and release the UNLOCK button on the RKE...
Page 24: To Lock The Doors
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Release both buttons at the same time. Horn Chirp Programming The horn chirp feature is shipped from the assembly 4. Test the feature while outside of the vehicle by press- plant activated. If desired, this feature can be disabled by ing the LOCK/UNLOCK button on the RKE transmitter.
Page 25 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23 NOTE: Pressing the LOCK button on the RKE transmit- 3. Release both buttons at the same time. ter while you are inside the vehicle will activate the 4. Test the Flash Lamps With Lock feature while outside Vehicle Security Alarm.
Page 26: Using The Panic Alarm
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Using The Panic Alarm 2. This device must accept any interference that may be To activate the Panic mode while the ignition is OFF, received including interference that may cause undesired press and release the PANIC button on the RKE trans- operation.
Page 27: Programming Additional Transmitters
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25 Programming Additional Transmitters Refer to Sentry Key “Customer Key Programming.” If you do not have a programmed RKE transmitter, contact your authorized dealer for details. Battery Replacement The recommended replacement battery is CR2032. NOTE: Perchlorate Material –...
Page 28: Remote Starting System - If Equipped
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. To reassemble the RKE transmitter case, snap the two How To Use Remote Start halves of the case together. Make sure there is an even All of the following conditions must be met before the “gap”...
Page 29 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27 To Enter Remote Start WARNING! Press and release the REMOTE START button • Do not start or run an engine in a closed garage or on the RKE transmitter twice, within five sec- onds.
Page 30 28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Remote start will also cancel if any of the following occur: To Exit Remote Start Mode And Drive The Vehicle Before the end of the 15-minute cycle, press and release • The engine stalls or RPM exceeds 2500 the UNLOCK button on the RKE transmitter to unlock •...
Page 31: Door Locks
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 DOOR LOCKS WARNING! Manual Door Locks • For personal security and safety in the event of an All the doors can be manually locked from the inside by accident, lock the vehicle doors as you drive, as pushing down the door lock knob, located on the door trim well as when you park and leave the vehicle.
Page 32: Power Door Locks
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Power Door Locks If you press the power door LOCK switch while the key A power door lock switch is on each front door trim is in the ignition, and any front door is open, the power panel.
Page 33 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 2. Fasten your seat belt. (Fastening the seat belt will Auto Unlock On Exit Feature — If Equipped cancel any chiming that may confuse you during this This feature unlocks all of the doors of the vehicle when programming procedure.) any door is opened.
Page 34: Child-Protection Door Lock
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 4. Within 15 seconds, cycle the key from the LOCK Child-Protection Door Lock position to the ON/RUN position and back to LOCK To provide a safer environment for children riding in the position, a minimum of four times;...
Page 35 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 To use the system, open each rear door, slide the lever up WARNING! to engage the locks, and down to disengage the child- protection locks. When the system on a door is engaged, Avoid trapping anyone in a vehicle in a collision.
Page 36: Windows
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WINDOWS Power Windows The control on the left front door has up-down switches that give you finger-tip control of all the power windows. There is a single opening and closing switch on the passenger doors for passenger window control.
Page 37: Auto-Down - Driver's Side Only
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 Window Lockout button. To enable the window controls, WARNING! press the Window Lockout button a second time. Never leave children alone in a vehicle. Leaving unattended children in a vehicle is dangerous for a number of reasons.
Page 38: Wind Buffeting
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • An energy-absorbing steering column and steering Wind Buffeting Wind buffeting can be described as the perception of wheel pressure on the ears or a helicopter-type sound in the • Knee bolsters for front seat occupants ears.
Page 39: Lap/Shoulder Belts
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 Please pay close attention to the information in this Research has shown that seat belts save lives, and they section. It tells you how to use your restraint system can reduce the seriousness of injuries in an accident. properly, to keep you and your passengers as safe as Some of the worst injuries happen when people are possible.
Page 40 38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE information on ALR, refer to “Automatic Locking Mode” 2. For regular occupants: Only pull the belt webbing out in this section. The following chart defines the seating far enough to comfortably wrap around the occupants positions with this feature.
Page 41 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 Lap/Shoulder Belt Operating Instructions WARNING! (Continued) 1. Enter the vehicle and close the door. Sit back and • Wearing a seat belt incorrectly is dangerous. Seat adjust the seat. belts are designed to go around the large bones of your body.
Page 42 40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. The seat belt latch plate is above the back of the front 3. When the belt is long enough to fit, insert the latch seat, next to your arm in the rear seat. Grasp the latch plate into the buckle until you hear a “click.”...
Page 43 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 4. Position the lap belt across your thighs, below your WARNING! (Continued) abdomen. To remove slack in the lap belt portion, pull up • A belt that is worn under your arm is dangerous. on the shoulder belt.
Page 44 42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 6. To release the belt, push the red button on the buckle. WARNING! The belt will automatically retract to its stowed position. • A lap belt worn too high can increase the risk of If necessary, slide the latch plate down the webbing to allow the belt to retract fully.
Page 45: Adjustable Upper Shoulder Belt Anchorage
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43 Adjustable Upper Shoulder Belt Anchorage In the front and second row outboard seats, the shoulder belt can be adjusted upward or downward to help position the belt away from your neck. Press the release button to release the anchorage, and then move it up or down to the position that fits you best.
Page 46: Center Lap Belts
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: The adjustable upper shoulder belt anchorage is WARNING! equipped with an Easy Up feature. This feature allows • A lap belt worn too loose or too high is dangerous. the shoulder belt anchorage to be adjusted in the upward •...
Page 47: Seat Belts In Passenger Seating Positions
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 3. Slide the latch plate upward over the folded webbing. Left Center Right The folded webbing must enter the slot at the top of the First Row Cinch – if Cinch latch plate. equipped Second Row Cinch...
Page 48: Automatic Locking Retractor Mode (Alr) - If Equipped
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Automatic Locking Retractor Mode (ALR) — If 3. Allow the belt to retract. As the belt retracts, you will Equipped hear a clicking sound. This indicates the safety belt is In this mode, the shoulder belt is automatically pre- now in the Automatic Locking Mode.
Page 49: Seat Belt Pretensioners
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 Seat Belt Pretensioners Energy Management Feature The seat belts for both front seating positions are This vehicle has a safety belt system with an Energy equipped with pretensioning devices that are designed to Management feature in the front seating positions to help remove slack from the seat belt in the event of an further reduce the risk of injury in the event of a head-on...
Page 50: Enhanced Seat Belt Use Reminder System (Beltalert )
This feature is active whenever the BeltAlert Programming ignition is on. If the driver is unbelted, the Seat Belt Chrysler Group LLC does not recommend deactivating Reminder Light will turn on and remain on until the the BeltAlert .
Page 51: Seat Belts And Pregnant Women
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49 3. Within 60 seconds of turning the ignition switch to the Seat Belts And Pregnant Women ON/RUN position, unbuckle and then re-buckle the We recommend that pregnant women use seat belts driver’s seat belt at least three times within 60 seconds, throughout their pregnancy.
Page 52: Supplemental Restraint System (Srs) - Airbags
50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Using a seat belt extender when not needed can increase the risk of injury in an accident. Only use the seat belt extender when the lap belt is not long enough when it is worn low and snug, and in the recommended seating positions.
Page 53 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 The Advanced Front Airbags have a multistage inflator NOTE: • Airbag covers may not be obvious in the interior trim; design. This allows the airbag to have different rates of inflation based on the severity and type of collision. but they will open during airbag deployment.
Page 54: Advanced Front Airbag Features
52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Supplemental Side Airbag Inflatable Curtains (SABIC) WARNING! • Front and Side Impact Sensors • No objects should be placed over or near the airbag • Front Seat Belt Pretensioners, Seat Belt Buckle Switch, on the instrument panel, because any such objects and Seat Track Position Sensors could cause harm if the vehicle is in a collision...
Page 55 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53 NOTE: Airbag covers may not be obvious in the interior WARNING! (Continued) trim; but they will open during airbag deployment. • Do not have any accessory items installed which The system includes side impact sensors that are cali- will alter the roof, including adding a sunroof to brated to deploy the side airbags during impacts that your vehicle.
Page 56 54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Knee Impact Bolsters WARNING! The Knee Impact Bolsters help protect the knees of the driver and the front passenger, and position front occu- Infants in rear-facing child restraints should never pants for the best interaction with the Advanced Front ride in the front seat of a vehicle with a passenger Airbags.
Page 57 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55 If a child from 1 to 12 years old (not in a rear facing child If the airbag system in this vehicle needs to be modified seat) must ride in the front passenger seat, move the seat to accommodate a disabled person, contact the Customer as far back as possible and use the proper child restraint.
Page 58: Airbag Deployment Sensors And Controls
56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ORC deploys the Advanced Front Airbags, SABIC air- WARNING! (Continued) bags — if equipped, and front seat belt pretensioners, as • Being too close to the steering wheel or instrument required, depending on the severity and type of impact. panel during Advanced Front Airbag deployment Advanced Front Airbags are designed to provide addi- could cause serious injury, including death.
Page 59 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 The side airbags will not deploy in all side collisions. Side The ORC contains a backup power supply system that airbag deployment will depend on the severity and type may deploy the airbags even if the battery loses power or of collision.
Page 60 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE based on the collision type and severity. The steering WARNING! wheel hub trim cover and the upper right side of the instrument panel separate and fold out of the way as the Ignoring the Airbag Warning Light in your instru- airbags inflate to their full size.
Page 61 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59 A quantity of non-toxic gas is generated to inflate the Enhanced Accident Response System SABIC. The inflating SABIC pushes the outside edge of In the event of an impact causing airbag deployment, if the headliner out of the way and covers the window.
Page 62 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: Front and/or side airbags will not deploy in all airbag inflation. These airborne particles may irritate collisions. This does not mean something is wrong with the skin, eyes, nose, or throat. If you have skin or eye the airbag system.
Page 63 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61 Maintaining Your Airbag System WARNING! (Continued) • Do not attempt to modify any part of your airbag WARNING! system. The airbag may inflate accidentally or may • Modifications to any part of the airbag system not function properly if modifications are made.
Page 64: Event Data Recorder (Edr)
62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE with airbag system electrical components. While the located on the inside of the fuse block cover for the airbag system is designed to be maintenance free, if any proper airbag fuses. See your authorized dealer if the of the following occurs, have an authorized dealer ser- fuse is good.
Page 65: Child Restraints
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63 • How far (if at all) the driver was depressing the such as law enforcement, that have the special equip- accelerator and/or brake pedal; and, ment, can read the information if they have access to the vehicle or the EDR.
Page 66 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Infants And Child Restraints WARNING! • Safety experts recommend that children ride In a collision, an unrestrained child, even a tiny baby, rearward-facing in the vehicle until they are at least can become a projectile inside the vehicle. The force one year old and weigh at least 20 lbs (9 kg).
Page 67 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65 • The belt-positioning booster seat is for children weigh- WARNING! ing more than 40 lbs (18 kg), but who are still too small to fit the vehicle’s seat belts properly. If the child Rearward-facing child seats must never be used in cannot sit with knees bent over the seat cushion while the front seat of a vehicle with the front passenger...
Page 68 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Check belt fit periodically. A child’s squirming or WARNING! slouching can move the belt out of position. • Improper installation can lead to failure of an • If the shoulder belt contacts the face or neck, move the infant or child restraint.
Page 69 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 Here are some tips for getting the most out of your child use a locking clip. If the seat belt has a cinching latch restraint: plate, pulling up on the shoulder portion of the lap/shoulder belt will tighten the belt.
Page 70 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE LATCH - Child Seat Anchorage System (Lower Extended Cab Anchors and Tether for CHildren) — if equipped • The Extended Cab right rear (if equipped with a rear Each vehicle is equipped with the child restraint anchorage seat) passenger seating position has lower anchorages system called LATCH, which stands for Lower Anchors for LATCH-equipped child restraints.
Page 71 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69 Crew Cab If your child restraints are not LATCH-compatible, you can only install the child restraints using the • The Crew Cab second row seat has lower anchorages vehicle’s seat belts. Refer to “Installing The LATCH- that capable accommodating...
Page 72 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Installing The LATCH-Compatible Child Restraint strap. Forward-facing toddler restraints, and some rear- System — if equipped facing infant restraints, will also be equipped with a We urge you to carefully follow the directions of the tether strap, a hook for attachment to the tether strap manufacturer when installing your child restraint.
Page 73 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71 downward into the seat, removing slack in the straps WARNING! according to the child restraint manufacturer’s instruc- tions. Improper installation of a child restraint to the LATCH anchorages can lead to failure of an infant or NOTE: When using the LATCH attaching system to child restraint.
Page 74 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Belts In Passenger Seating Positions” section. The chart 2. Finally, pull on any excess webbing to tighten the lap below defines the seating positions with an Automatic portion around the child restraint. Any seat belt system Locking Retractor (ALR) or a cinching latch plate.
Page 75 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73 Child Restraint Tether Anchor WARNING! The Extended Cab model has one routing strap • With a child restraint installed in the rear passen- located at the bottom of the rear outboard seating position. The tether anchor itself is ger side locations, use care when adjusting the located in the center of vehicle, in between the front seat(s) rearward, to avoid the front seatback...
Page 76 74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Tether Straps at the Rear Passenger Seat (Extended Cab) 2. Route the tether strap across to the center tether anchorage. The center tether is located behind the slide 1. Route the child restraint tether strap through the door in the center of the vehicle, between the two seating routing loop, located directly behind the child restraint.
Page 77 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75 Tether Straps at the Rear Passenger Seat (Crew Cab) 1. Route the child restraint tether strap under the head restraint for the outboard seating positions, and then through the anchor strap outer loop (webbing material loop), located directly behind the child restraint.
Page 78: Engine Break-In Recommendations
76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ENGINE BREAK-IN RECOMMENDATIONS WARNING! A long break-in period is not required for the engine and drivetrain (transmission and axle) in your vehicle. An incorrectly anchored tether strap could lead to seat failure and injury to the child. In a collision, the Drive moderately during the first 300 miles (500 km).
Page 79: Safety Tips
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77 A new engine may consume some oil during its first few WARNING! (Continued) thousand miles (kilometers) of operation. This should be • It is extremely dangerous to ride in a cargo area, considered a normal part of the break-in and not inter- inside or outside of a vehicle.
Page 80: Exhaust Gas
78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Exhaust Gas If you are required to drive with the trunk/liftgate open, make sure that all windows are closed and the climate WARNING! control BLOWER switch is set at high speed. DO NOT use the recirculation mode.
Page 81: Safety Checks You Should Make Inside The Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79 Safety Checks You Should Make Inside The Defroster Vehicle Check operation by selecting the defrost mode and place the blower control on high speed. You should be able to Seat Belts feel the air directed against the windshield. See your Inspect the belt system periodically, checking for cuts, authorized dealer for service if your defroster is frays, and loose parts.
Page 82 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! WARNING! (Continued) • Check mounting of mats on a regular basis. Al- Pedals that cannot move freely can cause loss of ways properly reinstall and secure floor mats that vehicle control and increase the risk of serious per- have been removed for cleaning.
Page 83: Periodic Safety Checks You Should Make Outside The Vehicle
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81 Periodic Safety Checks You Should Make Outside Door Latches The Vehicle Check for positive closing, latching, and locking. Tires Fluid Leaks Examine tires for excessive tread wear and uneven wear Check area under vehicle after overnight parking for fuel, patterns.
Page 85: Understanding The Features Of Your Vehicle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS ▫ Phone Call Features ....101 Mirrors ......87 ▫...
Page 86 84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ▫ Voice Training ..... . 126 ▫ Lights-On Reminder ....138 ▫...
Page 87 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85 ▫ To Set A Desired Speed ....147 ▫ Trip Odometer (ODO) ....153 ▫...
Page 88 86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ▫ Reprogramming A Single HomeLink Rear Window Features ....171 Button ......161 ▫...
Page 89: Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87 MIRRORS Inside Day/Night Mirror A two-point pivot system allows for horizontal and vertical adjustment of the mirror. The mirror should be adjusted to center on the view through the rear window. Headlight glare can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle).
Page 90: Automatic Dimming Mirror - If Equipped
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Automatic Dimming Mirror — If Equipped CAUTION! This mirror automatically adjusts for headlight glare from vehicles behind you. You can turn the feature on or To avoid damage to the mirror during cleaning, never off by pressing the button at the base of the mirror.
Page 91: Outside Mirrors Folding Feature - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89 Power Mirrors WARNING! The power mirror controls are located on the driver’s door trim panel. Vehicles and other objects seen in the passenger side convex mirror will look smaller and farther away than they really are. Relying too much on your passenger side mirror could cause you to collide with another vehicle or other object.
Page 92: Uconnect™ Phone - If Equipped
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To adjust a mirror, turn the control wand toward the left WARNING! or right mirror positions indicated. Tilt the control wand in the direction you want the mirror to move. Vehicles and other objects seen in the passenger side convex mirror will look smaller and farther away than they really are.
Page 93 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91 NOTE: The Uconnect™ Phone requires a mobile phone Uconnect™ features Bluetooth technology - the global equipped with the Bluetooth “Hands-Free Profile”, Ver- standard that enables different electronic devices to con- sion 0.96 or higher. See the Uconnect™ website for nect to each other without wires or a docking station, so supported phones.
Page 94: Operation
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Uconnect™ Phone Button The Uconnect™ Phone is fully integrated with the vehi- The radio or steering wheel controls (if cle’s audio system. The volume of the Uconnect™ Phone equipped) will contain the two control buttons can be adjusted either from the radio volume control (Uconnect™...
Page 95 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93 • For certain operations, compound commands can be Help Command used. For example, instead of saying “Setup” and then If you need assistance at any prompt, or if you want to “Phone Pairing”, the following compound command know your options at any prompt, say “Help”...
Page 96 94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • For identification purposes, you will be prompted to To complete the pairing process, you will need to refer- ence your mobile phone Owner’s Manual. The give the Uconnect™ Phone a name for your mobile Uconnect™...
Page 97 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95 • The system will prompt you to say the name of the Dial By Saying A Number person you want to call. • Press the button to begin. • After the “Ready” prompt and the following beep, say •...
Page 98 96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • After the “Ready” prompt and the following beep, say The Uconnect™ Phone will allow you to enter up to 32 “Phonebook New Entry”. names in the phonebook with each name having up to four associated phone numbers and designations.
Page 99 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97 • Automatic download and update, if supported, begins • This downloaded phonebook cannot be edited or as soon as the Bluetooth wireless phone connection is deleted on the Uconnect™ Phone. These can only be made to the Uconnect™...
Page 100 98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Edit Uconnect™ Phonebook Entries • The phone handset must support Bluetooth OBEX NOTE: transfers of phonebook entries to use this feature. • Editing names in the phonebook is recommended • Some phones cannot send phonebook entries if they when the vehicle is not in motion.
Page 101 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99 • After you enter the Phonebook Delete menu, you will After you are finished editing an entry in the phonebook, you will be given the opportunity to edit another entry in then be asked for the name of the entry that you wish the phonebook, call the number you just edited, or return to delete.
Page 102 100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Delete/Erase “All” Uconnect™ Phonebook Entries List All Names In The Uconnect™ Phonebook • Press the • Press the button to begin. button to begin. • After the “Ready” prompt and the following beep, say •...
Page 103: Phone Call Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101 Phone Call Features Answer Or Reject An Incoming Call — Call The following features can be accessed through the Currently In Progress Uconnect™ Phone if the feature(s) are available on your If a call is currently in progress and you have another mobile service plan.
Page 104 102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE in progress. To go back to the first call, refer to “Toggling Three-Way Calling Between Calls” in this section. To combine two calls, refer To initiate three-way calling, press the button to “Conference Call” in this section. while a call is in progress, and make a second phone call, as described under “Making a Second Call While Current Place/Retrieve A Call From Hold...
Page 105 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103 • After the ignition key is switched to OFF, a call can Redial continue on the Uconnect™ Phone either until the call • Press the button to begin. ends, or until the vehicle battery condition dictates •...
Page 106: Uconnect™ Phone Features
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Uconnect™ Phone Features Emergency Assistance If you are in an emergency and the mobile phone is Language Selection reachable: To change the language that the Uconnect™ Phone is • Pick up the phone and manually dial the emergency using: number for your area.
Page 107 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105 • If supported, this number may be programmable on • After the “Ready” prompt and the following beep, say some systems. To do this, press the button and “Towing Assistance”. say “Setup”, followed by “Emergency”. NOTE: •...
Page 108 106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Paging When calling a number with your Uconnect™ Phone that To learn how to page, refer to “Working with Automated normally requires you to enter in a touch-tone sequence Systems”. Paging works properly except for pagers of on your mobile phone keypad, you can press the certain companies, which time out a little too soon to button and say the sequence you wish to enter, followed...
Page 109 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107 The Uconnect™ Phone will then send the corresponding Turning Confirmation Prompts ON/OFF phone number associated with the phonebook entry, as Turning confirmation prompts off will stop the system tones over the phone. from confirming your choices (e.g., the Uconnect™ Phone will not repeat a phone number before you dial it).
Page 110 108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Dialing Using The Mobile Phone Keypad Mute/Un-Mute (Mute OFF) You can dial a phone number with your mobile phone When you mute the Uconnect™ Phone, you will still be keypad and still use the Uconnect™ Phone (while dialing able to hear the conversation coming from the other via the mobile phone keypad, the user must exercise party, but the other party will not be able to hear you.
Page 111: Advanced Phone Connectivity
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109 Advanced Phone Connectivity List Paired Mobile Phone Names • Press the button to begin. Transfer Call To And From Mobile Phone • After the “Ready” prompt and the following beep, say The Uconnect™ Phone allows ongoing calls to be trans- ferred from your mobile phone to the Uconnect™...
Page 112: Things You Should Know About Your Uconnect™ Phone
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • You can also press the button at any time while Things You Should Know About Your Uconnect™ Phone the list is being played, and then choose the phone that you wish to select. Uconnect™...
Page 113 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111 You can either press the Uconnect™ Phone button to Voice Command restore the factory setting or repeat the words and • For best performance, adjust the rearview mirror to phrases when prompted by the Uconnect™ Phone. For provide at least ⁄...
Page 114 112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • fully closed windows, • Numbers must be spoken in single digits. “800” must be spoken “eight-zero-zero” not “eight hundred”. • dry weather condition. • You can say “O” (letter “O”) for “0” (zero). •...
Page 115 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 • fully closed windows, Uconnect™ Phone can read or send new messages on • dry weather conditions, and your phone. • operation from the driver’s seat. Read Messages: • Performance, such as audio clarity, echo, and loudness If you receive a new text message while your phone is to a large degree rely on the phone and network, and connected to Uconnect™...
Page 116 114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Send Messages: 3. Where are you? You can send messages using Uconnect™ Phone. To send 4. I need more direction. a new message: 5. L O L • Press the button. 6. Why •...
Page 117 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115 16. Can this wait? Bluetooth Communication Link Mobile phones have been found to lose connection to the 17. Bye for now Uconnect™ Phone. When this happens, the connection 18. When can we meet can generally be reestablished by switching the phone off/on.
Page 118 116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 119 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117...
Page 120 118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
Page 121 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 Voice Commands Voice Commands Primary Alternate(s) Primary Alternate(s) zero call cancel confirmation prompts three continue four delete five dial download seven edit eight emergency nine English star (*) erase all plus (+) Espanol pound (#) Francais add location...
Page 122 120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Commands Voice Commands Primary Alternate(s) Primary Alternate(s) language return to main menu return or main menu list names select phone select list phones send mobile set up phone settings or phone set up mute towing assistance mute off...
Page 123: General Information
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121 General Information VOICE COMMAND — IF EQUIPPED This device complies with Part 15 of the FCC rules and Voice Command System Operation RSS 210 of Industry Canada. Operation is subject to the This Voice Command system allows you to following conditions: control your AM, FM radio, satellite radio, disc •...
Page 124 122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE When you press the Voice Command button, you These commands are universal and can be used from any menu. All other commands can be used depending upon will hear a beep. The beep is your signal to give a the active application.
Page 125: Commands
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123 Commands In this mode, you can say the following commands: The Voice Command system understands two types of • “Radio” (to switch to the radio mode) commands. Universal commands are available at all •...
Page 126 124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • “Previous Channel” (to select the previous channel) Radio FM To switch to the FM band, say “FM” or “Radio FM”. In • “List Channel” (to hear a list of available channels) this mode, you may say the following commands: •...
Page 127 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125 Memo − “Previous” (to play the previous memo) To switch to the voice recorder mode, say “Memo”. In − “Delete” (to delete a memo) this mode, you may say the following commands: • “Delete All” (to delete all memos) •...
Page 128: Voice Training
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • “Language English” Voice Training For users experiencing difficulty with the system recog- • “Language French” nizing their voice commands or numbers the Uconnect™ • “Language Spanish” Voice “Voice Training” feature may be used. •...
Page 129: Seats
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127 SEATS Power Driver Seat Seats are a part of the Occupant Restraint System of the On some models the driver’s seat can be equipped with vehicle. six-way power. The power seat controls are located on the outboard side of the driver’s seat cushion.
Page 130 128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Adjusting The Seat Forward Or Rearward Adjusting The Seat Up Or Down The seat can be adjusted both forward and rearward. The height of the seats can be adjusted up or down. Pull Push the four-way switch seat switch forward or rear- upward or push downward on the four-way seat switch, ward, the seat will move in the direction of the switch.
Page 131 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129 WARNING! • Adjusting a seat while driving may be dangerous. Moving a seat while driving could result in loss of control which could cause a collision and serious injury or death. • Seats should be adjusted before fastening the seatbelts and while the vehicle is parked.
Page 132: Manual Seat Adjustment
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! Do not place any article under a power seat or impede its ability to move as it may cause damage to the seat controls. Seat travel may become limited if movement is stopped by an obstruction in the seat’s path.
Page 133: Front Seat - Manual Recliner
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131 WARNING! • Adjusting a seat while driving may be dangerous. Moving a seat while driving could result in loss of control which could cause a collision and serious injury or death. • Seats should be adjusted before fastening the seatbelts and while the vehicle is parked.
Page 134: Manual Lumbar - If Equipped
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Manual Lumbar — If Equipped Heated Seats — If Equipped Some vehicle may be equipped with a manual lumbar On some models, the front driver and passenger seats support. The manual lumbar rotary control adjustment is may be equipped with heaters in both the seat cushions located on the left side of the driver’s seat.
Page 135 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 When the HIGH-level setting is selected, the heater will WARNING! provide a boosted heat level during the first four minutes • Persons who are unable to feel pain to the skin of operation. Then, the heat output will drop to the normal HIGH-level.
Page 136: Head Restraints
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Head Restraints Front Head Restraints Head restraints are designed to reduce the risk of injury To raise the head restraint, pull upward on the head by restricting head movement in the event of a rear restraint.
Page 137: Extended Cab/Crew Cab Rear Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 Rear Head Restraints The rear seat is equipped with nonadjustable head re- straints. Refer to “Occupant Restraints” in “Things T o Know Before Starting Your Vehicle” for information on child seat tether routing. Extended Cab/Crew Cab Rear Seat More cargo space is available by lifting up on the rear seat cushion.
Page 138 136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Then push the safety latch lever up while lifting the CAUTION! grille with your hand. It is located at the bottom center of the grille. To prevent possible damage, do not slam the hood to close it.
Page 139: Lights
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137 LIGHTS Headlights, Parking Lights And Panel Lights The headlight switch is located on the left side of the When the headlight switch is rotated to the first instrument panel next to the steering wheel. position, the parking lights, taillights, side marker lights, license plate light and instrument panel lights are all turned on.
Page 140: Headlight Delay
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Headlight Delay turned OFF. The lights illuminate at less than normal To aid in your exit, your vehicle is equipped with a intensity. If the parking brake is applied or the transmis- headlight delay that will leave the headlight on for sion is in the PARK position, the Daytime Running Lights 60 seconds.
Page 141: Interior Lights
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139 Interior Lights “Parade” mode and is useful when headlights are re- Courtesy and dome lights are turned on when the front quired during the day. If the dimmer control is not in this doors are opened, when the dimmer control (rotating position, the audio display may be difficult to read if the wheel on the right side of the switch) is rotated to the...
Page 142: Multifunction Lever
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Multifunction Lever NOTE: • If either light remains on and does not flash, or there is The multifunction lever is located on the left side of the steering column. a very fast flash rate, check for a defective outside light bulb.
Page 143: Battery Saver
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141 High/Low Beam Switch Battery Saver Pull the multifunction lever fully toward the steering To protect the life of your vehicle’s battery, Load Shed- wheel to switch the headlights from high or low beam. ding is provided for both the interior and exterior lights.
Page 144: Cargo Light - If Equipped
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Cargo Light — If Equipped WINDSHIELD WIPERS AND WASHERS The cargo lights are turned on by pressing on cargo The multifunction lever is located on the left side of the button. The cargo lights will also turn on for 30 seconds steering column.
Page 145: Windshield Wipers
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143 Windshield Wipers Intermittent Wiper System The wipers and washers are operated by a switch in the The intermittent feature of this system was designed for multifunction lever. Turn the end of the multifunction use when weather conditions make a single wiping cycle, lever to select the desired wiper speed.
Page 146: Windshield Washers
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Windshield Washers To use the washer, push in on the washer knob on the end of the multifunction lever and hold while spray is desired. If the washer knob is depressed while in the delay range, the wiper will operate for several seconds after the washer knob is released.
Page 147: Tilt Steering Column
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145 WARNING! Sudden loss of visibility through the windshield could lead to a collision. You might not see other vehicles or other obstacles. To avoid sudden icing of the windshield during freezing weather, warm the windshield with the defroster before and during windshield washer use.
Page 148: Electronic Speed Control - If Equipped
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! Do not adjust the steering column while driving. Adjusting the steering column while driving or driv- ing with the steering column unlocked, could cause the driver to lose control of the vehicle. Be sure the steering column is locked before driving your ve- hicle.
Page 149: To Activate
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147 the same time. If this occurs, the Electronic Speed Control without erasing the memory. Pushing the ON/OFF but- System can be reactivated by pushing the Electronic ton to the OFF position or turning off the ignition erases Speed Control ON/OFF button and resetting the desired the memory.
Page 150: To Vary The Speed Setting
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Vary The Speed Setting To Accelerate For Passing When the Electronic Speed Control System is ON, the Press the accelerator as you would normally. When the speed can be increased by pressing and holding the pedal is released, the vehicle will return to the set speed.
Page 151: Overhead Console
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149 WARNING! Electronic Speed Control can be dangerous where the system cannot maintain a constant speed. Your ve- hicle could go too fast for the conditions, and you could lose control and have an accident. Do not use Electronic Speed Control in heavy traffic or on roads that are winding, icy, snow-covered or slippery.
Page 152: Courtesy/Reading Lights
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Courtesy/Reading Lights US/M Button Near the front of the console are two courtesy/reading lights. Use the US/M button to change the display from U.S. to metric measurement units. Both lights illuminate as courtesy lights when a door is opened, when the dimmer control is rotated to the courtesy light position (fully upward position), or when the UNLOCK button is pressed on the Remote Keyless...
Page 153: Reset Button
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151 RESET Button STEP Button Use the RESET button to reset the following displays: Use the STEP button to choose, or cycle through, the four trip conditions. • Average Fuel Economy • Trip Odometer •...
Page 154: Average Fuel Economy (Avg Eco)
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Average Fuel Economy (AVG ECO) Distance To Empty (DTE) Displays the average fuel economy since the last reset. Shows the estimated distance that can be traveled with Average fuel economy is a running average of the the fuel remaining in the tank.
Page 155: Trip Odometer (Odo)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153 Trip Odometer (ODO) This display shows the distance traveled since the last reset. NOTE: maximum value approximately 6000 miles (9656 km). Resetting of this screen will cause the trip odometer to change to zero. Then the trip odometer must be reset in order to update the trip odometer miles.
Page 156: Global Reset
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Global Reset After completing one 360 degree turn with the vehicle If the RESET button is pressed twice within two seconds traveling less than 5 mph (8 km/h) in an area free from while in any of the three resettable displays (AVG ECO, large metal or metallic objects, the CAL symbol will turn ODO, ET), the GLOBAL RESET will reset all three displays.
Page 157: To Put Into A Calibration Mode
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155 To Put Into A Calibration Mode Turn the ignition ON and set the display to “Compass/ Temperature.” Press and hold the RESET button to change the display between VAR (compass variance) and CAL (compass calibration) modes. When the CAL sym- bol is displayed, complete one 360 degree turn in an area free from large metal objects or power lines.
Page 158: Outside Temperature
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Outside Temperature Because the ambient temperature sensor is located under the hood, engine temperature can influence the displayed temperature; therefore, temperature readings are slowly updated when the vehicle speed is below 20 mph (30 km/h) or during stop-and-go driving.
Page 159: Programming Homelink
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157 Programming HomeLink WARNING! Before You Begin • Your motorized door or gate will open and close The Compass Mini-Trip Computer (CMTC) illuminates while you are training the Universal Transceiver. the HomeLink symbol (a house with an arrow inside it) Do not train the transceiver if people, pets or other along with 1, 2 or 3 indicators under it, when a objects are in the path of the door or gate.
Page 160 158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Your vehicle should be parked outside of the garage If the signal is too weak to train, replace the battery in the while training. handheld transmitter. • Turn the ignition switch to the ON/RUN position. NOTE: Some gate operators and garage door openers may require you to replace Step 3 with procedures noted •...
Page 161 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159 This can usually be found where the hanging antenna 1. Firmly press and release the LEARN or TRAINING wire is attached to the garage door opener motor (it is button. The name and color of the button may vary by NOT the button normally used to open and close the manufacturer.
Page 162: Gate Operator/Canadian Programming
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Gate Operator/Canadian Programming successfully accepted the frequency signal. The indica- Canadian radio-frequency laws require transmitter sig- tor(s) will change from a slow flash to a rapid flash nals to “time-out” (or quit) after several seconds of when trained.
Page 163: Reprogramming A Single Homelink
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161 Reprogramming A Single HomeLink Button The HomeLink Universal Transceiver is disabled when To reprogram a channel that has been previously trained, the Vehicle Theft Alarm is active. follow these steps: Troubleshooting Tips 1. Turn the ignition switch to the ON/RUN position. If you are having trouble programming HomeLink , here are some of the most common solutions: 2.
Page 164: General Information
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE General Information ELECTRICAL POWER OUTLETS This device complies with FCC rules part 15 and Industry This vehicle has two 12 Volt (13 Amp) auxiliary power Canada RSS-210. Operation is subject to the following outlets that can provide power for accessories designed two conditions: for use with standard power outlet adapters.
Page 165 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163 When the optional Cigar Lighter heating element is used, it heats when pushed in and pops out automatically when ready for use. To preserve the heating element, do not hold the lighter in the heating position. NOTE: To ensure proper operation a MOPAR knob and element must be used.
Page 166 164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! CAUTION! • Many accessories that can be plugged in, draw To avoid serious injury or death: • Only devices designed for use in this type of power from the vehicle’s battery, even when not in use (i.e., cellular phones, etc.).
Page 167: Cupholders
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165 CUPHOLDERS A two-cavity cupholder is available on all Crew Cabs, If your vehicle has bucket seats with a center console, with rear seats mounted on the floor. there are three cupholders located on the console. Rear Cup Holders —...
Page 168: Rear Crate 'N Go Storage - If Equipped
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE REAR CRATE ’N GO STORAGE — IF EQUIPPED To open the crates, lift upward on the crate handles and The rear Crate ’n Go storage, located under the rear seat engage the crate end flaps. lower cushion, consists of two removable, collapsible To remove the crate, press on the release lever, located on storage crates.
Page 169 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167 WARNING! Do not sit or stand on this crate. It may collapse causing serious injury. CAUTION! Do not lift up on the “End Flaps” to open the crate, damage to the “End Flaps” may occur. NOTE: The maximum loading capacity for the small crate is 30 lbs (13.6 kg) and 50 lbs (22.6 kg) for the large Insert Crate...
Page 170: Plastic Grocery Bag Retainers
168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Plastic Grocery Bag Retainers CONSOLE FEATURES — IF EQUIPPED Retainer hooks, which will hold plastic grocery bag Floor Console Features handles, are built into the back panel of the cab. The Floor Console between the driver’s and front pas- senger’s seat has the following features: •...
Page 171 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169 Power Outlet And Portable Phone Storage The console is equipped with a power outlet and an iPod/phone storage bin. The phone storage bin can be used when easy access to the phone is needed. Also, the power outlet inside the console compartment can be used to charge the phone while it is being stored in the bin.
Page 172: Cargo Area Features
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CARGO AREA FEATURES Rear Cargo Area Utility Rails — If Equipped CAUTION! The maximum load per cleat should not exceed 320 lbs (145 kg) and the angle of the load on each cleat should not exceed 60 degrees above horizontal, or damage to the cleat or cleat rail may occur.
Page 173: Rear Window Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171 To remove the cleats from the utility rail, remove the end REAR WINDOW FEATURES cap by pushing up on the locking tab, located on the Rear Window Defroster — If Equipped bottom of the end cap. Slide the cleat off the end of the The rear window defroster button is located on the rail.
Page 174: Sliding Rear Window - If Equipped
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Sliding Rear Window — If Equipped CAUTION! A locking device in the center of the window helps to prevent entry from the rear of the vehicle. Squeeze the Failure to follow these cautions can cause damage to lock to release the window.
Page 175: Slide-In Campers
Follow these steps: manufacturers other than Chrysler Group LLC. For war- ranty coverage and service on these items, contact the 1. Open the tailgate to a 45 degree angle.
Page 176: Two-Position Tailgate/Upper Load Platform
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 4. Slide the tailgate to the passenger side while making metal (or bed liner if equipped) on the inner side of the box sure clearance from the box and taillight is maintained. in front (Club Cab only) and behind both wheel housings. To reinstall the tailgate, do the following: 1.
Page 177 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175 4. Snap the tailgate support cable between the cable 2. Remove both cables from between the cable guides guide and the tailgate bumper. Do this on both sides of and the tailgate bumpers, and lower the tailgate. the tailgate.
Page 179: Understanding Your Instrument Panel
UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS ▫ List Button Instrument Panel Features ....179 (Disc Mode For MP3/WMA Play) ..207 Instrument Cluster .
Page 180 178 UNDERSTANDING YOUR INSTRUMENT PANEL ▫ Notes On Playing MP3 Files ... . 219 Steering Wheel Audio Controls — If Equipped ......237 ▫...
Page 181: Instrument Panel Features
UNDERSTANDING YOUR INSTRUMENT PANEL 179 INSTRUMENT PANEL FEATURES 1 — Headlight Switch 6 — Glove Compartment 11 — Transfer Case Switch* 2 — Air Outlets 7 — Radio 12 — Speed Control Switches 3 — Demister Outlets 8 — Climate Controls 13 —...
Page 182: Instrument Cluster
180 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER...
Page 183: Instrument Cluster Descriptions
UNDERSTANDING YOUR INSTRUMENT PANEL 181 INSTRUMENT CLUSTER DESCRIPTIONS 3. Turn Signal Indicators When a turn signal is activated, a right-pointing or 1. Fuel Gauge left-pointing arrow lights up and flashes to indicate The fuel gauge shows the level of fuel in the fuel tank the direction of the turn.
Page 184 182 UNDERSTANDING YOUR INSTRUMENT PANEL 5. High Beam Indicator 7. Engine Temperature Warning Light The high beam indicator will illuminate if the This light warns of an overheated engine condi- headlights are on high beam. tion. As temperatures rise and the gauge ap- proaches H (Hot), this indicator will illuminate 6.
Page 185 UNDERSTANDING YOUR INSTRUMENT PANEL 183 the charging system light remains on, it means that the WARNING! vehicle is experiencing a problem with the charging system. Obtain SERVICE IMMEDIATELY. See an autho- A hot engine cooling system is dangerous. You or rized dealer.
Page 186 184 UNDERSTANDING YOUR INSTRUMENT PANEL If the ABS light remains on or turns on while driving, it 13. Tachometer indicates that the Anti-Lock portion of the brake system The tachometer gauge measures engine revolutions-per- is not functioning and that service is required. However, minute (RPM x 1000).
Page 187 UNDERSTANDING YOUR INSTRUMENT PANEL 185 Vehicle Odometer Messages gASCAP When the appropriate conditions exist, the following If the vehicle diagnostic system determines that the fuel messages will display in the odometer: filler cap is loose, improperly installed, or damaged, a “gASCAP”...
Page 188 186 UNDERSTANDING YOUR INSTRUMENT PANEL CHAngE OIL Message 3. Turn the ignition switch to the OFF/LOCK position. Your vehicle is equipped with an engine oil change NOTE: If the indicator message illuminates when you indicator system. The “CHAngE OIL” message will flash start the vehicle, the oil change indicator system did not in the instrument cluster odometer for approximately reset.
Page 189 UNDERSTANDING YOUR INSTRUMENT PANEL 187 be sure that it is properly reset, or that the door jamb sticker WARNING! is accurate if the odometer must be reset at zero. If the Transmission Temperature Warning Light is 17. Front Fog Light Indicator — If Equipped illuminated and you continue operating the vehicle, The fog light indicator illuminates when the front in some circumstances you could cause the fluid to...
Page 190 188 UNDERSTANDING YOUR INSTRUMENT PANEL light will come on when the ignition is first turned to condition has been corrected. If the problem is related to ON/RUN and remain on for 15 seconds as a bulb check. the brake booster, the ABS pump will run when applying If the light does not come on during starting, have the the brake and a brake pedal pulsation may be felt during system checked by an authorized dealer.
Page 191 UNDERSTANDING YOUR INSTRUMENT PANEL 189 The light also will turn on when the parking brake is WARNING! applied with the ignition switch in the ON/RUN posi- tion. Driving a vehicle with the red brake light on is dangerous. Part of the brake system may have failed. NOTE: This light shows only that the parking brake is It will take longer to stop the vehicle.
Page 192 190 UNDERSTANDING YOUR INSTRUMENT PANEL If this light comes on and remains on while driving, it WARNING! suggests a potential engine control problem and the need for system service. A malfunctioning catalytic converter, as referenced above, can reach higher temperatures than in normal Although your vehicle will usually be drivable and not operating conditions.
Page 193 UNDERSTANDING YOUR INSTRUMENT PANEL 191 As an added safety feature, your vehicle has been Your vehicle has also been equipped with a TPMS equipped with a Tire Pressure Monitoring System malfunction indicator to indicate when the system is not (TPMS) that illuminates a low tire pressure telltale when operating properly.
Page 194 192 UNDERSTANDING YOUR INSTRUMENT PANEL 23. Airbag Warning Light CAUTION! This light will turn on for four to eight seconds as a bulb check when the ignition switch is first The TPMS has been optimized for the original turned to ON/RUN. If the light is either not on equipment tires and wheels.
Page 195 UNDERSTANDING YOUR INSTRUMENT PANEL 193 25. SVC (Service) 4WD Indicator 29. 4WD LOW Indicator The SVC 4WD illuminates when the ignition key is This light alerts the driver that the vehicle is in turned to the ON/RUN position and will stay on for two the four-wheel drive LOW mode.
Page 196: Media Center 230 (Req) - Am/Fm Stereo Radio And 6-Disc Cd/Dvd Changer (Mp3/Wma Aux Jack)
194 UNDERSTANDING YOUR INSTRUMENT PANEL MEDIA CENTER 230 (REQ) — AM/FM STEREO Operating Instructions - Radio Mode RADIO AND 6–DISC CD/DVD CHANGER NOTE: The ignition switch must be in the ON or ACC (MP3/WMA AUX JACK) position to operate the radio. NOTE: The radio sales code is located on the lower right Power Switch/Volume Control (Rotary) side of the radio faceplate.
Page 197 UNDERSTANDING YOUR INSTRUMENT PANEL 195 SEEK Buttons If your vehicle is not equipped with or this feature is not Press and release the SEEK buttons to search for the next available on your vehicle, a “Not Equipped With listenable station in AM/FM mode. Press the right switch Uconnect Phone”...
Page 198 196 UNDERSTANDING YOUR INSTRUMENT PANEL Clock Setting Procedure INFO Button Press the INFO button for an RDS station (one with call 1. Press and hold the TIME button until the hours blink. letters displayed). The radio will return a Radio Text 2.
Page 199 UNDERSTANDING YOUR INSTRUMENT PANEL 197 Push the rotary TUNE/SCROLL control knob a second Push the rotary TUNE/SCROLL control knob again to time and MID will display. Turn the TUNE/SCROLL exit setting tone, balance, and fade. control knob to the right or left to increase or decrease the MUSIC TYPE Button mid-range tones.
Page 200 198 UNDERSTANDING YOUR INSTRUMENT PANEL Program Type 16-Digit Character Display Program Type 16-Digit Character Display College College Soft Rhythm and Blues Soft R & B Country Country Sports Sports Foreign Language Language Talk Talk Information Inform Top 40 Top 40 Jazz Jazz Weather...
Page 201 UNDERSTANDING YOUR INSTRUMENT PANEL 199 • Audio Stream – Repeatedly pressing SELECT will SETUP Button Pressing the SETUP button allows you to select between switch to different audio languages (if supported on the following items: the disc) (if equipped). NOTE: Turn the TUNE/SCROLL control knob to scroll •...
Page 202 200 UNDERSTANDING YOUR INSTRUMENT PANEL • VES™ CH1/CH2 - Allows the user to change the Enter the four-digit country code using the TUNE/ mode of either the IR1 or IR2 wireless headphones by SCROLL control knob to scroll up and down to select the pressing the AUDIO/SELECT button (if equipped).
Page 203 UNDERSTANDING YOUR INSTRUMENT PANEL 201 Subtitles — If Equipped NOTE: The user will have to set these defaults before Selecting this item allows you to choose between subtitle loading a disc. If changes are made to these settings after Off or On. a disc is loaded, changes will not be effective.
Page 204: Operation Instructions - (Disc Mode For Cd And Mp3/Wma Audio Play, Dvd-Video)
202 UNDERSTANDING YOUR INSTRUMENT PANEL You may add a second station to each pushbutton by Operation Instructions - (DISC MODE for CD and repeating the above procedure with this exception: Press MP3/WMA Audio Play, DVD-VIDEO) the SET button twice and SET 2 will show in the display The radio DVD player and many DVD discs are coded by window.
Page 205 UNDERSTANDING YOUR INSTRUMENT PANEL 203 NOTE: The ignition switch must be in the ON or ACC Eject Button — Ejecting Compact Disc(s) position to operate the radio. Press the EJECT button and the pushbutton with the corresponding number (1-6) where the LOAD Button —...
Page 206: Notes On Playing Mp3/Wma Files
204 UNDERSTANDING YOUR INSTRUMENT PANEL SCAN Button (CD MODE) Notes On Playing MP3/WMA Files Press the SCAN button to scan through each track on the The radio can play MP3/WMA files; however, acceptable CD currently playing. MP3/WMA file recording media and formats are limited. When writing MP3/WMA files, pay attention to the TIME Button (CD MODE) following restrictions.
Page 207 UNDERSTANDING YOUR INSTRUMENT PANEL 205 The radio uses the following limits for file systems: If a disc contains multi-formats, such as CD audio and MP3/WMA tracks, the radio will only play the MP3/ • Maximum number of directory levels: 8 WMA tracks on that disc.
Page 208 206 UNDERSTANDING YOUR INSTRUMENT PANEL Playback of MP3/WMA Files MPEG Sampling Bit Rate (kbps) When a medium containing MP3/WMA data is loaded, Specification Frequency (kHz) the radio checks all files on the medium. If the medium 320, 256, 224, contains a lot of folders or files, the radio will take more MPEG-1 Audio 192, 160, 128, 48, 44.1, 32...
Page 209: List Button (Disc Mode For Mp3/Wma Play)
UNDERSTANDING YOUR INSTRUMENT PANEL 207 LIST Button (DISC Mode for MP3/WMA Play) Press and hold the INFO button again for three seconds Pressing the LIST button will bring up a list of all folders to return to elapsed time display. on the disc.
Page 210 208 UNDERSTANDING YOUR INSTRUMENT PANEL SCAN Button (Auxiliary Mode) Operating Instructions — Voice Command System No function. (If Equipped) For the radio, Refer to “Voice Command” in the EJECT Button (Auxiliary Mode) Uconnect™ User Manual located on the DVD for further No function.
Page 211: Uconnect™ Multimedia (Satellite Radio) - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 209 Macrovision NOTE: Sirius service is not available in Hawaii and has This product incorporates copyright protection technol- limited coverage in Alaska. ogy that is protected by U.S. patents and other intellec- System Activation tual property rights. Use of this copyright protection Sirius Satellite Radio service is pre-activated, and you technology must be authorized by Macrovision, and is may begin listening immediately to the one year of audio...
Page 212 210 UNDERSTANDING YOUR INSTRUMENT PANEL 2. Your Vehicle Identification Number. placed within the line of sight of the antenna will cause decreased performance. Larger luggage items such as To access the ESN/SID, refer to the following steps: bikes should be placed as far rearward as possible, within ESN/SID Access the loading design of the rack.
Page 213 UNDERSTANDING YOUR INSTRUMENT PANEL 211 Operating Instructions - Uconnect™ Multimedia INFO Button (Satellite) Mode Pressing the INFO button will cycle the display informa- tion between Artist, Song Title, and Composer (if avail- NOTE: The ignition switch must be in the ON/RUN or able).
Page 214 212 UNDERSTANDING YOUR INSTRUMENT PANEL MUSIC TYPE Button SETUP Button Pressing this button once will turn on the Music Type Pressing the SETUP button allows you to select the mode for five seconds. Pressing the MUSIC TYPE button following items: or turning the TUNE/SCROLL control knob within five •...
Page 215: Media Center 130 (Sales Code Res)
UNDERSTANDING YOUR INSTRUMENT PANEL 213 You may add a second channel to each pushbutton by MEDIA CENTER 130 (SALES CODE RES) repeating the above procedure with this exception: Press NOTE: The radio sales code is located on the lower right the SET button twice and SET 2 will show in the display side of the radio faceplate.
Page 216: Operating Instructions - Radio Mode
214 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Instructions — Radio Mode to seek up and the left switch to seek down. The radio will remain tuned to the new station until you make NOTE: The ignition switch must be in the ON or ACC another selection.
Page 217 UNDERSTANDING YOUR INSTRUMENT PANEL 215 4. Adjust the minutes using the right side TUNE/ Push the rotary TUNE/SCROLL control knob a second SCROLL control knob. Press the TUNE/SCROLL control time and MID will display. Turn the TUNE/SCROLL knob to save time change. control knob to the right or left to increase or decrease the mid-range tones.
Page 218 216 UNDERSTANDING YOUR INSTRUMENT PANEL Push the rotary TUNE/SCROLL control knob again to SET 2 in both AM and FM. This allows a total of 12 AM exit setting tone, balance, and fade. and 12 FM stations to be stored into pushbutton memory. The stations stored in SET 2 memory can be selected by AM/FM Button pressing the pushbutton twice.
Page 219: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
UNDERSTANDING YOUR INSTRUMENT PANEL 217 Operation Instructions — CD MODE For CD And If you insert a disc with the ignition ON and the radio MP3 Audio Play ON, the unit will switch from radio to CD mode and begin to play when you insert the disc. The display will NOTE: show the track number, and index time in minutes and •...
Page 220 218 UNDERSTANDING YOUR INSTRUMENT PANEL EJECT Button - Ejecting a CD the current selection. Pressing and holding the SEEK Press the EJECT button to eject the CD. button will allow faster scrolling through the tracks in CD and MP3 modes. TIME Button Press this button to change the display from a large CD If you have ejected a disc and have not removed it within...
Page 221: Notes On Playing Mp3 Files
UNDERSTANDING YOUR INSTRUMENT PANEL 219 SET/RND Button (Random Play Button) Supported Medium Formats (File Systems) Press this button while the CD is playing to activate The medium formats supported by the radio are ISO 9660 Random Play. This feature plays the selections on the Level 1 and Level 2 and includes the Joliet extension.
Page 222 220 UNDERSTANDING YOUR INSTRUMENT PANEL • Maximum number of characters in file/folder names: When using the MP3 encoder to compress audio data to an MP3 file, the bit rate and sampling frequencies in the • Level 1: 12 (including a separator . and a three- following table are supported.
Page 223: Operation Instructions - Auxiliary Mode
UNDERSTANDING YOUR INSTRUMENT PANEL 221 Playback of MP3 Files Operation Instructions - Auxiliary Mode When a medium containing MP3 data is loaded, the The auxiliary (AUX) jack is an audio input jack, which radio checks all files on the medium. If the medium allows the user to plug in a portable device, such as an contains a lot of folders or files, the radio will take more MP3 player, or cassette player, and utilize the vehicle’s...
Page 224: Media Center 130 With Satellite Radio (Sales Code Res+Rsc)
222 UNDERSTANDING YOUR INSTRUMENT PANEL MEDIA CENTER 130 WITH SATELLITE RADIO Operating Instructions — Radio Mode (SALES CODE RES+RSC) NOTE: The ignition switch must be in the ON or ACC NOTE: The radio sales code is located on the lower right position to operate the radio.
Page 225 UNDERSTANDING YOUR INSTRUMENT PANEL 223 SEEK Buttons Phone Button Uconnect™ Phone — If Equipped Press and release the SEEK buttons to search for the next Press this button to operate the Uconnect™ Phone feature listenable station in AM/FM mode. Press the right switch (if equipped).
Page 226 224 UNDERSTANDING YOUR INSTRUMENT PANEL 4. Adjust the minutes using the right side TUNE/ RW/FF SCROLL control knob. Press the TUNE/SCROLL control Pressing the RW (Rewind) or FF (Fast Forward) buttons knob to save time change. causes the tuner to search for the next frequency in the direction of the arrows.
Page 227 UNDERSTANDING YOUR INSTRUMENT PANEL 225 Push the rotary TUNE/SCROLL control knob a third or turning the TUNE/SCROLL control knob within five time and TREBLE will display. Turn the TUNE/SCROLL seconds will allow the program format type to be se- control knob to the right or left to increase or decrease the lected.
Page 228 226 UNDERSTANDING YOUR INSTRUMENT PANEL By pressing the SEEK button when the Music Type icon is Program Type 16-Digit Character Display displayed, the radio will be tuned to the next frequency News News station with the same selected Music Type name. The Nostalgia Nostalga Music Type function only operates when in the FM mode.
Page 229 UNDERSTANDING YOUR INSTRUMENT PANEL 227 AM/FM Button and 12 FM stations to be stored into pushbutton memory. Press the button to select either AM or FM mode. The stations stored in SET 2 memory can be selected by pressing the pushbutton twice. SET/RND Button —...
Page 230: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play
228 UNDERSTANDING YOUR INSTRUMENT PANEL Operation Instructions — CD MODE for CD and If you insert a disc with the ignition ON and the radio MP3 Audio Play ON, the unit will switch from radio to CD mode and begin to play when you insert the disc. The display will NOTE: show the track number, and index time in minutes and •...
Page 231 UNDERSTANDING YOUR INSTRUMENT PANEL 229 EJECT Button - Ejecting a CD the current selection. Pressing and holding the SEEK Press the EJECT button to eject the CD. button will allow faster scrolling through the tracks in CD and MP3 modes. TIME Button Press this button to change the display from a large CD If you have ejected a disc and have not removed it within...
Page 232: Notes On Playing Mp3 Files
230 UNDERSTANDING YOUR INSTRUMENT PANEL SET/RND Button (Random Play Button) Supported Medium Formats (File Systems) Press this button while the CD is playing to activate The medium formats supported by the radio are ISO 9660 Random Play. This feature plays the selections on the Level 1 and Level 2 and includes the Joliet extension.
Page 233 UNDERSTANDING YOUR INSTRUMENT PANEL 231 • Maximum number of characters in file/folder names: When using the MP3 encoder to compress audio data to an MP3 file, the bit rate and sampling frequencies in the • Level 1: 12 (including a separator . and a three- following table are supported.
Page 234: List Button (Cd Mode For Mp3 Play)
232 UNDERSTANDING YOUR INSTRUMENT PANEL Playback of MP3 Files LIST Button (CD Mode for MP3 Play) When a medium containing MP3 data is loaded, the Pressing the LIST button will bring up a list of all folders radio checks all files on the medium. If the medium on the disc.
Page 235: Uconnect™ Multimedia (Satellite Radio) - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 233 Press and hold the INFO button again for three seconds Uconnect™ Multimedia (Satellite Radio) — If to return to elapsed time display. Equipped Satellite radio uses direct satellite-to-receiver broadcast- Operation Instructions - Auxiliary Mode ing technology to provide clear digital sound, coast to The auxiliary (AUX) jack is an audio input jack which coast.
Page 236 234 UNDERSTANDING YOUR INSTRUMENT PANEL Electronic Serial Number/Sirius Identification Selecting Uconnect™ Multimedia (Satellite) Mode Number (ESN/SID) Press the SAT button until SAT appears in the display. A Please have the following information available when CD may remain in the radio while in the Satellite radio calling: mode.
Page 237 UNDERSTANDING YOUR INSTRUMENT PANEL 235 • Dense tree coverage may interrupt reception in the SCAN Button form of short audio mutes. Pressing the SCAN button causes the tuner to search for the next channel, pausing for eight seconds before con- •...
Page 238 236 UNDERSTANDING YOUR INSTRUMENT PANEL TUNE Control (Rotary) SETUP Button Turn the rotary TUNE/SCROLL control knob clockwise Pressing the SETUP button allows you to select the to increase or counterclockwise to decrease the channel. following items: • Display Sirius ID number — Press the AUDIO/ MUSIC TYPE Button Pressing this button once will turn on the Music Type SELECT button to display the Sirius ID number.
Page 239: Steering Wheel Audio Controls - If Equipped
UNDERSTANDING YOUR INSTRUMENT PANEL 237 You may add a second channel to each pushbutton by STEERING WHEEL AUDIO CONTROLS — IF repeating the above procedure with this exception: Press EQUIPPED the SET button twice and SET 2 will show in the display The remote sound system controls are located on the rear window.
Page 240: Radio Operation
238 UNDERSTANDING YOUR INSTRUMENT PANEL The right hand control is a rocker type switch with a push The button located in the center of the left hand control button in the center. Pressing the top of the switch will will tune to the next pre-set station that you have increase the volume, and pressing the bottom of the programmed in the radio pre-set push-buttons.
Page 241: Cd/Dvd Disc Maintenance
UNDERSTANDING YOUR INSTRUMENT PANEL 239 CD/DVD DISC MAINTENANCE NOTE: If you experience difficulty in playing a particu- To keep a CD/DVD in good condition, take the following lar disc, it may be damaged (i.e., scratched, reflective precautions: coating removed, a hair, moisture or dew on the disc) oversized, or have protection encoding.
Page 242: Climate Controls
240 UNDERSTANDING YOUR INSTRUMENT PANEL CLIMATE CONTROLS Air Conditioning and Heater Operation The controls for the heating, ventilation and air condi- To turn on the air conditioning, set the fan control at any tioning system in this vehicle consist of a series of rotary speed and press the SNOWFLAKE button located at the knobs.
Page 243 UNDERSTANDING YOUR INSTRUMENT PANEL 241 The Mode Control (at the right of the both the panel and floor outlets together, depending on control panel) can be set in any of the which recirculation mode is selected. following positions: Panel (Fresh Air Modes) Outside air flows through the outlets located in the instrument panel.
Page 244 242 UNDERSTANDING YOUR INSTRUMENT PANEL Defrost Blower Control Outside air is primarily directed to the windshield The rotary knob on the left of the through the defroster outlets located at the base of control panel is the Blower Control. the windshield, and the demister outlets located at the Turn the knob clockwise to one of the edge of each side of the instrument panel.
Page 245 UNDERSTANDING YOUR INSTRUMENT PANEL 243 Temperature Control Side window demisters direct airflow specifically to the The rotary knob at the center of the window glass to help prevent interior fogging of the control panel controls the temperature glass. They are located in the extreme outside upper of the interior air.
Page 246: Operating Tips
244 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Tips temperatures when it’s rainy or humid. In most cases turning on the Air-conditioning (pressing the SNOW- Fast Cooldown FLAKE button) will clear the fog. Adjust the temperature For a fast cooldown, open the windows and turn the control, air direction and blower speed to maintain blower fan rotary knob to the extreme right position, turn comfort.
Page 247 UNDERSTANDING YOUR INSTRUMENT PANEL 245 Summer Operation Winter Operation Air conditioned vehicles must be protected with a high When operating the system during the winter months, quality antifreeze coolant during summer, to provide make sure the air intake, located directly in front of the proper corrosion protection and to raise the boiling point windshield, is free of ice, slush, snow, or other obstruc- of the coolant for protection against overheating.
Page 248: Operation Tips Chart
246 UNDERSTANDING YOUR INSTRUMENT PANEL Operation Tips Chart...
Page 249 STARTING AND OPERATING CONTENTS ▫ Key Ignition Park Interlock ... . . 254 Starting Procedures ....251 ▫...
Page 250 248 STARTING AND OPERATING Limited-Slip Rear Axle Differential — Brake System ......275 If Equipped ......266 ▫...
Page 251 STARTING AND OPERATING 249 ▫ Compact Spare Tire – If Equipped ..290 Fuel Requirements ..... 304 ▫...
Page 252 250 STARTING AND OPERATING ▫ Selection Of Engine Oil For Flexible Fuel Trailer Towing ......317 Vehicles (E-85) And Gasoline Vehicles ..311 ▫...
Page 253: Starting Procedures
STARTING AND OPERATING 251 STARTING PROCEDURES Tip Start Feature Before starting your vehicle, adjust your seat, adjust both Turn the ignition switch to START position and release it inside and outside mirrors, and fasten your seat belts. as soon as the starter engages. The starter motor will continue to run, but will automatically disengage itself WARNING! when the engine is running.
Page 254: Extreme Cold Weather (Below -20°F Or -29°C)
252 STARTING AND OPERATING Extreme Cold Weather (below –20°F or –29°C) WARNING! (Continued) To ensure reliable starting at these temperatures, use of • Do not attempt to push or tow your vehicle to get an externally powered electric engine block heater (avail- it started.
Page 255: After Starting
STARTING AND OPERATING 253 ENGINE BLOCK HEATER — IF EQUIPPED CAUTION! The engine block heater warms the engine, and permits quicker starts in cold weather. Connect the cord to a To prevent damage to the starter, do not crank the standard 110-115 Volt AC electrical outlet with a engine for more than 15 seconds at a time.
Page 256: Automatic Transmission
254 STARTING AND OPERATING AUTOMATIC TRANSMISSION WARNING! CAUTION! It is dangerous to move the shift lever out of PARK or NEUTRAL if the engine speed is higher than idle Damage to the transmission may occur if the follow- speed. If your foot is not firmly on the brake pedal, ing precautions are not observed: the vehicle could accelerate quickly forward or in •...
Page 257: Brake/Transmission Interlock System
STARTING AND OPERATING 255 Brake/Transmission Interlock System Gear Ranges This vehicle is equipped with a Brake Transmission Shift DO NOT race the engine when shifting from PARK or Interlock System (BTSI) that holds the shift lever in the NEUTRAL position into another gear range. PARK position when the ignition switch is in the LOCK PARK position.
Page 258 256 STARTING AND OPERATING WARNING! WARNING! (Continued) • Unintended movement of a vehicle could injure • Never use the PARK position as a substitute for those in and near the vehicle. As with all vehicles, the parking brake. Always apply the parking you should never exit a vehicle while the engine is brake fully when parked to guard against vehicle running.
Page 259 STARTING AND OPERATING 257 NEUTRAL going down hill, use first gear. To prevent excessive engine This range is used when vehicle is standing for pro- speed do not exceed 25 mph (40 km/h) in this range. longed periods with engine running. Engine may be Overdrive Operation started in this range.
Page 260 258 STARTING AND OPERATING NOTE: The transmission will downshift from Overdrive to • If the vehicle is started in extremely cold temperatures, DRIVE if the accelerator pedal is fully pressed at vehicle the transmission may not shift into Overdrive and will speeds above approximately 35 mph (56 km/h).
Page 261 STARTING AND OPERATING 259 Torque Converter Clutch A feature designed to improve fuel economy is included in all automatic transmissions. A clutch, within the torque converter, engages automatically at a calibrated speed at light throttle. It engages at higher speeds under heavier acceleration.
Page 262: Four-Wheel Drive Operation - If Equipped
260 STARTING AND OPERATING • If the vehicle has not been driven in several days, the first few seconds of operation after shifting the trans- mission into gear may seem sluggish. This is due to the fluid partially draining from the torque converter into the transmission.
Page 263 STARTING AND OPERATING 261 The NV233/243 transfer case is designed to be driven in Transfer Case Position Indicator Lights the two-wheel drive position (2WD) for normal street The Transfer Case Position Indicator Lights (4WD and and highway conditions on dry hard-surfaced roads. 4LOW) are located on the instrument cluster.
Page 264 262 STARTING AND OPERATING The “SVC 4WD Warning Light” monitors the electronic for the shift to take place. Shifting while only the front or shift four-wheel drive system. If this light remains on rear wheels are spinning can cause damage to the trans- after engine start-up or illuminates during driving, it fer case.
Page 265 STARTING AND OPERATING 263 4WD LOCK WARNING! Four-Wheel Drive Lock — This range locks the front and rear driveshafts together forcing the front and rear wheels You or others could be injured if you leave the to rotate at the same speed. This range provides additional vehicle unattended with the transfer case in the traction for loose or slippery road surfaces only.
Page 266: Shifting Procedure - Nv233/243 Transfer Case
264 STARTING AND OPERATING Shifting Procedure – NV233/243 Transfer Case ignition key must be in the ON position with the engine either running or OFF. This shift cannot be completed if NOTE: If any of the requirements to select a new the key is in the ACC position.
Page 267 STARTING AND OPERATING 265 4WD LOCK-to-4WD LOW or 4WD LOW-to-4WD Alternate Procedure LOCK 1. Bring the vehicle to complete stop. NOTE: When shifting into or out of 4WD LOW, some 2. With the key ON and the engine either OFF or gear noise may be heard.
Page 268: Limited-Slip Rear Axle Differential
266 STARTING AND OPERATING • The ignition key must be ON for a shift to take place WARNING! and for the position indicator lights to be operable. If the key is not ON, then the shift will not take place and On vehicles equipped with a limited-slip differen- no position indicator lights will be on or flashing.
Page 269: Driving On Slippery Surfaces
STARTING AND OPERATING 267 DRIVING ON SLIPPERY SURFACES Traction When driving on wet or slushy roads, it is possible for a Acceleration wedge of water to build up between the tire and road Rapid acceleration on snow covered, wet, or other slip- surface.
Page 270: Driving Through Water
268 STARTING AND OPERATING DRIVING THROUGH WATER Shallow Standing Water Driving through water more than a few inches/ Although your vehicle is capable of driving through centimeters deep will require extra caution to ensure shallow standing water, consider the following Caution safety and prevent damage to your vehicle.
Page 271 STARTING AND OPERATING 269 CAUTION! (Continued) WARNING! • Driving through standing water may cause dam- • Driving through standing water limits your vehi- age to your vehicle’s drivetrain components. Al- cle’s traction capabilities. Do not exceed 5 mph ways inspect your vehicle’s fluids (i.e., engine oil, (8 km/h) when driving through standing water.
Page 272: Off-Road Driving Tips
270 STARTING AND OPERATING OFF-ROAD DRIVING TIPS always a good idea to check for damage. That way you Care should be taken when attempting to climb steep can get any problems taken care of right away and have hills or driving diagonally across a hill or slope. If natural your vehicle ready when you need it.
Page 273: Power Steering
STARTING AND OPERATING 271 • After extended operation in mud, sand, water, or POWER STEERING similar dirty conditions, have the radiator, fan, brake The standard power steering system will give you good rotors, wheels, brake linings, and axle yokes inspected vehicle response and increased ease of maneuverability and cleaned as soon as possible.
Page 274: Power Steering Fluid Check
272 STARTING AND OPERATING apparent, and/or the system is not functioning as antici- WARNING! pated. Coordinate inspection efforts through an autho- rized dealer. Continued operation with reduced power steering assist could pose a safety risk to yourself and others. CAUTION! Service should be obtained as soon as possible.
Page 275: Parking Brake
STARTING AND OPERATING 273 If necessary, add fluid to restore to the proper indicated level. With a clean cloth, wipe any spilled fluid from all surfaces. Refer to “Fluids, Lubricants, and Genuine Parts” in “Maintaining Your Vehicle” for further information. PARKING BRAKE Before leaving the vehicle, make sure that the parking brake is fully applied and place the shift lever in the...
Page 276 274 STARTING AND OPERATING When parking on a hill, it is important to turn the front WARNING! (Continued) wheels toward the curb on a downhill grade and away • Do not leave the key in the ignition. A child could from the curb on an uphill grade.
Page 277: Brake System
STARTING AND OPERATING 275 BRAKE SYSTEM Four-Wheel Anti-Lock Brake System (ABS) In the event power assist is lost for any reason (for The Four-Wheel ABS is designed to aid the driver in example, repeated brake applications with the engine maintaining vehicle control under adverse braking con- off), the brakes will still function.
Page 278 276 STARTING AND OPERATING WARNING! WARNING! (Continued) • The ABS cannot prevent collisions, including Pumping of the Anti-Lock Brakes will diminish their those resulting from excessive speed in turns, effectiveness and may lead to a collision. Pumping following another vehicle too closely, or hydro- makes the stopping distance longer.
Page 279: Tire Safety Information
STARTING AND OPERATING 277 TIRE SAFETY INFORMATION NOTE: • P (Passenger) - Metric tire sizing is based on U.S. Tire Markings design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. •...
Page 280 278 STARTING AND OPERATING • High flotation tire sizing is based on U.S. design standards and it begins with the tire diameter molded into the sidewall. Example: 31x10.5 R15 LT. Tire Sizing Chart EXAMPLE: Size Designation: P = Passenger car tire size based on U.S. design standards ..blank..
Page 281 STARTING AND OPERATING 279 EXAMPLE: Service Description: 95 = Load Index — A numerical code associated with the maximum load a tire can carry H = Speed Symbol — A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions —...
Page 282: Tire Identification Number (Tin)
280 STARTING AND OPERATING Tire Identification Number (TIN) Look for the TIN on the outboard side of black sidewall The TIN may be found on one or both sides of the tire, tires as mounted on the vehicle. If the TIN is not found on however, the date code may only be on one side.
Page 283: Tire Terminology And Definitions
STARTING AND OPERATING 281 Tire Terminology and Definitions Term Definition B-Pillar The vehicle B-Pillar is a structural member of the body located between the front and rear door (of a four-door vehicle) running from the sill to the roof. Cold Tire Pressure Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at least 3 hours, or driven less than 1 mile (1.6 km) after sitting for a three hour period.
Page 284: Tire Loading And Tire Pressure
282 STARTING AND OPERATING Tire Loading And Tire Pressure Tire and Loading Information Placard Tire Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar. Tire and Loading Information Placard This placard tells you important information about the: 1) number of people that can be carried in the vehicle 2) total weight your vehicle can carry 3) tire size designed for your vehicle...
Page 285 STARTING AND OPERATING 283 Loading The combined weight of occupants, cargo/luggage and The vehicle maximum load on the tire must not exceed trailer tongue weight (if applicable) should never exceed the load carrying capacity of the tire on your vehicle. You the weight referenced here.
Page 286 284 STARTING AND OPERATING 4. The resulting figure equals the available amount of NOTE: • The following table shows examples on how to calcu- cargo and luggage load capacity. For example, if “XXX” amount equals 1,400 lbs (635 kg) and there will be five late total load, cargo/luggage, and towing capacities 150 lb (68 kg) passengers in your vehicle, the amount of of your vehicle with varying seating configurations...
Page 287 STARTING AND OPERATING 285...
Page 288: Tires - General Information
286 STARTING AND OPERATING Safety WARNING! WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and • Improperly inflated tires are dangerous and can increase your stopping distance. Use tires of the cause collisions. recommended load capacity for your vehicle.
Page 289: Tire Inflation Pressures
STARTING AND OPERATING 287 Tire Inflation Pressures WARNING! (Continued) The proper cold tire inflation pressure is listed on the • Unequal tire pressures from one side of the ve- driver’s side “B” Pillar. hicle to the other can cause the vehicle to drift to The pressure should be checked and adjusted as well as the right or left.
Page 290: Tire Pressures For High Speed Operation
288 STARTING AND OPERATING Inflation pressures specified on the placard are always inflation pressure should be increased by 3 psi (21 kPa), “cold tire inflation pressure.” Cold tire inflation pressure which equals 1 psi (7 kPa) for every 12°F (7°C) for this is defined as the tire pressure after the vehicle has not outside temperature condition.
Page 291: Radial Ply Tires
STARTING AND OPERATING 289 Cuts and punctures in radial tires are repairable only in WARNING! the tread area because of sidewall flexing. Consult your authorized tire dealer for radial tire repairs. High speed driving with your vehicle under maxi- mum load is dangerous. The added strain on your Spare Tire Matching Original Equipped Tire and tires could cause them to fail.
Page 292: Compact Spare Tire - If Equipped
290 STARTING AND OPERATING with one of the following types of non-matching tempo- Compact spare tire descriptions begin with the letter “T” rary use spares; compact, full size, or limited-use. or “S” preceding the size designation. Example: T145/ 80D18 103M. Do not install more than one non-matching temporary use spare tire/wheel on the vehicle at any given time.
Page 293: Full Size Spare - If Equipped
STARTING AND OPERATING 291 your original equipment tire, replace (or repair) the WARNING! original equipment tire and reinstall on the vehicle at the first opportunity. Compact spares are for temporary emergency use only. With these spares, do not drive more than Limited-Use Spare –...
Page 294: Tire Spinning
292 STARTING AND OPERATING Refer to “Freeing A Stuck Vehicle” in “What To Do In WARNING! Emergencies” for further information. Limited-use spares are for emergency use only. In- WARNING! stallation of this limited-use spare tire affects vehicle handling. With this tire, do not drive more than the Fast spinning tires can be dangerous.
Page 295: Life Of Tire
STARTING AND OPERATING 293 Life Of Tire The service life of a tire is dependent upon varying factors including, but not limited to: • Driving style • Tire pressure • Distance driven WARNING! Tires and the spare tire should be replaced after six years, regardless of the remaining tread.
Page 296: Replacement Tires
294 STARTING AND OPERATING Replacement Tires WARNING! The tires on your new vehicle provide a balance of many • Do not use a tire, wheel size or rating other than characteristics. They should be inspected regularly for wear and correct cold tire inflation pressure. The manu- that specified for your vehicle.
Page 297: Tire Chains
STARTING AND OPERATING 295 TIRE CHAINS WARNING! (Continued) • Failure to equip your vehicle with tires having CAUTION! adequate speed capability can result in sudden tire • The use of chains is permitted only on vehicles failure and loss of vehicle control. equipped with P245/70R16 tires.
Page 298 296 STARTING AND OPERATING CAUTION! CAUTION! (Continued) • Do not install tire chains on front wheels of To avoid damage to your vehicle, tires or chains, vehicles. observe the following precautions: • Do not drive for a prolonged period on dry pave- •...
Page 299: Snow Tires
STARTING AND OPERATING 297 If you need snow tires, select tires equivalent in size and CAUTION! type to the original equipment tires. Use snow tires only • Do not use tire chains on vehicles equipped with in sets of four; failure to do so may adversely affect the safety and handling of your vehicle.
Page 300: Tire Rotation Recommendations
298 STARTING AND OPERATING TIRE ROTATION RECOMMENDATIONS The suggested rotation method is the “forward cross” The tires on the front and rear of your vehicle operate at shown in the following diagram. This rotation pattern different loads and perform different steering, driving, does not apply to some directional tires that must not be and braking functions.
Page 301: Tire Pressure Monitor System (Tpms)
STARTING AND OPERATING 299 TIRE PRESSURE MONITOR SYSTEM (TPMS) TPMS will warn the driver of a low tire pressure if the tire The Tire Pressure Monitoring System (TPMS) will warn pressure falls below the low pressure warning threshold the driver of a low tire pressure based on the vehicle for any reason, including low temperature effects, or recommended cold placard pressure (the placard is lo- natural pressure loss through the tire.
Page 302 300 STARTING AND OPERATING For example, your vehicle has a recommended cold CAUTION! (parked for more than three hours) placard pressure of • The TPMS has been optimized for the original 33 psi (227 kPa). If the ambient temperature is 68°F (20°C) and the measured tire pressure is 28 psi (193 kPa), a equipment tires and wheels.
Page 303: Base System
STARTING AND OPERATING 301 • Seasonal temperature changes will affect tire pressure, NOTE: • The TPMS is not intended to replace normal tire care and the TPMS will monitor the actual tire pressure in and maintenance, or to provide warning of a tire the tire.
Page 304 302 STARTING AND OPERATING The “Tire Pressure Monitoring Telltale Light” will occur by any of the following scenarios: 1) Jamming due illuminate in the instrument cluster, and an audible to electronic devices or driving next to facilities emitting chime will be activated when one or more of the the same radio frequencies as the TPM sensors;...
Page 305: General Information
STARTING AND OPERATING 303 3. However, after driving the vehicle for up to 20 min- General Information utes above 15 mph (24 km/h), the “TPM Telltale Light” This device complies with part 15 of the FCC rules and will flash on and off for 75 seconds and then remain on RSS 210 of Industry Canada.
Page 306: Starting And Operating
304 STARTING AND OPERATING FUEL REQUIREMENTS Over 40 auto manufacturers worldwide, have issued and These engines are designed to meet all endorsed consistent gasoline specifications (the World- emissions regulations, and provide excel- wide Fuel Charter, WWFC), which define fuel properties lent fuel economy and performance when necessary to deliver enhanced emissions, performance, using high quality unleaded “regular”...
Page 307: Gasoline/Oxygenate Blends
STARTING AND OPERATING 305 Gasoline/Oxygenate Blends E-85 Usage In Non-Flex Fuel Vehicles Some fuel suppliers blend unleaded gasoline with oxy- Non-FFV vehicles are compatible with gasoline contain- genates such as Ethanol. Fuels blended with oxygenates ing 10% ethanol (E10). Gasoline with higher ethanol may be used in your vehicle.
Page 308: Mmt In Gasoline
306 STARTING AND OPERATING To fix a Non-FFV vehicle inadvertently fueled once with of gasoline may not be indicated on the gasoline pump, E-85 perform the following: therefore, you should ask your gasoline retailer whether gasoline contains MMT. It is even more important to look •...
Page 309: Fuel System Cautions
STARTING AND OPERATING 307 Fuel System Cautions CAUTION! (Continued) • When pulling a heavy load or driving a fully CAUTION! loaded vehicle when the humidity is low and the Follow these guidelines to maintain your vehicle’s temperature is high, use a premium unleaded fuel performance: to help prevent spark knock.
Page 310: Carbon Monoxide Warnings
308 STARTING AND OPERATING Carbon Monoxide Warnings WARNING! (Continued) • Guard against carbon monoxide with proper WARNING! maintenance. Have the exhaust system inspected Carbon monoxide (CO) in exhaust gases is deadly. every time the vehicle is raised. Have any abnor- Follow the precautions below to prevent carbon mal conditions repaired promptly.
Page 311: Ethanol Fuel (E-85)
STARTING AND OPERATING 309 E-85 Fuel Cap E-85 Badge Ethanol Fuel (E-85) CAUTION! E-85 is a mixture of approximately 85% fuel ethanol and 15% unleaded gasoline. Only vehicles with the E-85 fuel filler door label can operate on E-85.
Page 312: Fuel Requirements
310 STARTING AND OPERATING • you operate the vehicle immediately after refueling for WARNING! a period of at least 5 minutes Ethanol vapors are extremely flammable and could Observing these precautions will avoid possible hard cause serious personal injury. Never have any smok- starting and/or significant deterioration in driveability ing materials lit in or near the vehicle when remov- during warm up.
Page 313: Selection Of Engine Oil For Flexible Fuel Vehicles (E-85) And Gasoline Vehicles
(mpg)/miles per liter and your driving range to decrease contains additional requirements, developed during ex- by about 30%, compared to gasoline operation. tensive fleet testing, to provide additional protection to Chrysler Group LLC engines. Use MOPAR or an Replacement Parts equivalent oil meeting the specification MS-6395.
Page 314: Maintenance
312 STARTING AND OPERATING CAUTION! Replacing fuel system components with non-ethanol compatible components can damage your vehicle. Maintenance CAUTION! Do not use ethanol mixture greater than 85% in your vehicle. It will cause difficulty in cold starting and may affect driveability. Gas Cap Holder ADDING FUEL If the gas cap is lost or damaged, be sure the replacement...
Page 315 STARTING AND OPERATING 313 CAUTION! WARNING! (Continued) • A fire may result if gasoline is pumped into a • Damage to the fuel system or emissions control portable container that is inside of a vehicle or on system could result from using an improper fuel a truck bed.
Page 316: Loose Fuel Filler Cap Message
314 STARTING AND OPERATING Loose Fuel Filler Cap Message After fuel has been added, the vehicle diagnostic system can determine if the fuel filler cap is possibly loose, improperly installed, or damaged. If the system detects a malfunction, the “gASCAP” message will display in the odometer display.
Page 317 STARTING AND OPERATING 315 Gross Vehicle Weight Rating (GVWR) Heavier axles or suspension components sometimes The GVWR is the total permissible weight of your vehicle specified by purchasers for increased durability do not including driver, passengers, vehicle, options, and cargo. necessarily increase the vehicle’s GVWR.
Page 318: Curb Weight
316 STARTING AND OPERATING Curb Weight load is within the specified GVWR. If so, weight must be The curb weight of a vehicle is defined as the total weight shifted from front to rear or rear to front as appropriate of the vehicle with all fluids, including vehicle fuel, at full until the specified weight limitations are met.
Page 319: Trailer Towing
STARTING AND OPERATING 317 TRAILER TOWING exceed the GVWR. Refer to “Vehicle Loading/Vehicle In this section you will find safety tips and information Certification Label” in “Starting and Operating” for on limits to the type of towing you can reasonably do further information.
Page 320 318 STARTING AND OPERATING Gross Axle Weight Rating (GAWR) Trailer Tongue Weight (TW) The GAWR is the maximum capacity of the front and rear The tongue weight is the downward force exerted on the axles. Distribute the load over the front and rear axles hitch ball by the trailer is the tongue weight.
Page 321 STARTING AND OPERATING 319 Weight-Carrying Hitch in accordance with the manufacturers’ directions, it pro- A weight-carrying hitch supports the trailer tongue vides for a more level ride, offering more consistent weight, just as if it were luggage located at a hitch ball or steering and brake control thereby enhancing towing some other connecting point of the vehicle.
Page 322 320 STARTING AND OPERATING WARNING! • An improperly adjusted weight-distributing hitch may reduce handling, stability, and braking per- formance, and could result in a collision. • Weight-Distributing Systems may not be compat- ible with surge brake couplers. Consult with your hitch and trailer manufacturer or a reputable recre- ational vehicle dealer for additional information.
Page 323 STARTING AND OPERATING 321 EXAMPLE — With Weight-Distributing Hitch (Correct) EXAMPLE — Improper Adjustment of Weight- Distributing Hitch (Incorrect)
Page 324: Trailer Hitch Classification
322 STARTING AND OPERATING Trailer Hitch Classification Trailer Hitch Classification Definitions The rear bumper is intended to tow trailers up to Class Max. Trailer Hitch 2,000 lbs (907 kg) without added equipment or altera- Industry Standards tions to the standard equipment. Your vehicle may be Class I - Light Duty 2,000 lbs (907 kg) factory equipped for safe towing of trailers weighing...
Page 325: Trailer Towing Weights (Maximum Trailer Weight Ratings)
STARTING AND OPERATING 323 Trailer Towing Weights (Maximum Trailer Weight Ratings) NOTE: For additional trailer towing information in- cluding maximum trailer and tongue weight rating for your vehicle, refer to the following website addresses: • http:// www.dodge.com/bodybuilder • http:// www.dodge.ca (Canada) Trailer And Tongue Weight Always load a trailer with 60% to 65% of the weight in the front of the trailer.
Page 326: Towing Requirements
324 STARTING AND OPERATING NOTE: Remember that everything put into or on the CAUTION! trailer adds to the load on your vehicle. Also, additional • Do not tow a trailer at all during the first 500 miles factory-installed options, or dealer-installed options, must be considered as part of the total load on your (805 km) the new vehicle is driven.
Page 327 STARTING AND OPERATING 325 WARNING! WARNING! (Continued) • Safety chains must always be used between your Improper towing can lead to a collision. Follow these vehicle and trailer. Always connect the chains to guidelines to make your trailer towing as safe as the frame or hook retainers of the vehicle hitch.
Page 328 326 STARTING AND OPERATING − Check the trailer tires for proper tire inflation pres- WARNING! (Continued) sures before trailer usage. 2. GTW − Check for signs of tire wear or visible tire damage 3. GAWR before towing a trailer. For the proper inspection 4.
Page 329 STARTING AND OPERATING 327 − An electronically actuated trailer brake controller is WARNING! required when towing a trailer with electronically • Do not connect trailer brakes to your vehicle’s actuated brakes. When towing a trailer equipped with a hydraulic surge actuated brake system, an electronic hydraulic brake lines.
Page 330 328 STARTING AND OPERATING Towing Requirements – Trailer Lights and Wiring Whenever you pull a trailer, regardless of the trailer size, stop lights and turn signals on the trailer are required for motoring safety. The Trailer Tow Package may include a four and seven- pin wiring harness.
Page 331: Towing Tips
STARTING AND OPERATING 329 Towing Tips Before setting out on a trip, practice turning, stopping and backing the trailer in an area away from heavy traffic. Automatic Transmission The “DRIVE” range can be selected when towing. How- ever, if frequent shifting occurs while in this range, the TOW/HAUL feature should be selected.
Page 332: Snowplow
330 STARTING AND OPERATING NOTE: Check the automatic transmission fluid level Cooling System before towing. To reduce potential for engine and transmission over- heating, take the following actions: Tow/Haul – If Equipped To reduce potential for automatic transmission overheat- − City Driving ing, turn the TOW/HAUL feature ON when driving in When stopped for short periods of time, shift the trans- hilly areas or shift the transmission to Drive position 2 on...
Page 333: Recreational Towing (Behind Motorhome, Etc.)
STARTING AND OPERATING 331 Four-Wheel Drive Models WARNING! CAUTION! Do not add a snow plow, winches, or any other aftermarket equipment to the front of your vehicle. • Internal damage to the transfer case will occur if a This could adversely affect the functioning of the front or rear wheel lift is used when recreational airbag system in a collision and you could be injured.
Page 334 332 STARTING AND OPERATING Recreational Towing Procedure CAUTION! WARNING! It is necessary to follow these steps to be certain that the transfer case is fully in NEUTRAL before recre- You or others could be injured if you leave the ational towing to prevent damage to internal parts. vehicle unattended with the transfer case in the NEUTRAL position without first fully engaging the 1.
Page 335 STARTING AND OPERATING 333 6. Using the point of a ballpoint pen or similar object, 7. After the shift is completed and the NEUTRAL light press the transfer case NEUTRAL button for four sec- comes on, release the NEUTRAL button. onds.
Page 336 334 STARTING AND OPERATING NOTE: CAUTION! • Steps 1 through 5 are requirements that must be met prior to pressing the NEUTRAL button, and must Damage to the transmission may occur if the trans- continue to be met until the four seconds elapse and mission is shifted into PARK with the transfer case in the shift has been completed.
Page 337 STARTING AND OPERATING 335 5. Press the brake pedal. NOTE: • Steps 1 through 5 are requirements that must be met 6. Shift the transmission into NEUTRAL. prior to pressing the NEUTRAL button, and must 7. Using the point of a ballpoint pen or similar object, continue to be met until one second elapses and the press the recessed transfer case NEUTRAL button for one shift has been completed.
Page 338 336 STARTING AND OPERATING CAUTION! • Do not use a bumper mounted clamp-on tow bar on your vehicle. The bumper face bar will be damaged. • Do not disconnect the rear driveshaft because fluid will leak from the transfer case and damage internal parts.
Page 339: What To Do In Emergencies
WHAT TO DO IN EMERGENCIES CONTENTS ▫ Preparations For Jump-Start ... . . 351 Hazard Warning Flashers ....338 ▫...
Page 340: Hazard Warning Flashers
338 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHERS Press the switch to turn on the Hazard Warning The Hazard Warning flasher switch is located on the top flasher. When the switch is activated, all directional of the steering column, just behind the steering wheel. turn signals will flash on and off to warn oncoming traffic of an emergency.
Page 341: Jacking And Tire Changing
WHAT TO DO IN EMERGENCIES 339 JACKING AND TIRE CHANGING WARNING! (Continued) • The jack is designed to be used as a tool for WARNING! changing tires only. The jack should not be used to • Do not attempt to change a tire on the side of the lift the vehicle for service purposes.
Page 342 340 WHAT TO DO IN EMERGENCIES A finger-operated helper tool is provided to assist re- moval and stowage of the jack. This tool must be removed to operate the jack for changing the spare tire. Jack Screw Jack Stowage Location (Extended Cab)
Page 343: Removing The Spare Tire
WHAT TO DO IN EMERGENCIES 341 WARNING! The jack is designed as a tool for changing tires only. The jack should not be used to lift the vehicle for service purposes, unless suitable supports are placed under the vehicle as a safety measure. The vehicle should be jacked on a firm level surface only.
Page 344 342 WHAT TO DO IN EMERGENCIES Steps for Removing the Spare Tire • Remove the jack from the stowage compartment using the supplied finger-assist tool. • Remove the finger-assist tool from jack and set aside until jack is stowed. • Assemble the jack tools. •...
Page 345 WHAT TO DO IN EMERGENCIES 343 Turning Lug Wrench and Extension Spare Tire Stowage Location It is recommended that you stow the flat or spare to NOTE: The winch mechanism is designed for use with avoid tangling the loose cable. the jack extension tube only.
Page 346: Preparations
344 WHAT TO DO IN EMERGENCIES Preparations 4. Place the shift lever in PARK (automatic transmission). On 4-Wheel Drive vehicles, shift the transfer case to the 1. Park the vehicle on a firm, level surface. Avoid icy or 4L position. slippery areas.
Page 347: Instructions
WHAT TO DO IN EMERGENCIES 345 Instructions WARNING! (Continued) • Do not let anyone sit in the vehicle when it is on a WARNING! jack. Carefully follow these tire changing warnings to • Do not get under the vehicle when it is on a jack. help prevent personal injury or damage to your •...
Page 348 346 WHAT TO DO IN EMERGENCIES CAUTION! Do not attempt to raise the vehicle by jacking on locations other than those indicated in the Jacking Instructions for this vehicle. 1. Lower and remove the spare wheel, jack, and tools from stowage. 2.
Page 349 WHAT TO DO IN EMERGENCIES 347 Left Rear Jacking Location Right Rear Jacking Location NOTE: Before raising the wheel off the ground, make sure that the jack will not damage surrounding truck parts and adjust the jack position as required. 5.
Page 350 348 WHAT TO DO IN EMERGENCIES WARNING! WARNING! Raising the vehicle higher than necessary can make A loose tire or jack thrown forward in a collision or the vehicle unstable and cause a collision. It could hard stop could injure someone in the vehicle. Al- slip off the jack and hurt someone near it.
Page 351: To Stow The Flat Or Spare
WHAT TO DO IN EMERGENCIES 349 WARNING! WARNING! (Continued) • To assure that spare tires, flat or inflated, are Carefully follow these tire changing warnings to help securely stowed, spares must be stowed with the prevent personal injury or damage to your vehicle: valve stem facing the ground.
Page 352: Jump-Starting Procedures
350 WHAT TO DO IN EMERGENCIES NOTE: To Stow the Flat or Spare: Wheel retainer does CAUTION! not fit through the center of the aluminum wheel. The tire must be stored in a safe manner in the bed of the truck. Do not use a portable battery booster pack or any other booster source with a system voltage greater JUMP-STARTING PROCEDURES...
Page 353: Preparations For Jump-Start
WHAT TO DO IN EMERGENCIES 351 Preparations For Jump-Start WARNING! The battery in your vehicle is located in the front of the • Take care to avoid the radiator cooling fan when- engine compartment, behind the left headlight assembly. ever the hood is raised. It can start anytime the ignition switch is on.
Page 354: Jump-Starting Procedure
352 WHAT TO DO IN EMERGENCIES 3. If using another vehicle to jump-start the battery, park CAUTION! the vehicle within the jumper cables reach, set the parking brake and make sure the ignition is OFF. Failure to follow these procedures could result in damage to the charging system of the booster vehicle WARNING! or the discharged vehicle.
Page 355 WHAT TO DO IN EMERGENCIES 353 8. Disconnect the opposite end of the positive (+) jumper WARNING! cable from the positive (+) post of the booster battery. Do not connect the cable to the negative post (-) of the 9. Disconnect the positive (+) end of the jumper cable discharged battery.
Page 356: Freeing A Stuck Vehicle
354 WHAT TO DO IN EMERGENCIES FREEING A STUCK VEHICLE WARNING! If vehicle becomes stuck in snow, sand, or mud, it can often be moved by a rocking motion. Move the shift lever Fast spinning tires can be dangerous. Forces gener- rhythmically between FIRST and REVERSE, while apply- ated by excessive wheel speeds may cause damage, or ing slight pressure to the accelerator.
Page 357: Emergency Tow Hooks - If Equipped
WHAT TO DO IN EMERGENCIES 355 CAUTION! Revving the engine or spinning the wheels too fast may lead to transmission overheating and failure. It can also damage the tires. Do not spin the wheels above 30 mph (48 km/h). Do not spin the wheels continuously for more than 30 seconds.
Page 358: Towing A Disabled Vehicle
356 WHAT TO DO IN EMERGENCIES TOWING A DISABLED VEHICLE WARNING! Proper towing or lifting equipment is required to prevent • Chains are not recommended for freeing a stuck damage to your vehicle. Use of safety chains is recom- mended. Attach towing device to main structural mem- vehicle.
Page 359: Two-Wheel Drive Vehicles
WHAT TO DO IN EMERGENCIES 357 Two-Wheel Drive Vehicles CAUTION! Provided that the transmission is operable, tow with the Towing the vehicle with the rear wheels on the transmission in NEUTRAL and the ignition key in the ground at more than 30 mph (50 km/h) or for more OFF position, along with the front wheels raised and the than 15 miles (25 km), can cause severe transmission rear wheels on the ground.
Page 361: Maintaining Your Vehicle
MAINTAINING YOUR VEHICLE CONTENTS ▫ Engine Oil ......367 Engine Compartment — 3.7L ... . . 361 ▫...
Page 362 360 MAINTAINING YOUR VEHICLE ▫ Cooling System ..... 377 ▫ Headlamp (Halogen)/Front Park And Turn Signal Lamps ....399 ▫...
Page 363: Engine Compartment - 3.7L
MAINTAINING YOUR VEHICLE 361 ENGINE COMPARTMENT — 3.7L 1 — Air Cleaner Filter 7 — Power Steering Fluid Reservoir 2 — Automatic Transmission Dipstick 8 — Engine Oil Fill 3 — Engine Oil Dipstick 9 — Coolant Pressure Cap 4 — Brake Fluid Reservoir 10 —...
Page 364: Engine Compartment - 4.7L
362 MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT — 4.7L 1 — Air Cleaner Filter 7 — Engine Oil Fill 2 — Automatic Transmission Dipstick 8 — Power Steering Fluid Reservoir 3 — Engine Oil Dipstick 9 — Coolant Pressure Cap 4 — Brake Fluid Reservoir 10 —...
Page 365: Onboard Diagnostic System - Obd Ii
MAINTAINING YOUR VEHICLE 363 ONBOARD DIAGNOSTIC SYSTEM — OBD II CAUTION! Your vehicle is equipped with a sophisticated onboard • Prolonged driving with the MIL on could cause diagnostic system called OBD II. This system monitors the performance of the emissions, engine, and automatic further damage to the emission control system.
Page 366: Emissions Inspection And Maintenance Programs
364 MAINTAINING YOUR VEHICLE the message will appear the next time the vehicle is serviced, recently had a dead battery or a battery replace- started. This might indicate a damaged cap. If the prob- ment. If the OBD II system should be determined not lem is detected twice in a row, the system will turn on the ready for the I/M test, your vehicle may fail the test.
Page 367: Replacement Parts
MAINTAINING YOUR VEHICLE 365 4. Approximately 15 seconds later, one of two things will Regardless of whether your vehicle’s OBD II system is happen: ready or not, if the MIL is illuminated during normal vehicle operation you should have your vehicle serviced a.
Page 368: Dealer Service
Only do service work for which you mance. Immediately have potential malfunctions have the knowledge and the proper equipment. If you examined by an authorized Chrysler Group LLC have any doubt about your ability to perform a service dealership or qualified repair center.
Page 369: Engine Oil
MAINTAINING YOUR VEHICLE 367 Checking the oil while the vehicle is on level ground will CAUTION! (Continued) improve the accuracy of the oil level readings. Always • Your vehicle has been built with improved fluids maintain the oil level within the SAFE zone on the that protect the performance and durability of dipstick.
Page 370 368 MAINTAINING YOUR VEHICLE NOTE: Under no circumstances should oil change CAUTION! intervals exceed 8,000 miles (13 000 km) or six months, whichever occurs first. Do not use chemical flushes in your engine oil as the chemicals can damage your engine. Such damage is Engine Oil Selection not covered by the New Vehicle Limited Warranty.
Page 371: Engine Oil Filter
MAINTAINING YOUR VEHICLE 369 Synthetic Engine Oils Engine Oil Filter You may use synthetic engine oils, provided the recom- The engine oil filter should be replaced with a new filter mended oil quality requirements are met, and the recom- at every engine oil change. mended maintenance intervals for oil and filter changes Engine Oil Filter Selection are followed.
Page 372: Maintenance-Free Battery
370 MAINTAINING YOUR VEHICLE Maintenance-Free Battery WARNING! Your vehicle is equipped with a maintenance-free battery. You will never have to add water, nor is periodic main- The air induction system (air cleaner, hoses, etc) can tenance required. provide a measure of protection in the case of engine backfire.
Page 373 MAINTAINING YOUR VEHICLE 371 WARNING! (Continued) CAUTION! • Battery gas is flammable and explosive. Keep • It is essential when replacing the cables on the flame or sparks away from the battery. Do not use battery that the positive cable is attached to the a booster battery or any other booster source with positive post and the negative cable is attached to an output greater than 12 Volts.
Page 374: Air Conditioner Maintenance
372 MAINTAINING YOUR VEHICLE Air Conditioner Maintenance WARNING! For best possible performance, your air conditioner • Use only refrigerants and compressor lubricants should be checked and serviced by an authorized dealer at the start of each warm season. This service should approved by the manufacturer for your air condi- include cleaning of the condenser fins and a performance tioning system.
Page 375: Body Lubrication
MAINTAINING YOUR VEHICLE 373 Refrigerant Recovery and Recycling hood latching components to ensure proper function. R-134a air conditioning refrigerant is a hydrofluoro- When performing other underhood services, the hood carbon (HFC) that is endorsed by the Environmental latch, release mechanism and safety catch should be Protection Agency (EPA), and is an ozone-saving prod- cleaned and lubricated.
Page 376: Adding Washer Fluid
374 MAINTAINING YOUR VEHICLE Avoid using the wiper blades to remove frost or ice from exceeds the temperature range of your climate. This rating the windshield. Keep the blade rubber out of contact with information can be found on most washer fluid containers. petroleum products such as engine oil, gasoline, etc.
Page 377 MAINTAINING YOUR VEHICLE 375 have an authorized technician inspect the complete ex- WARNING! (Continued) haust system and adjacent body areas for broken, dam- • A hot exhaust system can start a fire if you park aged, deteriorated, or mispositioned parts. Open seams over materials that can burn.
Page 378 376 MAINTAINING YOUR VEHICLE NOTE: Intentional tampering with emissions control CAUTION! (Continued) systems can result in civil penalties being assessed • Damage to the catalytic converter can result if your against you. vehicle is not kept in proper operating condition. In unusual situations involving grossly malfunctioning In the event of engine malfunction, particularly engine operation, a scorching odor may suggest severe...
Page 379: Cooling System
MAINTAINING YOUR VEHICLE 377 • Do not idle the engine with any spark plug wires rusty in appearance, the system should be drained, disconnected or removed, such as when diagnostic flushed and refilled with fresh engine coolant (anti- testing, or for prolonged periods during very rough freeze).
Page 380 378 MAINTAINING YOUR VEHICLE Cooling System – Drain, Flush, and Refill CAUTION! If the engine coolant (antifreeze) is dirty or contains a • Mixing of engine coolant (antifreeze) other than considerable amount of sediment, clean and flush with a reliable cooling system cleaner. Follow with a thorough specified HOAT engine coolant (antifreeze) may rinsing to remove all deposits and chemicals.
Page 381 MAINTAINING YOUR VEHICLE 379 Please review these recommendations for using Hybrid CAUTION! (Continued) Organic Additive Technology (HOAT) engine coolant • This vehicle has not been designed for use with (antifreeze). When adding engine coolant (antifreeze): Propylene Glycol-based engine coolant (anti- •...
Page 382 380 MAINTAINING YOUR VEHICLE Please note that it is the owner’s responsibility to main- WARNING! tain the proper level of protection against freezing ac- • The warning words “DO NOT OPEN HOT” on cording to the temperatures occurring in the area where the vehicle is operated.
Page 383 MAINTAINING YOUR VEHICLE 381 Disposal of Used Engine Coolant The radiator normally remains completely full, so there is Used ethylene glycol-based engine coolant (antifreeze) is no need to remove the radiator cap unless checking for a regulated substance, requiring proper disposal. Check the engine coolant (antifreeze) freeze point or replacing with your local authorities to determine the disposal the engine coolant (antifreeze).
Page 384 382 MAINTAINING YOUR VEHICLE • Make sure that the radiator and coolant recovery If an examination of your engine compartment shows no evidence of radiator or hose leaks, the vehicle may be bottle overflow hoses are not kinked or obstructed. safely driven.
Page 385: Brake System
MAINTAINING YOUR VEHICLE 383 Brake System WARNING! Fluid Level Check – Brake Master Cylinder • Use only manufacturer’s recommended brake The fluid level in the master cylinder should be checked fluid. Refer to “Fluids, Lubricants, and Genuine whenever the vehicle is serviced, or immediately if the Parts”...
Page 386: Automatic Transmission
384 MAINTAINING YOUR VEHICLE WARNING! (Continued) WARNING! (Continued) • To avoid contamination from foreign matter or • Do not allow petroleum based fluid to contami- moisture, use only new brake fluid or fluid that nate the brake fluid. Brake seal components could has been in a tightly closed container.
Page 387 MAINTAINING YOUR VEHICLE 385 Special Additives least 15 miles (24 km) of driving. At normal operating Automatic Transmission Fluid (ATF) is an engineered temperature the fluid cannot be held comfortably be- product and its performance may be impaired by supple- tween the fingertips.
Page 388 386 MAINTAINING YOUR VEHICLE 6. Remove the dipstick again and note the fluid level on CAUTION! both sides. The fluid level should be between the “HOT” (upper) reference holes on the dipstick at normal operat- Be aware that if the fluid temperature is below 50° F ing temperature.
Page 389: Transfer Case
MAINTAINING YOUR VEHICLE 387 Transfer Case CAUTION! Inspect the transfer case for fluid leaks. If a fluid leak is • Do not use chemical flushes in your transmission evident the transfer case fluid level may be low. Have the transfer case serviced immediately. as the chemicals can damage your transmission components.
Page 390: Front/Rear Axle Fluid
388 MAINTAINING YOUR VEHICLE Front/Rear Axle Fluid added to the gear lubricant whenever a fluid change is made, when equipped with limited-slip differential. Rear For normal service, periodic fluid level checks are not axle fluid level should be 1/8 in (3 mm) below bottom of required.
Page 391: Appearance Care And Protection From Corrosion
MAINTAINING YOUR VEHICLE 389 Appearance Care and Protection from Corrosion The most common causes are: • Road salt, dirt and moisture accumulation Protection of Body and Paint from Corrosion Vehicle body care requirements vary according to geo- • Stone and gravel impact graphic locations and usage.
Page 392 390 MAINTAINING YOUR VEHICLE • Use a high quality cleaner wax, such as MOPAR Special Care Cleaner Wax or equivalent to remove road film, stains, • If you drive on salted or dusty roads, or if you drive and to protect your paint finish. Take care never to near the ocean, hose off the undercarriage at least once scratch the paint.
Page 393 MAINTAINING YOUR VEHICLE 391 • If a lot of driving is done on gravel roads, consider Stain Repel Fabric Cleaning Procedure – If Equipped mud or stone shields behind each wheel. Stain Repel seats may be cleaned in the following man- ner: •...
Page 394 392 MAINTAINING YOUR VEHICLE Interior Care and should be removed promptly with a damp cloth. Use MOPAR Total Clean or equivalent to clean fabric Stubborn soils can be removed easily with a soft cloth upholstery and carpeting. and MOPAR Total Clean or equivalent. Care should be taken to avoid soaking your leather upholstery with any Interior trim should be cleaned starting with a damp liquid.
Page 395 MAINTAINING YOUR VEHICLE 393 defrosters, or windshields equipped with a windshield Seat Belt Maintenance wiper de-icer. Do not use scrapers or other sharp instru- Do not bleach, dye or clean the belts with chemical ments, which may scratch the elements. solvents or abrasive cleaners.
Page 396: Fuses
394 MAINTAINING YOUR VEHICLE FUSES CAUTION! When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it suggests a problem in the circuit that must be corrected.
Page 397 MAINTAINING YOUR VEHICLE 395 Cartridge Mini- Cartridge Mini- Cavity Description Cavity Description Fuse Fuse Fuse Fuse Spare Gray Switch Spare 10 Amp AC Clutch 30 Amp Electric Brake Pink 15 Amp Trailer Tow Lt Stop/ Blue Turn 50 Amp Power Seat 15 Amp Trailer Tow Rt Stop/ Blue...
Page 398 396 MAINTAINING YOUR VEHICLE Cartridge Mini- Cartridge Mini- Cavity Description Cavity Description Fuse Fuse Fuse Fuse 15 Amp Rear Center Brake Yellow Feed Blue Lamp 10 Amp Power Mirror 20 Amp Instrument Cluster/ Yellow Door Locks/Brake 20 Amp Power Outlet Transmission Shift Yellow Interlock...
Page 399 MAINTAINING YOUR VEHICLE 397 Cartridge Mini- Cartridge Mini- Cavity Description Cavity Description Fuse Fuse Fuse Fuse 40 Amp Climate Control Sys- Green tem Blower Motor 20 Amp Trailer Tow Park Spare Yellow Lamps Spare 10 Amp Airbag System # 2 20 Amp Spare Blue...
Page 400: Vehicle Storage
398 MAINTAINING YOUR VEHICLE VEHICLE STORAGE Cartridge Mini- Cavity Description If you are leaving your vehicle dormant for more than Fuse Fuse 21 days you may want to take steps to protect your Spare battery. You may: Spare • Remove fuse #J13 in the Totally Integrated Power 10 Amp Heated Seats Module (TIPM) labeled Main Ignition Off Draw (IOD).
Page 401: Replacement Bulbs
MAINTAINING YOUR VEHICLE 399 REPLACEMENT BULBS BULB REPLACEMENT Headlamp (Halogen)/Front Park and Turn Signal LIGHT BULBS – Interior Bulb No. Lamps Dome Lamp ......WL212–2 1.
Page 402 400 MAINTAINING YOUR VEHICLE 3. Grasp the headlamp and pull firmly to disengage the NOTE: The headlamp bulb is a halogen bulb. Take care headlamp housing from the fender panel. not to touch the bulb with your fingers. Body oils from your fingers could cause excessive heat buildup which 4.
Page 403: Rear Side Marker, Taillamps/Stop Lamps, And Turn Signal Bulbs
MAINTAINING YOUR VEHICLE 401 Rear Side Marker, Taillamps/Stop Lamps, And 2. Pull the taillamp housing straight out from the body. Turn Signal Bulbs 1. Remove the two screws that pass through the bed sheet metal.
Page 404 402 MAINTAINING YOUR VEHICLE 3. Rotate the bulb socket counterclockwise to remove it 4. Pull bulb straight out of socket. from the housing.
Page 405: Center High-Mounted Stop Lamp And Cargo Lamp
MAINTAINING YOUR VEHICLE 403 5. Reverse this procedure to install bulb and housing. Center High-Mounted Stop Lamp And Cargo Place the two raised blocks past the body. Lamp 1. Remove the two screws holding the housing/lens to the body, as shown.
Page 406 404 MAINTAINING YOUR VEHICLE 2. Remove housing from the cab. 3. Remove connector from housing tab for more clear- ance.
Page 407 MAINTAINING YOUR VEHICLE 405 4. Turn desired bulb socket 1/4-turn and remove socket and bulb from housing. • Outside Bulbs: Cargo Lamps • Inside Bulb: Center High Mounted Stop Lamp 5. Pull desired bulb straight from the socket. 6. Reverse this procedure for installation of bulbs and housing.
Page 408: License Lamps
406 MAINTAINING YOUR VEHICLE License Lamps 2. Rotate the socket 1/4-turn counterclockwise. 1. Using a screwdriver, pry black rubber housing from the bumper.
Page 409: Fog Lamps
MAINTAINING YOUR VEHICLE 407 3. Pull bulb from socket. Fog Lamps 1. Disconnect connector from the fog lamp by raising the wire harness lock tab and pulling on wire harness connector. 2. Rotate the bulb 1/4-turn counterclockwise and pull to remove from the fog lamp housing.
Page 410: Fluid Capacities
408 MAINTAINING YOUR VEHICLE FLUID CAPACITIES U.S. Metric Fuel (Approximate) 22 Gallons 83 Liters Engine Oil with Filter 3.7L Engine (SAE 5W-20, API Certified) 5 Quarts 4.7 Liters 4.7L Engine (SAE 5W-20, API Certified) 6 Quarts 5.7 Liters Cooling System (Includes 2.1 Quarts/2 Liters for Coolant Bottle) 3.7L Engine (MOPAR Antifreeze/Coolant 5 13.3 Quarts...
Page 411: Fluids, Lubricants And Genuine Parts
MAINTAINING YOUR VEHICLE 409 FLUIDS, LUBRICANTS AND GENUINE PARTS Engine Component Fluid, Lubricant, or Genuine Part Engine Coolant MOPAR Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic Additive Technology) or equivalent. Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395.
Page 412: Chassis
410 MAINTAINING YOUR VEHICLE Chassis Component Fluid, Lubricant, or Genuine Part Automatic Transmission MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product. Transfer Case MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product. Front Axle SAE 75W-90 Multi-Purpose Type, GL-5 Gear Lubricant (MS-9763) or equivalent.
Page 413 MAINTENANCE SCHEDULES CONTENTS ▫ Required Maintenance Intervals ..414 Maintenance Schedule ....412...
Page 414 412 MAINTENANCE SCHEDULES MAINTENANCE SCHEDULE NOTE: • The oil change indicator message will not monitor the The Scheduled Maintenance services listed in this manual must be done at the times or mileages specified time since the last oil change. Change your vehicle’s to protect your vehicle warranty and ensure the best oil if it has been six months since your last oil change, vehicle performance and reliability.
Page 415 MAINTENANCE SCHEDULES 413 • Inspect the battery, and clean and tighten the terminals “Understanding Your Instrument Panel” or under “In- strument Cluster Description/Odometer/Trip Odom- as required. eter” in “Understanding Your Instrument Panel” for • Check the fluid levels of the coolant reservoir, brake further information.
Page 416 414 MAINTENANCE SCHEDULES Required Maintenance Intervals NOTE: ** Vehicles built with the 4.7L engine are equipped with sixteen spark plugs. One set is located on the top of the engine under the coils and the second set is located on the side of the engine. The spark plugs located under the coils are a standard plug and must be changed every 48,000 miles (78 000 km).
Page 417 MAINTENANCE SCHEDULES 415 8,000 Miles (13,000 km) or 16,000 Miles (26,000 km) or 12 Months Maintenance Service 6 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 418: Service Schedule
416 MAINTENANCE SCHEDULES 24,000 Miles (39,000 km) or 32,000 Miles (52,000 km) or 24 Months Maintenance Service 18 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 419 MAINTENANCE SCHEDULES 417 40,000 Miles (65,000 km) or 48,000 Miles (78,000 km) or 36 Months Maintenance Service 30 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 420 418 MAINTENANCE SCHEDULES 56,000 Miles (91,000 km) or 64,000 Miles (104,000 km) or 48 Months Maintenance Service 42 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 421 MAINTENANCE SCHEDULES 419 72,000 Miles (117,000 km) or 80,000 Miles (130,000 km) or 60 Months Maintenance Service 54 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 422 420 MAINTENANCE SCHEDULES 88,000 Miles (143,000 km) or 66 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 88,000 miles (143 000 km). Odometer Reading Date Repair Order #...
Page 423 MAINTENANCE SCHEDULES 421 96,000 Miles (156,000 km) or 72 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 96,000 miles (156 000 km). ❏...
Page 424 422 MAINTENANCE SCHEDULES 104,000 Miles (169,000 km) or 112,000 Miles (182,000 km) or 84 Months Maintenance Service 78 Months Maintenance Schedule ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 425 MAINTENANCE SCHEDULES 423 120,000 Miles (195,000 km) or 90 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 120,000 miles (195 000 km). ❏...
Page 426 424 MAINTENANCE SCHEDULES 128,000 Miles (208,000 km) or 96 Months Maintenance Service 136,000 Miles (221,000 km) or Schedule 102 Months Maintenance ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 427 MAINTENANCE SCHEDULES 425 144,000 Miles (234,000 km) or 108 Months Maintenance Service 152,000 Miles (247,000 km) or Schedule 114 Months Maintenance ❏ Change the engine oil and engine oil filter. Service Schedule ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before ❏...
Page 428 426 MAINTENANCE SCHEDULES † This maintenance is recommended by the manufacturer to the owner, but is not required to maintain emissions warranty. WARNING! • You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment.
Page 429: If You Need Consumer Assistance
Reporting Safety Defects ....432 ▫ Chrysler Group LLC Customer Center ..430 ▫ In The 50 United States And Washington, D.C.
Page 430 428 IF YOU NEED CONSUMER ASSISTANCE ▫ Traction Grades ..... 435 Department Of Transportation Uniform Tire Quality Grades ......435 ▫...
Page 431: Suggestions For Obtaining Service For Your Vehicle
IF YOU NEED CONSUMER ASSISTANCE 429 SUGGESTIONS FOR OBTAINING SERVICE FOR the service advisor and list the items in order of priority. YOUR VEHICLE At many authorized dealers, you may obtain a rental vehicle at a minimal daily charge. If you need a rental, it Prepare For The Appointment is advisable to make these arrangements when you call If you’re having warranty work done, be sure to have the...
Page 432: Chrysler Group Llc Customer Center
430 IF YOU NEED CONSUMER ASSISTANCE This is why you should always talk to an authorized Chrysler Group LLC Customer Center dealer’s service manager first. Most matters can be re- P.O. Box 21–8004 solved with this process. Auburn Hills, MI 48321–8004 Phone: (866) 726–4636...
Page 433: Customer Assistance For The Hearing Or Speech Impaired (Tdd/Tty)
IF YOU NEED CONSUMER ASSISTANCE 431 Customer Assistance For The Hearing Or Speech the manufacturer’s service contracts. If you purchased a Impaired (TDD/TTY) manufacturer’s service contract, you will receive Plan To assist customers who have hearing difficulties, the Provisions and an Owner Identification Card in the mail manufacturer has installed special TDD (Telecommuni- within three weeks of the vehicle delivery date.
Page 434: Warranty Information
432 IF YOU NEED CONSUMER ASSISTANCE We appreciate that you have made a major investment WARRANTY INFORMATION when you purchased the vehicle. An authorized dealer See the Warranty Information Booklet, located on the has also made a major investment in facilities, tools, and DVD, for the terms and provisions of Chrysler Group training to assure that you are absolutely delighted with LLC warranties applicable to this vehicle and market.
Page 435: In Canada
IF YOU NEED CONSUMER ASSISTANCE 433 If NHTSA receives similar complaints, it may open an In Canada investigation, and if it finds that a safety defect exists in If you believe that your vehicle has a safety defect, you a group of vehicles, it may order a recall and remedy should contact the Customer Service Department immedi- campaign.
Page 436 Chrysler Group LLC ve- taining, servicing, and repairing Chrysler Group LLC hicles. Included are starting, operating, emergency vehicles.
Page 437 IF YOU NEED CONSUMER ASSISTANCE 435 DEPARTMENT OF TRANSPORTATION UNIFORM significantly from the norm due to variations in driving TIRE QUALITY GRADES habits, service practices, and differences in road charac- The following tire grading categories were established by teristics and climate. the National Highway Traffic Safety Administration.
Page 438 436 IF YOU NEED CONSUMER ASSISTANCE Temperature Grades WARNING! The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat The temperature grade for this tire is established for and its ability to dissipate heat, when tested under a tire that is properly inflated and not overloaded.
Page 439 INDEX...
Page 440 438 INDEX Adding Engine Coolant (Antifreeze) ..379 Alterations/Modifications, Vehicle ... . . 7 Adding Fuel ......312 Antenna, Satellite Radio .
Page 441 INDEX 439 Gear Ranges ......255 Brake/Transmission Interlock ....255 Special Additives .
Page 442 440 INDEX Changing A Flat Tire ..... 339 Console, Floor ......168 Chart, Tire Sizing .
Page 443 INDEX 441 Cupholders ......165 Door Opener, Garage ..... 156 Customer Assistance .
Page 444 442 INDEX Coolant (Antifreeze) ....409 Exterior Lights ......81 Exhaust Gas Caution .
Page 445 INDEX 443 Fluid Capacities ......408 Gauge ......181 Fluid Leaks .
Page 446 444 INDEX Tachometer ......184 Passing ......140 Gear Ranges .
Page 447 INDEX 445 Instrument Panel and Controls ....179 Lane Change Assist ..... . 140 Instrument Panel Lens Cleaning .
Page 448 446 INDEX Exterior ......81 Warning (Instrument Cluster Description) ..181 Fog .
Page 449 INDEX 447 Maintenance Procedures ....366 New Vehicle Break-In Period ....76 Maintenance Schedule .
Page 450 448 INDEX Synthetic ......369 Phone, Cellular ......90 Viscosity .
Page 451 INDEX 449 Radial Ply Tires ......289 Remote Keyless Entry (RKE) ....21 Radiator Cap (Coolant Pressure Cap) .
Page 452 450 INDEX Satellite Radio Antenna ....210,234 Selection of Coolant (Antifreeze) ..378,409 Schedule, Maintenance ....412 Selection of Oil .
Page 453 INDEX 451 Signals, Turn ....81,140,181,401 Storage ....... 398 Snow Chains (Tire Chains) .
Page 454 452 INDEX Tire Safety Information ....277 Sizes ....... 278 Tires .
Page 455 INDEX 453 Hitches ......322 Tread Wear Indicators ....292 Minimum Requirements .
Page 456 454 INDEX Voice Recognition System (VR) ....121 Wheel Nut Torque ..... . . 348 Wind Buffeting .
Page 457 INSTALLATION OF RADIO TRANSMITTING EQUIPMENT Special design considerations are incorporated into this The antenna cable should be as short as practical and vehicle’s electronic system to provide immunity to radio routed away from the vehicle wiring when possible. Use frequency signals. Mobile two-way radios and telephone only fully shielded coaxial cable.
Page 458 Chrysler Group LLC Fourth Edition 11ND33-126-AD Printed in U.S.A.

This manual is also suitable for:

2011 dakota

Dodge Dakota 2011 Owner's Manual

Introduction 1

Things to Know before Starting Your Vehicle

Understanding the Features of Your Vehicle

Understanding Your Instrument Panel

Starting and Operating

What to Do in Emergencies

Maintaining Your Vehicle

Quick Links

Chapters

Related Manuals for Dodge Dakota 2011

Summary of Contents for Dodge Dakota 2011
