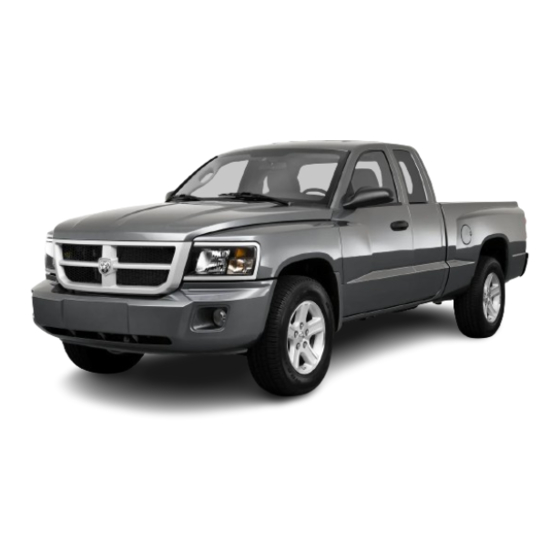

DAKOTA
2 0 1 1
O W N E R ' S M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2011 Dakota and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dodge 2011 Dakota

Summary of Contents for Dodge 2011 Dakota

  • Page 1 DAKOTA 2 0 1 1 O W N E R ’ S M A N U A L...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION ............3 INTRODUCTION THINGS TO KNOW BEFORE STARTING YOUR VEHICLE UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
  • Page 4 CONTENTS Introduction ......4 How To Use This Manual ....4 Warnings And Cautions .

  • Page 5: Introduction

    4 INTRODUCTION INTRODUCTION Congratulations on selecting your new Chrysler Group LLC vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality - all essentials that are traditional to our vehicles. This Owner’s Manual has been prepared with the assis- tance of service and engineering specialists to acquaint you with the operation and maintenance of your vehicle.
  • Page 6 INTRODUCTION 5...

  • Page 7: Vehicle Identification Number

    The Vehicle Identification Number (VIN) is located on the left front corner of the instrument panel pad, visible from outside of the vehicle through the windshield. This number also appears on the Automobile Information VIN Location Disclosure Label affixed to a window on your vehicle.

  • Page 8: Vehicle Modifications/Alterations

    INTRODUCTION 7 VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to a collision resulting in serious injury or death.

  • Page 10: Things To Know Before Starting Your Vehicle

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS A Word About Your Keys ....12 Ignition Key Removal ....12 Locking Doors With A Key .
  • Page 11 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Lock The Doors ....22 Using The Panic Alarm ....23 General Information .
  • Page 12 Enhanced Seat Belt Use Reminder System (BeltAlert ) ......46 Seat Belts And Pregnant Women ..47 Seat Belt Extender .

  • Page 13: A Word About Your Keys

    12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS The authorized dealer that sold you your vehicle has the key code numbers for your vehicle locks. These numbers can be used to order duplicate keys from your authorized dealer.
  • Page 14 Ignition Switch Positions 1 — ACC 4 — ON/RUN 2 — LOCK 5 — START 3 — OFF NOTE: If you try to remove the key before you place the shift lever in PARK, the key may become temporarily trapped in the ignition cylinder. If this occurs, rotate the THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 key to the right slightly, then remove the key as de- scribed.
  • Page 15 14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CAUTION! An unlocked car is an invitation to thieves. Always remove the key from the ignition and lock all the doors when leaving the vehicle unattended. Manual Transmission — If Equipped When the steering wheel is in the LOCK position, the steering and ignition systems are locked to provide antitheft protection for your vehicle.

  • Page 16: Locking Doors With A Key

    Locking Doors With A Key You can insert the key into the door lock cylinder with either side up. To lock the driver’s door, turn the key rearward. To unlock the driver’s door, turn the key forward. For external door lock lubrication, refer to “Maintenance Procedures”...
  • Page 17 16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The system uses ignition keys that have an embedded electronic chip (transponder) to prevent unauthorized vehicle operation. Therefore, only keys that are pro- grammed to the vehicle can be used to start and operate the vehicle.

  • Page 18: Replacement Keys

    Replacement Keys NOTE: Only keys that are programmed to the vehicle electronics can be used to start and operate the vehicle. Once a Sentry Key is programmed to a vehicle, it cannot be programmed to any other vehicle. CAUTION! Always remove the Sentry Keys from the vehicle and lock all doors when leaving the vehicle unat- tended.

  • Page 19: Vehicle Security Alarm - If Equipped

    18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Insert the second valid key into the ignition switch. Turn the ignition switch to the ON/RUN position within 15 seconds. After 10 seconds, a chime will sound. In addition, the Vehicle Security Light will begin to flash. Turn the ignition switch to the LOCK position and remove the second key.

  • Page 20: To Arm The System

    To Arm the System The Vehicle Security Alarm will set when you use the power door locks, or use the Remote Keyless Entry (RKE) transmitter to lock the doors. After all the doors are locked and closed, the Vehicle Security Light in the instrument cluster will flash rapidly for approximately 15 seconds to signal that the Vehicle Security Alarm is arming.

  • Page 21: Illuminated Entry

    20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: You may accidentally activate the Vehicle Secu- rity Alarm (horn sounds and lights flash) by entering the vehicle without using the RKE transmitter to unlock the door(s). The Vehicle Security Alarm can be disarmed with the RKE transmitter unlock button or by inserting a programmed Sentry Key into the ignition and turning the key to the ON/RUN position.

  • Page 22: Remote Keyless Entry (Rke)

    REMOTE KEYLESS ENTRY (RKE) This system allows you to lock or unlock the doors or activate the Panic Alarm from distances up to approxi- mately 66 ft (20 m) using a Remote Keyless Entry (RKE) transmitter. The RKE transmitter does not need to be pointed at the vehicle to activate the system.

  • Page 23: To Lock The Doors

    22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Release both buttons at the same time. 4. Test the feature while outside of the vehicle by press- ing the LOCK/UNLOCK button on the RKE transmitter. NOTE: Pressing the LOCK button on the RKE transmit- ter while you are inside the vehicle will activate the Vehicle Security Alarm.

  • Page 24: Using The Panic Alarm

    NOTE: Pressing the LOCK button on the RKE transmit- ter while you are inside the vehicle will activate the Vehicle Security Alarm. Opening a door with the Vehicle Security Alarm activated will cause the alarm to sound. Press the UNLOCK button to deactivate the Vehicle Security Alarm System.

  • Page 25: General Information

    24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To cancel the Panic mode, press and release the PANIC button on the RKE transmitter a second time. Panic mode will automatically cancel after three minutes, or if the vehicle is started and or exceeds 15 mph (24 km/h). During the Panic Mode, the door locks and RKE systems will function normally.

  • Page 26: Remote Starting System - If Equipped

    NOTE: Perchlorate Material – special handling may ap- ply. See www.dtsc.ca.gov/hazardouswaste/perchlorate 1. If the RKE transmitter is equipped with a screw, remove the screw. With the RKE transmitter buttons facing down, use a flat blade to pry the two halves of the RKE transmitter apart.

  • Page 27: How To Use Remote Start

    26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: The vehicle must be equipped with an auto- matic transmission to be equipped with Remote Start. How to Use Remote Start All of the following conditions must be met before the engine will remote start: •...
  • Page 28 NOTE: • The park lamps will turn on and remain on during Remote Start mode. • For security, power window and power sunroof op- eration (if equipped) are disabled when the vehicle is in the Remote Start mode. • The engine can be started two consecutive times (two 15-minute cycles) with the RKE transmitter.

  • Page 29: Door Locks

    28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE DOOR LOCKS Manual Door Locks All the doors can be manually locked from the inside by pushing down the door lock knob, located on the door trim panel. Both front doors may be opened from the inside with the door lock knob in the down or locked position.

  • Page 30: Power Door Locks

    Power Door Locks A power door lock switch is on each front door trim panel. Use this switch to lock or unlock the doors. Power Door Lock Switch If you press the power door LOCK switch while the key is in the ignition, and any front door is open, the power THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 locks will not operate.
  • Page 31 30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 3. Place the key into the ignition. 4. Within 10 seconds, cycle the key from the LOCK position to the ON/RUN position and back to LOCK position, a minimum of four times; ending in the LOCK position.

  • Page 32: Child-Protection Door Lock

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 5. Within 30 seconds, press the driver’s door LOCK switch in the UNLOCK direction. 6. A single chime will sound to indicate the feature has been changed. 7. To reactivate the feature, repeat the above steps. 8.
  • Page 33 32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To use the system, open each rear door, slide the lever up to engage the locks, and down to disengage the child- protection locks. When the system on a door is engaged, that door can only be opened by using the outside door handle, even if the inside door lock is in the unlocked position.

  • Page 34: Windows

    THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 WINDOWS Power Windows The control on the left front door has up-down switches that give you finger-tip control of all the power windows. There is a single opening and closing switch on the passenger doors for passenger window control.

  • Page 35: Auto-Down - Driver's Side Only

    34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Never leave children alone in a vehicle. Leaving unattended children in a vehicle is dangerous for a number of reasons. A child or others could be seri- ously or fatally injured. Don’t leave the key in the ignition.

  • Page 36: Occupant Restraints

    windows down or partially open. This is a normal occurrence and can be minimized. If the buffeting occurs with the rear windows open, open the front and rear windows together to minimize the buffeting. OCCUPANT RESTRAINTS Some of the most important safety features in your vehicle are the restraint systems: •...

  • Page 37: Lap/Shoulder Belts

    36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Please pay close attention to the information in this section. It tells you how to use your restraint system properly, to keep you and your passengers as safe as possible. WARNING! In an accident, you and your passengers can suffer much greater injuries if you are not properly buckled up.
  • Page 38 information on ALR, refer to “Automatic Locking Mode” in this section. The following chart defines the seating positions with this feature. Left Center First Row Second Row CRS Lock CRS Lock — If Equipped If the passenger seating position is equipped with an ALR the proper fastening procedure is as follows: 1.
  • Page 39 38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • Wearing a seat belt incorrectly is dangerous. Seat belts are designed to go around the large bones of your body. These are the strongest parts of your body and can take the forces of an accident the best.
  • Page 40 2. The seat belt latch plate is above the back of the front seat, next to your arm in the rear seat. Grasp the latch plate and pull out the belt. Slide the latch plate up the webbing as far as necessary to allow the belt to go around your lap.
  • Page 41 40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • A belt that is worn under your arm is dangerous. Your body could strike the inside surfaces of the vehicle in an accident, increasing head and neck injury. A belt worn under the arm can cause internal injuries.
  • Page 42 WARNING! • A lap belt worn too high can increase the risk of internal injury in an accident. The belt forces won’t be at the strong hip and pelvic bones, but across your abdomen. Always wear the lap belt as low as possible and keep it snug.

  • Page 43: Adjustable Upper Shoulder Belt Anchorage

    42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Adjustable Upper Shoulder Belt Anchorage In the front and second row outboard seats, the shoulder belt can be adjusted upward or downward to help position the belt away from your neck. Press the release button to release the anchorage, and then move it up or down to the position that fits you best.

  • Page 44: Seat Belts In Passenger Seating Positions

    NOTE: The adjustable upper shoulder belt anchorage is equipped with an Easy Up feature. This feature allows the shoulder belt anchorage to be adjusted in the upward position without pushing the release button. To verify the shoulder belt anchorage is latched, pull downward on the shoulder belt anchorage until it is locked into position.

  • Page 45: Lap/Shoulder Belt Untwisting Procedure

    44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! • A lap belt worn too loose or too high is dangerous. • A belt worn too loose can allow you to slip down and under the belt in a collision. •...

  • Page 46: Seat Belt Pretensioners

    How To Engage The Automatic Locking Mode 1. Buckle the combination lap and shoulder belt. 2. Grasp the shoulder portion and pull downward until the entire belt is extracted. 3. Allow the belt to retract. As the belt retracts, you will hear a clicking sound.

  • Page 47: Enhanced Seat Belt Use Reminder System (Beltalert )

    46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! • The belt and retractor assembly must be replaced if the seat belt assembly Automatic Locking Re- tractor (ALR) feature or any other seat belt func- tion is not working properly when checked ac- cording to the procedures in the Service Manual.

  • Page 48: Seat Belts And Pregnant Women

    1. With all doors closed, and the ignition switch in any position except ON/RUN or START, buckle the driver’s seatbelt. 2. Turn the ignition switch to the ON/RUN position, (engine does not need to be running). Wait for the Seat Belt Reminder Light to turn off.

  • Page 49: Supplemental Restraint System (Srs) - Airbags

    48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Using a seat belt extender when not needed can increase the risk of injury in an accident. Only use the seat belt extender when the lap belt is not long enough when it is worn low and snug, and in the recommended seating positions.
  • Page 50 The Advanced Front Airbags have a multistage inflator design. This allows the airbag to have different rates of inflation based on the severity and type of collision. This vehicle may be equipped with driver and/or front passenger seat track position sensors that may adjust the inflation rate of the Advanced Front Airbags based upon seat position.

  • Page 51: Advanced Front Airbag Features

    50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Supplemental Side Airbag Inflatable Curtains (SABIC) • Front and Side Impact Sensors • Front Seat Belt Pretensioners, Seat Belt Buckle Switch, and Seat Track Position Sensors Advanced Front Airbag Features The Advanced Front Airbag system has multistage driver and front passenger airbags.
  • Page 52 WARNING! (Continued) • Do not mount any accessories to the knee bolster such as alarm lights, stereos, citizen band radios, etc. • Do not have any accessory items installed which will alter the roof, including adding a sunroof to your vehicle. Do not add roof racks that require permanent attachments (bolts or screws) for instal- lation on the vehicle roof.
  • Page 53 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • Do not use accessory seat covers or place objects between you and the side airbags; the performance could be adversely affected and/or objects could be pushed into you, causing serious injury. Knee Impact Bolsters The Knee Impact Bolsters help protect the knees of the driver and the front passenger, and position front occupants...
  • Page 54 If a child from 1 to 12 years old (not in a rear facing child seat) must ride in the front passenger seat, move the seat as far back as possible and use the proper child restraint. (Refer to “Child Restraints”) You should read the instructions provided with your child restraint to make sure that you are using it properly.

  • Page 55: Airbag Deployment Sensors And Controls

    54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • Being too close to the steering wheel or instrument panel during Advanced Front Airbag deployment could cause serious injury, including death. Air- bags need room to inflate. Sit back, comfortably extending your arms to reach the steering wheel or instrument panel.
  • Page 56 The side airbags will not deploy in all side collisions. Side airbag deployment will depend on the severity and type of collision. Because airbag sensors measure vehicle deceleration over time, vehicle speed and damage by themselves are not good indicators of whether or not an airbag should have deployed.
  • Page 57 56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Ignoring the Airbag Warning Light in your instru- ment panel could mean you won’t have the airbags to protect you in a collision. If the light does not come on, stays on after you start the vehicle, or if it comes on as you drive, have an authorized dealer service the airbag system immediately.
  • Page 58 A quantity of non-toxic gas is generated to inflate the SABIC. The inflating SABIC pushes the outside edge of the headliner out of the way and covers the window. The SABIC inflates in about 30 milliseconds (about one- quarter of the time that it takes to blink your eyes) with enough force to injure you if you are not belted and seated properly, or if items are positioned in the area where the SABIC inflates.
  • Page 59 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If a Deployment Occurs The Advanced Front Airbags are designed to deflate immediately after deployment. NOTE: Front and/or side airbags will not deploy in all collisions. This does not mean something is wrong with the airbag system.
  • Page 60 WARNING! Deployed airbags and seat belt pretensioners cannot protect you in another collision. Have the airbags, seat belt pretensioners, and the front seat belt retrac- tor assemblies replaced by an authorized dealer im- mediately. Also, have the Occupant Restraint Con- troller (ORC) system serviced as well.
  • Page 61 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • Do not attempt to modify any part of your airbag system. The airbag may inflate accidentally or may not function properly if modifications are made. Take your vehicle to an authorized dealer for any airbag system service.

  • Page 62: Event Data Recorder (Edr)

    Event Data Recorder (EDR) This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems per- formed.

  • Page 63: Child Restraints

    62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Child Restraints Everyone in your vehicle needs to be buckled up all the time, including babies and children. Every state in the United States, and all Canadian provinces, require that small children ride in proper restraint systems. This is the law, and you can be prosecuted for ignoring it.
  • Page 64 Infants and Child Restraints • Safety experts recommend rearward-facing in the vehicle until they are at least one year old and weigh at least 20 lbs (9 kg). Two types of child restraints can be used rearward-facing: infant carriers and convertible child seats. •...
  • Page 65 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • The belt-positioning booster seat is for children weigh- ing more than 40 lbs (18 kg), but who are still too small to fit the vehicle’s seat belts properly. If the child cannot sit with knees bent over the seat cushion while the child’s back is against the seatback, they need a belt-positioning booster seat.
  • Page 66 WARNING! (Continued) • A rearward-facing infant restraint should only be used in a rear seat of a vehicle that does not have an airbag off switch. A rearward-facing infant restraint in the front seat may be struck by a deploying passenger airbag, which may cause se- vere or fatal injury to the infant.
  • Page 67 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • When your child restraint is not in use, secure it in the vehicle with the seat belt or remove it from the vehicle. Do not leave it loose in the vehicle. In a sudden stop or accident, it could strike the occupants or seatbacks and cause serious personal injury.
  • Page 68 Extended Cab • The Extended Cab right rear (if equipped with a rear seat) passenger seating position has lower anchorages for LATCH-equipped child restraints. LATCH Anchors THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 Crew Cab • The Crew Cab second row seat has lower anchorages that capable accommodating...
  • Page 69 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If your child restraints are not LATCH-compatible, you can only install the child restraints using the vehicle’s seat belts. Refer to “Installing the LATCH- Compatible Child Restraint System”. LATCH Anchors Installing the LATCH-Compatible Child Restraint System —...
  • Page 70 strap. Forward-facing toddler restraints, and some rear- facing infant restraints, will also be equipped with a tether strap, a hook for attachment to the tether strap anchorage, and a means of adjusting the tension of the strap. You will first loosen the child seat adjusters on the lower straps and on the tether strap so that you can more easily attach the hooks or connectors to the vehicle anchorages.
  • Page 71 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! Improper installation of a child restraint to the LATCH anchorages can lead to failure of an infant or child restraint. The child could be badly injured or killed. Follow the manufacturer’s directions exactly when installing an infant or child restraint.
  • Page 72 In the rear seat, you may have trouble tightening the lap/shoulder belt on the child restraint because the buckle or latch plate is too close to the belt path opening on the restraint. Disconnect the latch plate from the buckle and twist the short buckle-end belt several times to shorten it.
  • Page 73 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! (Continued) • Improper installation can lead to failure of an infant or child restraint. It could come loose in a collision. The child could be seriously injured or killed. Make sure the child restraint tether strap is always routed through the proper anchor strap inner loop.
  • Page 74 2. Route the tether strap across to the center tether anchorage. The center tether is located behind the slide door in the center of the vehicle, between the two seating positions. Tether Strap Routing 3. Remove the slack in the tether strap so that the anchor strap is pulled tight.
  • Page 75 74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: Two anchors must be used for any of the three seating positions. Multiple Child Restraints 1 — Inner Anchor Strap 4 — Passenger Side Rear Child Rings Seat 2 — Snap Hook 5 —...

  • Page 76: Engine Break-In Recommendations

    ENGINE BREAK-IN RECOMMENDATIONS A long break-in period is not required for the engine and drivetrain (transmission and axle) in your vehicle. Drive moderately during the first 300 miles (500 km). After the initial 60 miles (100 km), speeds up to 50 or 55 mph (80 or 90 km/h) are desirable.

  • Page 77: Safety Tips

    76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE SAFETY TIPS Transporting Passengers NEVER TRANSPORT PASSENGERS IN THE CARGO AREA. WARNING! • Do not leave children or animals inside parked vehicles in hot weather. Interior heat build-up may cause serious injury or death. •...

  • Page 78: Safety Checks You Should Make Inside The Vehicle

    If it is necessary to sit in a parked vehicle with the engine running, adjust your heating or cooling controls to force outside air into the vehicle. Set the blower at high speed. If you are required to drive with the trunk/liftgate open, make sure that all windows are closed and the climate control BLOWER switch is set at high speed.
  • Page 79 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE authorized dealer. If the light stays on, flickers, or comes on while driving, have the system checked by an autho- rized dealer. Defroster Check operation by selecting the defrost mode and place the blower control on high speed.

  • Page 80: Periodic Safety Checks You Should Make Outside The Vehicle

    WARNING! (Continued) • Check mounting of mats on a regular basis. Al- ways properly reinstall and secure floor mats that have been removed for cleaning. • Always make sure that objects cannot fall into the driver foot well while the vehicle is moving. Objects can become trapped under the brake pedal and accelerator pedal causing a loss of vehicle control.
  • Page 81 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Door Latches Check for positive closing, latching, and locking. Fluid Leaks Check area under vehicle after overnight parking for fuel, engine coolant, oil, or other fluid leaks. Also, if gasoline fumes are detected or if fuel, power steering fluid, or brake fluid leaks are suspected, the cause should be located and corrected immediately.

  • Page 82: Understanding The Features Of Your Vehicle

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS Mirrors ......85 Inside Day/Night Mirror ....85 Automatic Dimming Mirror —...
  • Page 83 82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Seats ......124 Power Driver Seat ....125 Manual Seat Adjustment .
  • Page 84 To Set a Desired Speed ....145 To Deactivate ..... . . 146 To Resume Speed .
  • Page 85 84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Reprogramming A Single HomeLink Button ......160 Security .

  • Page 86: Mirrors

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85 MIRRORS Inside Day/Night Mirror A two-point pivot system allows for horizontal and vertical adjustment of the mirror. The mirror should be adjusted to center on the view through the rear window. Headlight glare can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle).

  • Page 87: Automatic Dimming Mirror - If Equipped

    86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Automatic Dimming Mirror — If Equipped This mirror automatically adjusts for headlight glare from vehicles behind you. You can turn the feature on or off by pressing the button at the base of the mirror. A light next to the button will illuminate to indicate when the dimming feature is activated.

  • Page 88: Outside Mirrors Folding Feature - If Equipped

    WARNING! Vehicles and other objects seen in the passenger side convex mirror will look smaller and farther away than they really are. Relying too much on your passenger side mirror could cause you to collide with another vehicle or other object. Use your inside mirror when judging the size or distance of a vehicle seen in the passenger side mirror.

  • Page 89: Uconnect™ Phone - If Equipped

    88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To adjust a mirror, turn the control wand toward the left or right mirror positions indicated. Tilt the control wand in the direction you want the mirror to move. Mirror Directions When you are finished adjusting the mirror, turn the control to the center position to prevent accidentally moving a mirror.
  • Page 90 0.96 or higher. See the Uconnect™ website for supported phones. For Uconnect™ customer support, visit the following websites: • www.chrysler.com/uconnect • www.dodge.com/uconnect • www.jeep.com/uconnect • or call 1–877–855–8400 Uconnect™ Phone allows you to transfer calls between the system and your mobile phone as you enter or exit your vehicle and enables you to mute the system’s...

  • Page 91: Operation

    90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Uconnect™ Phone Button The radio or steering wheel controls (if equipped) will contain the two control buttons (Uconnect™ Phone Command button) that will enable you to access the system. When you press the button you will hear the word Uconnect™...
  • Page 92 • For certain operations, compound commands can be used. For example, instead of saying “Setup” and then “Phone Pairing”, the following compound command can be said: “Setup Phone Pairing.” • For each feature explanation in this section, only the compound form of the voice command is given. You can also break the commands into parts and say each part of the command when you are asked for it.
  • Page 93 92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To complete the pairing process, you will need to refer- ence your mobile phone Owner’s Manual. The Uconnect™ website may also provide detailed instruc- tions for pairing. The following are general phone to Uconnect™ Phone pairing instructions: •...
  • Page 94 Dial by Saying a Number • Press the button to begin. • After the “Ready” prompt and the following beep, say “Dial”. • The system will prompt you to say the number you want to call. • For example, you can say “234-567-8901”. •...
  • Page 95 94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • After the “Ready” prompt and the following beep, say “Phonebook New Entry”. • When prompted, say the name of the new entry. Use of long names helps the Voice Command and it is recom- mended.
  • Page 96 • Automatic download and update, if supported, begins as soon as the Bluetooth wireless phone connection is made to the Uconnect™ Phone, for example, after you start the vehicle. • A maximum of 1000 entries per phone will be down- loaded and updated every time a phone is connected to the Uconnect™...
  • Page 97 96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: • The phone handset must support Bluetooth OBEX transfers of phonebook entries to use this feature. • Some phones cannot send phonebook entries if they are already connected to any system via Bluetooth , and you may see a message on the phone display that the Bluetooth link is busy.
  • Page 98 After you are finished editing an entry in the phonebook, you will be given the opportunity to edit another entry in the phonebook, call the number you just edited, or return to the main menu. “Phonebook Edit” can be used to add another phone number to a name entry that already exists in the phonebook.
  • Page 99 98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Delete/Erase “All” Uconnect™ Phonebook Entries • Press the button to begin. • After the “Ready” prompt and the following beep, say “Phonebook Erase All”. • The Uconnect™ Phone will ask you to verify that you wish to delete all the entries from the phonebook.

  • Page 100: Phone Call Features

    Phone Call Features The following features can be accessed through the Uconnect™ Phone if the feature(s) are available on your mobile service plan. For example, if your mobile service plan provides three-way calling, this feature can be accessed through the Uconnect™ Phone. Check with your mobile service provider for the features that you have.
  • Page 101 100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE in progress. To go back to the first call, refer to “Toggling Between Calls” in this section. To combine two calls, refer to “Conference Call” in this section. Place/Retrieve a Call From Hold To put a call on hold, press the a single beep.

  • Page 102: Uconnect™ Phone Features

    on hold may not become active automatically. This is cell phone-dependent. To bring the call back from hold, press and hold the button until you hear a single beep. Redial • Press the button to begin. • After the “Ready” prompt and the following beep, say “Redial”.
  • Page 103 102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • After the “Ready” prompt and the following beep, say the name of the language you wish to switch to English, Espanol, or Francais. • Continue to follow the system prompts to complete the language selection.
  • Page 104 • If supported, this number may be programmable on some systems. To do this, press the say “Setup”, followed by “Emergency”. • The Uconnect™ Phone does slightly lower your chances of successfully making a phone call as to that for the mobile phone directly. WARNING! To use your Uconnect™...
  • Page 105 104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE certain companies, which time out a little too soon to work properly with the Uconnect™ Phone. Voice Mail Calling To learn how to access your voice mail, refer to “Working with Automated Systems”. Working with Automated Systems This method is used in instances where one generally has to press numbers on the mobile phone keypad while...
  • Page 106 NOTE: • You may not hear all of the tones due to mobile phone network configurations. This is normal. • Some paging and voice mail systems have system time out settings that are too short and may not allow the use of this feature.

  • Page 107: Advanced Phone Connectivity

    106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE using Uconnect™ Phone. The status is given for network signal strength, phone battery strength, etc. Dialing Using the Mobile Phone Keypad You can dial a phone number with your mobile phone keypad and still use the Uconnect™ Phone (while dialing via the mobile phone keypad, the user must exercise caution and take precautionary safety measures).
  • Page 108 from your Uconnect™ Phone paired mobile phone to the Uconnect™ Phone or vice versa, press the and say “Transfer Call”. Connect or Disconnect Link Between the Uconnect™ Phone and Mobile Phone Your mobile phone can be paired with many different electronic devices, but can only be actively “connected”...

  • Page 109: Things You Should Know About Your Uconnect™ Phone

    108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • The selected phone will be used for the next phone call. If the selected phone is not available, the Uconnect™ Phone will return to using the highest priority phone present in or near (approximately within 30 ft (9 m)) the vehicle.
  • Page 110 You can either press the Uconnect™ Phone button to restore the factory setting or repeat the words and phrases when prompted by the Uconnect™ Phone. For best results, the Voice Training session should be com- pleted when the vehicle is parked with the engine running, all windows closed, and the blower fan switched off.
  • Page 111 110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • fully closed windows, • dry weather condition. • Even though the system is designed for users speaking in North American English, French, and Spanish ac- cents, the system may not always work for some. •...
  • Page 112 • fully closed windows, • dry weather conditions, and • operation from the driver’s seat. • Performance, such as audio clarity, echo, and loudness to a large degree rely on the phone and network, and not the Uconnect™ Phone. • Echo at the phone far end can sometimes be reduced by lowering the in-vehicle audio volume.
  • Page 113 112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Send Messages: You can send messages using Uconnect™ Phone. To send a new message: • Press the button. • After the “Ready” prompt and the following beep, say “SMS Send” or “Send Messages.” •...
  • Page 114 16. Can this wait? 17. Bye for now 18. When can we meet 19. Send number to call 20. Start without me Turn SMS Incoming Announcement ON/OFF Turning the SMS Incoming Announcement OFF will stop the system from announcing the new incoming mes- sages.
  • Page 115 114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
  • Page 116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115...
  • Page 117 116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE...
  • Page 118 Voice Commands Primary Alternate(s) zero three four five seven eight nine star (*) plus (+) pound (#) add location UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117 Voice Commands Primary Alternate(s) call cancel confirmation prompts continue delete dial download edit emergency English erase all Espanol...
  • Page 119 118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Voice Commands Primary Alternate(s) language list names list phones mobile mute mute off new entry pager pair a phone phone pairing pairing phonebook phone book previous record again redial Voice Commands Primary Alternate(s) return to main menu return or main menu select phone...

  • Page 120: General Information

    General Information This device complies with Part 15 of the FCC rules and RSS 210 of Industry Canada. Operation is subject to the following conditions: • Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 121: Commands

    120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: If you do not say a command within a few seconds, the system will present you with a list of options. If you ever wish to interrupt the system while it lists options, press the Voice Command for the beep, and say your command.
  • Page 122 Changing the Volume 1. Start a dialogue by pressing the Voice Command button. 2. Say a command (e.g., “Help”). 3. Use the ON/OFF VOLUME rotary knob to adjust the volume to a comfortable level while the Voice Command system is speaking. Please note the volume setting for Voice Command is different than the audio system.
  • Page 123 122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • “Next Station” (to select the next station) • “Previous Station” (to select the previous station) • “Radio Menu” (to switch to the radio menu) • “Main Menu” (to switch to the main menu) Satellite Radio To switch to satellite radio mode, say “Sat”...
  • Page 124 Memo To switch to the voice recorder mode, say “Memo”. In this mode, you may say the following commands: • “New Memo” (to record a new memo) — During the recording, you may press the Voice Command button to stop recording. You proceed by saying one of the following commands: −...

  • Page 125: Voice Training

    124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • “Language French” • “Language Spanish” • “Tutorial” • “Voice Training” NOTE: Keep in mind that you have to press the Voice Command button first and wait for the beep before speaking the “Barge In” commands. Voice Training For users experiencing difficulty with the system recog- nizing their voice commands or numbers the Uconnect™...

  • Page 126: Power Driver Seat

    WARNING! (Continued) • Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts. • Be sure everyone in your vehicle is in a seat and using a seat belt properly. Power Driver Seat On some models the driver’s seat can be equipped with six-way power.
  • Page 127 126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Adjusting the seat forward or rearward The seat can be adjusted both forward and rearward. Push the four-way switch seat switch forward or rear- ward, the seat will move in the direction of the switch. Release the switch when you have reached the desired position.
  • Page 128 Tilt Adjustment UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127 WARNING! • Adjusting a seat while driving may be dangerous. Moving a seat while driving could result in loss of control which could cause a collision and serious injury or death. •...

  • Page 129: Manual Seat Adjustment

    128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! Do not place any article under a power seat or impede its ability to move as it may cause damage to the seat controls. Seat travel may become limited if movement is stopped by an obstruction in the seat’s path.

  • Page 130: Front Seat - Manual Recliner

    WARNING! • Adjusting a seat while driving may be dangerous. Moving a seat while driving could result in loss of control which could cause a collision and serious injury or death. • Seats should be adjusted before fastening the seatbelts and while the vehicle is parked. Serious injury or death could result from a poorly adjusted seatbelt.

  • Page 131: Manual Lumbar - If Equipped

    130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Manual Lumbar — If Equipped Some vehicle may be equipped with a manual lumbar support. The manual lumbar rotary control adjustment is located on the left side of the driver’s seat. Rotate the knob to increase or decrease the amount of lumbar support.
  • Page 132 When the HIGH-level setting is selected, the heater will provide a boosted heat level during the first four minutes of operation. Then, the heat output will drop to the normal HIGH-level. If the HIGH-level setting is selected, the system will automatically switch to LOW-level after approximately 30 minutes of continuous operation.

  • Page 133: Head Restraints

    132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! Repeated overheating of the seat could damage the heating element and/or degrade the material of the seat. Head Restraints Head restraints are designed to reduce the risk of injury by restricting head movement in the event of a rear impact.

  • Page 134: Extended Cab/Crew Cab Rear Seat

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 Rear Head Restraints The rear seat is equipped with nonadjustable head re- straints. Refer to “Occupant Restraints” in “Things to Know Before Starting Your Vehicle” for information on child seat tether routing. Extended Cab/Crew Cab Rear Seat More cargo space is available by lifting up on the rear seat cushion.
  • Page 135 134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Then push the safety latch lever up while lifting the grille with your hand. It is located at the bottom center of the grille. Secondary Latch Location Lift the hood, and the gas filled props will hold it open. CAUTION! To prevent possible damage, do not slam the hood to close it.

  • Page 136: Lights

    LIGHTS The headlight switch is located on the left side of the instrument panel next to the steering wheel. Headlight Switch Location UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 Headlights, Parking Lights And Panel Lights When the headlight switch is rotated to the first position, the parking lights, taillights, side marker lights, license plate light and instrument panel lights are all turned on.

  • Page 137: Headlight Delay

    136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Headlight Delay To aid in your exit, your vehicle is equipped with a headlight delay that will leave the headlight on for 60 seconds. This delay is initiated when the ignition is turned OFF while the headlight switch is on, and then the headlight switch is cycled off.

  • Page 138: Interior Lights

    Interior Lights Courtesy and dome lights are turned on when the front doors are opened, when the dimmer control (rotating wheel on the right side of the switch) is rotated to the second upward detent position, or if equipped, when the UNLOCK button is pressed on the Remote Keyless Entry (RKE) transmitter.

  • Page 139: Multifunction Lever

    138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: Club Cab /Quad Cab models may have an optional switched dome lamp that is operated by press- ing the lens. Multifunction Lever The multifunction lever is located on the left side of the steering column.
  • Page 140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139 • If a turn signal has been left on for a minimum of 1 mile (1.6 km), a continuous chime will sound. Lane Change Assist Tap the lever up or down once, without moving beyond the detent, and the turn signal (right or left) will flash three times then automatically turn off.

  • Page 141: Battery Saver

    140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Battery Saver To protect the life of your vehicle’s battery, Load Shed- ding is provided for both the interior and exterior lights. If the ignition is OFF and any door is left ajar for 15 minutes or the dimmer control is rotated upwards for 15 minutes, the interior lights will automatically turn off.

  • Page 142: Windshield Wipers And Washers

    WINDSHIELD WIPERS AND WASHERS The multifunction lever is located on the left side of the steering column. Windshield Wiper/Washer Lever UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141 Windshield Wipers The wipers and washers are operated by a switch in the multifunction lever.

  • Page 143: Windshield Washers

    142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Intermittent Wiper System The intermittent feature of this system was designed for use when weather conditions make a single wiping cycle, with a variable pause between cycles, desirable. For maximum delay between cycles, rotate the control knob into the upper end of the delay range.

  • Page 144: Tilt Steering Column

    Washer Operation To prevent freeze-up of your windshield washer system in cold weather, select a solution or mixture that exceeds the temperature range of your climate. This rating infor- mation can be found on most washer fluid containers. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143 WARNING! Sudden loss of visibility through the windshield could lead to a collision.

  • Page 145: Electronic Speed Control - If Equipped

    144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Pull the lever toward the steering wheel to unlock the steering column. With one hand firmly on the steering wheel, move the steering column up or down, as desired. Push the lever away from the steering wheel to lock the column firmly in place.

  • Page 146: To Activate

    Electronic Speed Control Buttons 1 — Resume 4 — Set 2 — Cancel 5 — On/Off 3 — Decel UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145 NOTE: In order to ensure proper operation, the Elec- tronic Speed Control System has been designed to shut down if multiple Speed Control functions are operated at the same time.

  • Page 147: To Deactivate

    146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Deactivate A soft tap on the brake pedal, normal braking, or pressing the CANCEL button will deactivate the speed control without erasing the memory. Pushing the ON/OFF but- ton to the OFF position or turning off the ignition erases the memory.

  • Page 148: To Accelerate For Passing

    To Accelerate for Passing Press the accelerator as you would normally. When the pedal is released, the vehicle will return to the set speed. NOTE: When driving uphill, at elevations above 2,000 ft (610 m), or when the vehicle is heavily loaded (especially when towing) the vehicle may slow below the SET speed.

  • Page 149: Overhead Console

    148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE OVERHEAD CONSOLE The overhead console has the following features: Overhead Console • Courtesy Lights • Garage Door Opener — If Equipped • Compass/Temperature Mini-Trip Computer — If Equipped Courtesy/Reading Lights Near the front of the console are two courtesy/reading lights.

  • Page 150: Compass/Temperature Mini-Trip Computer

    UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149 COMPASS/TEMPERATURE MINI-TRIP COMPUTER This feature allows you to choose between a compass/ temperature display and one of four trip conditions being monitored. US/M Button Use the US/M button to change the display from U.S. to metric measurement units.

  • Page 151: Reset Button

    150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE RESET Button Use the RESET button to reset the following displays: • Average Fuel Economy • Trip Odometer • Elapsed time. RESET Button STEP Button Use the STEP button to choose, or cycle through, the four trip conditions.

  • Page 152: Average Fuel Economy (Avg Eco)

    Average Fuel Economy (AVG ECO) Displays the average fuel economy since the last reset. Average fuel economy is a running average of the amount of fuel used and the distance the vehicle has traveled. When the fuel economy is reset, the display will momentarily blank, the history will be erased, and the AVERAGE WILL CONTINUE FROM WHERE IT WAS BEFORE THE RESET.

  • Page 153: Elapsed Time (Et)

    152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Resetting of this screen will cause the trip odometer to change to zero. Then the trip odometer must be reset in order to update the trip odometer miles. Elapsed Time (ET) This display shows the accumulated ignition ON time since the last reset.

  • Page 154: Global Reset

    Global Reset If the RESET button is pressed twice within two seconds while in any of the three resettable displays (AVG ECO, ODO, ET), the GLOBAL RESET will reset all three displays. Compass/Temperature Display WARNING! Even if the display still reads a few degrees above 32° F (0°...

  • Page 155: To Put Into A Calibration Mode

    154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE If the compass appears erratic and the CAL symbol does not appear, you must manually put the compass into the “Calibration” mode. To Put Into a Calibration Mode Turn the ignition ON and set the display to “Compass/ Temperature.”...

  • Page 156: Outside Temperature

    Outside Temperature Because the ambient temperature sensor is located under the hood, engine temperature can influence the displayed temperature; therefore, temperature readings are slowly updated when the vehicle speed is below 20 mph (30 km/h) or during stop-and-go driving. GARAGE DOOR OPENER — IF EQUIPPED HomeLink replaces up to three remote controls (hand- held transmitters) that operate devices such as garage door openers, motorized gates, lighting or home security...

  • Page 157: Programming Homelink

    156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! • Your motorized door or gate will open and close while you are training the Universal Transceiver. Do not train the transceiver if people, pets or other objects are in the path of the door or gate. Only use this transceiver with a garage door opener that has a “stop and reverse”...
  • Page 158 Your vehicle should be parked outside of the garage while training. • Turn the ignition switch to the ON/RUN position. • Place the handheld transmitter 1 to 3 inches (3 to 8 cm) from the HomeLink buttons while keeping the HomeLink display in view.
  • Page 159 158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE This can usually be found where the hanging antenna wire is attached to the garage door opener motor (it is NOT the button normally used to open and close the door). 1 — Garage Door Opener 2 —...

  • Page 160: Gate Operator/Canadian Programming

    Gate Operator/Canadian Programming Canadian radio-frequency laws require transmitter sig- nals to “time-out” (or quit) after several seconds of transmission – which may not be long enough for HomeLink to pick up the signal during programming. Similar to this Canadian law, some U.S. gate operators are designed to “time-out”...

  • Page 161: Security

    160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Reprogramming A Single HomeLink Button To reprogram a channel that has been previously trained, follow these steps: 1. Turn the ignition switch to the ON/RUN position. 2. Press and hold the desired HomeLink button for 20 seconds until the indicator(s) starts to flash.

  • Page 162: General Information

    General Information This device complies with FCC rules part 15 and Industry Canada RSS-210. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may be received including interference that may cause undesired operation.
  • Page 163 162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE When the optional Cigar Lighter heating element is used, it heats when pushed in and pops out automatically when ready for use. To preserve the heating element, do not hold the lighter in the heating position. NOTE: •...

  • Page 164: Cupholders

    CAUTION! (Continued) • Accessories that draw higher power (i.e., coolers, vacuum cleaners, lights, etc.), will discharge the battery even more quickly. Use these only inter- mittently and with greater caution. • After the use of high power draw accessories, or long periods of the vehicle not being started (with accessories still plugged in), the vehicle must be driven a sufficient length of time to allow the...

  • Page 165: Rear Crate 'N Go Storage - If Equipped

    164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE A two-cavity cupholder is available on all Crew Cabs, with rear seats mounted on the floor. Rear Cup Holders — Crew Cab REAR CRATE ’N GO STORAGE — IF EQUIPPED The rear Crate ’n Go storage, located under the rear seat lower cushion, consists of two removable, collapsible storage crates.
  • Page 166 To remove the crate, press on the release lever, located on the ends of the base, and lift up on the crate. To install the crate into the base, insert the crate into the inboard slot and push down on the outboard side of the crate, then snap into place.

  • Page 167: Plastic Grocery Bag Retainers

    166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Plastic Grocery Bag Retainers Retainer hooks, which will hold plastic grocery bag handles, are built into the back panel of the cab. Grocery Bag Retainers CONSOLE FEATURES — IF EQUIPPED Floor Console Features The Floor Console between the driver’s and front pas- senger’s seat has the following features: •...
  • Page 168 Floor Console Storage Compartments Some miscellaneous storage compartments and cuphold- ers are both removable and dishwasher safe (upper rack UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167 of dishwasher only) for cleaning purposes. Various stor- age compartments provide versatile and useful storage. A coin holder is also provided inside the driver side storage bin.

  • Page 169: Cargo Area Features

    168 UNDERSTANDING THE FEATURES OF YOUR VEHICLE inside of the armrest lid. A tissue holder is also provided on the inside of the armrest lid, which holds a pocket-size soft pack of tissue. CARGO AREA FEATURES Rear Cargo Area Utility Rails — If Equipped CAUTION! The maximum load per cleat should not exceed 320 lbs (145 kg) and the angle of the load on each...

  • Page 170: Rear Window Features

    To remove the cleats from the utility rail, remove the end cap by pushing up on the locking tab, located on the bottom of the end cap. Slide the cleat off the end of the rail. Utility Rail End Cap UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169 REAR WINDOW FEATURES Rear Window Defroster —...

  • Page 171: Sliding Rear Window - If Equipped

    170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! Failure to follow these cautions can cause damage to the heating elements: • Use care when washing the inside of the rear window. Do not use abrasive window cleaners on the interior surface of the window. Use a soft cloth and a mild washing solution, wiping parallel to the heating elements.

  • Page 172: Slide-In Campers

    SLIDE-IN CAMPERS Camper Applications Certain truck models are not recommended for slide-in campers. To determine if your vehicle is excluded, please refer to the Consumer Information Truck-Camper Load- ing document, located in your Owner’s Manual packet or available from your authorized dealer. For safety reasons, follow all instructions on this important document.

  • Page 173: Two-Position Tailgate/Upper Load Platform

    172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 3. Lift the tailgate off of the pivot on the passenger side by pulling upward and rearward at the same time. 4. Slide the tailgate to the passenger side while making sure clearance from the box and taillight is maintained. To reinstall the tailgate, do the following: 1.
  • Page 174 1 — Bulkhead Divider Slot 2 — Wheel Housing Indentions 2. Secure the tailgate in the partially-open position: 3. Open the tailgate slightly. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173 4. Snap the tailgate support cable between the cable guide and the tailgate bumper. Do this on both sides of the tailgate.
  • Page 175 174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To return the tailgate to the full-open position: 1. Lift up on the tailgate. 2. Remove both cables from between the cable guides and the tailgate bumpers, and lower the tailgate. CAUTION! • Care should always be exercised when operating a vehicle with cargo.

  • Page 176: Understanding Your Instrument Panel

    UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS Instrument Panel Features ....177 Instrument Cluster ....178 Instrument Cluster Descriptions .
  • Page 177 176 UNDERSTANDING YOUR INSTRUMENT PANEL Notes On Playing MP3 Files ... . 218 Operation Instructions - Auxiliary Mode ..220 Media Center 130 With Satellite Radio (Sales Code RES+RSC) .

  • Page 178: Instrument Panel Features

    INSTRUMENT PANEL FEATURES 1 — Headlight Switch 2 — Air Outlets 3 — Demister Outlets 4 — Instrument Cluster 5 — Airbags UNDERSTANDING YOUR INSTRUMENT PANEL 177 6 — Glove Compartment 7 — Radio 8 — Climate Controls 9 — Power Outlet 10 —...

  • Page 179: Instrument Cluster

    178 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER...

  • Page 180: Instrument Cluster Descriptions

    INSTRUMENT CLUSTER DESCRIPTIONS 1. Fuel Gauge The fuel gauge shows the level of fuel in the fuel tank when ignition switch is in the ON/RUN position. 2. Temperature Gauge The temperature gauge shows engine coolant tempera- ture. Any reading within the normal range indicates that the engine cooling system is operating satisfactorily.
  • Page 181 180 UNDERSTANDING YOUR INSTRUMENT PANEL 5. High Beam Indicator The high beam indicator will illuminate if the headlights are on high beam. 6. Seat Belt Reminder Light When the ignition switch is first turned to ON/ RUN, this light will turn on for four to eight seconds as a bulb check.
  • Page 182 WARNING! A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling coolant. You may want to call a service center if your vehicle overheats. If you decide to look under the hood yourself, see “Maintaining Your Vehicle”. Fol- low the warnings under the Cooling System Pressure Cap paragraph.
  • Page 183 182 UNDERSTANDING YOUR INSTRUMENT PANEL If the ABS light remains on or turns on while driving, it indicates that the Anti-Lock portion of the brake system is not functioning and that service is required. However, the conventional brake system will continue to operate normally if the BRAKE warning light is not on.
  • Page 184 Vehicle Odometer Messages When the appropriate conditions exist, the following messages will display in the odometer: door ......Door Ajar gASCAP .
  • Page 185 184 UNDERSTANDING YOUR INSTRUMENT PANEL damaged, a “noFUSE” message will display in the odom- eter display area. For further information on fuses and fuse locations refer to “Fuses” in “Maintaining Your Vehicle”. CHAngE OIL Message Your vehicle is equipped with an engine oil change indicator system.
  • Page 186 U.S. Federal regulations require that upon transfer of vehicle ownership, the seller certify to the purchaser the correct mileage that the vehicle has been driven. If your odometer needs to be repaired or serviced, the repair technician should leave the odometer reading the same as it was before the repair or service.
  • Page 187 186 UNDERSTANDING YOUR INSTRUMENT PANEL WARNING! Continued operation with the Transmission Tem- perature Warning Light illuminated could cause the fluid to boil over, come in contact with hot engine or exhaust components causing a fire that may result in personal injury. 19.
  • Page 188 condition has been corrected. If the problem is related to the brake booster, the ABS pump will run when applying the brake and a brake pedal pulsation may be felt during each stop. The dual brake system provides a reserve braking capac- ity in the event of a failure to a portion of the hydraulic system.
  • Page 189 188 UNDERSTANDING YOUR INSTRUMENT PANEL The light also will turn on when the parking brake is applied with the ignition switch in the ON/RUN posi- tion. NOTE: This light shows only that the parking brake is applied. It does not show the degree of brake application. 21.
  • Page 190 WARNING! A malfunctioning catalytic converter, as referenced above, can reach higher temperatures than in normal operating conditions. This can cause a fire if you drive slowly or park over flammable substances such as dry plants or wood or cardboard, etc. This could result in death or serious injury to the driver, occu- pants or others.
  • Page 191 190 UNDERSTANDING YOUR INSTRUMENT PANEL maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale. Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly.
  • Page 192 23. Airbag Warning Light This light will turn on for four to eight seconds as a bulb check when the ignition switch is first turned to ON/RUN. If the light is either not on during starting, stays on, or turns on while driving, then have the system inspected at an authorized dealer as soon as possible.

  • Page 193: Media Center 230 (Req) - Am/Fm Stereo Radio And 6-Disc Cd/Dvd Changer (Mp3/Wma Aux Jack)

    192 UNDERSTANDING YOUR INSTRUMENT PANEL 29. 4WD LOW Indicator This light alerts the driver that the vehicle is in the four-wheel drive LOW mode. The front and rear driveshafts are mechanically locked to- gether forcing the front and rear wheels to rotate at the same speed.
  • Page 194 Power Switch/Volume Control (Rotary) Push the ON/VOLUME control knob to turn on the radio. Press the ON/VOLUME control knob a second time to turn off the radio. Electronic Volume Control The electronic volume control turns continuously (360 degrees) in either direction without stopping. Turning the ON/VOLUME control knob to the right increases the volume and to the left decreases it.
  • Page 195 194 UNDERSTANDING YOUR INSTRUMENT PANEL Phone Button Uconnect™ Phone — If Equipped Press this button to operate the Uconnect™ Phone feature (if equipped). Refer to “Uconnect™ Phone” in the Uconnect™ User Manual located on the DVD for further details. If your vehicle is not equipped with or this feature is not available on your vehicle, a “Not Equipped With Uconnect Phone”...
  • Page 196 RW/FF Pressing the RW (Rewind) or FF (Fast Forward) buttons causes the tuner to search for the next frequency in the direction of the arrows. This feature operates in AM, FM or Satellite (if equipped) frequencies. TUNE Control Turn the rotary TUNE/SCROLL control knob clockwise to increase or counterclockwise to decrease the frequency.
  • Page 197 196 UNDERSTANDING YOUR INSTRUMENT PANEL or turning the TUNE/SCROLL control knob within five seconds will allow the program format type to be se- lected. Many radio stations do not currently broadcast Music Type information. Toggle the MUSIC TYPE button to select the following format types: 16-Digit Character Program Type...
  • Page 198 16-Digit Character Program Type Top 40 Weather By pressing the SEEK button when the Music Type icon is displayed, the radio will be tuned to the next frequency station with the same selected Music Type name. The Music Type function only operates when in the FM mode.
  • Page 199 198 UNDERSTANDING YOUR INSTRUMENT PANEL • Audio Stream – Repeatedly pressing SELECT will switch to different audio languages (if supported on the disc) (if equipped). • Angle – Repeatedly pressing SELECT will change the viewing angle if supported by the DVD disc (if equipped).
  • Page 200 Enter the four-digit country code using the TUNE/ SCROLL control knob to scroll up and down to select the number and then push to select. Audio Language — If Equipped Selecting this item allows you to choose a default audio language (effective only if the language is supported by the disc).
  • Page 201 200 UNDERSTANDING YOUR INSTRUMENT PANEL NOTE: The user will have to set these defaults before loading a disc. If changes are made to these settings after a disc is loaded, changes will not be effective. Also, the defaults are effective only if the disc supports the customer-preferred settings.

  • Page 202: Operation Instructions - (Disc Mode For Cd And Mp3/Wma Audio Play, Dvd-Video)

    Operation Instructions - (DISC MODE for CD and MP3/WMA Audio Play, DVD-VIDEO) The radio DVD player and many DVD discs are coded by geographic region. These region codes must match in order for the disc to play. If the region code for the DVD disc does not match the region code for the radio DVD player, it will not play the disc.
  • Page 203 202 UNDERSTANDING YOUR INSTRUMENT PANEL Eject Button — Ejecting Compact Disc(s) Press the EJECT button and the pushbutton with the corresponding number (1-6) where the CD was loaded and the disc will unload and move to the entrance for easy removal. Radio display will show EJECTING DISC when the disc is being ejected and prompt the user to remove the disc.

  • Page 204: Notes On Playing Mp3/Wma Files

    Notes On Playing MP3/WMA Files The radio can play MP3/WMA files; however, acceptable MP3/WMA file recording media and formats are limited. When writing MP3/WMA files, pay attention to the following restrictions. Supported Media (Disc Types) The MP3/WMA file recording media supported by the radio are CDDA, CD-R, CD-RW, MP3,WMA, DVD Video, DVD-R, DVD-RW, DVD+R, DVD+RW, and CDDA+MP3.
  • Page 205 204 UNDERSTANDING YOUR INSTRUMENT PANEL If a disc contains multi-formats, such as CD audio and MP3/WMA tracks, the radio will only play the MP3/ WMA tracks on that disc. Supported MP3/WMA File Formats The radio will recognize only files with the *.MP3/WMA extension as MP3/WMA files.

  • Page 206: List Button (Disc Mode For Mp3/Wma Play)

    Playlist files are not supported. MP3 Pro files are not supported. Playback of MP3/WMA Files When a medium containing MP3/WMA data is loaded, the radio checks all files on the medium. If the medium contains a lot of folders or files, the radio will take more time to start playing the MP3/WMA files.
  • Page 207 206 UNDERSTANDING YOUR INSTRUMENT PANEL Press the INFO button once more to return to elapsed time priority mode. Press and hold the INFO button for three seconds or more and radio will display song titles for each file. Press and hold the INFO button again for three seconds to return to elapsed time display.
  • Page 208 RW/FF (Auxiliary Mode) No function. SET Button (Auxiliary Mode) No function. Operating Instructions — Voice Command System (If Equipped) For the radio, Refer to “Voice Command” in the Uconnect™ User Manual located on the DVD for further details. Operating Instructions - Uconnect™ Phone (If Equipped) Refer to “Uconnect™...

  • Page 209: Uconnect™ Multimedia (Satellite Radio) - If Equipped

    208 UNDERSTANDING YOUR INSTRUMENT PANEL DTS™ DTS™ and DTS™ 2.0 are trademarks of Digital The- ater Systems, Inc. Uconnect™ Multimedia (Satellite Radio) — If Equipped Satellite radio uses direct satellite-to-receiver broadcast- ing technology to provide clear digital sound, coast to coast.
  • Page 210 using the TUNE/SCROLL control knob until Sirius ID is selected. Press the TUNE/SCROLL control knob and the Sirius ID number will display. The Sirius ID number display will time out in two minutes. Press any button on the radio to exit this screen. Selecting Uconnect™...
  • Page 211 210 UNDERSTANDING YOUR INSTRUMENT PANEL SEEK Buttons Press and release the SEEK buttons to search for the next channel in Satellite mode. Press the right switch to seek up and the left switch to seek down. The radio will remain tuned to the new channel until you make another selection.
  • Page 212 Toggle the MUSIC TYPE button again to select the music type. By pressing the SEEK button when the Music Type function is active, the radio will be tuned to the next channel with the same selected Music Type name. If a preset button is activated while in the Music Type (Program Type) mode, the Music Type mode will be exited and the radio will tune to the preset channel.

  • Page 213: Media Center 130 (Sales Code Res)

    212 UNDERSTANDING YOUR INSTRUMENT PANEL Every time a preset button is used, a corresponding button number will display. Buttons 1 - 6 These buttons tune the radio to the channels that you commit to pushbutton memory (12 Satellite stations). MEDIA CENTER 130 (SALES CODE RES) NOTE: The radio sales code is located on the lower right side of the radio faceplate.
  • Page 214 Power Switch/Volume Control (Rotary) Push the ON/VOLUME control knob to turn on the radio. Push the ON/VOLUME control knob a second time to turn off the radio. Electronic Volume Control The electronic volume control turns continuously (360 degrees) in either direction, without stopping. Turning the ON/VOLUME control knob to the right increases the volume, and to the left decreases it.
  • Page 215 214 UNDERSTANDING YOUR INSTRUMENT PANEL RW/FF Pressing the RW (Rewind) or FF (Fast Forward) buttons causes the tuner to search for the next frequency in the direction of the arrows. This feature operates in either AM or FM frequencies. TUNE Control Turn the rotary TUNE/SCROLL control knob clockwise to increase or counterclockwise to decrease the frequency.

  • Page 216: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play

    SET/RND Button — To Set the Pushbutton Memory When you are receiving a station that you wish to commit to pushbutton memory, press the SET/RND button. The symbol SET 1 will now show in the display window. Select the button (1 to 6) you wish to lock onto this station and press and release that button.
  • Page 217 216 UNDERSTANDING YOUR INSTRUMENT PANEL • This radio is capable of playing compact discs (CD), recordable compact discs (CD-R), rewritable compact discs (CD-RW), compact discs with MP3 tracks and multisession compact discs with CD and MP3 tracks. Inserting Compact Disc(s) Gently insert one CD into the CD player with the CD label facing up.
  • Page 218 If you have ejected a disc and have not removed it within 10 seconds, it will be reloaded. If the CD is not removed, the radio will reinsert the CD but will not play it. A disc can be ejected with the radio and ignition OFF. NOTE: Ejecting with the ignition OFF is not allowed on convertible or soft-top models (if equipped).
  • Page 219 218 UNDERSTANDING YOUR INSTRUMENT PANEL Notes on Playing MP3 Files The radio can play MP3 files; however, acceptable MP3 file recording media and formats are limited. When writing MP3 files, pay attention to the following restric- tions. Supported Media (Disc Types) The MP3 file recording media supported by the radio are CDDA, CD-R, CD-RW, MP3, and CDDA+MP3.
  • Page 220 Discs created with an option such as keep disc open after writing are most likely multisession discs. The use of multisession for CD audio or MP3 playback may result in longer disc loading times. Supported MP3 File Formats The radio will recognize only files with the *.MP3 exten- sion as MP3 files.

  • Page 221: Operation Instructions - Auxiliary Mode

    220 UNDERSTANDING YOUR INSTRUMENT PANEL Playback of MP3 Files When a medium containing MP3 data is loaded, the radio checks all files on the medium. If the medium contains a lot of folders or files, the radio will take more time to start playing the MP3 files.

  • Page 222: Media Center 130 With Satellite Radio (Sales Code Res+Rsc)

    MEDIA CENTER 130 WITH SATELLITE RADIO (SALES CODE RES+RSC) NOTE: The radio sales code is located on the lower right side of the radio faceplate. Media Center 130 (RES/RSC) UNDERSTANDING YOUR INSTRUMENT PANEL 221 Operating Instructions — Radio Mode NOTE: The ignition switch must be in the ON/RUN or ACC position to operate the radio.
  • Page 223 222 UNDERSTANDING YOUR INSTRUMENT PANEL SEEK Buttons Press and release the SEEK buttons to search for the next listenable station in AM/FM mode. Press the right switch to seek up and the left switch to seek down. The radio will remain tuned to the new station until you make another selection.
  • Page 224 Clock Setting Procedure 1. Press and hold the TIME button until the hours blink. 2. Adjust the hours by turning the right side TUNE/ SCROLL control knob. 3. After adjusting the hours, press the right side TUNE/ SCROLL control knob to set the minutes. The minutes will begin to blink.
  • Page 225 224 UNDERSTANDING YOUR INSTRUMENT PANEL Setting the Tone, Balance, and Fade Push the rotary TUNE/SCROLL control knob and BASS will display. Turn the TUNE/SCROLL control knob to the right or left to increase or decrease the bass tones. Push the rotary TUNE/SCROLL control knob a second time and MID will display.
  • Page 226 Toggle the MUSIC TYPE button to select the following format types: 16-Digit Character Program Type No program type or un- defined Adult Hits Classical Classic Rock College Country Foreign Language Information Jazz News Nostalgia Oldies UNDERSTANDING YOUR INSTRUMENT PANEL 225 Program Type Personality Display...
  • Page 227 226 UNDERSTANDING YOUR INSTRUMENT PANEL By pressing the SEEK button when the Music Type icon is displayed, the radio will be tuned to the next frequency station with the same selected Music Type name. The Music Type function only operates when in the FM mode.

  • Page 228: Operation Instructions - Cd Mode For Cd And Mp3 Audio Play

    You may add a second station to each pushbutton by repeating the above procedure with this exception: Press the SET/RND button twice and SET 2 will show in the display window. Each button can be set for SET 1 and SET 2 in both AM and FM.
  • Page 229 228 UNDERSTANDING YOUR INSTRUMENT PANEL If you insert a disc with the ignition ON/RUN and the radio ON, the unit will switch from radio to CD mode and begin to play when you insert the disc. The display will show the track number, and index time in minutes and seconds.

  • Page 230: Notes On Playing Mp3 Files

    TIME Button Press this button to change the display from a large CD playing time display to a small CD playing time display. RW/FF Press and hold FF (Fast Forward) and the CD player will begin to fast forward until FF is released or RW or another CD button is pressed.
  • Page 231 230 UNDERSTANDING YOUR INSTRUMENT PANEL The radio uses the following limits for file systems: • Maximum number of folder levels: 8 • Maximum number of files: 255 • Maximum number of folders. (The radio display of file names and folder names is limited. For large numbers of files and/or folders, the radio may be unable to display the file name and folder name and will assign a number instead.
  • Page 232 rates (VBR) are also supported. The majority of MP3 files use a 44.1 kHz sampling rate and a 192, 160, 128, 96 or VBR bit rates. MPEG Specifi- Sampling Fre- cation quency (kHz) MPEG-1 Audio 48, 44.1, 32 Layer 3 MPEG-2 Audio 24, 22.05, 16 Layer 3...

  • Page 233: List Button (Cd Mode For Mp3 Play)

    232 UNDERSTANDING YOUR INSTRUMENT PANEL LIST Button (CD Mode for MP3 Play) Pressing the LIST button will bring up a list of all folders on the disc. Scrolling up or down the list is done by turning the TUNE/SCROLL control knob. Selecting a folder by pressing the TUNE/SCROLL control knob will begin playing the files contained in that folder (or the next folder in sequence if the selection does not contain...

  • Page 234: Uconnect™ Multimedia (Satellite Radio) - If Equipped

    TIME Button (Auxiliary Mode) Press this button to change the display to time of day. The time of day will display for five seconds (when the ignition is OFF). Uconnect™ Multimedia (Satellite Radio) — If Equipped Satellite radio uses direct satellite-to-receiver broadcast- ing technology to provide clear digital sound, coast to coast.
  • Page 235 234 UNDERSTANDING YOUR INSTRUMENT PANEL using the TUNE/SCROLL control knob until Sirius ID is selected. Press the TUNE/SCROLL control knob and the Sirius ID number will display. The Sirius ID number display will time out in two minutes. Press any button on the radio to exit this screen.
  • Page 236 SEEK Buttons Press and release the SEEK buttons to search for the next channel in Satellite mode. Press the right switch to seek up and the left switch to seek down. The radio will remain tuned to the new channel until you make another selection.
  • Page 237 236 UNDERSTANDING YOUR INSTRUMENT PANEL Toggle the MUSIC TYPE button again to select the music type. By pressing the SEEK button when the Music Type function is active, the radio will be tuned to the next channel with the same selected Music Type name. If a preset button is activated while in the Music Type (Program Type) mode, the Music Type mode will be exited and the radio will tune to the preset channel.

  • Page 238: Operating Instructions (Uconnect™ Phone) - If Equipped

    Every time a preset button is used, a corresponding button number will display. Buttons 1 - 6 These buttons tune the radio to the channels that you commit to pushbutton memory (12 Satellite stations). Operating Instructions (Uconnect™ Phone) — If Equipped Refer to “Uconnect™...

  • Page 239: Radio Operation

    238 UNDERSTANDING YOUR INSTRUMENT PANEL The button located in the center of the right hand control will switch modes to Radio or CD. The left hand control is a rocker type switch with a push button in the center. The function of the left hand control is different depending on which mode you are in.

  • Page 240: Radio Operation And Mobile Phones

    3. Do not apply paper or tape to the disc; avoid scratch- ing the disc. 4. Do not use solvents such as benzene, thinner, cleaners, or anti-static sprays. 5. Store the disc in its case after playing. 6. Do not expose the disc to direct sunlight. 7.

  • Page 241: Air Conditioning And Heater

    240 UNDERSTANDING YOUR INSTRUMENT PANEL Air Conditioning and Heater Air Conditioning and Heater Control Air Conditioning and Heater Operation To turn on the air conditioning, set the fan control at any speed and press the SNOWFLAKE button located at the right of the control panel.
  • Page 242 Recirculation Modes (Panel or Bi-Level ) Select the recirculation modes when the outside air contains dust, odors, high humidity, or if rapid cooling is desired. This feature allows for recir- culation of interior air only. Air flows either through the panel outlets or both the panel and floor outlets to- gether, depending on which recirculation mode is selected.
  • Page 243 242 UNDERSTANDING YOUR INSTRUMENT PANEL • For information on operating the rear defrost, refer to “Rear Window Features” in “Understanding The Fea- tures Of Your Vehicle”. Blower Control The rotary knob on the left of the control panel is the Blower Control. Turn the knob clockwise to one of the four positions to obtain the blower speed you desire.

  • Page 244: Operating Tips

    edges of the instrument panel. The demisters also pro- vide extra air ducts for circulation. They are in operation whenever the Floor, Mix, Defrost, or Bi-Level modes are in use. NOTE: When you turn off the engine you may hear a hissing sound from under the hood for a short period of time.
  • Page 245 244 UNDERSTANDING YOUR INSTRUMENT PANEL speeds will reduce fogging. Interior fogging on the windshield can be quickly removed by selecting the defrost mode. Regular cleaning of the inside of the windows with a non-filming cleaning solution (vinegar and water works very well) will help prevent contaminates (cigarette smoke, perfumes, etc.) from sticking to the windows.

  • Page 246: Operation Tips Chart

    UNDERSTANDING YOUR INSTRUMENT PANEL 245 Operation Tips Chart...
  • Page 248 STARTING AND OPERATING CONTENTS Starting Procedures ....251 Automatic Transmission ....251 Normal Starting .
  • Page 249 248 STARTING AND OPERATING Limited-Slip Rear Axle Differential — If Equipped ......266 Driving On Slippery Surfaces .
  • Page 250 Tread Wear Indicators ....291 Life Of Tire ......292 Replacement Tires .
  • Page 251 250 STARTING AND OPERATING Maintenance ......310 Adding Fuel ......311 Fuel Filler Cap (Gas Cap) .

  • Page 252: Starting Procedures

    STARTING PROCEDURES Before starting your vehicle, adjust your seat, adjust both inside and outside mirrors, and fasten your seat belts. WARNING! Never leave children alone in a vehicle. Leaving children in a vehicle unattended is dangerous for a number of reasons. A child or others could be seri- ously or fatally injured.

  • Page 253: Extreme Cold Weather (Below -20°F Or -29°C)

    252 STARTING AND OPERATING Turn the ignition switch to the START position and release when the engine starts. If the engine fails to start within 10 seconds, turn the key to the OFF position, wait 5 seconds, then repeat the “Normal Starting” procedure. Extreme Cold Weather (below –20°F or –29°C) To ensure reliable starting at these temperatures, use of an externally powered electric engine block heater (avail-...

  • Page 254: After Starting

    CAUTION! To prevent damage to the starter, do not crank the engine for more than 15 seconds at a time. Wait 10 to 15 seconds before trying again. If the engine has been flooded, it may start to run, but not have enough power to continue running when the key is released.

  • Page 255: Automatic Transmission

    254 STARTING AND OPERATING WARNING! Remember to disconnect the engine block heater cord before driving. Damage to the 110-115 Volt electrical cord could cause electrocution. AUTOMATIC TRANSMISSION CAUTION! Damage to the transmission may occur if the follow- ing precautions are not observed: •...

  • Page 256: Key Ignition Park Interlock

    Key Ignition Park Interlock This vehicle is equipped with a Key Ignition Park Inter- lock which requires the shift lever to be placed in PARK prior to rotating the key to the LOCK position. The key can only be removed from the ignition when the ignition is in the LOCK position and once removed the shift lever is locked in PARK.
  • Page 257 256 STARTING AND OPERATING WARNING! • Never use the PARK position as a substitute for the parking brake. Always apply the parking brake fully when parked to guard against vehicle movement and possible injury or damage. • It is dangerous to move the shift lever out of PARK or NEUTRAL if the engine speed is higher than idle speed.
  • Page 258 REVERSE This range is for moving the vehicle backward. Use only after the vehicle has come to a complete stop. NEUTRAL This range is used when vehicle is standing for pro- longed periods with engine running. Engine may be started in this range. Set the parking brake if you must leave the vehicle.
  • Page 259 258 STARTING AND OPERATING • the TOW/HAUL switch has not been activated; • transmission reached temperature. NOTE: • If the vehicle is started in extremely cold temperatures, the transmission may not shift into Overdrive and will automatically select the most desirable gear for opera- tion at this temperature.
  • Page 260 economy), and automatic closed-throttle downshifts to third gear (for improved braking) will occur during steady braking. TOW/HAUL Switch STARTING AND OPERATING 259 The “TOW/HAUL Indicator Light” will illuminate in the instrument cluster to indicate when the switch has been activated. Pressing the switch a second time restores normal operation.

  • Page 261: Four-Wheel Drive Operation - If Equipped

    260 STARTING AND OPERATING NOTE: • The torque converter clutch will not engage until the transmission fluid and engine coolant are warm (usu- ally after 1-3 miles [1.6 - 4.8 km] of driving). Because the engine speed is higher when the torque converter clutch is not engaged, it may seem as if the transmis- sion is not shifting into Overdrive when cold.
  • Page 262 The NV233/243 transfer case provides four mode posi- tions: • Two-wheel drive high range (2WD) • Four-wheel drive lock range (4WD LOCK) • Four-wheel drive low range (4WD LOW) • Neutral (N) The NV233/243 transfer case is designed to be driven in the two-wheel drive position (2WD) for normal street and highway conditions on dry hard-surfaced roads.
  • Page 263 262 STARTING AND OPERATING If one or more shift requirements are not met: 1. An indicator light will flash. 2. The transfer case will not shift. NOTE: Before retrying a selection, make certain that all the necessary requirements for selecting a new transfer case position have been met.
  • Page 264 When operating your vehicle in 4WD LOW, the engine speed is approximately three times that of the 2WD or 4WD LOCK positions at a given road speed. Take care not to overspeed the engine and do not exceed 25 mph (40 km/h).

  • Page 265: Shifting Procedure - Nv233/243 Transfer Case

    264 STARTING AND OPERATING Rear-Wheel Drive High — This range is used for normal street and highway driving on dry, hard-surfaced roads. 4WD LOCK Four-Wheel Drive Lock — This range locks the front and rear driveshafts together forcing the front and rear wheels to rotate at the same speed.
  • Page 266 2WD-to-4WD LOCK or 4WD LOCK-to-2WD Turn the transfer case switch to the desired position. Shifts between 2WD and 4WD LOCK can be done with the vehicle stopped, or in motion. With the vehicle in motion, the transfer case will engage/disengage faster if you momentarily release the accelerator pedal after turn- ing the transfer case switch.

  • Page 267: Limited-Slip Rear Axle Differential - If

    266 STARTING AND OPERATING Alternate Procedure 1. Bring the vehicle to complete stop. 2. With the key ON and the engine either OFF or running, shift the transmission into NEUTRAL. 3. Turn the transfer case switch to the desired position. 4.

  • Page 268: Driving On Slippery Surfaces

    WARNING! On vehicles equipped with a limited-slip differen- tial, never run the engine with one rear wheel off the ground. The vehicle may drive through the rear wheel remaining on the ground and cause you to lose control of the vehicle. Care should be taken to avoid sudden accelerations when both rear wheels are on a slippery surface.

  • Page 269: Traction

    268 STARTING AND OPERATING Traction When driving on wet or slushy roads, it is possible for a wedge of water to build up between the tire and road surface. This is known as hydroplaning and may cause partial or complete loss of vehicle control and stopping ability.

  • Page 270: Shallow Standing Water

    Shallow Standing Water Although your vehicle is capable of driving through shallow standing water, consider the following Caution and Warning before doing so. CAUTION! • Always check the depth of the standing water before driving through it. Never drive through standing water that is deeper than the bottom of the tire rims mounted on the vehicle.

  • Page 271: Off-Road Driving Tips

    270 STARTING AND OPERATING WARNING! • Driving through standing water limits your vehi- cle’s traction capabilities. Do not exceed 5 mph (8 km/h) when driving through standing water. • Driving through standing water limits your vehi- cle’s braking capabilities, which increases stop- ping distances.

  • Page 272: After Driving Off-Road

    After Driving Off-Road Off-road operation puts more stress on your vehicle than does most on-road driving. After going off-road, it is always a good idea to check for damage. That way you can get any problems taken care of right away and have your vehicle ready when you need it.

  • Page 273: Power Steering

    272 STARTING AND OPERATING • If you experience unusual vibration after driving in mud, slush or similar conditions, check the wheels for impacted material. Impacted material can cause a wheel imbalance and freeing the wheels of it will correct the situation. POWER STEERING The standard power steering system will give you good vehicle response and increased ease of maneuverability...

  • Page 274: Power Steering Fluid Check

    CAUTION! Prolonged operation of the steering system at the end of the steering wheel travel will increase the steering fluid temperature and it should be avoided when possible. Damage to the power steering pump may occur. Power Steering Fluid Check Checking the power steering fluid level at a defined service interval is not required.

  • Page 275: Parking Brake

    274 STARTING AND OPERATING If necessary, add fluid to restore to the proper indicated level. With a clean cloth, wipe any spilled fluid from all surfaces. Refer to “Fluids, Lubricants, and Genuine Parts” in “Maintaining Your Vehicle” for further information. PARKING BRAKE Before leaving the vehicle, make sure that the parking brake is fully applied and place the shift lever in the...
  • Page 276 When parking on a hill, it is important to turn the front wheels toward the curb on a downhill grade and away from the curb on an uphill grade. Apply the parking brake before placing the shift lever in PARK, otherwise the load on the transmission locking mechanism may make it difficult to move the shift lever out of PARK.

  • Page 277: Brake System

    276 STARTING AND OPERATING CAUTION! If the “Brake Warning Light” remains on with the parking brake released, a brake system malfunction is indicated. Have the brake system serviced by an authorized dealer immediately. BRAKE SYSTEM In the event power assist is lost for any reason (for example, repeated brake applications with the engine off), the brakes will still function.
  • Page 278 WARNING! Pumping of the Anti-Lock Brakes will diminish their effectiveness and may lead to a collision. Pumping makes the stopping distance longer. Just press firmly on your brake pedal when you need to slow down or stop. WARNING! • The Anti-Lock Brake System (ABS) cannot prevent the natural laws of physics from acting on the vehicle, nor can it increase braking or steering efficiency beyond that afforded by the condition...

  • Page 279: Tire Safety Information

    278 STARTING AND OPERATING TIRE SAFETY INFORMATION Tire Markings 1 — U.S. DOT Safety Stan- 4 — Maximum Load dards Code (TIN) 2 — Size Designation 5 — Maximum Pressure 3 — Service Description 6 — Treadwear, Traction and Temperature Grades NOTE: •...

  • Page 280: Starting And Operating 279

    Tires designed to this standard have the letter “T” molded into the sidewall preceding the size designa- tion. Example: T145/80D18 103M. Tire Sizing Chart Size Designation: P = Passenger car tire size based on U.S. design standards ...blank... = Passenger car tire based on European design standards LT = Light truck tire based on U.S.
  • Page 281 280 STARTING AND OPERATING Service Description: 95 = Load Index — A numerical code associated with the maximum load a tire can carry H = Speed Symbol — A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions —...

  • Page 282: Tire Identification Number (Tin)

    Tire Identification Number (TIN) The TIN may be found on one or both sides of the tire, however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including the date code, located on the white sidewall side of the tire. DOT = Department of Transportation —...

  • Page 283: Tire Terminology And Definitions

    282 STARTING AND OPERATING Tire Terminology and Definitions Term B-Pillar Cold Tire Pressure Maximum Inflation Pressure Recommended Inflation Pressure Tire Placard Definition The vehicle B-Pillar is a structural member of the body located between the front and rear door (of a four-door vehicle) running from the sill to the roof.

  • Page 284: Tire Loading And Tire Pressure

    Tire Loading and Tire Pressure Tire Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar. Tire Placard Location STARTING AND OPERATING 283 Tire and Loading Information Placard Tire and Loading Information Placard This placard tells you important information about the: 1) number of people that can be carried in the vehicle 2) total weight your vehicle can carry 3) tire size designed for your vehicle...
  • Page 285 284 STARTING AND OPERATING Loading The vehicle maximum load on the tire must not exceed the load carrying capacity of the tire on your vehicle. You will not exceed the tire’s load carrying capacity if you adhere to the loading conditions, tire size, and cold tire inflation pressures specified on the Tire and Loading Information placard and in the “Vehicle Loading”...
  • Page 286 4. The resulting figure equals the available amount of cargo and luggage load capacity. For example, if “XXX” amount equals 1,400 lbs (635 kg) and there will be five 150 lb (68 kg) passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (295 kg) (since 5 x 150 = 750, and 1400 –...
  • Page 287 286 STARTING AND OPERATING...

  • Page 288: Tires - General Information

    WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recommended load capacity for your vehicle. Never overload them. TIRES — GENERAL INFORMATION Tire Pressure Proper tire inflation pressure is essential to the safe and satisfactory operation of your vehicle.

  • Page 289: Tire Inflation Pressures

    288 STARTING AND OPERATING WARNING! (Continued) • Unequal tire pressures from one side of the ve- hicle to the other can cause the vehicle to drift to the right or left. • Always drive with each tire inflated to the recom- mended cold tire inflation pressure.

  • Page 290: Tire Pressures For High Speed Operation

    Inflation pressures specified on the placard are always “cold tire inflation pressure.” Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been driven for at least three hours or driven less than 1 mile (1.6 km) after a three hour period. The cold tire inflation pressure must not exceed the maximum infla- tion pressure molded into the tire sidewall.

  • Page 291: Radial Ply Tires

    290 STARTING AND OPERATING WARNING! High speed driving with your vehicle under maxi- mum load is dangerous. The added strain on your tires could cause them to fail. You could have a serious collision. Do not drive a vehicle loaded to the maximum capacity at continuous speeds above 75 mph (120 km/h).

  • Page 292: Tread Wear Indicators

    WARNING! Fast spinning tires can be dangerous. Forces gener- ated by excessive wheel speeds may cause tire dam- age or failure. A tire could explode and injure some- one. Do not spin your vehicle’s wheels faster than 30 mph (48 km/h) or for more than 30 seconds continuously when you are stuck, and do not let anyone near a spinning wheel, no matter what the speed.

  • Page 293: Life Of Tire

    292 STARTING AND OPERATING Life of Tire The service life of a tire is dependent upon varying factors including, but not limited to: • Driving style • Tire pressure • Distance driven WARNING! Tires and the spare tire should be replaced after six years, regardless of the remaining tread.
  • Page 294 WARNING! • Do not use a tire, wheel size or rating other than that specified for your vehicle. Some combinations of unapproved tires and wheels may change sus- pension dimensions and performance characteris- tics, resulting in changes to steering, handling, and braking of your vehicle.

  • Page 295: Tire Chains

    294 STARTING AND OPERATING TIRE CHAINS CAUTION! • The use of chains is permitted only on vehicles equipped with P245/70R16 tires. • Use only “Class S” chains or other traction aids that meet SAE Type “S” specifications. • Tire chain use is permitted only on the rear tires. •...

  • Page 296: Snow Tires

    CAUTION! (Continued) • Drive cautiously and avoid severe turns and large bumps, especially with a loaded vehicle. • Do not install tire chains on front wheels of vehicles. • Do not drive for a prolonged period on dry pave- ment. •...

  • Page 297: Tire Rotation Recommendations

    296 STARTING AND OPERATING If you need snow tires, select tires equivalent in size and type to the original equipment tires. Use snow tires only in sets of four; failure to do so may adversely affect the safety and handling of your vehicle. Snow tires generally have lower speed ratings than what was originally equipped with your vehicle and should not be operated at sustained speeds over 75 mph...

  • Page 298: Tire Pressure Monitor System (Tpms)

    The suggested rotation method is the “forward cross” shown in the following diagram. This rotation pattern does not apply to some directional tires that must not be reversed. Tire Rotation STARTING AND OPERATING 297 TIRE PRESSURE MONITOR SYSTEM (TPMS) The Tire Pressure Monitoring System (TPMS) will warn the driver of a low tire pressure based on the vehicle recommended cold placard pressure (the placard is lo- cated on the driver’s side B-pillar).
  • Page 299 298 STARTING AND OPERATING TPMS will warn the driver of a low tire pressure if the tire pressure falls below the low pressure warning threshold for any reason, including low temperature effects, or natural pressure loss through the tire. The TPM System will continue to warn the driver of low tire pressure as long as the condition exists, and will not turn off until the tire pressure is at or above recom- mended cold placard pressure.
  • Page 300 CAUTION! • The TPMS has been optimized for the original equipment tires and wheels. TPMS pressures have been established for the tire size equipped on your vehicle. Undesirable system operation or sensor damage may result when using replacement equipment that is not of the same size, type, and/or style.

  • Page 301: Base System

    300 STARTING AND OPERATING • Seasonal temperature changes will affect tire pressure, and the TPMS will monitor the actual tire pressure in the tire. Base System The Tire Pressure Monitor System (TPMS) uses wireless technology with wheel rim mounted electronic sensors to monitor tire pressure levels.
  • Page 302 the fault condition no longer exists. A system fault can occur by any of the following scenarios: 1) Jamming due to electronic devices or driving next to facilities emitting the same radio frequencies as the TPM sensors; 2) Install- ing some form of aftermarket window tinting that affects radio wave signals;...

  • Page 303: General Information

    302 STARTING AND OPERATING General Information This device complies with part 15 of the FCC rules and RSS 210 of Industry Canada. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation.

  • Page 304: Reformulated Gasoline

    Over 40 auto manufacturers worldwide, have issued and endorsed consistent gasoline specifications (the World- wide Fuel Charter, WWFC), which define fuel properties necessary to deliver enhanced emissions, performance, and durability for your vehicle. The manufacturer recom- mends the use of gasoline that meets the WWFC speci- fications, if they are available.

  • Page 305: E-85 Usage In Non-Flex Fuel Vehicles

    304 STARTING AND OPERATING E-85 Usage In Non-Flex Fuel Vehicles Non-FFV vehicles are compatible with gasoline contain- ing 10% ethanol (E10). Gasoline with higher ethanol content may void the vehicle’s warranty. If a Non-FFV vehicle is inadvertently fueled with E-85 fuel, the engine will have some or all of these symptoms: •...

  • Page 306: Materials Added To Fuel

    be used at levels higher than those allowed in the United States. MMT is prohibited in Federal and California reformulated gasoline. Materials Added To Fuel All gasolines sold in the United States are required to contain effective detergent additives. Use of additional detergents or other additives is not needed under normal conditions and would result in unnecessary cost.

  • Page 307: Carbon Monoxide Warnings

    306 STARTING AND OPERATING CAUTION! (Continued) • The use of fuel additives which are now being sold as octane enhancers is not recommended. Many of these products contain high concentra- tions of methanol. Fuel system damage or vehicle performance problems resulting from the use of such fuels or additives is not the responsibility of the manufacturer.

  • Page 308: Flexible Fuel (4.7L Engine Only) - If Equipped

    WARNING! (Continued) • Guard against carbon monoxide with proper maintenance. Have the exhaust system inspected every time the vehicle is raised. Have any abnor- mal conditions repaired promptly. Until repaired, drive with all side windows fully open. FLEXIBLE FUEL (4.7L ENGINE ONLY) — IF EQUIPPED E85 General Information The information in this section is for Flexible Fuel ve-...

  • Page 309: Ethanol Fuel (E85)

    308 STARTING AND OPERATING E85 Badge Ethanol Fuel (E85) E85 is a mixture of approximately 85% fuel ethanol and 15% unleaded gasoline. WARNING! Ethanol vapors are extremely flammable and could cause serious personal injury. Never have any smok- ing materials lit in or near the vehicle when remov- ing the fuel filler tube cap (gas cap) or filling the tank.

  • Page 310: Selection Of Engine Oil For Flexible Fuel Vehicles (E85) And Gasoline Vehicles

    When you do switch fuel types it is recommended that: • you do not switch when the fuel gauge indicates less than 1/4 full • you do not add less than 5 gallons (19 Liters) when refueling • you operate the vehicle immediately after refueling for a period of at least 5 minutes Observing these precautions will avoid possible hard starting and/or significant deterioration in driveability...

  • Page 311: Starting

    310 STARTING AND OPERATING Starting The characteristics of E85 fuel make it unsuitable for use when ambient temperatures fall below 0°F (-18°C). In the range of 0°F (-18°C) to 32°F (0°C), you may experience an increase in the time it takes for your engine to start, and a deterioration in driveability (sags and/or hesitations) until the engine is fully warmed up.

  • Page 312: Adding Fuel

    ADDING FUEL Fuel Filler Cap (Gas Cap) The gas cap is located behind the fuel filler door. When fueling, the cap may be placed on the inside of the filler door. Gas Cap Holder STARTING AND OPERATING 311 If the gas cap is lost or damaged, be sure the replacement cap is for use with this vehicle.

  • Page 313: Loose Fuel Filler Cap Message

    312 STARTING AND OPERATING WARNING! (Continued) • Never add fuel to the vehicle when the engine is running. This is in violation of most state and federal regulations and may cause the “Malfunc- tion Indicator Light (MIL)” to turn on. •...

  • Page 314: Vehicle Loading

    VEHICLE LOADING Certification Label As required by National Highway Traffic Safety Admin- istration Regulations, your vehicle has a certification label affixed to the driver’s side door. Certification Label STARTING AND OPERATING 313 This label contains the month and year of manufacture, Gross Vehicle Weight Rating (GVWR), Gross Axle Weight Rating (GAWR) front and rear, and Vehicle Identification Number (VIN).

  • Page 315: Curb Weight

    314 STARTING AND OPERATING Gross Axle Weight Rating (GAWR) The GAWR is the maximum permissible load on the front and rear axles. The load must be distributed in the cargo area so that the GAWR of each axle is not exceeded. Each axle GAWR is determined by the component in the system with the lowest load carrying capacity (axle, springs, tires, or wheels).

  • Page 316: Trailer Towing

    should then be determined separately to be sure that the load is properly distributed over front and rear axle. Weighing the vehicle may show that the GAWR of either the front or rear axles has been exceeded but the total load is within the specified GVWR.

  • Page 317: Common Towing Definitions

    316 STARTING AND OPERATING Common Towing Definitions The following trailer towing related definitions will assist you in understanding the following information: Gross Vehicle Weight Rating (GVWR) The GVWR is the total allowable weight of your vehicle. This includes driver, passengers, cargo and tongue weight.
  • Page 318 WARNING! It is important that you do not exceed the maximum front or rear GAWR. A dangerous driving condition can result if either rating is exceeded. You could lose control of the vehicle and have a collision. Trailer Tongue Weight (TW) The tongue weight is the downward force exerted on the hitch ball by the trailer is the tongue weight.
  • Page 319 318 STARTING AND OPERATING equalizing) hitch are recommended for heavier tongue weights and may be required depending on vehicle and trailer configuration/loading to comply with Gross Axle Weight Rating (GAWR) requirements. WARNING! • An improperly adjusted weight-distributing hitch may reduce handling, stability, and braking per- formance, and could result in a collision.
  • Page 320 STARTING AND OPERATING 319 EXAMPLE — With Weight-Distributing Hitch (Correct) EXAMPLE — Improper Adjustment of Weight- Distributing Hitch (Incorrect)

  • Page 321: Trailer Hitch Classification

    320 STARTING AND OPERATING Trailer Hitch Classification The rear bumper is intended to tow trailers up to 2,000 lbs (907 kg) without added equipment or alter- ations to the standard equipment. Your vehicle may be factory equipped for safe towing of trailers weighing over 2,000 lbs (907 kg) with the optional Trailer Tow Prep Package.

  • Page 322: Trailer Towing Weights (Maximum Trailer Weight Ratings)

    • http:// www.dodge.com/bodybuilder • http:// www.dodge.ca (Canada) Trailer and Tongue Weight Always load a trailer with 60% to 65% of the weight in the front of the trailer. This places 10% to 15% of the Gross Trailer Weight (GTW) on the tow hitch of your vehicle.

  • Page 323: Towing Requirements

    322 STARTING AND OPERATING NOTE: Remember that everything put into or on the trailer adds to the load on your vehicle. Also, additional factory-installed options, or dealer-installed options, must be considered as part of the total load on your vehicle. Refer to “Tire Safety Information/Tire and Load- ing Information Placard”...
  • Page 324 WARNING! Improper towing can lead to a collision. Follow these guidelines to make your trailer towing as safe as possible: • Make certain that the load is secured in the trailer and will not shift during travel. When trailering cargo that is not fully secured, dynamic load shifts can occur that may be difficult for the driver to control.
  • Page 325 324 STARTING AND OPERATING WARNING! (Continued) 2. GTW 3. GAWR 4. Tongue weight rating for the trailer hitch utilized (This requirement may limit the ability to always achieve the 10% to 15% range of tongue weight as a percentage of total trailer weight.) Towing Requirements –...
  • Page 326 − An electronically actuated trailer brake controller is required when towing a trailer with electronically actuated brakes. When towing a trailer equipped with a hydraulic surge actuated brake system, an electronic brake controller is not required. − Trailer brakes are recommended for trailers over 1,000 lbs (454 kg) and required for trailers in excess of 2,000 lbs (907 kg).
  • Page 327 326 STARTING AND OPERATING The Trailer Tow Package may include a four and seven- pin wiring harness. Use a factory approved trailer har- ness and connector. NOTE: Do not cut or splice wiring into the vehicle’s wiring harness. The electrical connections are all complete to the vehicle but you must mate the harness to a trailer connector.

  • Page 328: Towing Tips

    Seven-Pin Connector 1 — Battery 5 — Ground 2 — Backup Lamps 6 — Left Stop/Turn 3 — Right Stop/Turn 7 — Running Lamps 4 — Electric Brakes STARTING AND OPERATING 327 Towing Tips Before setting out on a trip, practice turning, stopping and backing the trailer in an area away from heavy traffic.

  • Page 329: Snowplow

    328 STARTING AND OPERATING NOTE: Check the automatic transmission fluid level before towing. Tow/Haul – If Equipped To reduce potential for automatic transmission overheat- ing, turn the TOW/HAUL feature ON when driving in hilly areas or shift the transmission to Drive position 2 on more severe grades.

  • Page 330: Recreational Towing (Behind Motorhome, Etc.)

    WARNING! Do not add a snow plow, winches, or any other aftermarket equipment to the front of your vehicle. This could adversely affect the functioning of the airbag system in a collision and you could be injured. RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Two-Wheel Drive Models Recreational towing of two-wheel drive models is not...
  • Page 331 330 STARTING AND OPERATING Recreational Towing Procedure WARNING! You or others could be injured if you leave the vehicle unattended with the transfer case in the NEUTRAL position without first fully engaging the parking brake. The transfer case NEUTRAL position disengages both the front and rear driveshafts from the powertrain and will allow the vehicle to move, even if the transmission is in PARK.
  • Page 332 NEUTRAL Button 7. After the shift is completed and the NEUTRAL light comes on, release the NEUTRAL button. 8. Start the engine. 9. Shift the transmission into REVERSE. STARTING AND OPERATING 331 10. Release the brake pedal for five seconds and ensure that there is no vehicle movement.
  • Page 333 332 STARTING AND OPERATING longer met during the four second timer, then the NEUTRAL indicator light will flash continuously until all requirements are met or until the NEUTRAL button is released. • The ignition key must be ON for a shift to take place and for the position indicator lights to be operable.
  • Page 334 8. After the NEUTRAL indicator light turns off, release the NEUTRAL button. 9. After the NEUTRAL button has been released, the transfer case will shift into the position identified by the transfer case switch. 10. Start the engine. Shift the transmission into DRIVE to verify that the transfer case has engaged.
  • Page 336 WHAT TO DO IN EMERGENCIES CONTENTS Hazard Warning Flasher ....336 Jacking And Tire Changing ....337 Jack Location .

  • Page 337: Hazard Warning Flasher

    336 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHER The Hazard Warning flasher switch is located on the top of the steering column, just behind the steering wheel. Hazard Warning Flasher Switch Press the switch to turn on the Hazard Warning flasher.

  • Page 338: What To Do In Emergencies 337

    WHAT TO DO IN EMERGENCIES 337 JACKING AND TIRE CHANGING Jack Location In this vehicle, the scissor jack and tire changing tools for Extended Cab models are stowed in a compartment under the rear passenger seat. Crew Cab model scissor jack and tire changing tools are accessed by lifting up the rear passenger seat.
  • Page 339 338 WHAT TO DO IN EMERGENCIES Jack Screw Jack Stowage Location (Crew Cab)

  • Page 340: Removing The Spare Tire

    WARNING! The jack is designed as a tool for changing tires only. The jack should not be used to lift the vehicle for service purposes, unless suitable supports are placed under the vehicle as a safety measure. The vehicle should be jacked on a firm level surface only. Avoid icy or slippery areas.
  • Page 341 340 WHAT TO DO IN EMERGENCIES • Rotate clockwise to stow the spare tire. Turning Lug Wrench and Extension Inserting Lug Wrench and Extension...

  • Page 342: Tire Changing Procedure

    It is recommended that you stow the flat or spare to avoid tangling the loose cable. Spare Tire Stowage Location NOTE: The winch mechanism is designed for use with the jack extension tube only. Use of an air wrench or other power tools is not recommended and can damage the winch.
  • Page 343 342 WHAT TO DO IN EMERGENCIES WARNING! Do not attempt to change a tire on the side of the vehicle close to moving traffic. Pull far enough off the road to avoid the danger of being hit when operating the jack or changing the wheel. 2.

  • Page 344: Instructions

    Instructions WARNING! Carefully follow these tire changing warnings to help prevent personal injury or damage to your vehicle: • Always park on a firm, level surface as far from the edge of the roadway as possible before raising the vehicle. •...
  • Page 345 344 WHAT TO DO IN EMERGENCIES 1. Lower and remove the spare wheel, jack, and tools from stowage. 2. Using the wheel wrench, loosen, but do not remove, the wheel nuts by turning them counterclockwise one turn while the wheel is still on the ground. 3.
  • Page 346 4. When changing a rear wheel, assemble the jack drive tube to the jack and connect the drive tube to the extension tube. Place the jack under the axle in the positions shown with the drive tubes extending to the rear.
  • Page 347 346 WHAT TO DO IN EMERGENCIES WARNING! Raising the vehicle higher than necessary can make the vehicle unstable and cause a collision. It could slip off the jack and hurt someone near it. Raise the vehicle only enough to remove the tire. 6.

  • Page 348: To Stow The Flat Or Spare

    WARNING! Carefully follow these tire changing warnings to help prevent personal injury or damage to your vehicle: • Always park on a firm, level surface as far from the edge of the roadway as possible before raising the vehicle. • Block the wheel diagonally opposite the wheel to be raised.

  • Page 349: Jump-Starting Procedures

    348 WHAT TO DO IN EMERGENCIES NOTE: To Stow the Flat or Spare: Wheel retainer does not fit through the center of the aluminum wheel. The tire must be stored in a safe manner in the bed of the truck. JUMP-STARTING PROCEDURES If your vehicle has a discharged battery it can be jump- started using a set of jumper cables and a battery in...

  • Page 350: Preparations For Jump-Start

    Preparations for Jump-Start The battery in your vehicle is located in the front of the engine compartment, behind the left headlight assembly. Positive Battery Post WHAT TO DO IN EMERGENCIES 349 WARNING! • Take care to avoid the radiator cooling fan when- ever the hood is raised.

  • Page 351: Jump-Starting Procedure

    350 WHAT TO DO IN EMERGENCIES 3. If using another vehicle to jump-start the battery, park the vehicle within the jumper cables reach, set the parking brake and make sure the ignition is OFF. WARNING! Do not allow vehicles to touch each other as this could establish a ground connection and personal injury could result.
  • Page 352 WARNING! Do not connect the cable to the negative post (-) of the discharged battery. The resulting electrical spark could cause the battery to explode and could result in personal injury. 5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then start the engine in the vehicle with the discharged battery.

  • Page 353: Freeing A Stuck Vehicle

    352 WHAT TO DO IN EMERGENCIES FREEING A STUCK VEHICLE If vehicle becomes stuck in snow, sand, or mud, it can often be moved by a rocking motion. Move the shift lever rhythmically between FIRST and REVERSE, while apply- ing slight pressure to the accelerator. CAUTION! Racing the engine or spinning the wheels may lead to transmission overheating and failure.

  • Page 354: Emergency Tow Hooks - If Equipped

    CAUTION! Revving the engine or spinning the wheels too fast may lead to transaxle overheating and failure. It can also damage the tires. Do not spin the wheels above 30 mph (48 km/h). Do not spin the wheels continu- ously for more than 30 seconds. EMERGENCY TOW HOOKS —...

  • Page 355: Towing A Disabled Vehicle

    354 WHAT TO DO IN EMERGENCIES WARNING! • Chains are not recommended for freeing a stuck vehicle. Chains may break, causing serious injury or death. • Stand clear of vehicles when pulling with tow hooks. Tow straps and chains may break, causing serious injury.

  • Page 356: Two-Wheel Drive Vehicles

    Two-Wheel Drive Vehicles Provided that the transmission is operable, tow with the transmission in NEUTRAL and the ignition key in the OFF position, along with the front wheels raised and the rear wheels on the ground. The speed must not exceed 30 mph (50 km/h), and the distance must not exceed 15 miles (25 km).
  • Page 358 MAINTAINING YOUR VEHICLE CONTENTS Engine Compartment — 3.7L ... . . 359 Engine Compartment — 4.7L ... . . 360 Onboard Diagnostic System —...
  • Page 359 358 MAINTAINING YOUR VEHICLE Cooling System ..... 375 Brake System ..... . . 380 Automatic Transmission .

  • Page 360: Engine Compartment - 3.7L

    ENGINE COMPARTMENT — 3.7L 1 — Air Cleaner Filter 2 — Automatic Transmission Dipstick 3 — Engine Oil Dipstick 4 — Brake Fluid Reservoir 5 — Power Distribution Center 6 — Battery MAINTAINING YOUR VEHICLE 359 7 — Power Steering Fluid Reservoir 8 —...

  • Page 361: Engine Compartment - 4.7L

    360 MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT — 4.7L 1 — Air Cleaner Filter 2 — Automatic Transmission Dipstick 3 — Engine Oil Dipstick 4 — Brake Fluid Reservoir 5 — Power Distribution Center 6 — Battery 7 — Engine Oil Fill 8 —...

  • Page 362: Maintaining Your Vehicle 361

    ONBOARD DIAGNOSTIC SYSTEM — OBD II Your vehicle is equipped with a sophisticated onboard diagnostic system called OBD II. This system monitors the performance of the emissions, engine, and automatic transmission control systems. When these systems are operating properly, your vehicle will provide excellent performance and fuel economy, as well as engine emis- sions well within current government regulations.

  • Page 363: Emissions Inspection And Maintenance Programs

    362 MAINTAINING YOUR VEHICLE the message will appear the next time the vehicle is started. This might indicate a damaged cap. If the prob- lem is detected twice in a row, the system will turn on the MIL. Resolving the problem will turn the MIL off. EMISSIONS INSPECTION AND MAINTENANCE PROGRAMS In some localities, it may be a legal requirement to pass...

  • Page 364: Replacement Parts

    4. Approximately 15 seconds later, one of two things will happen: a. The MIL will flash for about 10 seconds and then return to being fully illuminated until you turn OFF the ignition or start the engine. This means that your vehicle’s OBD II system is not ready and you should not proceed to the I/M station.

  • Page 365: Maintenance Procedures

    364 MAINTAINING YOUR VEHICLE your vehicle. Refer to these Service Manuals before attempting any procedure yourself. NOTE: Intentional tampering with emissions control systems may void your warranty and could result in civil penalties being assessed against you. WARNING! You can be badly injured working on or around a motor vehicle.

  • Page 366: Engine Oil

    CAUTION! (Continued) • Your vehicle has been built with improved fluids that protect the performance and durability of your vehicle and also allow extended maintenance intervals. Do not use chemical flushes in these components as the chemicals can damage your engine, transmission, power steering or air condi- tioning.
  • Page 367 366 MAINTAINING YOUR VEHICLE NOTE: Under no circumstances should oil change intervals exceed 8,000 miles (13 000 km) or six months, whichever occurs first. Engine Oil Selection For best performance and maximum protection under all types of operating conditions, the manufacturer only recommends engine oils that are API certified and meet the requirements of Chrysler Material Standard MS-6395.

  • Page 368: Engine Oil Filter

    Synthetic Engine Oils You may use synthetic engine oils, provided the recom- mended oil quality requirements are met, and the recom- mended maintenance intervals for oil and filter changes are followed. Materials Added to Engine Oils The manufacturer strongly recommends against the ad- dition of any additives (other than leak detection dyes) to the engine oil.

  • Page 369: Maintenance-Free Battery

    368 MAINTAINING YOUR VEHICLE WARNING! The air induction system (air cleaner, hoses, etc) can provide a measure of protection in the case of engine backfire. Do not remove the air induction system (air cleaner, hoses, etc.) unless such removal is necessary for repair or maintenance.
  • Page 370 WARNING! (Continued) • Battery gas is flammable and explosive. Keep flame or sparks away from the battery. Do not use a booster battery or any other booster source with an output greater than 12 Volts. Do not allow cable clamps to touch each other. •...

  • Page 371: Air Conditioner Maintenance

    370 MAINTAINING YOUR VEHICLE Air Conditioner Maintenance For best possible performance, your air conditioner should be checked and serviced by an authorized dealer at the start of each warm season. This service should include cleaning of the condenser fins and a performance test.

  • Page 372: Body Lubrication

    Refrigerant Recovery and Recycling R-134a air conditioning refrigerant is a hydrofluoro- carbon (HFC) that is endorsed by the Environmental Protection Agency (EPA), and is an ozone-saving prod- uct. However, the manufacturer recommends that air conditioning service be performed by authorized dealers or other service facilities using recovery and recycling equipment.

  • Page 373: Adding Washer Fluid

    372 MAINTAINING YOUR VEHICLE Avoid using the wiper blades to remove frost or ice from the windshield. Keep the blade rubber out of contact with petroleum products such as engine oil, gasoline, etc. NOTE: Life expectancy of wiper blades varies depend- ing on geographical area and frequency of use.
  • Page 374 have an authorized technician inspect the complete ex- haust system and adjacent body areas for broken, dam- aged, deteriorated, or mispositioned parts. Open seams or loose connections could permit exhaust fumes to seep into the passenger compartment. In addition, inspect the exhaust system each time the vehicle is raised for lubri- cation or oil change.
  • Page 375 374 MAINTAINING YOUR VEHICLE CAUTION! (Continued) • Damage to the catalytic converter can result if your vehicle is not kept in proper operating condition. In the event of engine malfunction, particularly involving engine misfire or other apparent loss of performance, have your vehicle serviced promptly. Continued operation of your vehicle with a severe malfunction could cause the converter to overheat, resulting in possible damage to the converter and...

  • Page 376: Maintaining Your Vehicle Cooling System

    • Do not idle the engine with any spark plug wires disconnected or removed, such as when diagnostic testing, or for prolonged periods during very rough idle or malfunctioning operating conditions. Cooling System WARNING! You or others can be badly burned by hot engine coolant (antifreeze) or steam from your radiator.
  • Page 377 376 MAINTAINING YOUR VEHICLE Cooling System – Drain, Flush, and Refill If the engine coolant (antifreeze) is dirty or contains a considerable amount of sediment, clean and flush with a reliable cooling system cleaner. Follow with a thorough rinsing to remove all deposits and chemicals. Properly dispose of the old engine coolant (antifreeze) solution.
  • Page 378 CAUTION! (Continued) • This vehicle has not been designed for use with Propylene Glycol-based engine coolant (anti- freeze). Use of Propylene Glycol-based engine coolant (antifreeze) is not recommended. Adding Coolant Your vehicle has been built with an improved engine coolant (antifreeze) that allows extended maintenance intervals.
  • Page 379 378 MAINTAINING YOUR VEHICLE NOTE: Mixing engine coolant (antifreeze) types will decrease the life of the engine coolant (antifreeze) and will require more frequent coolant changes. Cooling System Pressure Cap The cap must be fully tightened to prevent the loss of engine coolant (antifreeze), and to ensure that the engine coolant (antifreeze) will return to the radiator from the coolant recovery bottle.
  • Page 380 Disposal of Used Engine Coolant Used ethylene glycol-based engine coolant (antifreeze) is a regulated substance, requiring proper disposal. Check with your local authorities to determine the disposal rules for your community. To prevent ingestion by ani- mals or children do not store ethylene glycol-based engine coolant (antifreeze) in open containers or allow it to remain in puddles on the ground.

  • Page 381: Brake System

    380 MAINTAINING YOUR VEHICLE If an examination of your engine compartment shows no evidence of radiator or hose leaks, the vehicle may be safely driven. The vapor will soon dissipate. • Do not overfill the coolant recovery bottle. • Check the coolant freeze point in the radiator and in the coolant recovery bottle.
  • Page 382 the brake master cylinder. Be sure to clean the top of the master cylinder area before removing the cap. With disc brakes, the fluid level can be expected to fall as the brake pads wear. Brake fluid level should be checked when pads are replaced.

  • Page 383: Automatic Transmission

    382 MAINTAINING YOUR VEHICLE WARNING! (Continued) • To avoid contamination from foreign matter or moisture, use only new brake fluid or fluid that has been in a tightly closed container. Keep the master cylinder reservoir cap secured at all times. Brake fluid in a open container absorbs moisture from the air resulting in a lower boiling point.
  • Page 384 Special Additives Automatic Transmission Fluid (ATF) is an engineered product and its performance may be impaired by supple- mental additives. Therefore, do not add any fluid addi- tives to the transmission. The only exception to this policy is the use of special dyes to aid in detecting fluid leaks.
  • Page 385 384 MAINTAINING YOUR VEHICLE 6. Remove the dipstick again and note the fluid level on both sides. The fluid level should be between the “HOT” (upper) reference holes on the dipstick at normal operat- ing temperature. Verify that solid coating of oil is seen on both sides of the dipstick.

  • Page 386: Transfer Case

    CAUTION! • Do not use chemical flushes in your transmission as the chemicals can damage your transmission components. Such damage is not covered by the New Vehicle Limited Warranty. • Using a transmission fluid other than the manu- facturer’s recommended fluid may cause deterio- ration in transmission shift quality and/or torque converter shudder.

  • Page 387: Front/Rear Axle Fluid

    386 MAINTAINING YOUR VEHICLE Front/Rear Axle Fluid For normal service, periodic fluid level checks are not required. When the vehicle is serviced for other reasons the exterior surfaces of the axle assembly should be inspected. If gear oil leakage is suspected inspect the fluid level.
  • Page 388 passable in snow and ice, and those that are sprayed on trees and road surfaces during other seasons, are highly corrosive to the metal in your vehicle. Outside parking, which exposes your vehicle to airborne contaminants, road surfaces on which the vehicle is operated, extreme hot or cold weather and other extreme conditions will have an adverse affect on paint, metal trim, and under- body protection.
  • Page 389 388 MAINTAINING YOUR VEHICLE • Avoid using abrasive compounds and power buffing that may diminish the gloss or thin out the paint finish. CAUTION! • Do not use abrasive or strong cleaning materials such as steel wool or scouring powder, which will scratch metal and painted surfaces.
  • Page 390 Wheel and Wheel Trim Care All wheels and wheel trim, especially aluminum and chrome-plated wheels, should be cleaned regularly with a mild soap and water to prevent corrosion. To remove heavy soil, use MOPAR Wheel Cleaner or equivalent, or select a nonabrasive, non-acidic cleaner. Do not use scouring pads, steel wool, a bristle brush or metal pol- ishes.
  • Page 391 390 MAINTAINING YOUR VEHICLE if absolutely necessary. Do not use harsh cleaners or Armor All . Use MOPAR Total Clean or equivalent to clean vinyl upholstery. Use MOPAR Vinyl Cleaner or equivalent to clean vinyl upholstery and trim. Leather Seat Care and Cleaning MOPAR Total Clean or equivalent is specifically recom- mended for leather upholstery.

  • Page 392: Fuses

    When cleaning the rearview mirror, spray cleaner on the towel or rag that you are using. Do not spray cleaner directly on the mirror. Cleaning Plastic Instrument Cluster Lenses The lenses in front of the instruments in this vehicle are molded in clear plastic.

  • Page 393: Underhood Fuses (Power Distribution Center)

    392 MAINTAINING YOUR VEHICLE Underhood Fuses (Power Distribution Center) Your vehicle is equipped with an electrical power distri- bution center located on the left side of the engine compartment. Power Distribution Center This center contains cartridge fuses, mini fuses and relays.
  • Page 394 Cartridge Mini- Cavity Fuse Fuse 10 Amp Powertrain Control Module/Fuel/ RAD/AC Coils 10 Amp Instrument Cluster/ Mirror/4x4 Spare 2 Amp Run/Start Ignition Gray Switch 10 Amp AC Clutch 15 Amp Trailer Tow Lt Stop/ Blue Turn 15 Amp Trailer Tow Rt Stop/ Blue Turn 20 Amp...
  • Page 395 394 MAINTAINING YOUR VEHICLE Cartridge Mini- Cavity Fuse Fuse 20 Amp Yellow 20 Amp Yellow 20 Amp Yellow 15 Amp Blue 20 Amp Yellow 10 Amp 20 Amp Yellow 20 Amp Yellow Description Cavity Power Outlet (Switch- able) Fog Lamps Powertrain Control Module B+ Instrument Cluster...
  • Page 396 Cartridge Mini- Cavity Fuse Fuse 30 Amp Starter Solenoid Pink 40 Amp Ignition Run Feeds Green 30 Amp Wiper Motor Pink 25 Amp Body Control Module Natural 5 (T-Case) 10 Amp Lt Park Lamps 10 Amp Rt Park Lamps 20 Amp Trailer Tow Park Yellow Lamps...

  • Page 397: Vehicle Storage

    396 MAINTAINING YOUR VEHICLE Cartridge Mini- Cavity Fuse Fuse 20 Amp Yellow 20 Amp Yellow 10 Amp 10 Amp 20 Amp Yellow VEHICLE STORAGE If you are storing your vehicle for more than 21 days, we recommend that you take the following steps to mini- mize the drain on your vehicle’s battery: •...

  • Page 398: Bulb Replacement

    LIGHT BULBS – Exterior Headlamp ......H13 Front Park/Turn/Side Marker ... . 3157NA Back-Up .
  • Page 399 398 MAINTAINING YOUR VEHICLE 5. Twist 1/4-turn and remove headlamp bulb from hous- ing and replace. NOTE: The headlamp bulb is a halogen bulb. Take care not to touch the bulb with your fingers. Body oils from your fingers could cause excessive heat buildup which reduces bulb life.

  • Page 400: Rear Side Marker, Taillamps/Stop Lamps, And Turn Signal Bulbs

    MAINTAINING YOUR VEHICLE 399 Rear Side Marker, Taillamps/Stop Lamps, And 2. Pull the taillamp housing straight out from the body. Turn Signal Bulbs 1. Remove the two screws that pass through the bed sheet metal.
  • Page 401 400 MAINTAINING YOUR VEHICLE 3. Rotate the bulb socket counterclockwise to remove it 4. Pull bulb straight out of socket. from the housing.

  • Page 402: Center High-Mounted Stop Lamp And Cargo Lamp

    5. Reverse this procedure to install bulb and housing. Place the two raised blocks past the body. MAINTAINING YOUR VEHICLE 401 Center High-Mounted Stop Lamp And Cargo Lamp 1. Remove the two screws holding the housing/lens to the body, as shown.
  • Page 403 402 MAINTAINING YOUR VEHICLE 2. Remove housing from the cab. 3. Remove connector from housing tab for more clear- ance.
  • Page 404 4. Turn desired bulb socket 1/4-turn and remove socket and bulb from housing. MAINTAINING YOUR VEHICLE 403 5. Pull desired bulb straight from the socket. • Outside Bulbs: Cargo Lamps • Inside Bulb: Center High Mounted Stop Lamp 6. Reverse this procedure for installation of bulbs and housing.

  • Page 405: License Lamps

    404 MAINTAINING YOUR VEHICLE License Lamps 2. Rotate the socket 1/4-turn counterclockwise. 1. Using a screwdriver, pry black rubber housing from the bumper.

  • Page 406: Fog Lamps

    3. Pull bulb from socket. 4. Reverse this procedure for installation. MAINTAINING YOUR VEHICLE 405 Fog Lamps 1. Disconnect connector from the fog lamp by raising the wire harness lock tab and pulling on wire harness connector. 2. Rotate the bulb 1/4-turn counterclockwise and pull to remove from the fog lamp housing.

  • Page 407: Fluid Capacities

    406 MAINTAINING YOUR VEHICLE FLUID CAPACITIES Fuel (Approximate) Engine Oil with Filter 3.7L Engine (SAE 5W-20, API Certified) 4.7L Engine (SAE 5W-20, API Certified) Cooling System (Includes 2.1 Quarts/2 Liters for Coolant Bottle) 3.7L Engine (MOPAR Antifreeze/Coolant 5 Year/100,000 Mile Formula or equivalent) 4.7L Engine (MOPAR Antifreeze/Coolant 5 Year/100,000 Mile Formula or equivalent) U.S.

  • Page 408: Fluids, Lubricants And Genuine Parts

    FLUIDS, LUBRICANTS AND GENUINE PARTS Engine Component Engine Coolant Engine Oil Engine Oil Filter Spark Plugs – 3.7L Engine Spark Plugs – 4.7L Engine Fuel Selection Fluid, Lubricant, or Genuine Part MOPAR Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy- brid Organic Additive Technology) or equivalent. Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395.

  • Page 409: Chassis

    408 MAINTAINING YOUR VEHICLE Chassis Component Automatic Transmission Transfer Case Front Axle Rear Axle Brake Master Cylinder Power Steering Reservoir Fluid, Lubricant, or Genuine Part MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product. MOPAR ATF+4 Automatic Transmission Fluid or equivalent licensed ATF+4 product.

  • Page 410: Maintenance Schedules

    MAINTENANCE SCHEDULES CONTENTS Emissions Control System Maintenance ..410 Maintenance Schedule ....410 Required Maintenance Intervals ..412...
  • Page 411 410 MAINTENANCE SCHEDULES EMISSIONS CONTROL SYSTEM MAINTENANCE The Scheduled Maintenance services listed in bold type must be done at the times or mileages specified to ensure the continued proper functioning of the emissions control system. These and all other maintenance services in- cluded in this manual, should be done to provide best vehicle performance and reliability.
  • Page 412 • Change your engine oil more often if you drive your vehicle off-road for an extended period of time. • Under no circumstances should oil change intervals exceed 8,000 miles (13 000 km) or six months, which- ever comes first. Your authorized dealer will reset the oil change indicator message after completing the scheduled oil change.
  • Page 413 412 MAINTENANCE SCHEDULES • Check all lights and other electrical items for correct operation. At Each Oil Change • Change the engine oil filter. • Inspect the brake hoses and lines. CAUTION! Failure to perform the required maintenance items may result in damage to the vehicle. Required Maintenance Intervals NOTE: ** Vehicles built with the 4.7L engine are...
  • Page 414 8,000 Miles (13,000 km) or 6 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 8,000 miles (13 000 km). Odometer Reading Date Repair Order #...

  • Page 415: Service Schedule

    414 MAINTENANCE SCHEDULES 24,000 Miles (39,000 km) or 18 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 24,000 miles (39 000 km). ❏...
  • Page 416 40,000 Miles (65,000 km) or 30 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 40,000 miles (65 000 km). Odometer Reading Date Repair Order #...
  • Page 417 416 MAINTENANCE SCHEDULES 56,000 Miles (91,000 km) or 42 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 56,000 miles (91 000 km). Odometer Reading Repair Order # Dealer Code...
  • Page 418 72,000 Miles (117,000 km) or 54 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 72,000 miles (117 000 km). ❏...
  • Page 419 418 MAINTENANCE SCHEDULES 88,000 Miles (143,000 km) or 66 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 88,000 miles (143 000 km). Odometer Reading Repair Order # Dealer Code...
  • Page 420 96,000 Miles (156,000 km) or 72 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 96,000 miles (156 000 km). ❏...
  • Page 421 420 MAINTENANCE SCHEDULES 104,000 Miles (169,000 km) or 78 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 104,000 miles (169 000 km). ❏...
  • Page 422 120,000 Miles (195,000 km) or 90 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 120,000 miles (195 000 km). ❏...
  • Page 423 422 MAINTENANCE SCHEDULES 128,000 Miles (208,000 km) or 96 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 128,000 miles (208 000 km). ❏...
  • Page 424 144,000 Miles (234,000 km) or 108 Months Maintenance Service Schedule ❏ Change the engine oil and engine oil filter. ❏ Rotate the tires, rotate at the first sign of irregular wear, even if it occurs before 144,000 miles (234 000 km). ❏...
  • Page 425 424 MAINTENANCE SCHEDULES † This maintenance is recommended by the manufacturer to the owner, but is not required to maintain emissions warranty. WARNING! • You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment.
  • Page 426 IF YOU NEED CONSUMER ASSISTANCE CONTENTS Suggestions For Obtaining Service For Your Vehicle ......427 Prepare For The Appointment .
  • Page 427 426 IF YOU NEED CONSUMER ASSISTANCE Publication Order Forms ....431 Department Of Transportation Uniform Tire Quality Grades ......433 Treadwear .

  • Page 428: Suggestions For Obtaining Service For Your Vehicle

    SUGGESTIONS FOR OBTAINING SERVICE FOR YOUR VEHICLE Prepare For The Appointment If you’re having warranty work done, be sure to have the right papers with you. Take your warranty folder. All work to be performed may not be covered by the warranty.

  • Page 429: 428 If You Need Consumer Assistance

    428 IF YOU NEED CONSUMER ASSISTANCE This is why you should always talk to an authorized dealer’s service manager first. Most matters can be re- solved with this process. • If for some reason you are still not satisfied, talk to the general manager or owner of the authorized dealer- ship.

  • Page 430: Customer Assistance For The Hearing Or Speech Impaired (Tdd/Tty)

    Customer Assistance For The Hearing Or Speech Impaired (TDD/TTY) To assist customers who have hearing difficulties, the manufacturer has installed special TDD (Telecommuni- cation Devices for the Deaf) equipment at its customer center. Any hearing or speech impaired customer, who has access to a TDD or a conventional teletypewriter (TTY) in the United States, can communicate with the manufacturer by dialing 1–800–380–CHRY.

  • Page 431: Warranty Information

    430 IF YOU NEED CONSUMER ASSISTANCE We appreciate that you have made a major investment when you purchased the vehicle. An authorized dealer has also made a major investment in facilities, tools, and training to assure that you are absolutely delighted with the ownership experience.

  • Page 432: In Canada

    If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your authorized dealer, and the manufacturer.
  • Page 433 432 IF YOU NEED CONSUMER ASSISTANCE LLC vehicles. A complete working knowledge of the vehicle, system, and/or components is written in straightforward language with illustrations, diagrams, and charts. • Diagnostic Procedure Manuals Diagnostic Procedure Manuals are filled with dia- grams, charts and detailed illustrations. These practi- cal manuals make it easy for students and technicians to find and fix problems on computer-controlled ve- hicle systems and features.

  • Page 434: Traction Grades

    DEPARTMENT OF TRANSPORTATION UNIFORM TIRE QUALITY GRADES The following tire grading categories were established by the National Highway Traffic Safety Administration. The specific grade rating assigned by the tire’s manufacturer in each category is shown on the sidewall of the tires on your vehicle.
  • Page 435 434 IF YOU NEED CONSUMER ASSISTANCE Temperature Grades The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat, when tested under controlled conditions on a specified indoor laboratory test wheel.

  • Page 436: Index

    INDEX...
  • Page 437 436 INDEX Adding Engine Coolant (Antifreeze) ..377 Adding Fuel ......311 Air Cleaner, Engine (Engine Air Cleaner Filter) .
  • Page 438 Gear Ranges ......255 Special Additives ..... . 383 Torque Converter .
  • Page 439 438 INDEX Changing A Flat Tire ..... 337 Chart, Tire Sizing ......279 Check Engine Light (Malfunction Indicator Light) .
  • Page 440 Customer Assistance ..... 427 Data Recorder, Event ..... . 61 Daytime Running Lights .
  • Page 441 440 INDEX Coolant (Antifreeze) ....407 Exhaust Gas Caution ....76,306 Flooded, Starting .
  • Page 442 Fluid, Brake ......408 Fluid Capacities ......406 Fluid Leaks .
  • Page 443 442 INDEX Tachometer ......182 Gear Ranges ......255 General Information .
  • Page 444 Instrument Panel and Controls ....177 Instrument Panel Lens Cleaning ... . . 391 Interior Appearance Care ....389 Interior Lights .
  • Page 445 444 INDEX Exterior ......79 Fog ......136,185,405 Hazard Warning Flasher .
  • Page 446 Maintenance Procedures ....364 Maintenance Schedule ....410 Malfunction Indicator Light (Check Engine) .
  • Page 447 446 INDEX Synthetic ......367 Viscosity ......366,406 Onboard Diagnostic System .
  • Page 448 Radial Ply Tires ......290 Radiator Cap (Coolant Pressure Cap) ..375,378 Radio Operation .
  • Page 449 448 INDEX Satellite Radio Antenna ....209,234 Schedule, Maintenance ....410 Seat Belt Maintenance .
  • Page 450 Signals, Turn ....79,138,179,399 Snow Chains (Tire Chains) ....294 Snow Plow .
  • Page 451 450 INDEX Aging (Life of Tires) ....292 Air Pressure ......287 Chains .
  • Page 452 Minimum Requirements ....322 Trailer and Tongue Weight ....321 Wiring .
  • Page 453 452 INDEX Warning Lights (Instrument Cluster Description) ... . . 179 Warnings and Cautions ..... 6 Warranty Information .
  • Page 454 Chrysler Group LLC 11ND33-126-AB First Edition Printed in U.S.A.

Table of Contents
