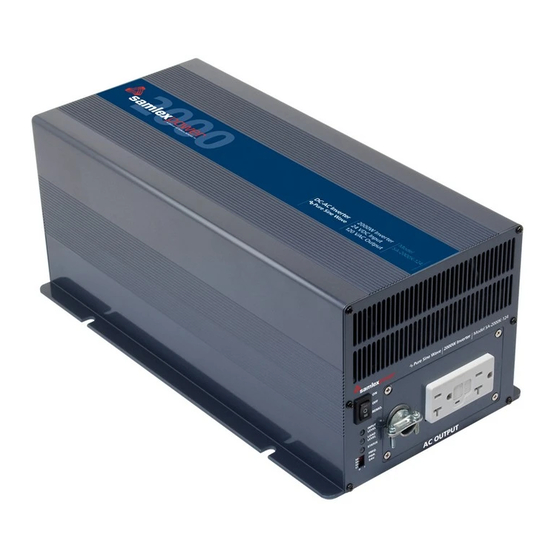

- Page 1 SA-2000K Series Pure Sine Wave Inverter User’s Manual www.samlexpower.com...
-
Page 2: Table Of Contents
Battery Precautions………………………..………………………….. 2. Features………………………………………………………………………... Application………………………………………………………………. Electrical Performance………………………………………………… Mechanical Drawings………………………………………………….. 3. Introduction…………………………………………………………………… Front Panel operation….……………………………………………... Rear Panel operation.………………………………………………… 9~10 Protection Features…………………………………………………… Installation………………………………………………………………. Making DC Wiring Connections ……………………………………... 12~14 AC Safety Grounding………………………………………………….. Inverter Operation……………………………………………………… 4. Troubleshooting guide……………………………………………………… 5. Maintenance…………………………………………………………………… 6. Warranty……………………………………………………………………….. www.samlexpower.com... -
Page 3: Important Safety Information
1-2-4. Remove personal metal items such as rings, bracelets, necklaces, and watches when operating with a lead-acid batteries. Doing so may cause short circuit and very high temperature, which can melt metal items and even burn you. www.samlexpower.com... -
Page 4: Features
2-1-4. Kitchen appliances – coffee makers, blenders, ice markers, toasters, etc. 2-1-5. Industrial equipment – metal halide lamp, high – pressure sodium lamp, etc. 2-1-6. Home entertainment electronics – television, VCRs, video games, stereos, musical instruments, satellite equipment, etc. www.samlexpower.com... -
Page 5: Electrical Performance
2-2. Electrical Performance Model No. Specification Item SA-2000K-112 SA-2000K-124 Continuous Output Power 2000W Maximum Output Power 2200W Surge Rating (Max) 4000W Input voltage 100 / 110 / 120V +/- 5% Output Voltage Frequency 50 / 60Hz +/- 0.05% (Switch Selectable) Output Waveform Pure Sine Wave ( THD <... -
Page 6: Mechanical Drawings
2-3. Mechanical Drawings 177.00 [6.97] PURE SINE WAVE INVERTER REMO. INPUT LEVEL LOAD LEVEL STATUS FREQ. PWR. SAV. AC OUTPUT 209.00 [8.23] www.samlexpower.com... -
Page 7: Introduction
AC OUTPUT SA-2000K 3-1-2. ON / OFF/ REMOTE (Main) switch Before installing the inverter, you need to ensure the main switch must be “OFF”. Before using the remote unit, you need to ensure the main switch must be “REMOTE”. www.samlexpower.com... - Page 8 Green LED LED Signal Status Solid Power OK Slow Blink Power Saving Red LED LED Signal Status Fast Blink Over Voltage Protection (OVP) Slow Blink Under Voltage Protection (UVP) Intermittent Blink Over Temperature Protection (OTP) Solid Over Load Protection (OLP) www.samlexpower.com...
- Page 9 Dip Switches, S1, S2 and S3 on the front panel. Example: With the watt setting at 15W, a 15W↑ load will make the inverter operate normally, a 15W↓ load will enter into the Power saving mode. SA-2000K DISABLE 125W 170W 210W 245W 280W www.samlexpower.com...
- Page 10 NEMA5-20 receptacles is provided as a standard supply. Other types have to be ordered specifically. North American Ground fault North American Circuit Interrupter (GFCI) with NEMA5-20R duplex NEMA5-20R receptacles North American Continental European NEMA5-15R Australia / New Zealand United Kingdom Universal IEC-1 HARD WIRE IEC-2 www.samlexpower.com...
-
Page 11: Rear Panel Operation
“REMOTE” position and the input voltage of the power inverter is the same as it of the remote unit. 3-2-2. Fan Ventilation Ensure there is a clearance of at least 1 inch from the fan openings. 3-2-3. DC Input Terminal www.samlexpower.com... -
Page 12: Protection Features
Over Voltage Under INTERIOR HEAT SINK Model Voltage Voltage Shut- Shut- Shut- Shut- Alarm Restart Restart Restart Restart down down down down 12 V 15.3V 14.3V 11.0V 10.2V 12.7V 70℃ 45℃ 90℃ 60℃ 24 V 30.6V 28.8V 22.0V 20.3V 25.2V www.samlexpower.com... -
Page 13: Installation
Shock Hazard. Before proceeding further, carefully check that the Inverter is NOT connected to any batteries, and that all wiring is disconnected from any electrical sources. Do not connect the output terminals of the Inverter to an incoming AC source. www.samlexpower.com... -
Page 14: Making Dc Wiring Connections
Increasing DC cable size helps improve the situation. SAMLEX AMERICA INC. recommends the following cables for optimum inverter performance. Model No Wire AWG Inline Fuse SA-2000K-112 # 2/0 250 A SA-2000K-124 # 1/0 125 A 3-5-1. - Page 15 Also, use only high quality copper wire and keep cable length short, a maximum of 3 - 6 feet. Battery to inverter cable connection AWG#2 - #6 Do not place anything between battery cable lug and terminal surface. Assemble exactly as shown. www.samlexpower.com...
- Page 16 DO NOT OPEN. NO USER SERVICEABLE PARTS INSIDE. M8 NUT SPRING WASHER WASHER INLINE FUSE RING TERMINAL PVC WIRE PLASTIC COVER PLASTIC COVER BATTERY (RED) (BLACK) Do not place anything between battery cable lug and terminal surface. Assemble exactly as shown. www.samlexpower.com...
-
Page 17: Ac Safety Grounding
UL standards requires us to test and recommend specific GFCI. Samlex America Inc. has tested the following GFCI – protected 20A receptacles and found that they functioned properly when connected to the output of the Inverter. www.samlexpower.com... -
Page 18: Inverter Operation
3-7-3. Set the power inverter switch to ON position and turn the test load On. The inverter should supply power to the load. If you plan to accurately measure the true output r.m.s. voltage of the inverter, a meter such as FLUKE 45 BECKMAN 4410 or TRIPLETT 4200 must be used. www.samlexpower.com... -
Page 19: Troubleshooting Guide
Protection (OTP) has • Make sure ventilation activated openings in the inverter are not obstructed. • Lower ambient temperature. d. Solid ON Over Load Protection • Check AC wiring for short (OLP) has activated circuit. • Reduce the load. www.samlexpower.com... -
Page 20: Maintenance
Please note that Samlex America Inc. is only responsible for ensuring our products are operational before delivering. This warranty will be considered void if the unit has been misused, altered, or accidentally damaged. Samlex America Inc. is not liable for anything that occurs as a result of the user’s fault. www.samlexpower.com... - Page 21 Samlex America Inc. 110-17 Fawcett Road, Coquitlam, BC, V3K 6V2 Canada Toll free phone: 1-800-561-5885 Toll free fax: 1-888-814-5210 General Inquiries: samlex@samlexamerica.com WWW: http://www.samlexamerica.com SA-2000K_Manual_Jan2010 www.samlexpower.com...
