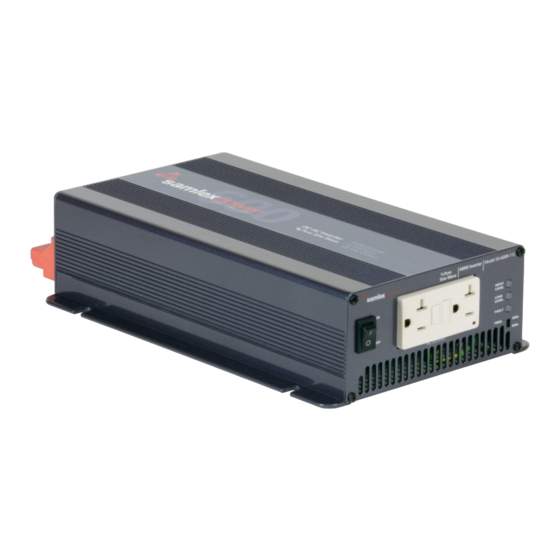

Samlexpower SA-600R Series User Manual

Pure sine wave inverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SA-600R Series
Pure Sine Wave Inverter
User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-600R Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samlexpower SA-600R Series

Summary of Contents for Samlexpower SA-600R Series

  • Page 1 SA-600R Series Pure Sine Wave Inverter User’s Manual...

  • Page 2: Table Of Contents

    Table of contents 1. Important Safety Information.……………………………………………… General Safety Precautions…………………………………………… Batteries Precautions………………………………………………….. 2. Features………………………………………………………………………... Applications.……………………………………………………………. Electrical Performance………………………………………………… Mechanical Drawings………………………………………………….. 3. Instructions………………………………………………….………………… Front Panel Operation..………………………………………………... Rear Panel Operation..………………………………………………… Installation………………………………………………………………. Quick hook – up and Testing.………………………………………... 10~11 AC Safety Grounding………………………………………………….. 12~13 DC Wiring Connections…………………….…………………………. 13~14 Inverter Operation………………………………………………………...

  • Page 3: Important Safety Information

    1. Important Safety Information WARNING! Before installing and using the Inverter, you need to read following safety information carefully. 1-1. General Safety Precautions 1-1-1. Do not expose the Inverter to water, mist, snow, or dust. To reduce the risk of hazard, do not cover or obstruct the ventilation shaft. Do not install the Inverter in a zero-clearance compartment.

  • Page 4: Features

    2. Features Pure sine wave output (THD < 3%) Output frequency：50 / 60Hz switch selections Input & output fully isolated design High efficiency 88~94% Driving highly reactive & capacitive load at start moment Tri-Color indicators show input voltage & output load level Loading controlled cooling fan Advanced microprocessor Protection：Input low voltage...

  • Page 5: Electrical Performance

    2-2. Electrical Performance Model No. Specification Item SA-600R-112 SA-600R-124 Continuous Output Power 600W Maximum Output Power (3Min.) 680W Surge Rating 800W Input voltage 100 / 110 / 120V +/- 3% Output Voltage Frequency 50 / 60Hz +/- 0.05% (Switch Selections) Efficiency (full load) 87.0% 90.0%...

  • Page 6: Mechanical Drawings

    2-3. Mechanical Drawing...

  • Page 7: Instructions

    3. Instructions This power inverter series is one of the most advanced line of mobile AC power systems. To get the most effective power inverter, it must be installed and used properly. Please read the instructions of this manual before you install and operate this model.
  • Page 8 3-1-4. Load Level：Display AC Load Watts LED Status Load Condition Dark 0 ~ 30W Green 30W ~ 200W Orange 200W ~ 450W 450W ~ 580W Red Blink Over 580W 3-1-5. Failure：Display failure status OVP：over voltage protection UVP：under voltage protection OTP：over temperature protection OLP：over load protection 3-1-6.

  • Page 9: Rear Panel Operation

    3-2. Rear Panel Operation DC INPUT WARNING : REVERSE POLARITY WILL DAMAGE UNIT NEG(-) POS(+) CHASSIS GROUND DC INPUT WARNING : REVERSE POLARITY WILL DAMAGE UNIT REMOTE PORT NEG(-) POS(+) CHASSIS GROUND 3-2-1. Remote ON / OFF switch for SA-600R model only 3-2-1-1.
  • Page 10 3-2-2. Ventilation Shaft Be sure to keep it a distance (at least 1 inch) form surrounding things. 3-2-3. Input terminals Connect the input terminal to 12V / 24V battery or other 12V / 24V power source. 【＋】represents positive, and【－】represents negative. Reverse polarity connection will blow the internal fuse and may damage the inverter permanently.

  • Page 11: Installation

    3-3. Installation The power inverter should be installed in an environment that meets the following requirements 3-3-1. Dry – Do not allow water to drip on or enter into the inverter. 3-3-2. Cool – Ambient air temperature should be between 0℃ and 33℃, the cooler the better.

  • Page 12: Quick Hook - Up And Testing

    3-4. Quick hook – up and testing For a quick hook – up of the power inverter to check its performance before going ahead with installation, please follow these guidelines 3-4-1. To check its performance, unpack and inspect the power inverter the switch is OFF.
  • Page 13 3-4-3. Before proceeding further, carefully check that cable you have connected does tie negative terminal of inverter to the negative output power source. CAUTION ! Reverse polarity connection will blow the fuse in inverter and may permanently damage the inverter. Damage caused by reverse polarity connection is not covered by warranty.

  • Page 14: Ac Safety Grounding

    3-5. AC Safety Grounding During the AC wiring installation, AC input and output ground wires are connected to the inverter. The AC input ground wire must be connected to the incoming ground from AC utility source. The AC output ground wire should go to the grounding point for your loads (for example, a distribution panel ground bus ).

  • Page 15: Dc Wiring Connections

    UL standards requires us to test and recommend specific GFCI. Samlex has tested the following GFCI – protected 20A receptacles and found that they functioned properly when connected to the output of the Inverter. WARNING! Do not operate the power inverter without connecting it to ground.
  • Page 16 Increasing DC cable size helps improve the situation. Samlex recommends the following cables for optimum inverter performance. Model No Wire AWG Inline Fuse SA-600R-112 100A SA-600R-124 Also, use only high quality copper wiring and keep cable length short, (a maximum of 3-6 feet).

  • Page 17: Inverter Operation

    3-7. Inverter Operation To operate the power inverter, use the ON / OFF switch on the Front panel to turn the power on. Then the power inverter is ready to deliver AC power to the loads. If you are operating several loads from the power inverter, turn them on separately after the inverter is on.

  • Page 18: Troubleshooting

    4. Troubleshooting WARNING! Do not open or disassemble the SA-600 Inverter. Attempting to service the unit yourself may cause an electrical shock or fire. Problems and Symptoms Possible Cause Solutions Low output voltage Using average reading Use true RMS reading meter and cable.

  • Page 19: Maintenance

    24 months from the date of purchase and will repair or replace any defective power inverters if you directly returned them to us with postage paid. Please note that Samlex is only responsible for ensuring our products are operational before delivering. This warranty will be considered void if the unit has been misused, altered, or accidentally damaged.
  • Page 20 Samlex America Inc. 110-17 Fawcett Road, Coquitlam, BC, V3K 6V2 Canada Toll free phone: 1-800-561-5885 Toll free fax: 1-888-814-5210 General Inquiries: samlex@samlexamerica.com WWW: http://www.samlexamerica.com SA-600R_Manual_Mar2010...

This manual is also suitable for:

Sa-600r-112Sa-600r-124
