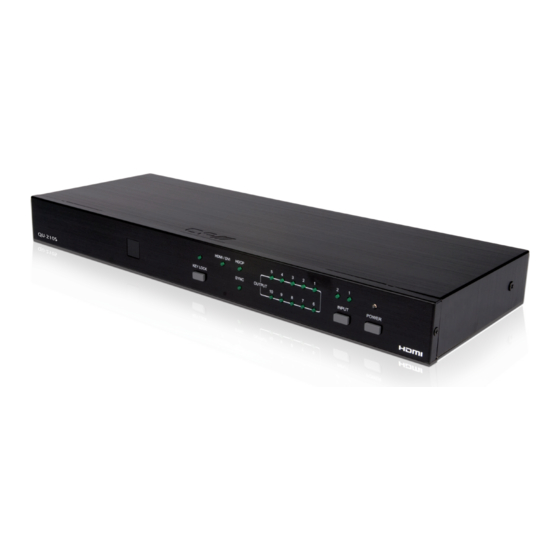

- Page 1 QU-210S v1.3 HDMI 2 to 10 Rack Mountable Distribution Amplifier OPERATION MANUAL...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Operation Controls and Functions Front Panel Diagram Connection Diagram Specifications... -
Page 3: Introduction
1. Introduction The QU-210S Distribution Amplifier (splitter) accepts two HDMI inputs and splits either of these switchable inputs to ten identical outputs. This device is compatible to v1.3 HDMI specifications, supporting ‘Deep Colour’ together with High Definition Audio. Each buffered output can run 1080p/8-bit up to 20 metres and can also be cascaded up to 3 layers. -
Page 4: Operation Controls And Functions
3. Operation Controls and Functions 3.1 Front Panel HDMI / DVI HDCP KEY LOCK SYNC OUTPUT INPUT POWER QU-210S 1. Remote Control Sensor. 2. Key Lock: Press and hold the ‘Key Lock’ button for 5 seconds. The system will enter Key Lock mode and the LED indicator will illuminate. When the system is in Key Lock Mode, all functionality of the buttons will be disabled. -
Page 5: Rear Panel
3.2 Rear Panel RS-232 HDMI OUT DC 5V HDMI IN EDID STD TV 1. EDID Control Switch: Default setting is TV (downstream). In this mode the QU-210S will search all output ports (starting at output 1) for the highest video/audio settings connected to each of the outputs. The detection priority of the matrix is v1.3 HDMI, v1.2 HDMI, DVI. -
Page 6: Remote Control Power
4. Remote Control POWER 1. Power: Press the button to turn the unit ON or OFF. 2. Input Select for HDMI: Press ‘1’ to select HDMI Input 1, or Press ‘2’ to select HDMI Input 2. CR-37 5. RS-232 Protocol 5.1 Pin Definitions The connection between the Splitter and Remote Controller with RS-232 Cable. - Page 7 5.2 Commands COMMAND ACTION Power 00 Power OFF (Standby) Power 01 Power ON Port 01 Select Input 1 Port 02 Select Input 2 Page 5...
-
Page 8: Connection Diagram
4. Connection Diagram Page 6... -
Page 9: Specifications
5. Specifications Input 2 x HDMI Output 10 x HDMI Power Supply 5V/6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 435(W) x 160(D) x 45(H) Gross Weight (g) 2120 Net. Weight (g) 1760 Chassis Material Aluminium Colour Black Operating Temperature Operating from 0°C ~ 40°C Page 7... - Page 10 www.cypeurope.com...
