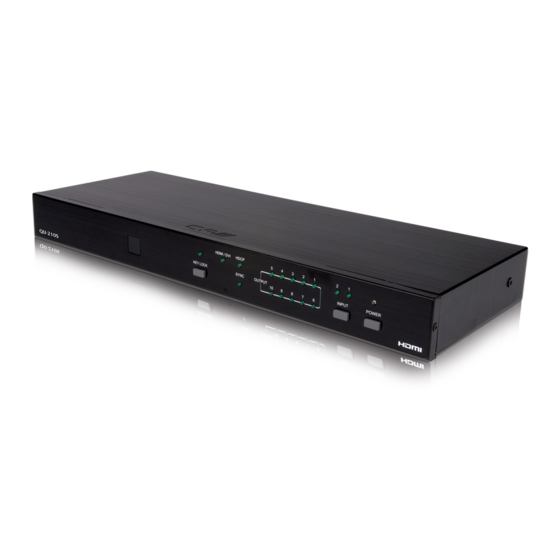

- Page 1 QU-210S v1.3 HDMI 2 to 10 Rack Mountable Distribution Amplifier OPERATION MANUAL...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Operation Controls and Functions Front Panel Diagram Connection Diagram Specifications... -
Page 3: Introduction
1. Introduction The QU-210S HDMI Distribution Amplifier has a Two HDMI inputs and 10 HDMI outputs. The Silicon Image chipset based splitter is compatible with both Deep Colour and High Definition Audio, with EDID selection. It boasts an extended HDMI output range of up to 20 metres. -
Page 4: Operation Controls And Functions
SYNC OUTPUT INPUT POWER QU-210S 1. Remote Control Sensor. 2. Key Lock: Press and hold the ‘Key Lock’ button for 5 seconds. The system will enter Key Lock mode and the LED indicator will illuminate. When the system is in Key Lock Mode, all functionality of the buttons will be disabled. -
Page 5: Rear Panel
STD TV 1. EDID Control Switch: Default setting is TV (downstream). In this mode the QU-210S will search all output ports (starting at output 1) for the highest video/audio settings connected to each of the outputs. The detection priority of the matrix is v1.3 HDMI, v1.2 HDMI, DVI. Switch to STD (fixed EDID) if you have any issues with the default setting (TV). -
Page 6: Remote Control Power
4. Remote Control POWER 1. Power: Press the button to turn the unit ON or OFF. 2. Input Select for HDMI: Press ‘1’ to select HDMI Input 1, or Press ‘2’ to select HDMI Input 2. CR-37 5. RS-232 Protocol 5.1 Pin Definitions The connection between the Splitter and Remote Controller with RS-232 Cable. - Page 7 5.2 Commands COMMAND ACTION Power 00 Power OFF (Standby) Power 01 Power ON Port 01 Select Input 1 Port 02 Select Input 2 Page 5...
-
Page 8: Connection Diagram
4. Connection Diagram Page 6... -
Page 9: Specifications
5. Specifications Input 2 x HDMI Output 10 x HDMI Power Supply 5V/6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 435(W) x 160(D) x 45(H) Gross Weight (g) 2120 Net. Weight (g) 1760 Chassis Material Aluminium Colour Black Operating Temperature Operating from 0°C ~ 40°C Page 7... - Page 10 www.cypeurope.com...
