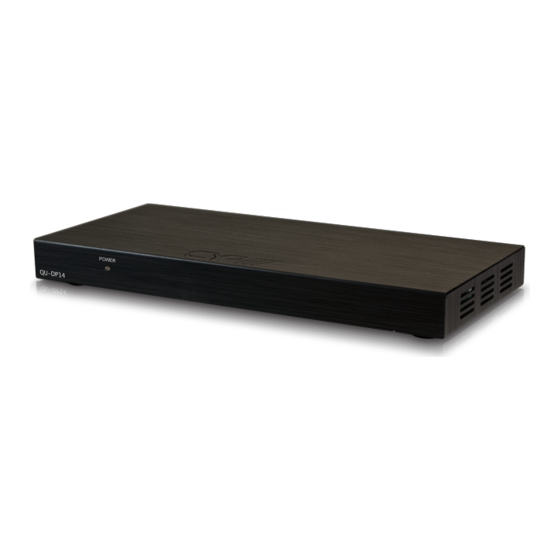

- Page 1 QU-DP14 1 to 4 DisplayPort Distribution Amplifier OPERATION MANUAL...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 7. Hardware Description ..............3 7.1 Front Panel ..............3 7.2 Rear Panel ..............3 8. EDID Support Format ..............4 9. Connection and Installation . -
Page 5: Introduction
1. Introduction The DisplayPort (DP) 1 by 4 splitter allows single DP source to be display on four DP input monitors simultaneously. It supports video resolution up to 2560 x 1600 and audio up to PCM 7.1 switch provides a fast switch between source and display and save EDID’s reading sink time to allow image display proper- ly. -
Page 6: Specifications
6. Specifications Frequency Bandwidth 10.8Gbps (4lanes at 2.7Gbps) Audio Sampling Rate 192kHz Input port 1 x Displayport Output ports 4 x DisplayPort Power Supply 5V / 3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ±... -
Page 7: Hardware Description
7. Hardware Description The following sections describe the hardware components of the unit. 7.1 Front Panel ① Power LED: The LED will illuminate in green when power on and in red ① when in reset mode. 7.2 Rear panel ① ② ③... -
Page 8: Edid Support Format
8. STD Mode EDID Support Format Video Support ● 720p ● 2560x1440 ● Audio Support PCM 2CH 48K ● PCM 2CH 44.1K ● PCM 2CH 32K ●... -
Page 9: Connection And Installation
9. Connection and Installation... -
Page 10: Acronyms
Acronyms Acronym Complete Term EDID Extended Display identification Data DisplayPort... - Page 12 www.cypeurope.com...
