1.1 Overview
Welcome to use this amplifier with aluminum alloy case by Sure Electronics. This
product features streamlined frame design, beautiful shape, portable carrying and
durable using.
This product supports dual-channel audio amplification with each channel 100W power
amplifier output and high fidelity sound output. And in order to ensure perfect sound
output, we use high-quality rotary encoder and the volume control chip for volume
control. It can ensure the precise adjustment and perfect volume output even after long
time use. It has built-in MCU control with over / under voltage, over current protection,
and LED indication during working.
Powered by supply from DC 24V, this amplifier can drive 4Ω or 8Ω passive speakers.

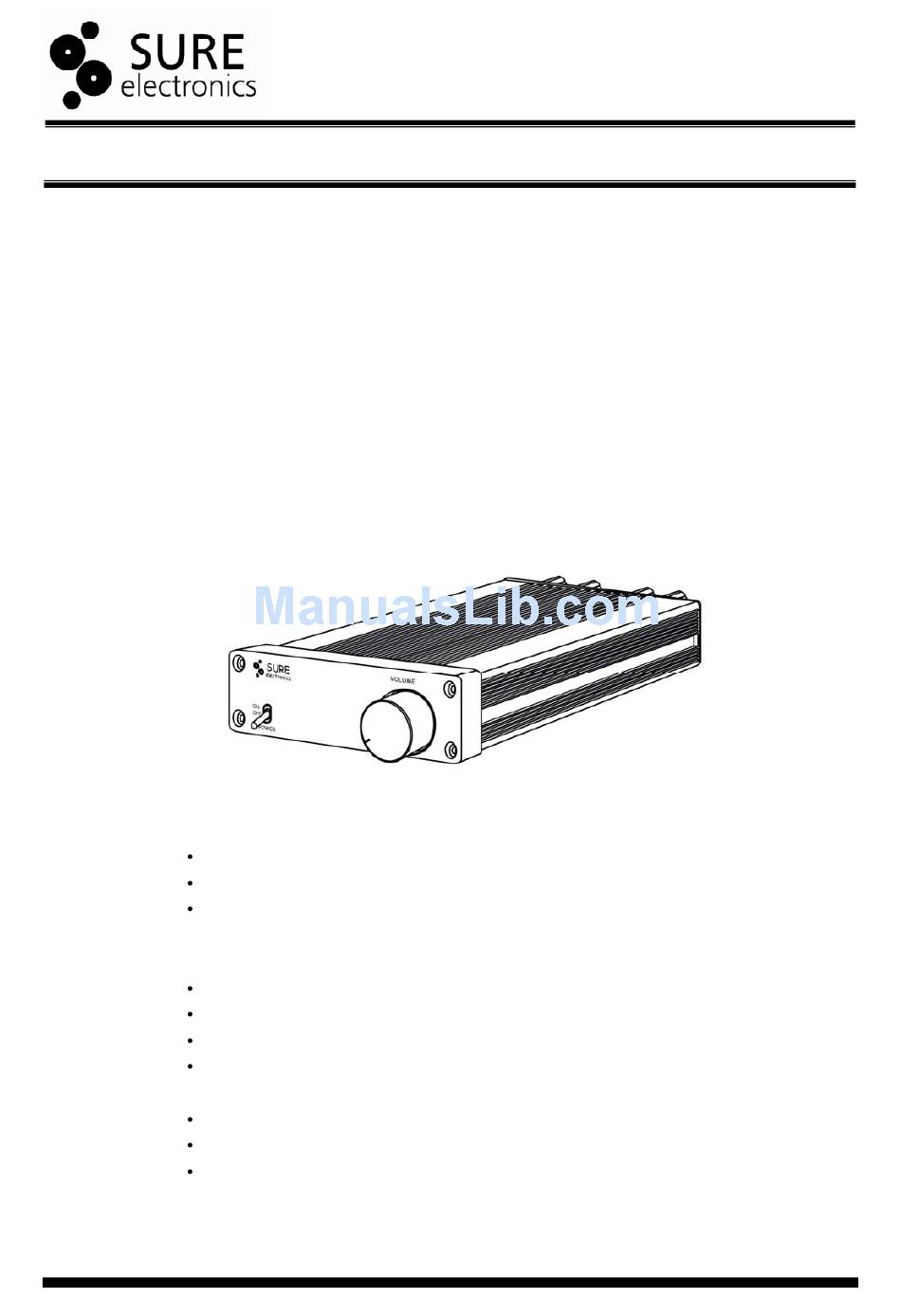

FIGURE 1-1 OVERVIEW
1.2 Accessory (Optional purchase)
1.3 Features
© 2004-2011 Sure Electronics Inc.
Chapter 1. Overview
27V 13A DC Switching Power Supply
3.5mm to RCA cable
5.5mm/2.1mm to 5.5mm/2.5mm tips connector
Class-D audio amplifier based on authentic TK2050 from Tripath
Wide working voltage range: 12 to 32V
Streamlined aluminum alloy housing makes it more durable
High-quality digital volume control IC ensures long time use and perfect sound
output
Frequency response: 20Hz to 20KHz (±3dB)
S/N rate: 100dB (A-weighted)
High Output Power
30W @ 6Ω, <1% THD+N
40W @ 8Ω, <3% THD+N
100W @ 4Ω, <10% THD+N
2 X 100WATT CLASS-D AUDIO
AMPLIFIER - TK2050
USER'S GUIDE
AA-AB32183_Ver1.0_Page 1
