Chart/Chart Combo View

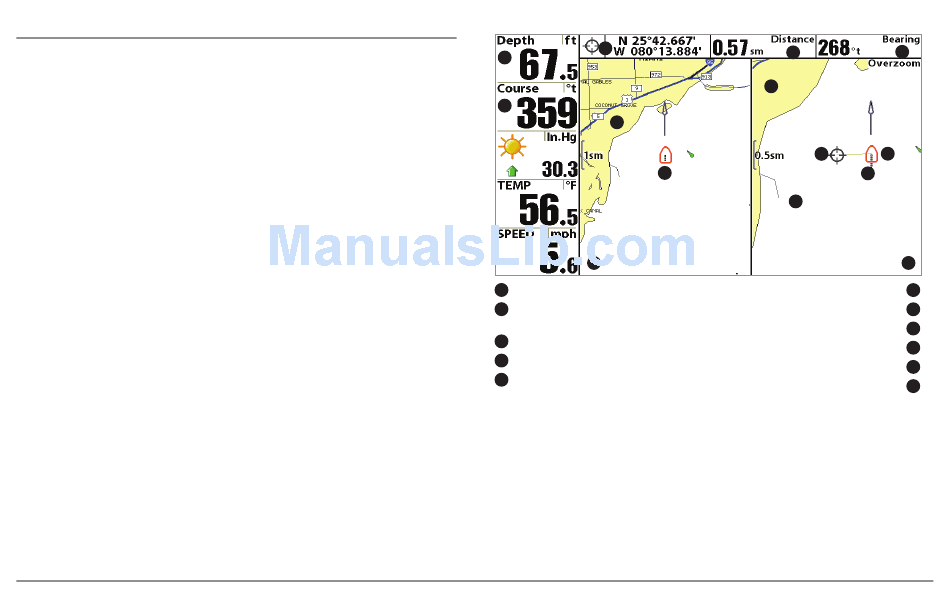

Chart/Chart Combo View shows two versions of the Chart view in a
combination split screen, so that you can see the position of the boat on one
side while you zoom in or perform other functions on the other. You can
perform any of the functions for the Chart view, but only on the side of the
view you have selected as the active side (see Sonar X-Press™ Menu:
Active Side or Navigation X-Press™ Menu: Active Side for more
information). A green arrow points to the side that is active. You can also
adjust the size of the left side of a split screen (see Sonar X-Press™ Menu:
Split Position or Navigation X-Press™ Menu: Split Position for more
information).
NOTE: See Chart View for more information about each side of this view.
6
1
2
9
3
1
Depth
2
Course: Direction that boat is travelling
relative to North Reference
3
Chart Window 1
4
Boat Icon
5
Track (Breadcrumb Trail)
52
Chart/Chart Combo View
7
9
10
4
5
Latitude and Longitude Position of Cursor
Distance to the Cursor
Bearing to the Cursor
8
4
5
11
6
7
8
9
Cartography
10
Active Cursor
11
Chart Window 2
