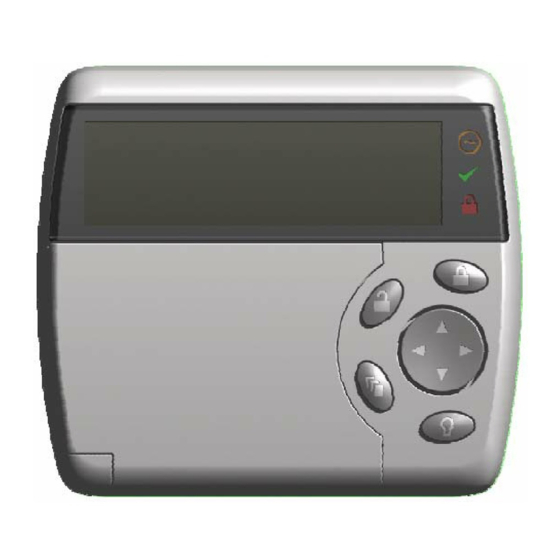

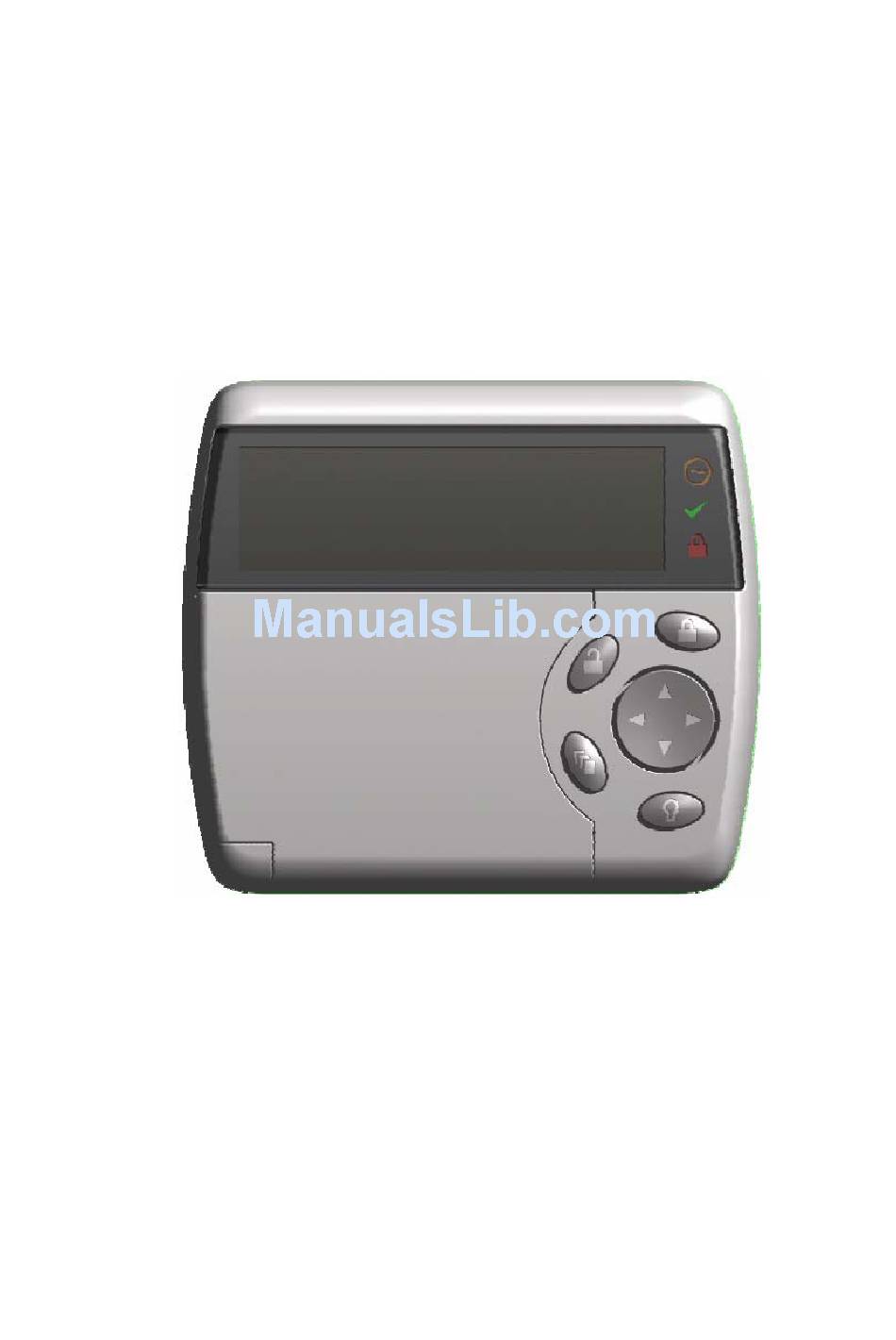

  • Page 1 EliteSuite LCD Keypad User Manual...
  • Page 2 PUBLICATION INFORMATION 5152 First Publication 7075 Update to User Programming & Options Selection EliteSuite™ User Manual...

  • Page 3: Table Of Contents

    DISABLE AUDIBLE OUTPUT ............22 MESSAGES ................23 PANIC ALARM................24 FIRE ALARM ................24 CONFIGURATION ..........26 ZONE DESCRIPTION..............26 FIRE ZONE................. 26 ONE KEY ARMING ............... 27 PANIC KEYS ................27 TIMERS ..................27 USERS ..................28 EliteSuite™ User Manual...

  • Page 4: Introduction

    INTRODUCTION Your suite has been equipped with the EliteSuite™ Security System. The EliteSuite™ Security System will give you peace of mind by providing reliable security protection. The EliteSuite™ System is an advanced technology security system specifically designed to enhance the functionality of condominium and apartment security with flexible local monitoring and offsite communication.

  • Page 5: Operation

    Refer to the system configuration tables in section 0 on page 26. INDICATOR LIGHTS The EliteSuite™ LCD keypad features three status indicator lights showing the condition of the EliteSuite™ Security System. Power / Trouble Indicator...

  • Page 6: Visual Display

    All messages are shown on the LCD screen. AUDIBLE TONE When you press a key on the EliteSuite™ LCD keypad a short audible tone is generated. Other tones are generated when certain functions are used, you should be familiar with the following audible tones.

  • Page 7: Alarm Memory

    ALARM MEMORY All zones that generate an alarm will be stored in the memory of the EliteSuite™ Keypad. If an alarm has occurred on your system, the display will scroll between the default display and the following screen:...

  • Page 8: Trouble Display

    TROUBLE DISPLAY The EliteSuite™ Security System continually monitors five system trouble conditions that can occur on your system. trouble conditions cleared automatically by the system when the fault is rectified. It is recommended that you inform your property manager or security company if a trouble condition occurs.
  • Page 9 Cover Tamper The cover of the EliteSuite™ system is open and may have been damaged. Contact the property manager or security installation company to arrange for your system to be serviced.

  • Page 10: Master Code

    USER CODES User Codes are personal identification numbers that allow you to enter certain programming modes, arm or disarm your EliteSuite™ system as well as activate or deactivate home automation functions. EliteSuite™ system supports up to eight user codes. MASTER CODE By default User 01 is a master code for your system.

  • Page 11: User Setup

    PROGRAMMING USER CODES Your EliteSuite™ system uses four digit user codes, where each digit can be any value from 0 to 9. Avoid programming simple or obvious user codes, such as part of your telephone number or address and codes such as 1234, 1111 or 1212.
  • Page 12 [****] Using the keys, enter the new code for the user and then press the enter key. The EliteSuite™ keypad will then prompt for confirmation of the user code. Repeat the user code and press the enter key to confirm.

  • Page 13: Modifying User Options

    The User Option menu contains options for arming, disarming and door latching for the optional Card Reader interface. If your EliteSuite™ system is not equipped with a Card Reader interface, changes to these options will have no effect. From the User Setup Menu (see section 0 to access), press...
  • Page 14 Option 3 – Single Badge Disarming For Card Reader Interface Equipped Systems Only Enabled allows the selected user to disarm the EliteSuite™ system by presenting the card programmed for that user at the Card Reader. Disabled will allow only unlocking of the...
  • Page 15 Option 4 – Triple Badge Arming For Card Reader Interface Equipped Systems Only Enabled allows the selected user to regular arm the EliteSuite™ system by presenting the card programmed for that user at the Card Reader three times in quick succession.
  • Page 16 For Card Reader Interface Equipped Systems Only Enabled allows the selected user to hold a door open for 4 hours upon presenting their card 3 times in quick succession. Disabled prevents triple card presenting from latching the door open. EliteSuite™ User Manual...

  • Page 17: User Card Numbers

    Numbers without a card reader interface installed in your EliteSuite™ system will have no effect. The EliteSuite™ Alarm system is able to be interfaced with a EliteSuite™ Card Reader device to provide proximity card access to your condominium. If the Card Reader interface...
  • Page 18 When at the Facility Number entry screen, present the new user card at the installed Card Reader. The Facility and Card Numbers will be updated in your EliteSuite™ system and the new Facility Number will be displayed. Press the EliteSuite™ User Manual...
  • Page 19 The EliteSuite™ keypad will then show the updated Card Number, press the enter again to confirm. Deleting a User Card To delete a user Card Number, follow the same procedure to program the Facility and Card Number, and when the old...

  • Page 20: Arming/Disarming

    ARMING/DISARMING To take full advantage of your EliteSuite™ System, you should familiarize yourself with different arming methods. EXIT DELAY After entering a valid arming sequence the exit delay time will provide you with enough time to exit the protected area before the system arms.

  • Page 21: Regular Arming

    Stay Arming Your System 1. Check that all zones that are not stay zone(s) are closed and ready to arm. 2. Press the stay key then enter your [USER CODE]. 3. The exit delay will start. EliteSuite™ User Manual...

  • Page 22: Force Arming

    Force Arming Your System 1. Check that all zones that are not force zone(s) are closed and ready to arm. 2. Press the force key then enter your [USER CODE]. 3. The exit delay will start. EliteSuite™ User Manual...

  • Page 23: Bypassing Zones

    Bypass Zone Recall After disarming the system, the bypass entries are erased. The Bypass Recall Feature reinstates the previous bypass entries saved in memory. This eliminates the need to EliteSuite™ User Manual...

  • Page 24: One Key Arming

    (i.e. cleaners) to arm without giving them access to any other alarm system operations. One key arming MUST be enabled by your property manager or installation company. Refer to the system configuration table on page 27. EliteSuite™ User Manual...

  • Page 25: Special Features

    SPECIAL FEATURES The EliteSuite™ System offers many unique features. CHIME ZONES A chime enabled zone will generate an audible tone every time that the zone opens. The chime feature is excellent for a front door. Chiming Zones 1. Press the menu key then enter your [USER CODE].

  • Page 26: Messages

    Up to four messages can be stored by the EliteSuite™ system. A new message that has been sent to your system is announced by an audible tone and the text "New Message [MENU] To View".

  • Page 27: Panic Alarm

    27. FIRE ALARM When a fire alarm occurs, the EliteSuite™ will emit three audible tones at 2 second intervals until reset by entering a valid user code. If the zone is a delay fire zone, there is a delay of thirty seconds before the system contacts the security company or property manager.
  • Page 28 30 seconds. Pressing any key on the keypad during the first 30 seconds will silence the alarm for 90 seconds. Fire Alarm functions MUST be enabled by your property manager installation company. Please refer system configuration table on page 26. EliteSuite™ User Manual...

  • Page 29: Configuration

    CONFIGURATION The EliteSuite™ system has many options that are enabled by your installer. The following lists the options and how your system is configured. Use this location to write your user names and any information about your system. ZONE DESCRIPTION The following lists the zones in your system and how each zone is configured.

  • Page 30: One Key Arming

    __ZONE 1__. Your exit time is programmed to be _030_ seconds. This is the time that you have to exit before the system arms. If an alarm occurs the siren/beeper will activate for _005_ minutes unless disarmed. EliteSuite™ User Manual...

  • Page 31: Users

    USERS The following table should be used to keep a record of the users programmed in your EliteSuite™ system. Record the name of the user only. Do not write the user code. All users can arm and disarm the system.
  • Page 32 EliteSuite™ User Manual...
  • Page 36 Unit C, 6 Ascension Place, Mairangi Bay, P.O. Box 302-340 North Harbour, Auckland, New Zealand. Phone: +64 (9) 476 7124 Fax: +64 (9) 476 7128 www.integratedcontroltechnology.com...
