Summary of Contents for ICT EliteSuite ELT-KLES
- Page 1 EliteSuite Eclipse LED Keypad User Manual...
- Page 2 The specifications and descriptions of products and services contained in this document were correct at the time of printing. Integrated Control Technology Limited reserves the right to change specifications or withdraw products without notice. No part of this document may be reproduced, photocopied, or transmitted in any form or by any means (electronic or mechanical), for any purpose, without the express written permission of Integrated Control Technology Limited.
-
Page 3: Table Of Contents
Contents Introduction ___________________________________________________________________ 5 Document Conventions ________________________________________________________________ 5 Operation _____________________________________________________________________ 6 Indicator Lights ________________________________________________________________ 7 Arm/Armed Indicator ___________________________________________________________________ 7 Ready Indicator _______________________________________________________________________ 8 Power/Trouble Indicator ________________________________________________________________ 8 Message Indicator _____________________________________________________________________ 8 Zone Display __________________________________________________________________________ 8 Audible Tone __________________________________________________________________ 9 ... - Page 4 Stay Arming _________________________________________________________________________ 17 Stay Arming Your System ___________________________________________________________ 17 Fast Stay Arming __________________________________________________________________ 17 Switching from Stay to Regular/Force Armed __________________________________________ 17 Instant Arming _______________________________________________________________________ 17 Force Arming ________________________________________________________________________ 17 Bypassing Zones _____________________________________________________________________ 18 One Key Arming ______________________________________________________________________ 18 Special Features ______________________________________________________________ 19 ...
-
Page 5: Introduction
Introduction Your building has been equipped with the EliteSuite Security System to give you peace of mind by providing reliable security protection. The EliteSuite system is an advanced technology security system specifically designed to enhance the functionality of condominium and apartment security with flexible local monitoring and offsite communication. The elegant and user friendly EliteSuite keypad maintains complete control of your residence providing easy to understand information. -
Page 6: Operation
Operation The following instructions provides you with information on how to use the EliteSuite keypad. When the text [USER CODE] is shown, it indicates that you are required to enter your user code. The default Master Code to gain access to your system is [1234]. For security reasons, this code must be changed. -
Page 7: Indicator Lights
Indicator Lights The keypad features several status indicator lights showing the condition of the system. Ready Armed/Alarm Power/Trouble Zone Message Indicator Lights Arm/Armed Indicator State Description The system is disarmed. The system is armed and you may enter your user code to disarm. -
Page 8: Ready Indicator
Ready Indicator State Description One or more zones in the system are open and the system cannot be regular armed All zones are closed and the system is ready to be armed Flashing The system has begun arming and is in exit delay mode Power/Trouble Indicator State Description... -
Page 9: Audible Tone
Audible Tone When you press any key, a short audible tone is generated. Other tones are generated when certain functions are used. You should be familiar with the following audible tones. Confirmation Tone When an operation (arming/disarming) is successfully entered on the keypad, or when the system switches to a new status/mode, the keypad generates a series of four audible tones. -
Page 10: Keypad Operation

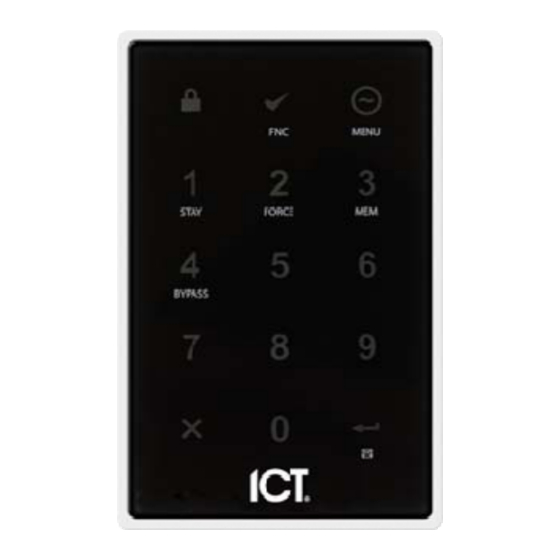

Keypad Operation The EliteSuite Keypad features 15 keys. Four of these keys have a second function associated with them. Second Function FNC Key ARM Key MENU Key Second Function Second Function STAY Key MEMORY Key Second Function FORCE Key Second Function BYPASS Key ENTER key Keypad Operation... -
Page 11: Second Function Keys
Second Function Keys Four of the number keys have a second function assigned. To access the second function, press the FNC key. Keys 1, 2, 3 and 4 will light up. Press the desired key to select the second function: ... -
Page 12: User Codes
User Codes User codes are personal identification numbers that allow you to enter certain programming modes, as well as arm or disarm your EliteSuite System. The EliteSuite System supports one Master code and seven User codes. Master Code By default User 01 has the master code for your system. A Master code can perform the arm or disarm functions and modify and delete any User code and change User options. -
Page 13: User Setup Menu
User Setup Menu To Enter the Setup Menu: Press the [MENU] key then enter your [USER CODE]. The ARMED status LED will begin to flash once you have successfully logged in, informing you that you are in programming mode. To Exit the Setup Menu ... -
Page 14: Modifying User Options
Modifying User Options From the User Setup Menu, press [MENU], 5, [USER NUMBER], [ENTER], 2 You will be presented with numeric LEDs that are lit to correspond with the current user options that are enabled. To toggle an option on or off, press the number corresponding to the option required. Once all options are correct press the ENTER key to confirm the selection. -
Page 15: Trouble Conditions
Trouble Conditions The EliteSuite Security System continually monitors four system trouble conditions that can occur on your system. When a trouble condition occurs the keypad can be programmed to generate an audible tone every 60 seconds. The trouble tone is canceled when the trouble condition is viewed or the condition is returned to normal. -
Page 16: Arming/Disarming
Arming/Disarming To take full advantage of your system, you should familiarize yourself with the different arming methods. Entry Delay To avoid the alarm triggering immediately once a zone is disturbed, it is possible to have some zones set with an Entry Delay. -
Page 17: Stay Arming
Stay Arming This method allows you to remain in the protected area while partially arming the system. Stay zones are zones that are bypassed when the system is stay armed. For example, when you go to sleep at night, doors and windows can be armed without arming other zones like motion detectors. -
Page 18: Bypassing Zones
Bypassing Zones Bypassing zones allows you to program the alarm system to ignore (deactivate) specified zones the next time the system is armed. For example, you may wish to bypass certain zones when workers are renovating part of your establishment. Once the system is disarmed, the bypass settings are erased. Press the FNC key then the BYPASS key (4) and enter your [USER CODE]. -
Page 19: Special Features
Special Features The EliteSuite System offers many unique features. Alarm Memory All zones that generate an alarm will be stored in the memory of the EliteSuite Security System. If an alarm has occurred on your system the device will show this by flashing the ARM LED once every 2.5 seconds. Viewing Alarm Memory Press the FNC key then press and hold the MEMORY key (3) for two seconds or press the FNC key then press the MEMORY key (3) and enter your [USER CODE]. -
Page 20: Messages
Messages The EliteSuite system message handling capabilities to allow communication with a property or facility manager. When a new message has been sent to your system, it is announced by an audible tone and the ENTER key will begin flashing. It is up to you to then contact the property manager for further communication. To clear the Message LED, log in to the Setup menu and press [MENU], 2, To choose another menu option press the MENU key, or to exit press the CLEAR key. -
Page 21: Configuration
Configuration The EliteSuite system has many options that are enabled by your installer. The following lists the options and how your system is configured. Use this location to write your user names and any information about your system. Zone Description The following lists the zones in your system and how each zone is configured. -
Page 22: Panic Keys
Panic Keys The following lists the panic key configurations that are enabled on your system Enabled Disabled [1] + [3] Panic Alarm [4] + [6] Medical Alarm [7] + [9] Fire Alarm Timers Your entry time is programmed to be seconds. -
Page 23: Warranty
ICT's obligation and liability under this warranty is expressly limited to repairing or replacing, at ICT's option, any product not meeting the specifications. In no event shall ICT be liable to the buyer or any other person for any loss or damages whether direct or indirect or consequential or... -
Page 24: Contact
Contact Integrated Control Technology welcomes all feedback. Please visit our website (http://www.ict.co) or use the contact information below. Integrated Control Technology P.O. Box 302-340 11 Canaveral Drive North Harbour Post Centre Albany Auckland North Shore City 0632 New Zealand Auckland... - Page 28 Disclaimer: Whilst every effort has been made to ensure accuracy in the representation of this product, neither Integrated Control Technology Ltd nor its employees, shall be liable under any circumstances to any party in respect of decisions or actions they may make as a result of using this information. In accordance with the Integrated Control Technology policy of enhanced development, design and specifications are subject to chnage without notice.
