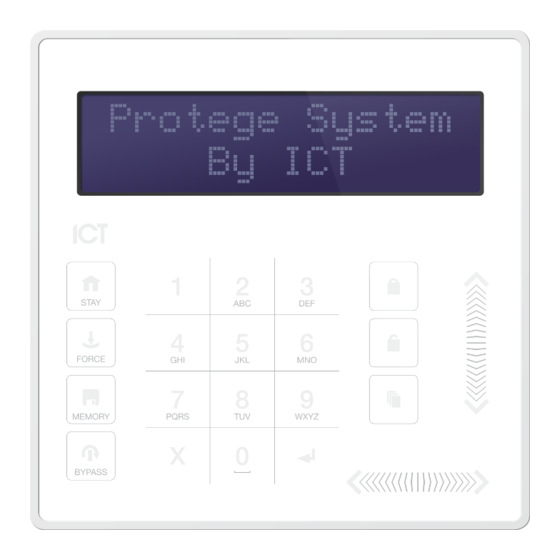

- Page 1 PRT-KLCS Protege Touch Sense LCD Keypad User Manual...
- Page 2 Protege® Logo are registered trademarks of Integrated Control Technology Limited. All other brand or product names are trademarks or registered trademarks of their respective holders. Copyright © Integrated Control Technology Limited 2003-2021. All rights reserved. Last Published: 30-Jul-21 10:26 AM PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual...
-
Page 3: Table Of Contents
Arming / Disarming Area Groups Trouble Display Alarm Memory Events Additional Features Offline Menu Access Unlocking a Door Disabling / Enabling the Audible Output Panic Alarms Fire Alarms Disclaimer and Warranty PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 4: Introduction
Before using your keypad we highly recommend you read this manual carefully and have your security professional or property manager explain basic system operation to you. For more information visit the ICT website or ask your system administrator. -
Page 5: Operation
(all inputs are secure). Enter your user code to arm. This indicator is programmable and may not function as described here. Verify the operation with your installation company or security professional. PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 6: Audible Feedback
If required, audible tones can be silenced by pressing and holding the [CLEAR] key for 3 seconds. This option must be enabled by your security professional or system administrator. PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 7: Keypad Functions
The arrow keys are used to scroll the menu, move the focus of a program window to the next screen, and move the cursor when programming or editing values. KEYS PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 8: Logging In To The Keypad
The period of inactivity is defined by the Time User is Logged In setting under the keypad programming. If no key presses are detected during this time, you will be logged out automatically and will need to log in again before you can proceed. PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 9: Expired Pin
If your re-entered new PIN does not match your original entry, you will be prompted to enter it again. Invalid ! Please re-enter When your valid PIN has been successfully re-entered it will be verified and saved. Verified Saving changes. PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 10: Changing Your Pin
If your re-entered new PIN does not match your original entry, you will be prompted to enter it again. Invalid ! Please re-enter When your valid PIN has been successfully re-entered it will be verified and saved. Verified Saving changes. PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 11: Arming / Disarming
If all the inputs are ready, the area goes into exit delay. Warehouse in EXIT delay Once the exit delay time has elapsed, the area is armed. Warehouse Arm complete PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 12: Disarming An Area
The bypass settings of an input are removed when all the areas the input is assigned to are disarmed. If the bypass is a latched bypass, the bypass settings remain until removed manually. PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 13: Stay Arming An Area
If all the inputs are closed, the arming process completes. Office Arm complete The area then goes into exit delay. Office in EXIT delay Once the exit delay time has elapsed, the area is stay armed. Office is STAY PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 14: Instant Stay Arming An Area
Once the inputs have been armed, the area goes into exit delay. Office in EXIT delay Once the exit delay time has elapsed, the area is force armed. Office is FORCE ARMED PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 15: Instant Force Arming An Area
Press any numeric key from [1] to [9] to select the number of hours to defer arming for. Then press [ENTER]. Arming will be deferred and the keypad will display: PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 16: Arming / Disarming Area Groups
Area group commands will only succeed if it is possible to control every area in the group. For example, if one area has an open input that prevents arming, none of the areas will be armed. PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 17: Trouble Display
To view the next trouble condition (if any are present) press [DOWN]. Press [â] to show next item Once finished, press [MENU] to exit the view mode. Press [MENU] to exit view mode PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 18: Alarm Memory
Press the [DOWN] key to view the next item stored in the alarm memory. Press [â] to show next item Once finished, press the [MENU] key to exit the view mode. Press [MENU] to exit view mode PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 19: Events
In this example, the full event shown is "Wed 13:27:41 User OFFLINE USER Logged In At KP039" which tells us that offline menu access was made on Keypad 39 at 1:27pm on Wednesday. PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 20: Additional Features
The [FUNCTION] can be used to unlock a specific door from the keypad. Depending on your installation, you may be able to do this without logging in to the keypad, or you may be required to enter your PIN, and then press the [FUNCTION] key. PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 21: Disabling / Enabling The Audible Output
A delayed fire input is automatically canceled if the smoke detector is reset within 30 seconds. Pressing any key on the keypad during the first 30 seconds will silence the alarm for 90 seconds. PRT-KLCS | Protege Touch Sense LCD Keypad | User Manual... -
Page 22: Disclaimer And Warranty
Integrated Control Technology Ltd nor its employees shall be liable under any circumstances to any party in respect of decisions or actions they may make as a result of using this information. In accordance with the ICT policy of enhanced development, design and specifications are subject to change without notice. - Page 23 In accordance with the ICT policy of enhanced development, design and specifications are subject to change without notice.
