Summary of Contents for ICT EliteSuite ELT-KLCS

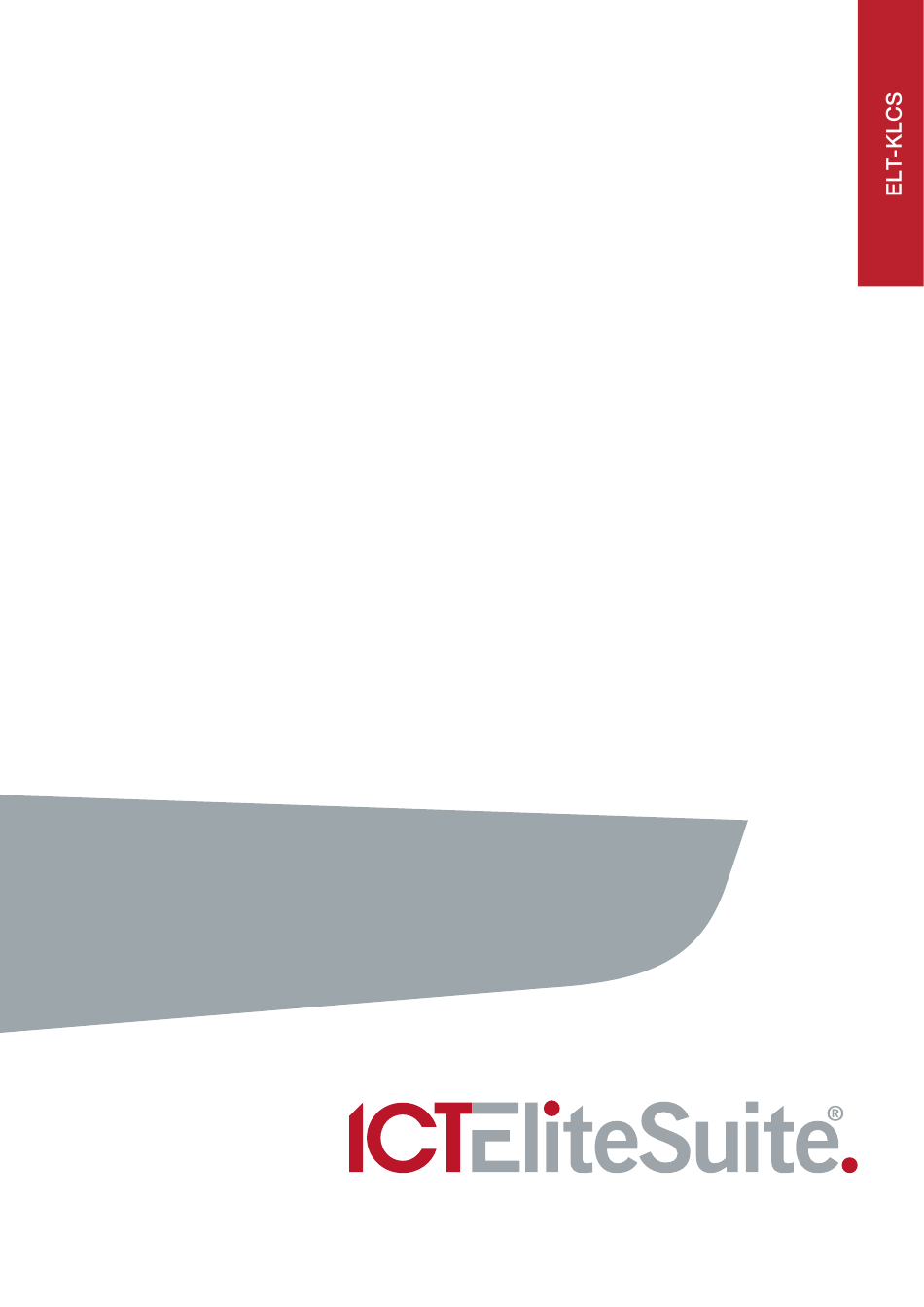

- Page 1 EliteSuite Touch Sense LCD Keypad User Manual...
- Page 2 The specifications and descriptions of products and services contained in this document were correct at the time of printing. Integrated Control Technology Limited reserves the right to change specifications or withdraw products without notice. No part of this document may be reproduced, photocopied, or transmitted in any form or by any means (electronic or mechanical), for any purpose, without the express written permission of Integrated Control Technology Limited.
-
Page 3: Table Of Contents
Contents Introduction ___________________________________________________________________ 5 Operation _____________________________________________________________________ 6 Visual Display _________________________________________________________________________ 6 Indicator Lights _______________________________________________________________________ 6 Audible Tone__________________________________________________________________________ 7 Alarm Memory ________________________________________________________________________ 7 Trouble Display _______________________________________________________________________ 7 Trouble List ___________________________________________________________________________ 8 User Codes ___________________________________________________________________ 9 Master Code __________________________________________________________________________ 9 Duress Code __________________________________________________________________________ 9 ... - Page 4 Panic Keys __________________________________________________________________________ 19 Timers ______________________________________________________________________________ 20 Users _______________________________________________________________________________ 20 Regulatory Statements _________________________________________________________ 21 Contact ______________________________________________________________________ 22 ELT-KLCS EliteSuite Touch Sense LCD Keypad User Manual | May 2017...
-
Page 5: Introduction
Introduction Your building has been equipped with the EliteSuite Security System to give you peace of mind by providing reliable security protection. The EliteSuite system is an advanced technology security system specifically designed to enhance the functionality of condominium and apartment security with flexible local monitoring and offsite communication. The elegant and user-friendly EliteSuite keypad maintains complete control of your residence providing easy to understand information. -
Page 6: Operation
Operation The following instructions provide information on how to use the EliteSuite keypad. When the text [USER CODE] is shown, enter your user code. The default Master Code to gain access to your system is [1234]. For security reasons, this code must be changed. Refer to Programming User Codes (see page 10) for details on changing codes. -
Page 7: Audible Tone
Audible Tone When you press any key, a short audible tone is generated. Other tones are generated when certain functions are used. You should be familiar with the following audible tones. Confirmation Tone When an operation (arming/disarming) is successfully entered on the keypad, or when the system switches to a new status/mode, the keypad generates a series of four audible tones. -
Page 8: Trouble List
Viewing System Trouble Information Press the [MENU] key, then enter your user code. Use the [UP] and [DOWN] keys to scroll to the TROUBLE menu, or press [4]. Use the [UP] and [DOWN] keys to view the troubles currently present in the system. To choose another menu option press [MENU], or to exit press the [CLEAR] key. -
Page 9: User Codes
User Codes User Codes are personal identification numbers that allow you to enter certain programming modes, arm or disarm your EliteSuite system, as well as activate or deactivate home automation functions. The EliteSuite system supports up to eight user codes. Master Code By default, User 01 has the master code for your system. -
Page 10: User Setup
User Setup To Enter the User Setup Menu: Press the [MENU] key, then enter your [USER CODE]. Use the [UP] and [DOWN] keys to scroll to the User Setup menu and press [ENTER], or press [5] to access the menu directly. The display will show: Select user To modify [01] You can now use the [UP] and [DOWN] keys to scroll the user(s) in the system. -
Page 11: User Options
User Options The User Options menu contains options for arming, disarming and door latching for the optional Card Reader interface. If your system is not equipped with a Card Reader, changes to these options will have no effect. From the User Setup Menu, press or use the [UP] and [DOWN] keys to scroll to the Options menu and press the [ENTER] key. - Page 12 Option 5 – Triple Badge Door Latching For Card Reader Interface Equipped Systems Only 3 Badge Latch Door Toggle: N Enabled allows the selected user to toggle a door lock open or closed upon presenting their card 3 times in quick succession.
-
Page 13: User Card Numbers
User Card Numbers These options only apply when using the optional Card Reader interface. If your system is not equipped with a Card Reader, changes to these options will have no effect. The system may be interfaced with an EliteSuite Card Reader to provide proximity card access to your building. If the Card Reader interface has been installed, each user can be assigned a unique card number that is stored on a proximity card or tag device. -
Page 14: Arming/Disarming
Arming/Disarming To take full advantage of your system, familiarize yourself with the different arming methods. Exit Delay After entering a valid arming sequence, the exit delay time will provide you with enough time to exit the protected area before the system arms. The keypad will generate a beep-beep tone repeatedly during the exit delay period. -
Page 15: Stay Arming
Stay Arming This method allows you to remain in the protected area while partially arming the system. Stay zones are zones that are bypassed when the system is stay armed. For example, when you go to sleep at night, doors and windows can be armed without arming other zones like motion detectors. -
Page 16: One Key Arming
Bypassing Zones Press the [BYPASS] key, then enter your [USER CODE]. Use the [UP] and [DOWN] keys to scroll to the zone(s) you want to bypass. Press the [BYPASS] key to change the bypass status of the selected zone. Press the [ENTER] key to store the bypass settings and exit. Press the [CLEAR] key to exit without making changes. -
Page 17: Special Features
Special Features The EliteSuite System offers many unique features. Chime Zones A chime enabled zone will generate an audible tone every time that the zone opens. The chime feature is ideal for a front door. Chiming Zones Press the [MENU] key then enter your [USER CODE]. Use the [UP] and [DOWN] keys to scroll to the chime menu or press [1]. -
Page 18: Panic Alarm
Erasing Messages To completely remove a message from memory, press the [FORCE] key while viewing the message. Panic Alarm The EliteSuite system can provide three panic alarms that immediately generate an alarm after simultaneously pressing and holding two specific buttons for three seconds. Based on your needs, these panic alarms can generate audible alarms (sirens or bells) or silent alarms and can communicate specific messages to your monitoring station or property manager. -
Page 19: Configuration
Configuration The EliteSuite system has many options that are enabled by your installer. The following lists the options and how your system is configured. Use this location to write your user names and any information about your system. Zone Description The following lists the zones in your system and how each zone is configured. -
Page 20: Timers
Timers Your entry time is programmed to be seconds. This is the time that you have before an alarm is generated if you enter through the zone ZONE 1 Your exit time is programmed to be seconds. This is the time that you have to exit before the system arms. -
Page 21: Regulatory Statements
Regulatory Statements Federal Communications Commission (FCC) FCC Rules and Regulations CFR 47, Part 15, Class A. This equipment complies with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 22: Contact
Contact Integrated Control Technology welcomes all feedback. Please visit our website (http://www.ict.co) or use the contact information below. Integrated Control Technology P.O. Box 302-340 4 John Glenn Ave North Harbour Post Centre Rosedale Auckland North Shore City 0632 New Zealand... - Page 24 Integrated Control Technology Limited 4 John Glenn Avenue, Rosedale, Auckland 0632 PO Box 302-340, North Harbour, Auckland 0751, New Zealand Email: sales@ict.co Toll Free: (0800) 428 111 Phone: 64 (9) 476 7124 AMERICAS Integrated Control Technology (USA) LLC 5265 S Rio Grande Street, Suite 201, Littleton, CO 80120 Email: ussales@ict.co Toll Free: (855) 428 9111 Phone: 720 442 0767...
