ICT PRT-KLCS Quick Start Manual

Protege Touch Sense LCD Keypad
Quick Start Guide
1. Introduction

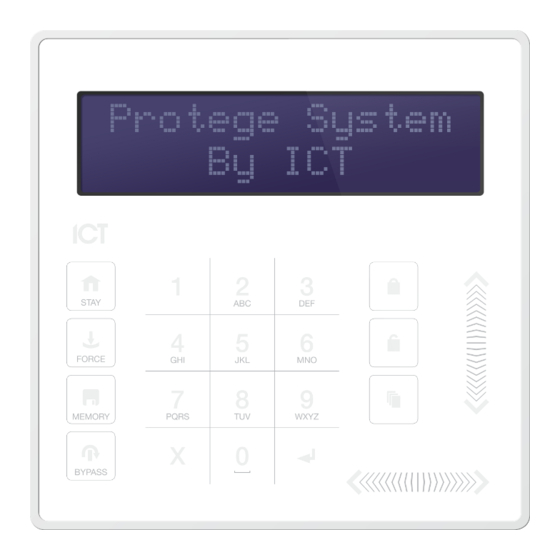

Thank you for purchasing the Protege Touch Sense LCD Keypad by
Integrated Control Technology. The Touch Sense Keypad provides
a sleek, user friendly human interface to the Protege Integrated
System, an advanced technology security product providing
seamless and powerful integration of access, security and building
automation.
When receiving the Touch Sense Keypad you should find the kit
contains the items listed below. Please note that if you do not have
the correct contents, you should contact your distributor
immediately.

Protege Touch Sense LCD Keypad

Protege Touch Sense LCD Keypad Quick Start Guide
 4 1K Ohm Resistors
 2 2K4 Ohm Resistors
For more information on the Touch Sense LCD Keypad and other
Integrated Control Technology products please visit the ICT website
(http://www.incontrol.co.nz).
2. Configuration
Before the keypad will communicate with the Protege System it
must be assigned an address.
To program an address using the system configuration menu, apply
power to the keypad and when the screen displays the keypad
version information, press the key then press
configuration menu is displayed. Scroll the available options by
pressing the up and down keys and to select the menu item.
The configuration menu can only be accessed when the
keypad powers up. It cannot be accessed when the keypad
is operational.
Keypad Address
The address selection sets the address of the keypad. This address
must be a unique address in the Protege System that is below an
address of 250.
Use the numerical keys 0 to 9 to program
Enter device
the address and press
address: 256
setting. To exit without making changes
press the key.
Display Contrast Setting
The display contrast setting adjusts the LCD display contrast
settings.
Use the left and right keys to adjust the
Contrast
contrast and press
[******* ]
To exit without making changes press the
key.
Default Configuration
The default setting resets the keypad to the factory default settings.
Press to default the keypad. To exit
Press [ENTER] to
default keypad.
without defaulting the keypad press the
key.
Keypad Version Information
The version menu option displays the version and build information
about the keypad. The version information is displayed on two lines
and can be scrolled. Press the key to exit.
3. Communication
The Protege System incorporates encrypted RS-485
communications technology for its module network. Each system
controller supports up to 250 keypads.
. A
Keypad Terminal
Connec on
Standard Communications Connection
4. End of Line Termination (EOL)
to save the
The EOL (End of Line) jumper should be placed in the ON position
when the keypad is inserted as the FIRST or LAST module on the
RS-485 network.
to save the setting.
5. Inputs
The keypad is capable of connecting to 4 zone inputs, where each
zone input can then be programmed to perform the required
function in the Protege System.
The following diagrams show examples of the zone wiring
configuration settings that can be programmed under the Keypad
General Options settings. For more information please refer to the
Protege System Controller Reference Manual.
Power Supply for Network
System Controller Module Network
Devices Powering modules
Communica on Terminals.
on the system controller
+AUX-
Next modules
on network
EOL OFF EOL ON
EOL Jumpers
Zone 2
N.C Zone Contact
Zone 2 (3+4)
Zone 1 (1+2)
Zone 1
N.C Zone Contact
Common
Zone Input (No Resistors)
