6. Using the Smart KVM Extender as an Extender

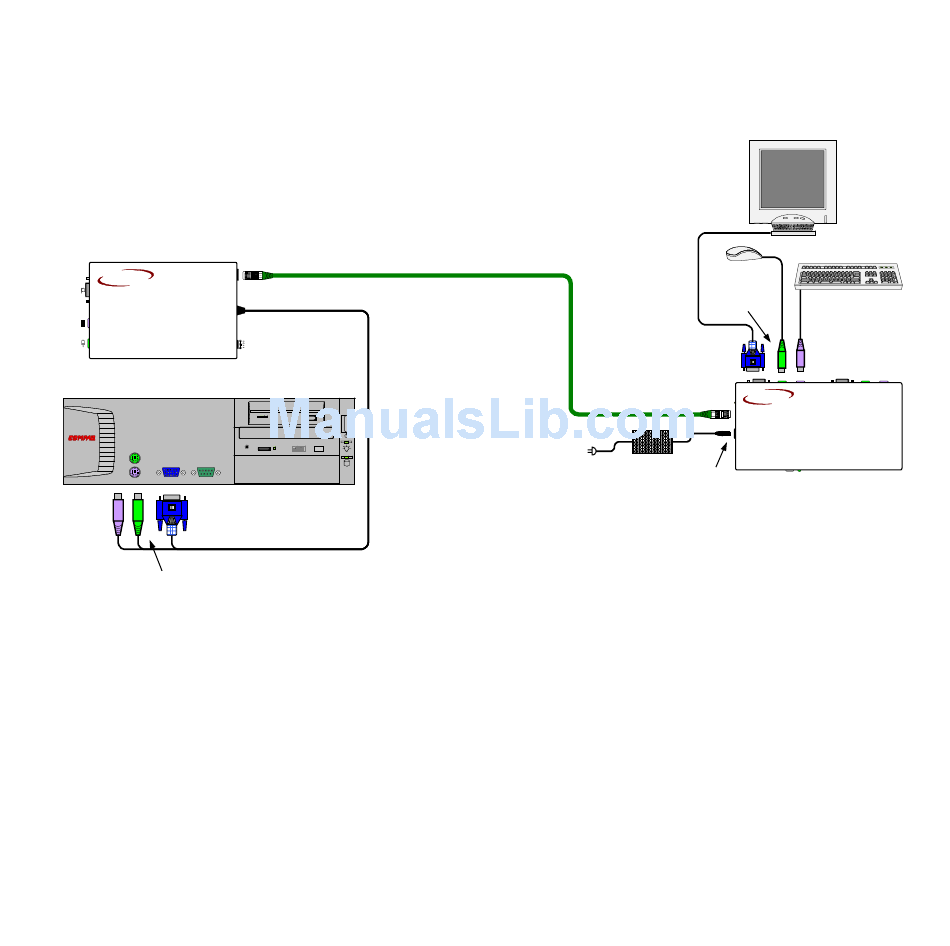

Connect the system as in Figure 8 to use the Smart KVM Extender as an Extender.
Extend the KVM workstation from the computer up to a distance of 110m/360ft.
Connect the system as described below.
Transmitter
CAT5
S M A R T
Extender
MINICOM
TRANSMITTER
www.minicom.com
Computer
DESKPRO
To
To Video card
Keyboard
port
To Mouse port
To System port
SD
Ω
Figure 8 The Smart KVM Extender as an Extender
CAT5 FTP cable
Up to 110m / 360ft
To User Monitor port
To wall
socket
6
To User
Mouse
port
CAT5
To System port S M A R T
Extender
Power
To
RECEIVER
adapter
Receiver
Power
port
SD
P110
To User
Keyboard port
MINICOM
www.minicom.com
