14. Cascading Smart Extenders

Cascade two or more Smart Extenders to get more than one remote workstation

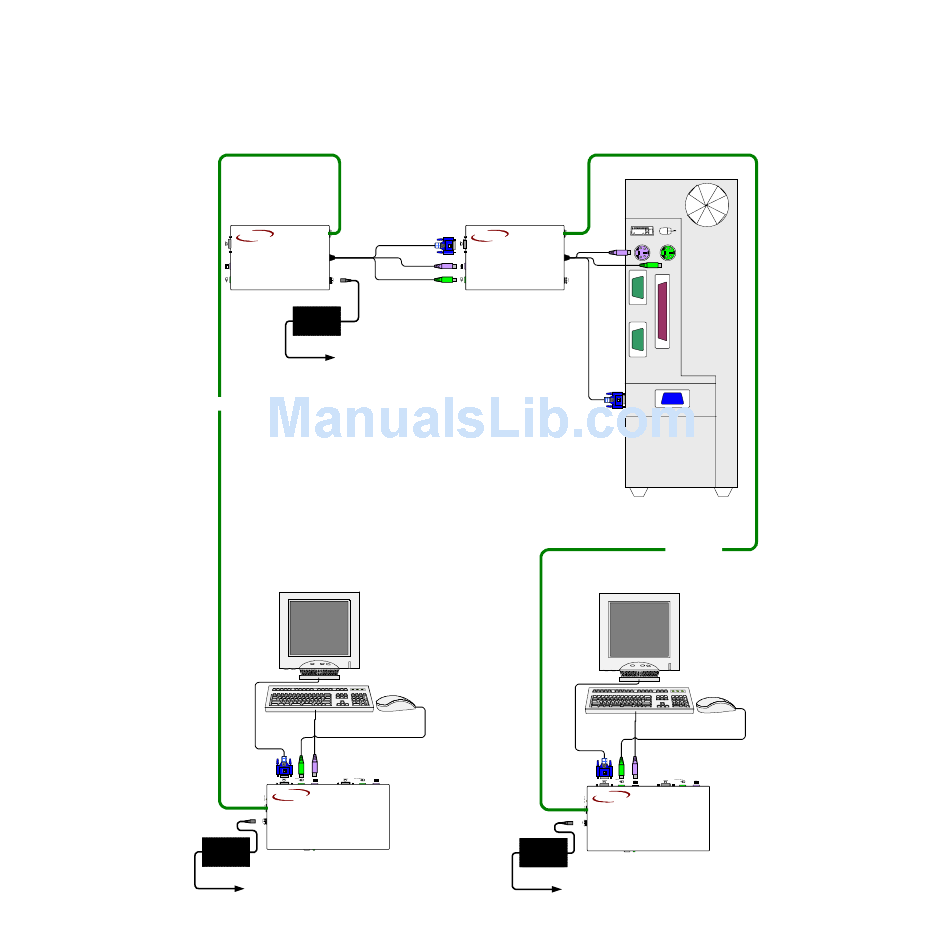

working from one computer. One possible configuration is shown on the diagram
below.
