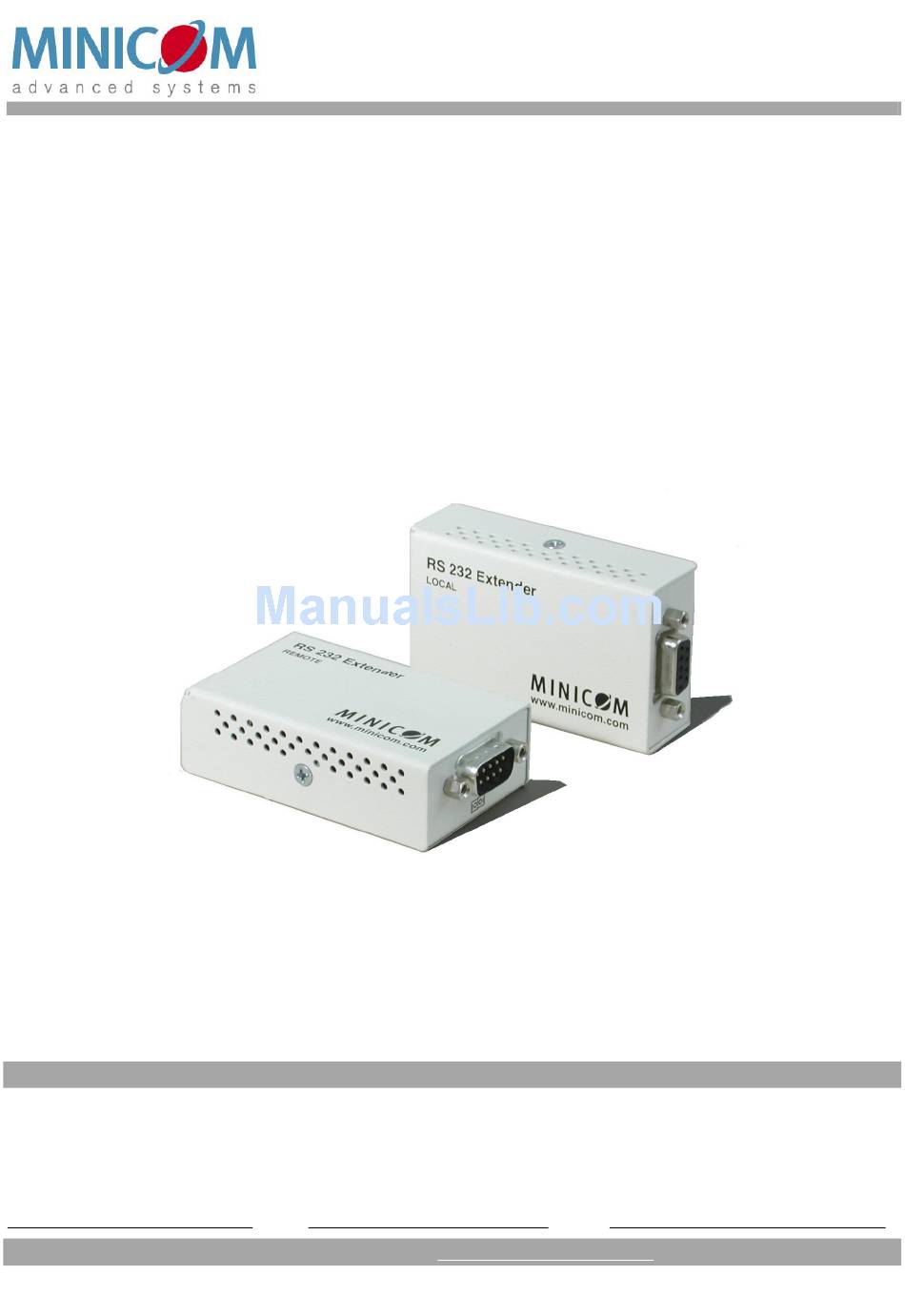

Quick Installation Guide
International HQ
Jerusalem, Israel
Tel: + 972 2 535 9666
minicom@minicom.com
RS 232 Extender
w w w . m i n i c o m . c o m
North American HQ
Linden, NJ, USA
Tel: + 1 908 486 2100
info.usa@minicom.com
Technical support - support@minicom.com
European HQ
Dübendorf, Switzerland
Tel: + 41 44 823 8000
info.europe@minicom.com
5UM40097 V2.6 6/08
Advertisement
Related Manuals for Minicom RS 232
Summary of Contents for Minicom RS 232
- Page 1 RS 232 Extender Quick Installation Guide w w w . m i n i c o m . c o m International HQ North American HQ European HQ Jerusalem, Israel Linden, NJ, USA Dübendorf, Switzerland Tel: + 972 2 535 9666...
-
Page 2: System Components
RS 232 EXTENDER Introduction The RS 232 Extender from Minicom extends control and remote access of any RS232 device by up to 1,000m / 3,300ft. For example use it to give remote access from a touch screen, or Creston presentation unit or to transfer data between computers Features •... - Page 3 INSTALLATION GUIDE Connecting Power adapters Up to 330m / 1,000ft connect a Power adapter to either the Local or Remote RS 232 Extender unit. For distances of more than 330m / 1,000ft connect a power adapter to both the Local and Remote RS 232 Extender units.
-
Page 4: Technical Specifications
RS 232 EXTENDER Technical specifications System System cable CAT5 UTP/ FTP 2x4x24 AWG Solid Wire cable Maximum distance 1000m/3300ft System order number 0VS22013 Shipping weight 680g Warranty 3 years Operating temp. 0ºC to 40ºC/32ºF to 104ºF Storage temp. -40°C to 70°C/-40ºF to 158ºF...
