Summary of Contents for Monitor Audio Vector V10
- Page 1 O w n e r s M a n u a l...
-
Page 3: Table Of Contents
Contents Important Safety Instructions Safety Instructions For Fixing Your Vector Loudspeakers to a Wall Re-cycling RoHS Declaration of Conformity Background Introduction to Vector Optimum Speaker Placement Specifications Guarantee and Service Claims under this Guarantee Data Protection Owner Information EC Declaration of Conformity... -
Page 4: Important Safety Instructions
Great care and attention has gone into the materials chosen to produce the Vector Series. A gentle wipe with a dry, clean cloth is all that is required to remove any dust. Treat them as you would a fine piece of furniture because that is how they have been designed. -
Page 5: Safety Instructions For Fixing Your Vector Loudspeakers To A Wall
Monitor Audio do not supply bespoke brackets or fixings for the Vector Series. However, we can supply brackets that are sold separately. The threaded insert on the back of the V10 and V20 is a 1/4” UNC thread. The screws must not exceed 18mm (3/4”). -
Page 6: Introduction To Vector

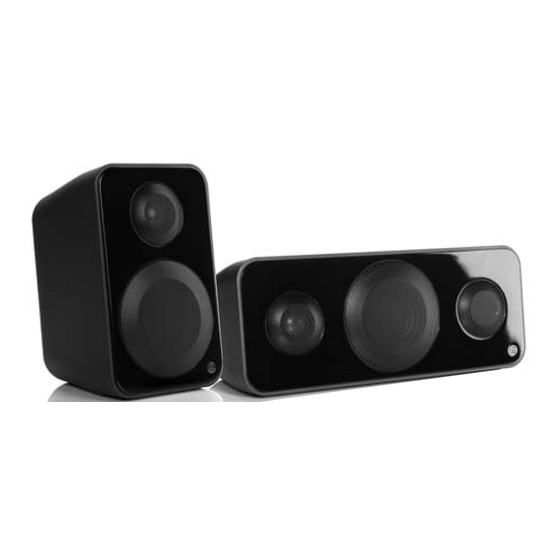

® Vector V10 Although the Vector V10 is designed primarily for use with the V20 and VW-8 in an ultra- compact multi-channel home cinema package, its unusually deep bass makes it ideal for stereo sound around the home. It delivers clear highs and punchy bass lines wherever it’s installed. A woven wire mesh grille protects the drivers and provides a stylish contrast to smooth profile of its cabinet. -
Page 7: Optimum Speaker Placement
Optimum Speaker Placement Centre Right Left 0° 22° 30° 90° Surround Surround 110° Left Right 135° 150° Rear Rear Surround Surround Left Right monitoraudio.co.uk... -
Page 8: Specifications
Specifications Model Vector V10 Vector V20 Frequency Response 65Hz - 30KHz 60Hz - 30KHz Sensitivity (1W @ 1m) 85dB 85dB Nominal Impedance 8 Ohms 8 Ohms Power Handling, Single (RMS) Power Handling, System (RMS) Recommended Amp 10 - 80W 10 - 80W... -
Page 9: Claims Under This Guarantee
Claims under this Guarantee The equipment should be returned in its original packaging to the original supplier where possible, or to any other authorised Monitor Audio dealer. If it is not possible to return the equipment by hand, then it should be sent carriage prepaid via a reputable carrier. If the original packing is not available replacement packaging can be purchased from Monitor Audio. -
Page 10: Ec Declaration Of Conformity
Rayleigh Essex SS6 7XJ England Declare in own responsibility, that the Vector products described in this manual is in compliance with Technical Standards/Council Directives: (LVD) 2006/95/EC Low Voltage Directive EN60065: 2002+A1: 2006 Safety requirements for mains operated electronic and related apparatus for household and similar use. - Page 11 monitoraudio.co.uk...
